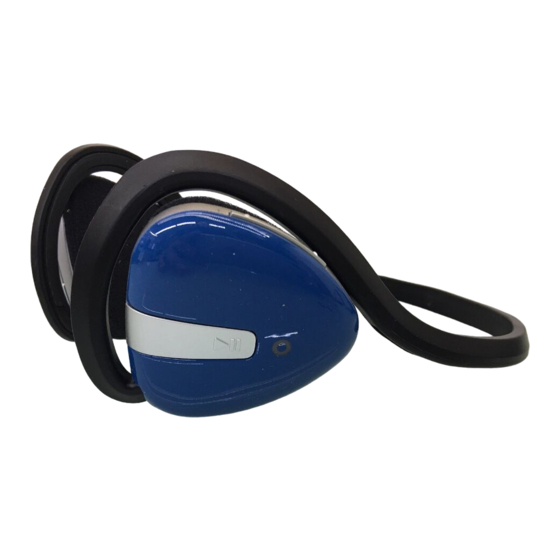

Insignia NS-CAHBT02-BL Quick Setup Manual

PACKAGE CONTENTS
• Bluetooth over-the-ear headphone • Sweatproof earpads
• USB charging cable • Quick Setup Guide
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then click Support & Service.
Enter NS-CAHBT02 in the box under Manual, Firmware, Drivers &
Product Information, then click ►.
FEATURES
• Sweatproof earpads for sports use
• Comfortable foam earpads
• Reflective headband
• Volume control
• Listen to music and talk on the phone wirelessly.
Music playback: 10 hours
• Echo cancellation and noise suppression
• Voice prompts and easy pairing
• High quality sound
CHARGING YOUR STEREO REPLACING THE EARPADS
1 Turn counter-clockwise to disassemble.
HEADPHONES
2 Take it out and replace with another pair of earpads.
• When the red indicator LED blinks three times every one
3 Turn clockwise to assemble.
minute, the battery is low. To charge the battery, plug the
microUSB charging cable into your computer and into the
microUSB port on your headphones. The red LED turns on to
indicate that the battery is charging and turns off when fully
charged.
Before using your new product, please read
these instructions to prevent any damage.
BLUETOOTH BASIC INDICATION
# DESCRIPTION FUNCTION
Bluetooth function indication
1 +/- Volume Up Press + to increase the volume.
Volume Down Press - to decrease the volume. ACTION OPERATION
2 Reflective strip Provides extra safety in low-light Power on Press and hold more than two seconds
conditions.
Power off Press and hold more than three seconds
3 Indicator LED Shows current status of the headphones. Pairing mode Press and hold more than four seconds in
power off mode
4 (Power/Talk/ Press to turn on your stereo headphones.
Play/Pause Press and release button
Play/Pause/ If you receive a phone call, press to talk.
Volume Up/Down Press and release + / - button
Pairing) button
5 Microphone Allows you to talk on the telephone.
Next Track/Previous Track Press and release / button
6 / Press to skip to the next track/fast
Fast Forward/Fast Rewind Press and hold / button
Next Track forward.
Incoming call
Previous Track Press to skip to the previous
track/fast rewind.
Answer call Press and release when a call is incoming
7 Micro USB port Plug the micro USB connector into this
Reject call Press and hold when a call is incoming
port to charge your headphones.
Redial Double press
Reset device list Long press button more than
10 seconds in power off mode
USING YOUR STEREO
HEADPHONES
PAIRING YOUR STEREO
Turning your stereo headphones on and off
HEADPHONES
1 Place the headphones around your neck.
Notes:
2 Press and hold the button for three seconds. The LED blinks blue
• Range is 33 feet (10 meters)
(when turned on) or red (when turned off) and the voice prompt says
• Supports easy pairing
"Power on", or "Power off. "
• Prompts you by saying "Device Connected, " when connected
• Supports a battery indicator icon on an iOS device
Pairing with a computer running Windows
Note: Before you pair the headphones with the computer, make sure that the
computer is equipped with Bluetooth. Refer to the computer' s documentation or
contact the computer manufacturer for more information. If your computer is not
LED INDICATION SOUND
Bluetooth compatible, install a Bluetooth USB adapter (dongle).
Blue LED lights for 1.5 seconds "power on"
1 Turn on Bluetooth on the computer. For instructions, see the
Red LED lights for 1.5 seconds "power off" computer' s documentation or contact the computer manufacturer.
2 Double-click the Bluetooth icon in the system tray, then click Add a
Blue and red LED blinking Two short beeps
alternately device (Add Wireless Device using Windows Vista).
3 With the headphones turned off, press and hold
The LED blinks blue and red alternately. Pairing mode is activated.
Two high beeps for maximum volume.
4 Double-click the INSIGNIA NS-CAHBT02 icon on the computer or
Two low beeps for minimum volume
highlight the icon, then click Next.
Note: If you are unable to locate the INSIGNIA NS-CAHBT02 icon, click the
Search Again button.
5 If required, enter 0000 (four zeros) in the Bluetooth security code
Blue LED blinks three times every Ring tone
five seconds when a call is received field, then click Next.
6 After the headphones have been paired, click Close. If you are using
One short beep
Windows XP, continue with steps 7 through 9.
One long beep
7 Select one of the Bluetooth hands-free types shown on the Add a
Two short beeps
Bluetooth Device Wizard screen, then click Next.
All LEDs turn off
8 Select the services shown on the wizard screen to use with your
Bluetooth headphones, then click Finish.
9 To connect the device, double-click the INSIGNIA NS-CAHBT02
Pairing with a cell phone or MP3 player Hands-Free Unit icon or the INSIGNIA NS-CAHBT02 Stereo
1 With your stereo headphones turned off, press and hold for four Audio icon.
Note: The headphones should be automatically selected as the default playback
seconds. The blue and red LEDs blink alternately.
device (Windows® 8, Windows® 7, or Windows Vista®) or the default recording
2 On your phone or MP3 player, select INSIGNIA NS-CAHBT02 from the
and playback device (Windows XP). To make those settings manually, refer to the
list of discovered devices, then enter the password 0000 (four zeros) (if
User Guide.
required) to pair your headphones.
For more information on pairing Bluetooth devices to your cell phone
or MP3 player, see the device' s documentation.
Note: After the headphones have been successfully paired with the cell phone or MP3
player, the headphones will automatically reconnect to the phone or MP3 player.
Quick Setup Guide |
Pairing with a Mac computer SPECIFICATIONS
Note: Before you pair the headphones with the computer, make sure that the
computer is Bluetooth compatible. Refer to the computer' s documentation or contact
Bluetooth version:
the computer manufacturer for more information. If your computer is not Bluetooth
Supported profiles:
compatible, install a Bluetooth USB adapter (dongle).
1 Turn on Bluetooth on the computer. For instructions, see the
Frequency spectrum:
computer' s documentation or contact the computer manufacturer.
Working distance:
2 Click the Bluetooth status menu.
3 Click Set up Bluetooth Device. The Bluetooth Setup Assistant opens. Operating temperature:
for four seconds. 4 Click Continue.
Operating time:
5 Select Headset as the device type, then click Continue.
6 With the headphones turned off, press and hold for four seconds.
The LED blinks blue and red alternately. Pairing mode is activated.
Standby time:
7 Select INSIGNIA NS-CAHBT02, then click Continue. The computer
gathers information. Size:
8 Click Continue.
9 Enter 0000 (four zeros) into the Passkey field, then click Continue.
Weight:
10 Click Quit to finish.
Note: To use the headphones, they must be selected as the default input and Average charging time:
output device on the computer.
11 Click System Preferences, then click Sound.
TROUBLESHOOTING
12 Under Input, select INSIGNIA NS-CAHBT02, then under Output,
• Reset your BT headphone
select INSIGNIA NS-CAHBT02.
• Plug micro USB cable for charging
For more information on using your headphones with Skype, refer to
your User Guide.
LEGAL NOTICES
FCC statement:
RESETTING YOUR STEREO
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
HEADPHONES
any interference received, including interference that may cause undesired operation.
FCC Caution:
• To reset your headphones, with your stereo headphones turned off,
Changes or modifications not expressly approved by the party responsible for compliance could void
press and hold for 10 seconds.
the user's authority to operate the equipment.
FCC Statement:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
NS-CAHBT02-BL/NS-CAHBT02-BK
Bluetooth Over-the-Ear Headphone
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, maybe cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
Bluetooth 4.1
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
A2DP, AVRCP, HFP, HSP
interference by one or more of the following measures:
2.4 ~ 2.4835 GHz ISM Band • Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Up to 33 ft. (10 m)
• Connect the equipment into an outlet on a circuit different form that to which the
receiver is connected.
23 ~ 122° F (-5 ~ 50° C)
• Consult the dealer or an experienced radio/TV technician for help.
RSS‐Gen & RSS‐247 Statement:
Talk: 10 hours
This device complies with Industry Canada licence‐exempt RSS standard(s).
Music: 10 hours, playback music
Operation is subject to the following two conditions: (1) this device may not cause
track
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Up to 250 hours
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
2.3 × 4.49 × 5.39 inches
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
(5.85 × 11.4 × 13.7 cm)
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
1.64 oz (46.5 g)
RSS-102 Statement
2.5 hours This equipment complies with Industry Canada radiation exposure limits set forth for an
uncontrolled environment.
Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites
établies pour un environnement non contrôlé.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
1-877-467-4289 (U.S. and Canada)
01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
©2016 Best Buy. All rights reserved.
Made in China
V2 ENGLISH 16-0289
