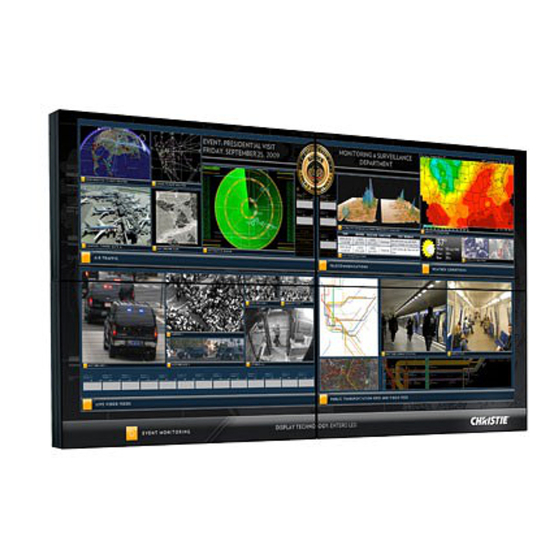

FHD552-X LCD Panel
S e r v i c e M a n u a l
020-000757-01

Advertisement

Table of Contents
loading

Related Manuals for Christie FHD552-X

Summary of Contents for Christie FHD552-X

  • Page 1 FHD552-X LCD Panel S e r v i c e M a n u a l 020-000757-01...
  • Page 2 The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not apply to any product sold by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office in the country where the end user is located or (ii) the required international warranty fee has been paid.
  • Page 3 Addendum Translated copies of this document are provided on the CD in the back of this document. The CD may also contain additional product documentation. Read all instructions before using or servicing this product. 本 文档 的翻译副本在本文档背面的  C D  上提 供。 该  CD   中还 可能 包含 其他 产品 文 档...

  • Page 4: Table Of Contents

    Troubleshooting ..........13 FHD552-X LCD Panel Service Manual...

  • Page 5: Package Handling

    1. Before unpacking, prepare a stable, level and clean surface near a wall outlet for your LCD panel. 2. Set the box in an upright position and pull out the white carton locks. FHD552-X LCD Panel Service Manual 020-000757-01 Rev. 1 (09-2014)

  • Page 6: Handling And Care

    Use a cloth dampened with water or methyl alcohol to clean the screen surface. We recommend that you keep the protective plastic sheet shipped with the panel to replace it each time the panels are packed and shipped. FHD552-X LCD Panel Service Manual 020-000757-01 Rev. 1 (09-2014)

  • Page 7: Replacement Parts

    Components must be replaced with exact equivalents. Failure to do so may result in unsafe operation. Index of Parts and Modules Procedure on Part Number Description page... 003-121064-01 AD Board 003-121065-01 Power Supply 003-121066-01 Fan 12V 003-004669-01 Remote Control FHD552-X LCD Panel Service Manual 020-000757-01 Rev. 1 (09-2014)

  • Page 8: Replacement Procedures

    Always wear gloves and follow proper ESD precautions when handling, servicing, or cleaning internal projector components. Tools Required • Phillips™ screwdrivers: #2 and #3 • 3/16 Hex Driver • 6 mm Ball Driver • Side Cutters • Magnetizer FHD552-X LCD Panel Service Manual 020-000757-01 Rev. 1 (09-2014)

  • Page 9: Remove The Rear Cover

    Remove the power supply unit 1. Remove the rear cover. Remove the rear cover on page 9. 2. Label the cable connections to the power supply unit. 3. Disconnect the four cable connections. FHD552-X LCD Panel Service Manual 020-000757-01 Rev. 1 (09-2014)

  • Page 10: Replace The Ad Board

    Replace the AD board 1. Remove the rear cover. Remove the rear cover on page 9. 2. Label the cable connections to the AD board. 3. Disconnect the 12 cable connections. FHD552-X LCD Panel Service Manual 020-000757-01 Rev. 1 (09-2014)

  • Page 11: Replace The Fans

    8. Reconnect all cable connections. Replace the Fans 1. Remove the rear module assembly. Remove the rear cover on page 9. 2. Label the fans and the fan connections before removing them from the chassis. FHD552-X LCD Panel Service Manual 020-000757-01 Rev. 1 (09-2014)
  • Page 12 The tie wraps may need to be pried off the cover. 5. Replace the fan and damaged tie wraps. When replacing the fan, ensure the label of the fan is facing the grill of the cover. FHD552-X LCD Panel Service Manual 020-000757-01 Rev. 1 (09-2014)

  • Page 13: Maintenance And Troubleshooting

    Troubleshooting Maintenance The FHD552-X LCD panel does not require any routine maintenance. There are no user-serviceable or -replaceable parts. Unless you are a qualified, factory-trained technician, do not attempt to repair or replace any system component yourself. You will void the product warranty if you do...
  • Page 14 • Select a compatible resolution and display correctly. video card in the computer are not vertical frequency. compatible with the display. • Clock and Phase settings need • Adjust Clock and Phase settings. adjustment. FHD552-X LCD Panel Service Manual 020-000757-01 Rev. 1 (09-2014)
  • Page 15 Corporate offi ces Worldwide offi ces USA – Cypress Australia Eastern Europe and India Singapore ph: 714-236-8610 ph: +61 (0) 7 3624 4888 Russian Federation ph: +91 (080) 6708 9999 ph: +65 6877-8737 ph: +36 (0) 1 47 48 100 Canada –...
