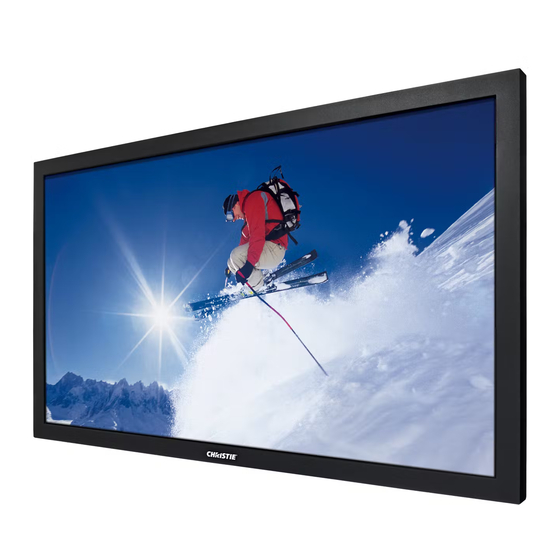

LCD Panel FHD551-W
U s e r M a n u a l
020-100996-01

Advertisement

Table of Contents
loading

Related Manuals for Christie FHD551-W

Summary of Contents for Christie FHD551-W

  • Page 1 LCD Panel FHD551-W U s e r M a n u a l 020-100996-01...
  • Page 3 LCD Panel FHD551-W U S E R M A N U A L 020-100996-01...
  • Page 4 Performance specifications are based on information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose.
  • Page 5 Addendum The CD included with this printed manual contains an electronic copy in English. Please read all instructions before using or servicing this product. 手册中 包含的光盘，带有着中文 的电 子副 本， 使用 或维 修本 产品 前， 请仔 细 查 阅 所 有的指 示。 Le DC fourni avec ce manuel imprimé...

  • Page 7: Table Of Contents

    Swap between the Main Audio and the PIP Audio ......18 LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)
  • Page 8 Parts ............46 LCD Panel FHD551-W User Manual...

  • Page 9: Important Safety Information

    • Position all cables where they cannot contact hot surfaces, be pulled, or tripped over. • Do not overload power outlets and extension cords. • Do not operate if the LCD panel power cord or power outlet appear damaged. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 11: Introduction

    Introduction The LCD Panel FHD551-W provides high-definition resolution at 1920 x 1080 with a weather-resistant design, to allow for outdoor installation. This user manual provides data about the LCD panel, installation instructions, operation, care, and troubleshooting tips. Features • High brightness (700 nits, typ.) •...

  • Page 12: What's In The Box

    Introduction What’s In The Box? Always use the accessories recommended by Christie Digital, for compatibility. Verify that you have all these items before installing the LCD panel. • Remote Control • LCD Panel FHD551-W • (2) AAA Batteries • Country-Specific Power Cord (shipped separately) •...

  • Page 13: Controls And Indicators

    Introduction Controls and Indicators This section describes the LCD panel FHD551-W controls and indicators. LCD Panel Controls The LCD panel controls are located at the back of the LCD panel. Remove the exterior and interior I/O panels for access. Button...

  • Page 14: Connection Panel

    HDMI 2 Composite Video (RCA) HDMI 1 Audio In (RCA - S-Video/ DisplayPort Component Video)) Audio Out (3.5 mini jack) AC IN (power cord) Infrared Extender (3.5 mini jack) Power On/Off Switch LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 15: Remote Control

    MENU and Opens the onscreen display (OSD) menu or arrow keys selects the previous menu if already open. The arrows provide menu navigation and setting adjustment. EXIT Close the OSD menu. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 17: Installation

    Transport the LCD panel upright with the proper packaging. Do not place the LCD panel on its side. Dropping the panel or applying unnecessary force to the sides of the bezel results in permanent damage. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 18: Unpack The Lcd Panel

    7. With two people, lift the LCD panel out of the bottom foam cushion. 8. Remove the accessory bag. Top of the carton Top foam cushion LCD panel Packing bag Accessory bag Bottom foam cushion Lock handle (1 of 6) LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 19: Lcd Panel Setup

    13. 6. Close the LCD panel connections panel. Close the Connections Panel on page 13. 7. Install the remote control batteries Connect Power to the LCD Panel on page 13. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 20: Rotate The Lcd Panel

    1. Rest the LCD panel on a soft surface with the screen down. 2. Remove 4 screws from the exterior input and output (I/O) cover. 3. Remove the external I/O cover. 4. Remove the internal I/O cover. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 21: Connect Power To The Lcd Panel

    2. Place the exterior I/O cover over the interior I/O cover and secure it with 4 screws. Insert the male end of the power cable into an AC wall socket. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 22: Install The Remote Control Batteries

    7. Unplug the power cable and remove the cable from the interior I/O cover. 8. Hold the interior I/O cover against the LCD panel. 9. Place the exterior I/O cover over the interior I/O cover and secure in position using 4 screws. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 23: Operation

    5. Press  to select an input source: DisplayPort HDMI 1 Composite Video HDMI 2 S-Video Component 6. Press ENTER to save changes. 7. Press EXIT to exit the OSD menu. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 24: Pip

    Press P-SOURCE. b. Press  or  to select the PIP source. c. Press ENTER. PIP Sources on page 16 for information about main image and PIP image source compatibility LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 25: Adjust The Pip Mode

    4. Press . 5. Press  until the image moves to the desired location: Top-Right Bottom-Right Top-Left Bottom-Left 6. Press ENTER to save changes. 7. Press EXIT to exit the OSD menu. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 26: Swap Between The Main Image And The Pip Image

    Press MUTE to temporarily turn off all sound. To restore the sound when muted, press MUTE again. RS-232C Control The LCD panel power and OSD menu can be controlled through recommended standard-232C. RS-232C Command Format on page 31, and RS-232C CMD Options on page 32. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 27: Adjust Wake Up From Sleep

    Never Sleep - the LCD panel never goes to sleep. 5. Press ENTER to save changes. 6. Press MENU to return to the previous menu or EXIT to exit the OSD menu. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 28: Osd Menu

    20 for OSD menu control information. Menu Item Description Scheme Adjusts the image scheme. Options include: User, Vivid, Cinema, Game and Sport. The default is User. This option is unavailable when in Graphics mode. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 29: Image Settings (Continued)

    Values range from 128~383. The default is 256. Red, Green, and Adjusts the color offset. The Color Temperature must be set to User to adjust Blue Offset these settings. Values range from -50~50. The default is 0. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 30: Display Settings

    The default is On. Select Source Adjust the picture-in-picture source. Options include; HDMI 1, HDMI 2, DVI, DisplayPort, S-Video, Composite Video, and Component. The default is VGA for Main, and Composite Video for PiP. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 31: Audio Settings

    Adjusts the DisplayPort audio input. Options include: DisplayPort and PC Audio Input. The default is DisplayPort. Internal Speakers Turns the internal speakers on or off. Options include: On and Off. The default is On. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 32: Basic Settings

    Power LED Configures the LED power setting. Options include: Off, DCR, and light sensor. The default is off. Real Time Clock Expands the Basic Settings menu. Basic Settings (continued) on page 25. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 33: Basic Settings (Continued)

    • User - manually configure the alarm timer of each day. • Same Settings On All - configure the same alarm timer for every day. • Same Settings On Work Days - configure the same alarm timer for Monday to Friday. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 34: Advanced Settings

    Adjusts the number of signaling events per second. Options include: 115200, 38400, 19200, 9600. The default is 115200. Smart Light Adjusts the screen brightness. Options include: Off, DCR (dynamic contrast), Control Light Sensor. The default is Off. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 35: System Status

    No. System Status Use the System Status menu to view the status of active sources or the latest firmware version. OSD Menu Controls on page 20 for OSD menu control information. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 37: Care And Cleaning

    Electrical shock hazard! Always turn the power off and disconnect all power sources from the LCD panel before servicing. This section provides care and cleaning instructions for the LCD panel FHD551-W. Clean the LCD Panel Screen • Do not use abrasive cleaners on the LCD panel.

  • Page 38: Clean The Dust Filter

    Do not scrub the filter or use harsh cleaners. 5. Place the clean dust filter back into the LCD panel. The dust filter can be wet when it is replaced. 6. Replace the filter cover and 2 screws. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 39: Rs-232C Commands

    S(0) …S(12) = the serial number in ASCII Request LCD panel firmware version. 07 01 01 47 56 45 08 07 01 00 47 56 45 S(0) …S(5) 08 S(0) …S(5) = the firmware version in ASCII LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 40: Rs-232C Cmd Options

    42 4C 43 On (Back Light) 0~100 Current Contrast 43 4F 4E value 0~100 Current 48 55 45 value 0~100 Current Saturation 53 41 54 value User 43 4F 54 6500K 9300K LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)
  • Page 41 Video Mode SHA 0~24 Current Sharpness 53 48 41 value Other PIP Adjust PIP OFF 50 53 43 Control PIP Small PIP Medium PIP Large PIP Side-by-Side PIP source 50 49 4E selection LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)
  • Page 42 Full Screen Pillar Box Letter Box Zoom In 5A 4F 4D Zoom Out Baud Rate 115200 42 52 41 Adjustment 38400 19200 9600 MENU Key 52 43 55 Other Control INFO Key LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)
  • Page 43 DVI Key HDMI1 Key HDMI2 Key DISPLAYPORT Key COMP Key S-V Key AV Key SOURCE Key P-SOURCE Key PIP Key P-POSITION Key SWAP Key SCALING Key FREEZE Key MUTE Key BRIGHT Key LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)
  • Page 44 VGA, Digital, RS232 Wake Up From Sleep = Never Sleep Audio 0~100 Current volume 56 4F 4C value Mute Off 4D 55 54 Mute On Scheme User 53 43 4D Selection LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)
  • Page 45 RS-232C Commands Main Control Type Value Reply Content Remark Item Item (DEC) (DEC) (HEX) Other Scheme Sport 53 43 4D Control Selection (cont.) (cont.) (cont.) (cont.) (cont.) Game Cinema Vivid LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 47: Compliant Timing

    59.98 44.772 59.86 74.5 56.456 74.78 95.75 1280 x 768 47.776 59.87 79.5 47.396 59.995 68.25 68.633 84.837 117.5 1280 x 800 49.306 59.91 49.702 59.81 SXGA 1152 x 864 67.5 LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)
  • Page 48 74.176 74.25 1080i 1920 x 1080 28.13 74.25 33.716 59.94 74.176 33.75 74.25 1080p 1920 x 1080 74.25 28.125 74.25 33.716 74.18 33.75 74.25 56.25 148.5 67.433 59.94 148.352 67.5 148.5 LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 49: Troubleshooting

    • Remove objects that contain a magnetic field (for example; speakers, steel visible structures, or high-voltage lines) from the immediate vicinity of the LCD panel. • Adjust the LCD panel using the OSD menu. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)
  • Page 50 • Make sure the remote control is aimed at the IR sensor on the back of the display. White color is not correct • Adjust the color temperature. Image Settings on page 20. LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 51: Specifications

    Specifications This section provides the specifications for the LCD panel FHD551-W. Specifications are subject to change. LCD Panel Specification Value Active Screen Size 54.6 in. (138.7 cm) Resolution 1920 x 1080 (16:9) Brightness (panel native) 700 cd/m2 (typ.) Contrast Ratio (panel native)

  • Page 52: Power

    • Audio out (3.5 mini jack) Environment Specification Storage Temperature Min -22°F (-30°C) ~ Max 140°F (60°C) Operating Temperature Min -4°F (-20°C) ~ Max 114°F (45°C) Humidity ~ 85% RH (max.) LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 53: Physical

    51.2 in. x 30.4 in. x 4.8 in. (130 cm x 77.1 cm x 12.2 cm) Net Weight 121 lb (55 Kg) Gross Weight 132 lb (60 Kg) Mounting screw size M8 x 15 mm LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)

  • Page 54: Parts

    LCD Panel FHD551-W 142-100102-XX Flat Panel (FP) Remote Control 108-383105-XX Power Cord NA 108-390103-XX Power Cord EU 108-388100-XX Power Cord UK 108-376107-XX Power Cord JP 108-375106-XX Power Cord CN 108-392105-XX Power Cord AU LCD Panel FHD551-W User Manual 020-100996-01 Rev. 2 (12-2012)
