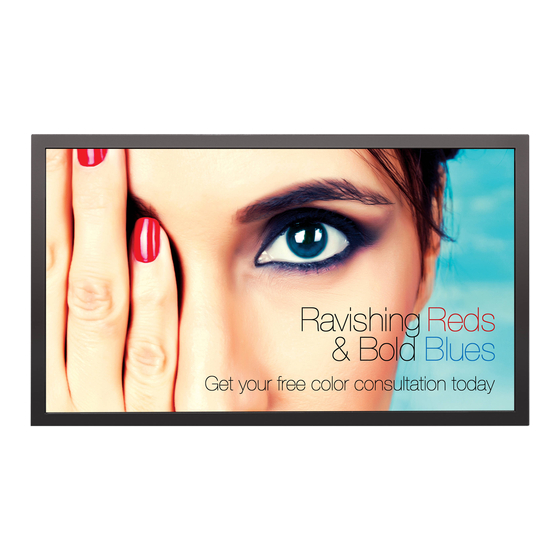

FHD651-P and FHD651-T LCD
Panels
U s e r M a n u a l
020-000693-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FHD651-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Christie FHD651-P

Summary of Contents for Christie FHD651-P

  • Page 1 FHD651-P and FHD651-T LCD Panels U s e r M a n u a l 020-000693-01...
  • Page 3 FHD651-P and FHD651-T LCD Panels U s e r M a n u a l 020-000693-01...
  • Page 4 Products where the serial number has been removed or obliterated. o. Products sold by a Reseller to an End User outside of the country where the Reseller is located unless (i) Christie has an office in the country where the End User is located or (ii) the required international warranty fee has been paid.
  • Page 5 Addendum Translated copies of this document are provided on the CD in the back of this document. The CD may also contain additional product documentation. Read all instructions before using or servicing this product. 本文档 的翻译副本在本文档背面 的 C D  上 提供。 该 CD   中 还可 能包 含其 他产品 文 档。使...

  • Page 7: Table Of Contents

    Audio Settings ..........30 FHD651-P and FHD651-T LCD Panels User Manual...
  • Page 8 ..........54 FHD651-P and FHD651-T LCD Panels User Manual...

  • Page 9: Introduction

    Introduction About This Manual This Owner’s Manual describes how to install, set up and operate the FHD651-P and FHD651-T LCD Panels. Throughout this manual, the FHD651-P and FHD651-T LCD Panels are referred to collectively as the “display.” Target Audience The manufacturer has prepared this manual to help end users get the most out of the display.

  • Page 10: Description, Features And Benefits

    Introduction Description, Features and Benefits The FHD651-P and FHD651-T LCD Panels represent the cutting edge of direct-view LCD technology. They combine ultra-high resolution and unparalleled image quality with configurable I/O in a large- format display for a wide range of digital signage and control-room applications.

  • Page 11: Controls And Functions

    Lights orange to indicate that the display is in standby mode; blinks orange if no input signal is present; off if the main power switch is set to off. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 12  MENU/EXIT Press this button to access the on-screen display (OSD) controls, or to exit the current menu and return to the previous one. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 13: Input Panel

    A female, 9-pin D-sub connector for interfacing with a PC or control system. 4. Ethernet A female, RJ45 connector for interfacing with a PC or control system over a local area network. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 14 10. IR Extender Connect the IR Extender cable provided with the display to this input. 11. Audio Out  For connecting external, powered speakers or an external audio receiver/amplifier. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 15: Remote Control Unit

    Controls and Functions Remote Control Unit The illustration below shows the display remote control, and the table that follows describes its functionality. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 16 Adjusts the brightness CONTRAST Adjusts the contrast AUTO Auto adjustment of VGA source SOURCE Selects each source, in sequence VOLUME- Decreases the sound volume VOLUME+ Increases the sound volume FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 17: Installation

    To do this, press ENTER, ENTER, EXIT, EXIT, ENTER and EXIT, in sequence. To unlock a locked remote control unit, use the same sequence of button presses. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 18: Quick Setup

    Images may then appear washed out and less vibrant. Ambient Heat Keep the ambient temperature constant and below 35°C (95°F). Keep the display away from heating and/or air conditioning vents. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 19: Ventilation Considerations

    Use only the approved wall-mount kit designed for your display. Connections to the Display Proceed as follows to connect the display to your video sources, external controller(s) – if present – and AC power. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 20: Connecting A Control System Or Pc

    External Control on page 39. 2 Receive Data (to ctrl. system) 3 Transmit Data (from ctrl. system) 5 Ground to Automation/ Control System or PC FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 21 External Control on page 39. 6 Receive Data - 3 Receive Data + 2 Transmit Data - 1 Transmit Data + to Ethernet Hub, Router or Gateway FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 22: Ir Extender Connection

    (3.5-mm, mini phono plug) Connecting Source Components to the Display Connect your video sources to the display as shown and described in the sections that follow. DisplayPort Source Connection FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 23 For Plug and Play to work correctly, you must turn on the display before you turn on the connected computer. HDMI or DVI-to-HDMI Cable BD/HD-DVD/ (sold separately) DVD/DTV STB DVI-D Cable Audio Cable (Sold Separately) Rear of the PC FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 24 Connect a personal computer or other RGB source to the VGA input as shown below. Refer to Supported Timings on page 51 for a list of compatible input signals. D-Sub 15-pin Cable Audio Cable (Sold Separately) Rear of the PC FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 25: Turning On The Power

    The touch screen controller host computer is turned off. • The display is turned on. • The video output from the computer is connected to a video input on the display. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 26: Connecting The Touch Screen Controller Host Computer To The Display

    2.2 GHz dual-core processor • 1 GB RAM • 10 GB available hard disk space • 128 MB Nvidia Geforce 6600T graphics card • Computer Configuration (Recommended): • 2.5 GHz quad-core processor FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 27 Software Installation 1. Double-click the installation file TouchWin-[x.x.x.xxxx].exe, located on the CD-ROM provided with the display. (You can also download the most recent version of the TouchWin software from http://www.timelink.cn/plus/list.php?tid=142.) FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 28: Touch Screen Configuration Instructions

    This area of the TouchWin configuration window contains a variety of information about the touch module: the product type, firmware version and operating status. Should you ever need to contact FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 29 Click the red spot by hand and follow the red spot moving to finish the nine-point touch calibration. Only click the nine points with a finger on the black screen when calibrating. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 30 Reset To restore all TouchWin configuration settings to their factory defaults and undo the effects of any previous calibrations, click Reset. This action is not undoable. Proceed with caution! FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 31: Operation

    -6, -5, -4 ... 0 ... 5, 6 Audio Settings Balance HDMI Audio Input HDMI or PC Audio DP Audio Input DisplayPort or PC Audio Internal Speakers Off or On FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 32 DNS Addr. Save Network Settings Ethernet Setup Refresh Power Status Alert Source Status Alert No or Yes Signal Lost Alert Load Default Device MAC Factory Reset No or Yes FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 33: Video Settings

    User to adjust Brightness, Contrast and other settings manually. Brightness On your external test pattern source, select a PLUGE pattern. (PLUGE is an acronym for “Picture Line- Up Generation Equipment.”) Below Black Above Black FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 34 Adjust as needed, looking for white edges around the transitions from black to gray and differently-sized lines in the “sweep” patterns at the top and bottom. Lower the sharpness setting to eliminate them. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 35 To adjust the hue, use a blue filter when viewing the color bar pattern, as you would for adjusting color saturation (refer to the previous section, Saturation on page 27). FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 36 Select a value of from 3200K to 9600K. Higher settings produce a “bluer” picture; lower ones impart a reddish hue to the image. To select a custom color temperature, select User and set the Gain and Offset as described below. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 37 On, Auto Scan causes the input select function (using the SOURCE button on the remote control unit or keypad) to skip over unused inputs, saving time. Select Source Choose Select Source from the Video Settings menu and press to select the video source. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 38: Audio Settings

    DisplayPort, set DP Audio Input to PC for that input. (Also connect the audio output from your source; refer to HDMI and DVI-D Source Connections on page 15.) This setting associates the PC Audio In input with the DisplayPort input. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 39: Basic Settings

    OSD Timeout Select OSD Timeout from the Basic Settings menu to specify how long the menus remain on-screen after selecting them. Select from 5 to 120 seconds, in five-second increments. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 40 Work Days. Start Up Logo Select Start Up Logo from the Basic Settings menu to enable or disable the Christie Digital Systems splash screen. When set to On, the splash screen appears when the display is powered on or exits standby mode.

  • Page 41: Advanced Settings

    Proper pixel tracking helps ensure that the image quality is consistent across the screen, that aspect ratio is maintained and that pixel phase (see above) can be optimized. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 42 To reset ALL display settings (including image settings) back to their factory defaults, choose Factory Reset from the Advanced Settings menu. This action is not undoable. Proceed with caution! FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 43: System

    System The read-only System menu provides the following status information about the display: • The resolution and refresh rate of the active source; and • The currently-installed firmware version. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 45: Maintenance And Troubleshooting

    Troubleshooting Maintenance The FHD651-P and FHD651-T LCD Panels do not require any routine maintenance. There are no user- serviceable or -replaceable parts. Unless you are a qualified, factory-trained technician, do not attempt to repair or replace any system component yourself. You will void the product warranty if you do so.
  • Page 46 Screen Controller Host Computer correctly. to the Display on page 18. • Host computer hardware or OS • Refer to Installing TouchWin incompatibility. Software (Optional) on page 18. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 47: External Control

    [REPLY] is the parameter setting for the command, acknowledged by the display in its response to a command. • [ETX] indicates the end of the command data (always 08). • [CR] is the ASCII carriage return key (0x0D). FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 48: Command And Response Examples

    S(0) …S(12) = the serial number in ASCII Request LCD panel 07 01 01 47 56 45 08 07 01 00 47 56 45 S(0)…S(5) 08 firmware version. S(0) …S(5) = the firmware version in ASCII FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 49: Serial Command List

    Power Control Off (soft power) 50 4F 57 and Input (For advanced A/D Source boards – optional) On (soft power) Input Source 4D 49 4E Digital DVI HDMI DisplayPort FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 50 50 48 41 value 0~100 Current Clock 43 4C 4F value Current Horizontal Position 48 4F 52 value Current Vertical Position 56 45 52 value Auto Adjust 41 44 4A FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 51 Sunday On Hour 53 4E 48 0~59 0~59 Sunday On Minute 53 4E 4D 0~23 0~23 Sunday Off Hour 53 46 48 0~59 0~59 Sunday Off Minute 53 46 4D FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 52 Saturday On Hour 54 4E 48 0~59 0~59 Saturday On Minute 54 4E 4D 0~23 0~23 Saturday Off Hour 54 46 48 0~59 0~59 Saturday Off Minute 54 46 4D FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 53 52 54 56 value Version Wake Up From Sleep 57 46 53 = VGA Only Wake Up From Sleep = VGA, Digital, RS232 Wake Up From Sleep = Never Sleep FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 54: Using Discrete Ir Codes

    Commands are sent at a maximum rate of 9 Hz. For example, here is the NEC control code for the POWER button on the display remote control unit: Binary 01000000 10101111 00011100 11100011 FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 55: Ir Control Code List

    1BE4 VOLUME - 40AF 1DE2 VOLUME + Ethernet Communications Please consult the Christie website at www.christiedigital.com for instructions on how to control the display using the display's Ethernet port. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 57: Specifications

    Dimensions FHD651-T Dimensions on page 53. Weight FHD651-P: Net: 55 kg / 121 lbs; Gross: 70 kg / 154 lbs FHD651-T: Net: 68 kg / 150 lbs; Gross: 83 kg / 183 lbs Wall Mount 400mm x 600mm VESA OSD FUNCTIONS...
  • Page 58 Specifications ENVIRONMENTAL Operating Temperature 5°C ~ 40°C, 85% RH Storage Temperature -20°C ~ 60°C, 85% RH TOUCH PANEL Interface Touch 4-point Touch Specifications are subject to change without notice. FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 59: Supported Timings

    SXGA 1152x864 67.5 1280x1024 63.981 60.02 79.976 75.025 91.146 85.024 157.5 O = Compliant timing. - = Non-compliant timing. 480i means supported 480i@60Hz (YPbPr). 576i means supported 576i@50Hz (YPbPr). FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 60 33.716 74.18 33.75 74.25 56.25 148.5 67.433 59.94 148.352 67.5 148.5 O = Compliant timing. - = Non-compliant timing. 480i means supported 480i@60Hz (YPbPr). 576i means supported 576i@50Hz (YPbPr). FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 61: Fhd651-T Dimensions

    Specifications FHD651-T Dimensions FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)

  • Page 62: Fhd651-P Dimensions

    Specifications FHD651-P Dimensions FHD651-P and FHD651-T LCD Panels User Manual 020-000693-01 Rev. 1 (02-2014)
  • Page 64 *000-104307-01* ASSY TECH DOCS FHD651-X Corporate offi ces Worldwide offi ces USA – Cypress Australia Eastern Europe and India Singapore ph: 714-236-8610 ph: +61 (0) 7 3624 4888 Russian Federation ph: +91 (080) 6708 9999 ph: +65 6877-8737 ph: +36 (0) 1 47 48 100 Canada –...
