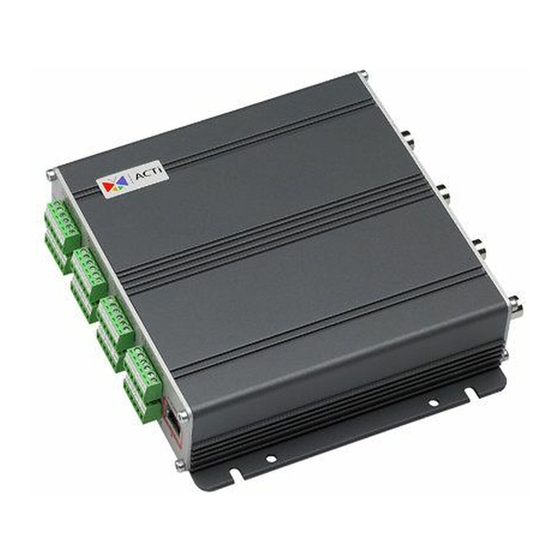

- Page 1 4-channel MPEG4 Video Encoder ACD-2200 User’s Manual Ver.070831...
-
Page 3: Copyright
Copyright This manual is the intellectual property of ACTi and is protected by copyright. All rights are reserved. No part of this document maybe reproduced or transmitted for any purpose by any means including electronic or mechanical without the official written permission from ACTi. -
Page 4: Fcc/Ce Regulation
typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. FCC/CE Regulation NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 5: Table Of Contents
Table of Contents PRECAUTIONS________________________________________________ 0-1 Copyright __________________________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-2 INTRODUCTION ______________________________________________ 1-4 Package Contents _______________________________________________ 1-4 Features and Benefits ____________________________________________ 1-5 Safety Instructions ______________________________________________ 1-7 Physical Description _____________________________________________ 1-9... -
Page 6: Introduction
INTRODUCTION 1.1 Package Contents ACD-2200 Warranty Card Product CD Terminal Blocks & Screws Power Adaptor (Option) -
Page 7: Features And Benefits
1.2 Features and Benefits The 4-channel MPEG4 Video Encoder is a cutting-edge digital video transmission device. It can compress and transmit two channels of real time images with outstanding images quality (D1, 720x480) at reasonable bandwidth through a standard TCP/IP network. This 4-channel MPEG4 Video Encoder also provide two-way audio streams along with each video channel. - Page 8 Domain Name Server), users can set the 4-channel MPEG4 Video Encoder at a virtual domain name (such as cam1.Taipei.xxx) at dynamic IP. Everyone can use the virtual domain name to view the video anywhere that has the access to the internet. Build-in Hardware Motion Detection No more external motion sensors are required.
-
Page 9: Safety Instructions
1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 10 If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual as an improper adjustment . Other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.
-
Page 11: Physical Description
1.4 Physical Description Channel Number Video Input Each channel supports one analog video input of composite signal with BNC connectors. Audio Input / Output The 4-channel MPEG4 Video Encoder supports one audio input and output with earphone jack. ETHERNET Port The 4-channel MPEG4 Video Encoder connects to the Ethernet via a standard RJ45 connector. - Page 12 for FTTH and can connect to a xDSL or cable modem. Reset Button Step 1: Switch off 4-channel MPEG4 Video Encoder by disconnecting the power cable Step 2: Using a suitable pointed object, press and continue to hold the Reset Button depressed. While continuing to hold the reset button depressed, reconnect the power cable.
- Page 13 DESCRIPTION NAME RS-485 RS-422 RS-232* Power Input (DC +12V) Ground Pin of Power Input & RS-232 * RS-232 mode requires user to set the jumpers inside the 4-channel MPEG4 Video Encoder. Bcause opening the 4-channel MPEG4 Video Encoder will void the warranty, please contact your distributor for how to switch to RS-232 mode.
