Accessories - Icom iC-F9011 series Instruction Manual

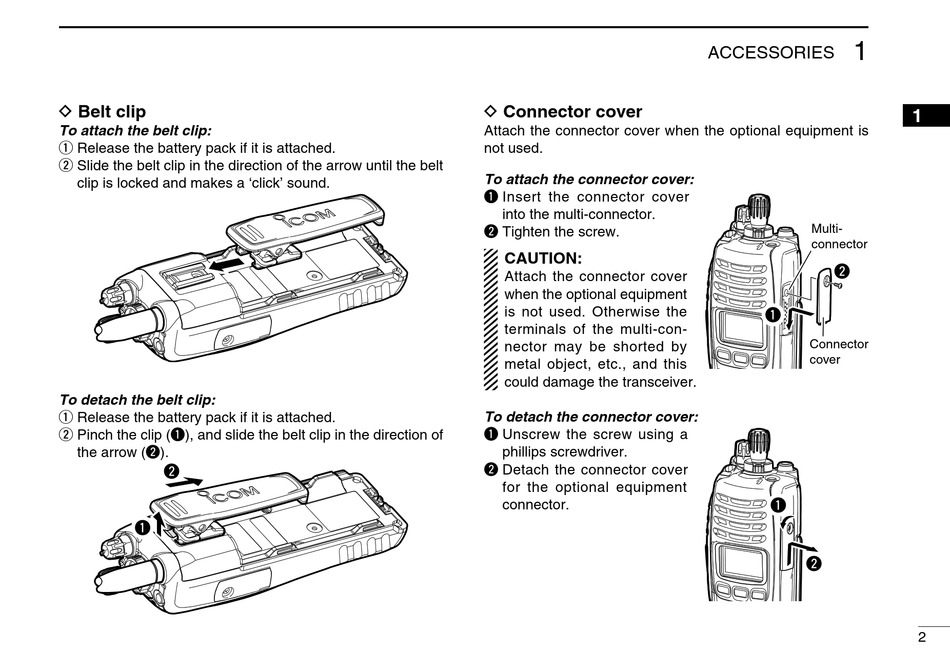

D Belt clip
To attach the belt clip:
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a 'click' sound.
To detach the belt clip:
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
w
q
D Connector cover
Attach the connector cover when the optional equipment is
not used.
To attach the connector cover:
q Insert the connector cover
into the multi-connector.
w Tighten the screw.
CAUTION:
Attach the connector cover
when the optional equipment
is not used. Otherwise the
terminals of the multi-con-
nector may be shorted by
metal object, etc., and this
could damage the transceiver.
To detach the connector cover:
q Unscrew the screw using a
phillips screwdriver.
w Detach the connector cover
for the optional equipment
connector.
