PANEL DESCRIPTION

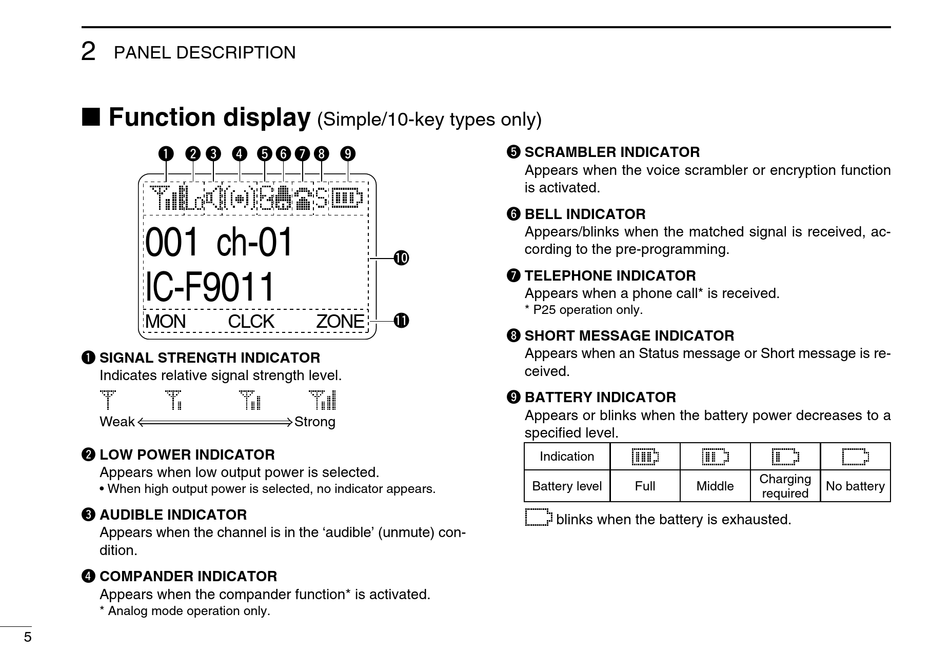

■ Function display
q w
001 ch-01
IC-F9011
MON
q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
Weak
w LOW POWER INDICATOR
Appears when low output power is selected.
• When high output power is selected, no indicator appears.
e AUDIBLE INDICATOR
Appears when the channel is in the 'audible' (unmute) con-
dition.
r COMPANDER INDICATOR
Appears when the compander function* is activated.
* Analog mode operation only.
5
(Simple/10-key types only)
e r t y u i o
CLCK ZONE
Strong
t SCRAMBLER INDICATOR
Appears when the voice scrambler or encryption function
is activated.
y BELL INDICATOR
Appears/blinks when the matched signal is received, ac-
cording to the pre-programming.
!0
u TELEPHONE INDICATOR
Appears when a phone call* is received.
* P25 operation only.
!1
i SHORT MESSAGE INDICATOR
Appears when an Status message or Short message is re-
ceived.
o BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
Indication
Battery level
blinks when the battery is exhausted.
Charging
Full Middle
required
No battery
