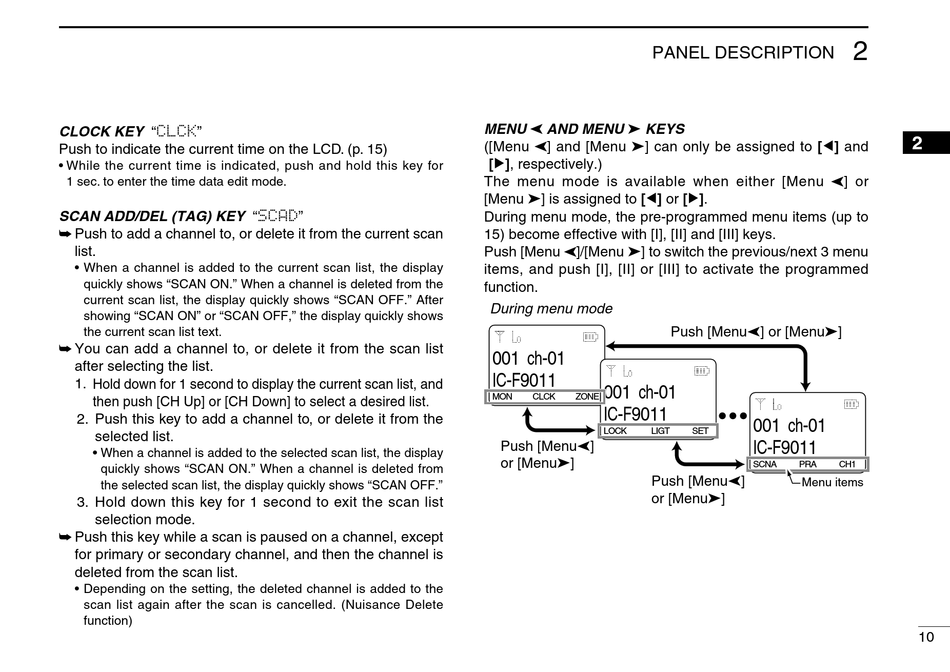

Icom iC-F9011 series Instruction Manual page 15

CLOCK KEY "CLCK"
Push to indicate the current time on the LCD. (p. 15)
• While the current time is indicated, push and hold this key for
1 sec. to enter the time data edit mode.
SCAN ADD/DEL (TAG) KEY "SCAD"
➥ Push to add a channel to, or delete it from the current scan
list.
• When a channel is added to the current scan list, the display
quickly shows "SCAN ON." When a channel is deleted from the
current scan list, the display quickly shows "SCAN OFF." After
showing "SCAN ON" or "SCAN OFF," the display quickly shows
the current scan list text.
➥ You can add a channel to, or delete it from the scan list
after selecting the list.
1. Hold down for 1 second to display the current scan list, and
then push [CH Up] or [CH Down] to select a desired list.
2. Push this key to add a channel to, or delete it from the
selected list.
• When a channel is added to the selected scan list, the display
quickly shows "SCAN ON." When a channel is deleted from
the selected scan list, the display quickly shows "SCAN OFF."
3. Hold down this key for 1 second to exit the scan list
selection mode.
➥ Push this key while a scan is paused on a channel, except
for primary or secondary channel, and then the channel is
deleted from the scan list.
• Depending on the setting, the deleted channel is added to the
scan list again after the scan is cancelled. (Nuisance Delete
function)
PANEL DESCRIPTION
MENU AND MENU ➤ KEYS
] and [Menu ➤] can only be assigned to [Ω] and
( [Menu
[≈], respectively.)
The menu mode is available when either [Menu
[Menu ➤] is assigned to [Ω] or [≈].
During menu mode, the pre-programmed menu items (up to
15) become effective with [I], [II] and [III] keys.
Push [Menu ]/[Menu ➤] to switch the previous/next 3 menu
items, and push [I], [II] or [III] to activate the programmed
function.
During menu mode
001 ch-01
IC-F9011
001 ch-01
MON CLCK ZONE
IC-F9011
LOCK LIGT
Push [Menu ]
or [Menu®]
Push [Menu ]
or [Menu®]
] or
Push [Menu ] or [Menu®]
001 ch-01
SET
IC-F9011
SCNA PRA CH1
Menu items
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
10
