6
BATTERY CHARGING

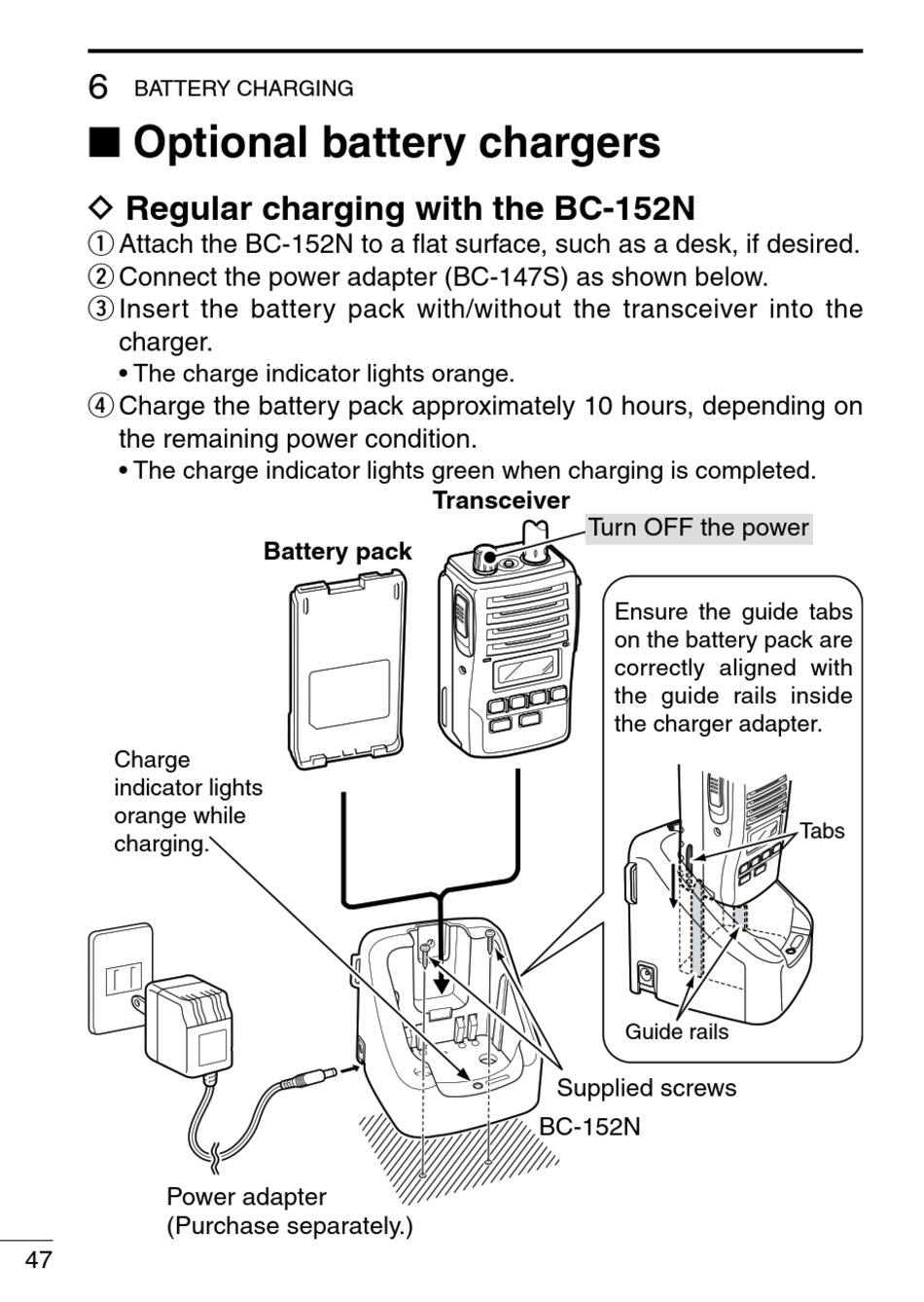

■ Optional battery chargers

D Regular charging with the BC-152N
q Attach the BC-152N to a flat surface, such as a desk, if desired.
w Connect the power adapter (BC-147S) as shown below.
e Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights orange.
r Charge the battery pack approximately 10 hours, depending on
the remaining power condition.
• The charge indicator lights green when charging is completed.
Charge
indicator lights
orange while
charging.
Power adapter
(Purchase separately.)
47
Transceiver
Battery pack
Turn OFF the power
Ensure the guide tabs
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Guide rails
Supplied screws
BC-152N
Tabs
