BATTERY CHARGING

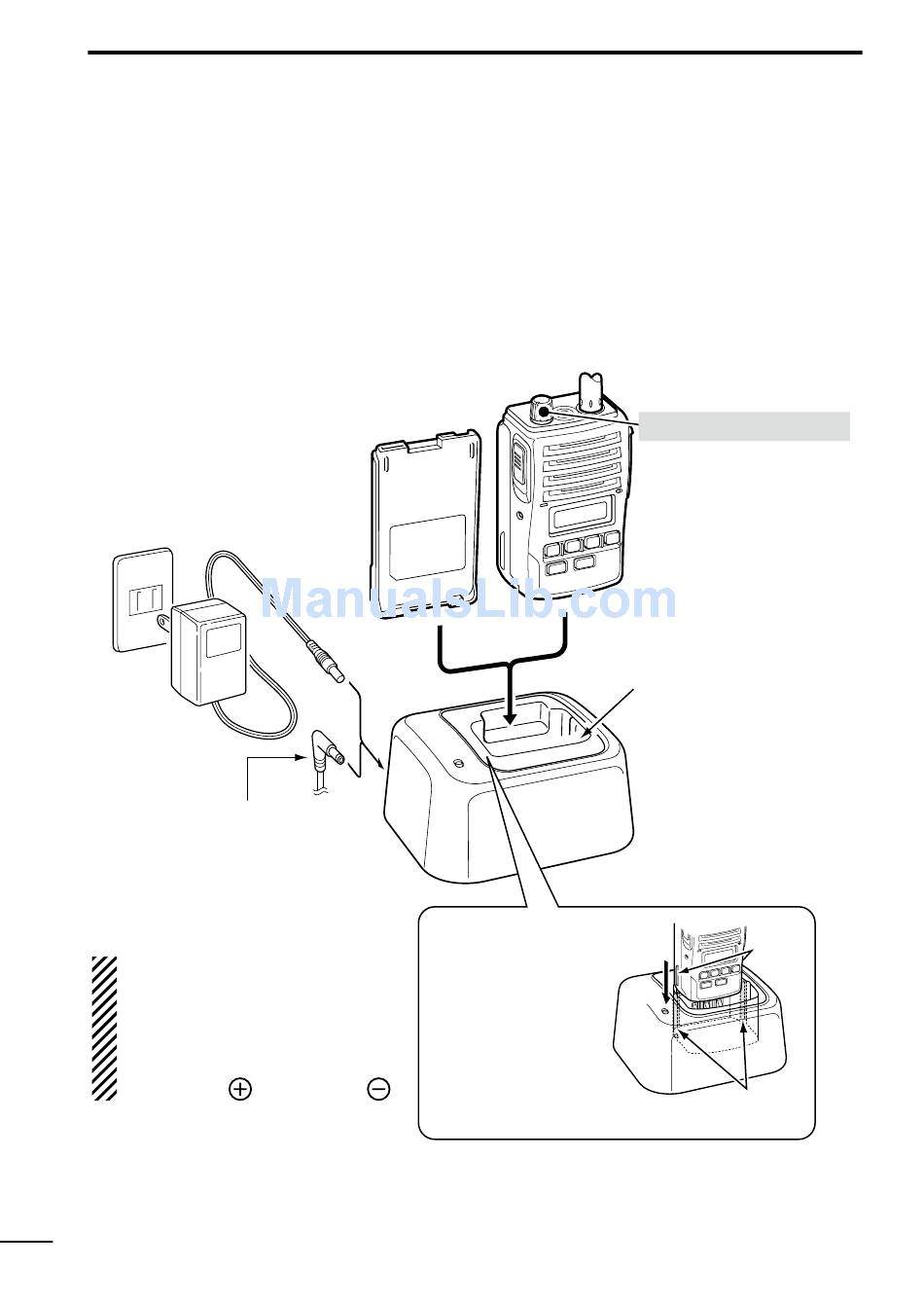

D Rapid charging with the BC-119N+AD-100
The optional BC-119N provides rapid charging of optional Li-ion
battery packs.
The followings are additionally required:
• An AD-100 charger adapter
• A power adapter (may be supplied with BC-119N depending on
version) or the DC power cable (OPC-515L/CP-23L).
Power adapter
(Not supplied with
some versions.)
Optional OPC-515L* (for 13.8
V power source) or CP-23L
(for 12 V cigarette lighter
socket) can be used instead
of the power adapter.
CAUTION: NEVER connect
*
the OPC-515L to a power
source using reverse polar-
ity. This will ruin the battery
charger.
White line:
51
Battery pack
IMPORTANT!
Ensure the guide
tabs on the bat-
tery
correctly aligned
with the guide
rails inside the
Black line :
charger adapter.
Transceiver
Turn OFF the power
AD-100
adapter is installed
in BC-119N.
*See the instruc-
tion manual for
details of the
charger LED in-
dication, opera-
tion, etc.
pack are
charger
Tabs
Guide rails
