6
BATTERY CHARGING

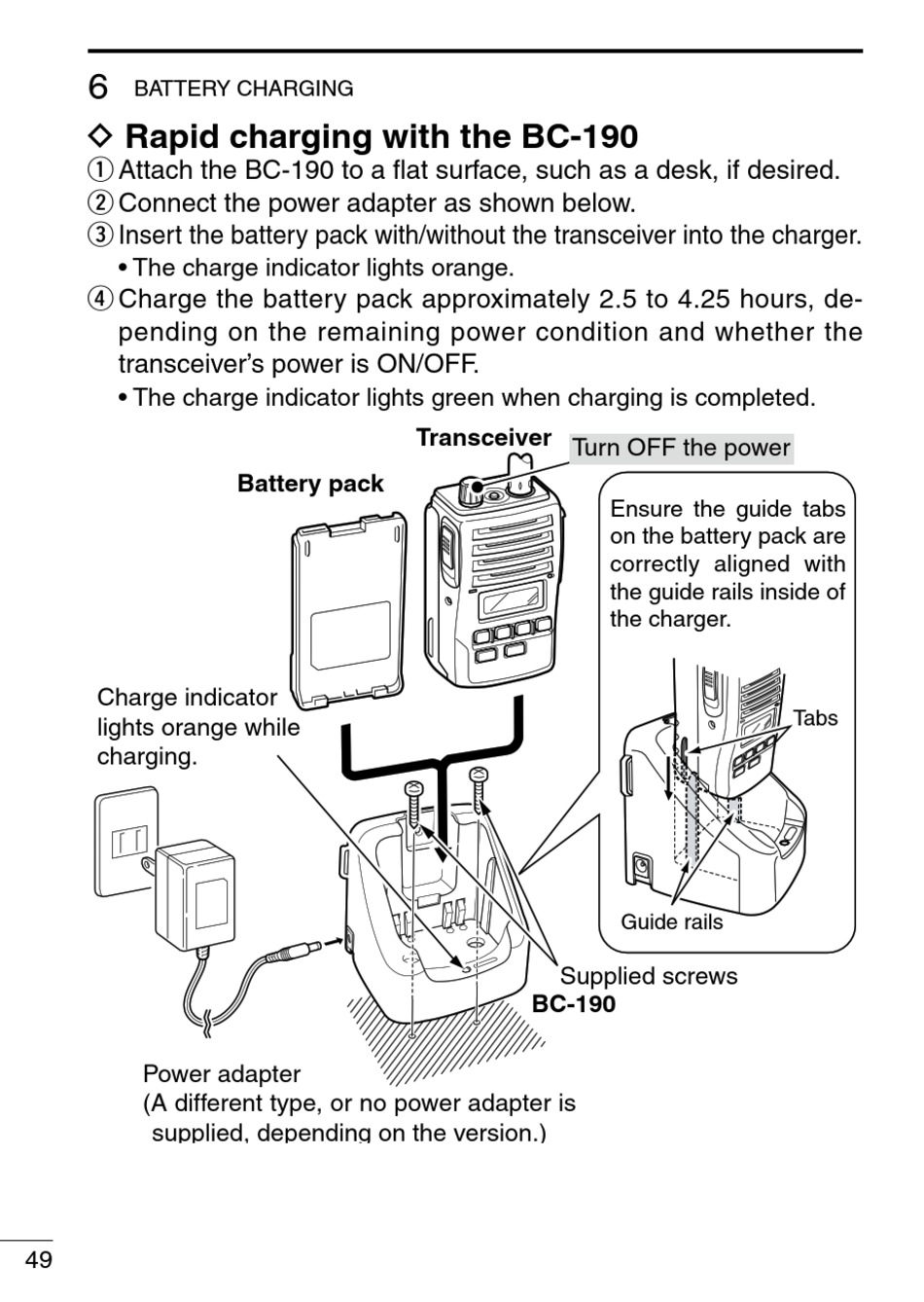

D Rapid charging with the BC-190
q Attach the BC-190 to a flat surface, such as a desk, if desired.
w Connect the power adapter as shown below.
e Insert the battery pack with/without the transceiver into the charger.
• The charge indicator lights orange.
r Charge the battery pack approximately 2.5 to 4.25 hours, de-
pending on the remaining power condition and whether the
transceiver's power is ON/OFF.
• The charge indicator lights green when charging is completed.
Charge indicator
lights orange while
charging.
Power adapter
(A different type, or no power adapter is
supplied, depending on the version.)
49
Battery pack
Transceiver
Turn OFF the power
Supplied screws
BC-190
Ensure the guide tabs
on the battery pack are
correctly aligned with
the guide rails inside of
the charger.
Guide rails
Tabs
