BATTERY CHARGING

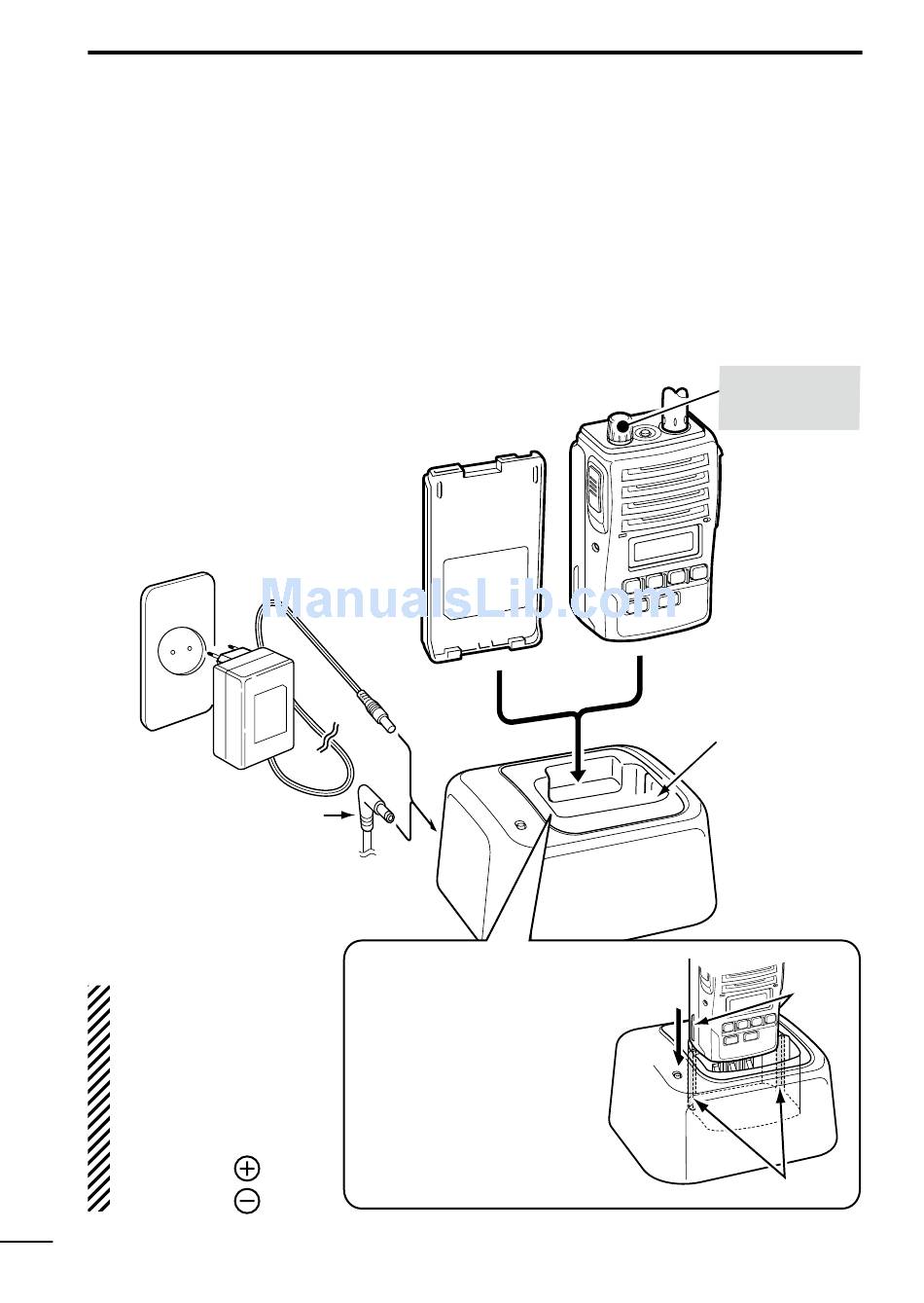

D Rapid charging with the BC-119N+AD-100
The optional BC-119N provides rapid charging of the optional Li-
Ion battery pack. The following items are additionally required:
• An AD-100 charger adapter
• A power adapter (may be supplied with the BC-119N depending
on the version) or a DC power cable (OPC-515L/CP-23L).
* See the instruction manual
for details of the charger LED
indication, operation, etc.
Power adapter
(A different type, or no power
adapter is supplied, depend-
ing on the version.)
Optional
(for power
or CP-23L (for 12 V
cigarette lighter socket)
can be used instead of
the power adapter.
CAUTION:
NEVER connect the
OPC-515L to a power
source using reverse
polarity. This will ruin
the battery charger.
White line:
Black line :
31
OPC-515L
source)
IMPORTANT!:
Ensure the guide tabs
on the battery pack are
correctly aligned with
the guide rails inside of
the charger adapter.
Transceiver
Battery pack
Turn OFF the
power
AD-100 charger
adapter is installed
in BC-119N.
Tabs
Guide rails
