Icom IC-F61M Instruction Manual page 37

D AD-100 installation
The AD-100
charger adapter
or BC-121N before battery charging.

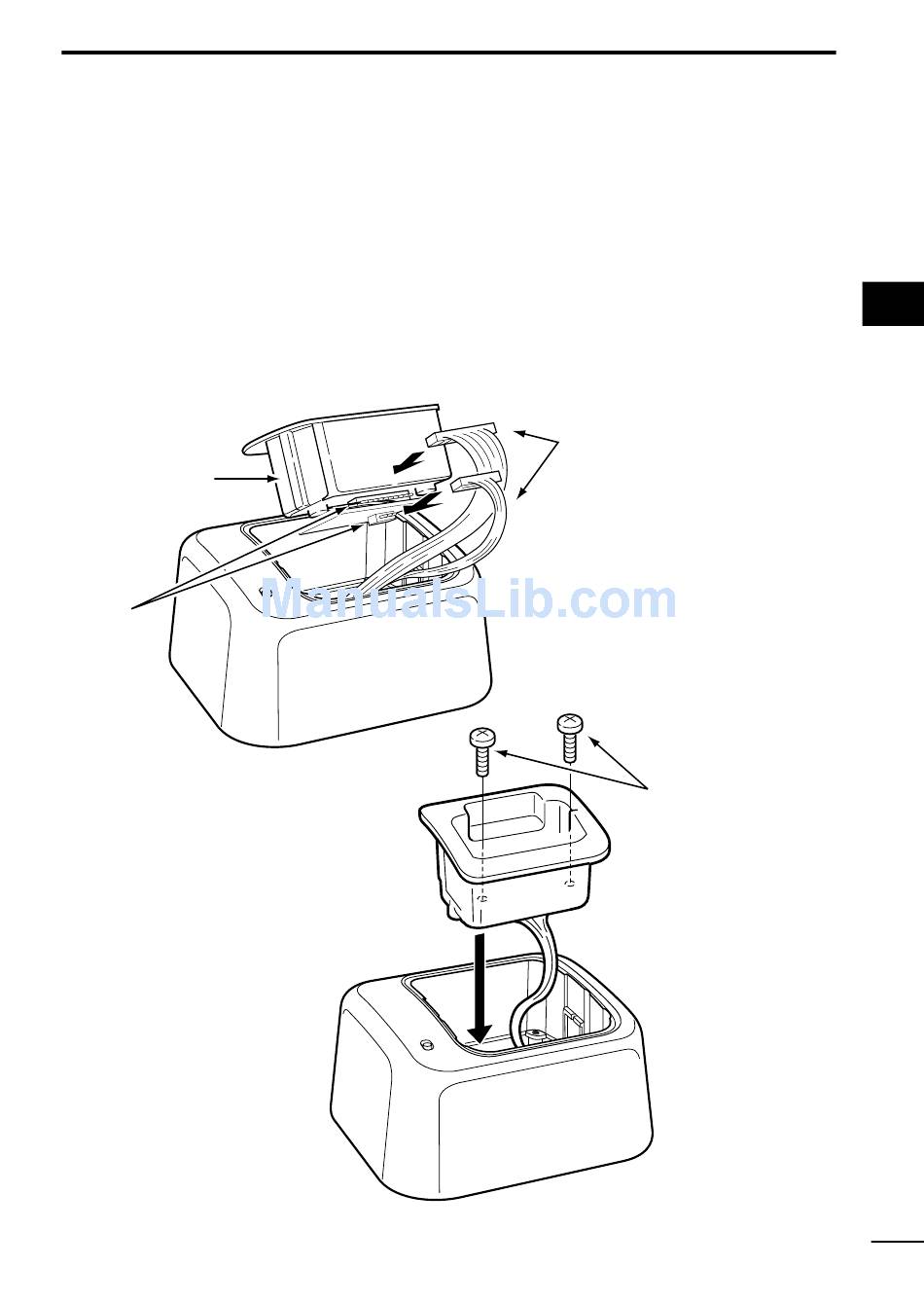

➥ C onnect the AD-100 charger adapter and the BC-119N/BC-
121N as below, then install the AD-100 into the holder space of
the BC-119N or BC-121N with the supplied screws.
AD-100
Sockets
This illustration is
described with the
BC-119N.
BATTERY CHARGING
must be installed into the BC-119N
Connectors
Screws supplied
with the charger
adapter
