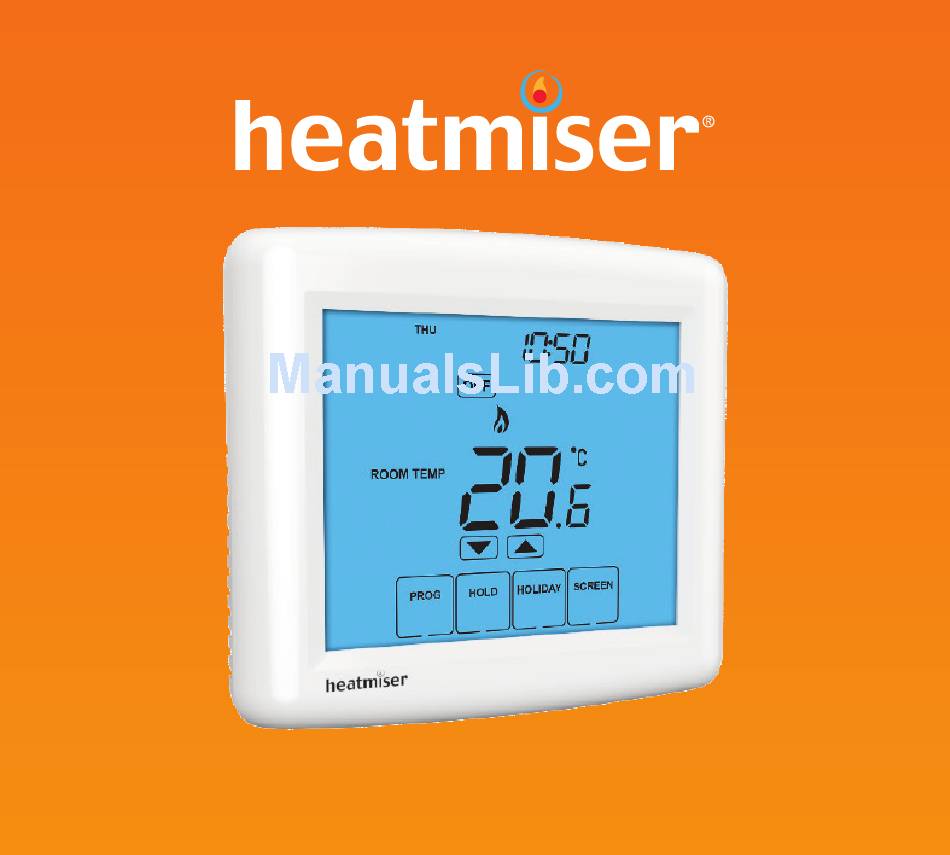

- Page 1 Model: PRT-TS / PRT-NTS Model: PRT-TS / PRT-NTS...
-
Page 2: Table Of Contents
Model: PRT-TS / PRT-NTS Table Of Contents Temperature Control Product Image Temperature Hold Table of Contents Holiday Programming What is a Programmable Room Thermostat? Frost Protection Installation Procedure Heating ON/OFF LCD Display Optional Features Explained 19-20 Setting the Clock Adjusting the Optional Settings... -
Page 3: What Is A Programmable Room Thermostat
The way to set and use your programmable room thermostat is to find the lowest temperature settings that you are comfortable with at the different times you have chosen, and then leave it alone to do its job. TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 4: Installation Procedure
Terminate the thermostat as shown in the diagrams on pages 25-28 of this booklet. Step 3 Screw the thermostat back plate securely into the back box. Step 4 Clip the front of the thermostat back onto the thermostat back plate. TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 5: Lcd Display
Setup/Programming Keys - Used to navigate setup options. Current Temp - Indicates the current sensor temperature. Units of Temperature - Degrees Celsius or Fahrenheit. Comfort Level Selection Keys - Used in comfort level setup (see page 11). TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 6: Setting The Clock
Use the Day key to set the day of the week ..........• Press DONE to confirm and exit ................ Hours Minutes Change Minutes Change Hours This is the current room temperature. This is the temperature you are trying to achieve in your home. TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 7: Comfort Levels Explained
“Sat Sun” prompting you to program the display Tue. Leave 22:00 16°C temperature levels for the weekend. Return --,-- --°C Sleep --,-- --°C • When complete, press DONE to confirm settings and exit .... TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 8: Clean Screen
At this time, the thermostat will revert back to the programmed levels. • When activated, you will see the Keypad Lock symbol. • To cancel, press the bottom right corner of the display again for 10 secs. Keypad Lock Indicator Set Temperature Set Icon TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 9: Temperature Hold
00:00 on Monday. Holiday Icon Holiday Days Hold Temperature To cancel a Holiday setting, reduce the holiday time to 00 days. To cancel a Temperature Hold, follow the same steps but reduce the time to 00:00. TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 10: Frost Protection
To cancel the frost protect mode, press the key once. To turn the thermostat back ON, press the ON key once ..........Thermostat completely OFF Thermostat powered ON Frost Protection Mode Enabled *See Feature 3 on page 19 TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 11: Optional Features Explained
Feature 06 – Communication Address: This setting is used when you have connected comfort levels that can be programmed independently. your thermostat to a network system. Each thermostat on the network must have a unique communication address. This can be set from 01-32. TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 12: Adjusting The Optional Settings
00 = Weekday/Weekend (Default) number (shown on page 22) and then use the Up/Down keys in the 01 = 7 Day Programming center to adjust the setting .................... • Press DONE to confirm settings and exit ..............TouchScreen Series Model: PRT-TS / PRT-NTS... -
Page 13: Re-Calibrating The Thermostat
Press the ON key once to turn the thermostat back ON ..........• Press the ON key once to turn the thermostat display back ON ......Factory reset is complete. All icons displayed simultaneously. Calibration Temperature Setting Set Icon TouchScreen Series Model: PRT-TS / PRT-NTS... - Page 14 Wiring Diagram - PRT-TS to Valve Wiring Diagram - PRT-TS to Boiler Voltfree P/L = Permanent Live To Boiler S/L Supply In - 85V-230V AC VOLT FREE TO BOILER S/L = Switched Live Max Load - 3 Amps Supply In - 85V-230V AC LS &...
-
Page 15: Wiring Diagram
Connect the screen to Earth at the UH1. Back Box Depth - 35MM 12VDC Network Max Load - 3 Amps 12VDC Network PRT-NTS PRT-NTS For 230V switched live output, link mains L to C TouchScreen Series Model: PRT-TS / PRT-NTS... - Page 16 Notes Notes ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................TouchScreen Series Model: PRT-TS / PRT-NTS...
- Page 17 Heating Professionals: Request a copy of our product installation guide containing detailed technical specifications for our complete product range: www.heatmiser.com/guide Want More Information? Call our support team on: +44 (0)1254 669090 Or view technical specifications directly on our website: www.heatmiser.com Twitter: heatmiseruk Facebook: facebook.com/thermostats...
