Heatmiser PRT-W Quick Start Manual

Want More Information?
Call our support team on: +44 (0)1254 669090
Or view technical specifications directly on our website:
www.heatmiser.com
PDF FAQ
31 Wireless Series

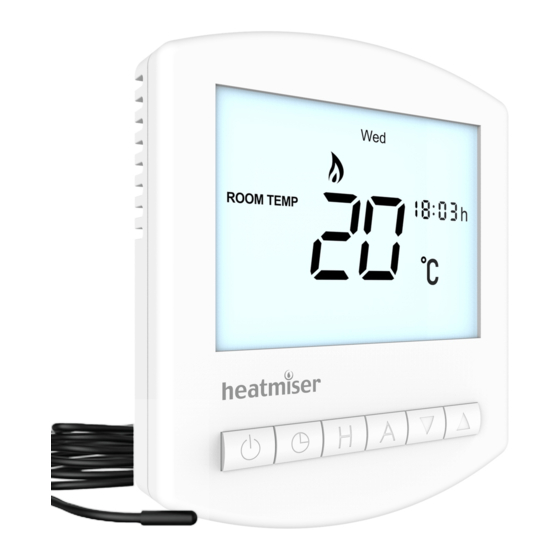

Model: PRT-W
2 1 Wireless Series Wireless Series
What is a Programmable Room Thermostat?
A programmable room thermostat is both a programmer and a room thermostat.
The programmer allows you to set "On" and "Off" periods to suit your own lifestyle.
The room thermostat works by sensing the air temperature, switching on the heating
when the air temperature falls below the thermostat setting, and switching it off once
this set temperature has been reached.
So a programmable room thermostat lets you choose what times you want the heating
to be on, and what temperature it should reach while it is on. It will allow you to select
different temperatures in your home at different times of the day (and days of the week)
to meet your particular needs and preferences.
Setting a room thermostat to a higher temperature will not make the room heat up
any faster. How quickly the room heats up depends on the design & size of the heating
system.
Similarly reducing the temperature setting does not affect how quickly the room cools
down. Setting a programmable room thermostat to a lower temperature will result in the
room being controlled at a lower temperature, and saves energy.
The way to set and use your programmable room thermostat is to find the lowest
temperature settings that you are comfortable with at the different times you have
chosen, and then leave it alone to do its job.
3 Wireless Series
Heating Professionals:
Request a copy of our product
installation guide containing
detailed technical specifications
for our complete product range:
www.heatmiser.com/guide
Twitter: heatmiseruk
Facebook:
facebook.com/thermostats
Model: PRT-W
Table of Contents
Product Image
Table of Contents
What is a Programmable
Room Thermostat?
Installation Procedure
Installing the Batteries
Replacing the Batteries
Pairing with the RC1-W Receiver
Pairing the Thermostat
Pairing with the UH1-W
11-12
Wiring Centre
LCD Display
13-14
Setting the Clock
Temperature Display
Setting the Comfort levels
17-18
Locking the Thermostat
Setting the Temperature
Temperature Hold
Model: PRT-W
The best way to do this is to set the room thermostat to a low temperature
– say 18°C , and then turn it up by 1°C each day until you are comfortable with the
temperature. You won't have to adjust the thermostat further. Any adjustment above
this setting will waste energy and cost you more money.
If your heating system is a boiler with radiators, there will usually be only one
programmable room thermostat to control the whole house. But you can have
different temperatures in individual rooms by installing thermostatic radiator valves
(TRVs) on individual radiators.
If you don't have TRVs, you should choose a temperature that is reasonable for the
whole house. If you do have TRVs, you can choose a slightly higher setting to make
sure that even the coldest room is comfortable, then prevent any overheating in other
rooms by adjusting the TRVs.
You are able to temporarily adjust the heating program by overriding or using the
temperature hold feature. These features are explained further on pages 14 and 15 of
this manual.
Programmable room thermostats need a free flow of air to sense the temperature,
so they must not be covered by curtains or blocked by furniture. Nearby electric
fires, televisions, wall or table lamps may also prevent the thermostat from working
properly.
Model: PRT-W
Model: PRT-W
1
Holiday Programming
2
Frost Protection
Power ON / OFF
3-4
Optional Features
5-6
Re-calibrating the Thermostat
7-8
Factory Reset
9
Wiring Diagram
10
11
15
16
19
20
21
1
22
23
24
25-28
29
29
30
2
4
