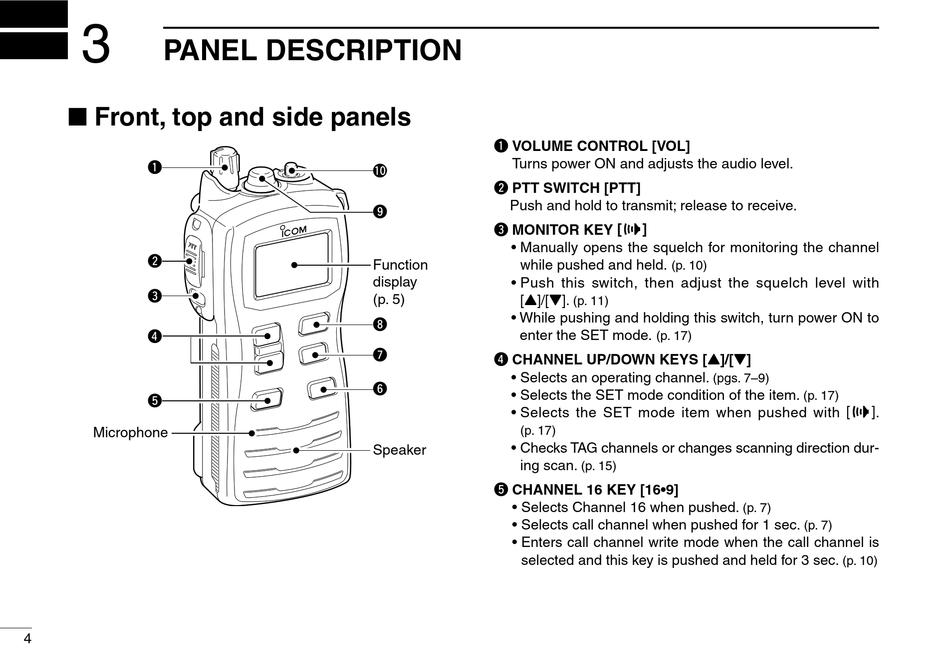

PANEL DESCRIPTION

■ Front, top and side panels

q
w
e
r
t
Microphone
4
q VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
!0
w PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
o
e MONITOR KEY [
• Manually opens the squelch for monitoring the channel
Function while pushed and held.
display
• Push this switch, then adjust the squelch level with
(p. 5)
[Y]/[Z].
• While pushing and holding this switch, turn power ON to
i
enter the SET mode.
u
r CHANNEL UP/DOWN KEYS [Y]/[Z]
• Selects an operating channel.
y
• Selects the SET mode condition of the item.
• Selects the SET mode item when pushed with [
(p. 17)
• Checks TAG channels or changes scanning direction dur-
Speaker
ing scan.
t CHANNEL 16 KEY [16•9]
• Selects Channel 16 when pushed.
• Selects call channel when pushed for 1 sec.
• Enters call channel write mode when the call channel is
selected and this key is pushed and held for 3 sec.
]
(p. 10)
(p. 11)
(p. 17)
(pgs. 7–9)
(p. 15)
(p. 7)
(p. 17)
] .
(p. 7)
(p. 10)
