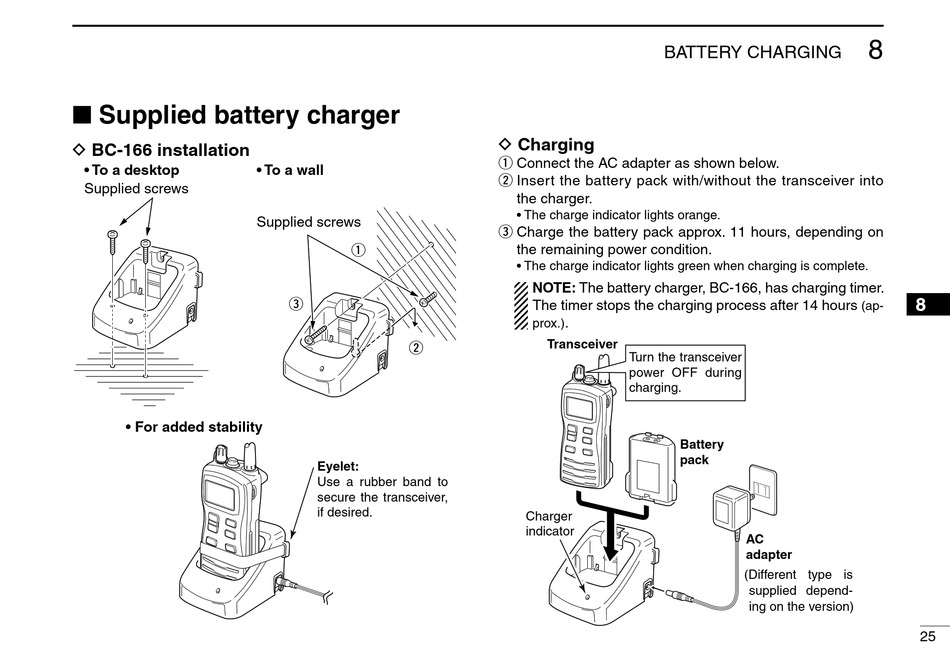

■ Supplied battery charger

D BC-166 installation
• To a desktop
Supplied screws
• For added stability
• To a wall
Supplied screws
q
e
w
Eyelet:
Use a rubber band to
secure the transceiver,
if desired.
BATTERY CHARGING
D Charging
q Connect the AC adapter as shown below.
w Insert the battery pack with/without the transceiver into
the charger.
• The charge indicator lights orange.
e Charge the battery pack approx. 11 hours, depending on
the remaining power condition.
• The charge indicator lights green when charging is complete.
NOTE: The battery charger, BC-166, has charging timer.
The timer stops the charging process after 14 hours
.
prox.)
Transceiver
Turn the transceiver
power OFF during
charging.
Charger
indicator
Battery
pack
AC
adapter
(Different type is
supplied depend-
ing on the version)
8
8
(ap-
25
