Premier Mounts PBL-200 Installation Instructions

PBL-200 Projector Mount

Mounting Bracket

(1).
NOTE: The shape of
each mount is
different. Align each
bracket hole with the
projector mounting
point and attach.
1. Invert the projector and place it on a soft and flat surface.
2. Locate the mounting points found on the bottom of the chassis.
3. Align the bracket to the projector mounting points (Figure 1).
NOTE: Raise or remove any feet levelers or any obstacle that prevents the bracket from properly
aligning to the mounting points (Figure 2).
4. To install the mounting bracket to the projector secure the bracket with four (4) 4 (mm) x 8 (mm) with
flat washer and lock washer Phillip screws. Do not over tighten the screws (Figure 3).
5. Raise the projector with the mounting bracket attached.
6. Fully insert the arrow design opening from the mounting bracket to the receiving tabs found on the
bottom plate of the upper assembly (Figure 4).
7. Once the bracket is inserted, rotate the projector 180° and align the front arrow shaped slot from the
mounting bracket to the safety screw (Figure 5).
8. The safety screw must go past the arrow-shaped slot below to prevent further rotation.
9. Finger-tighten the rest of the tension screws to stabilize the mounting bracket.

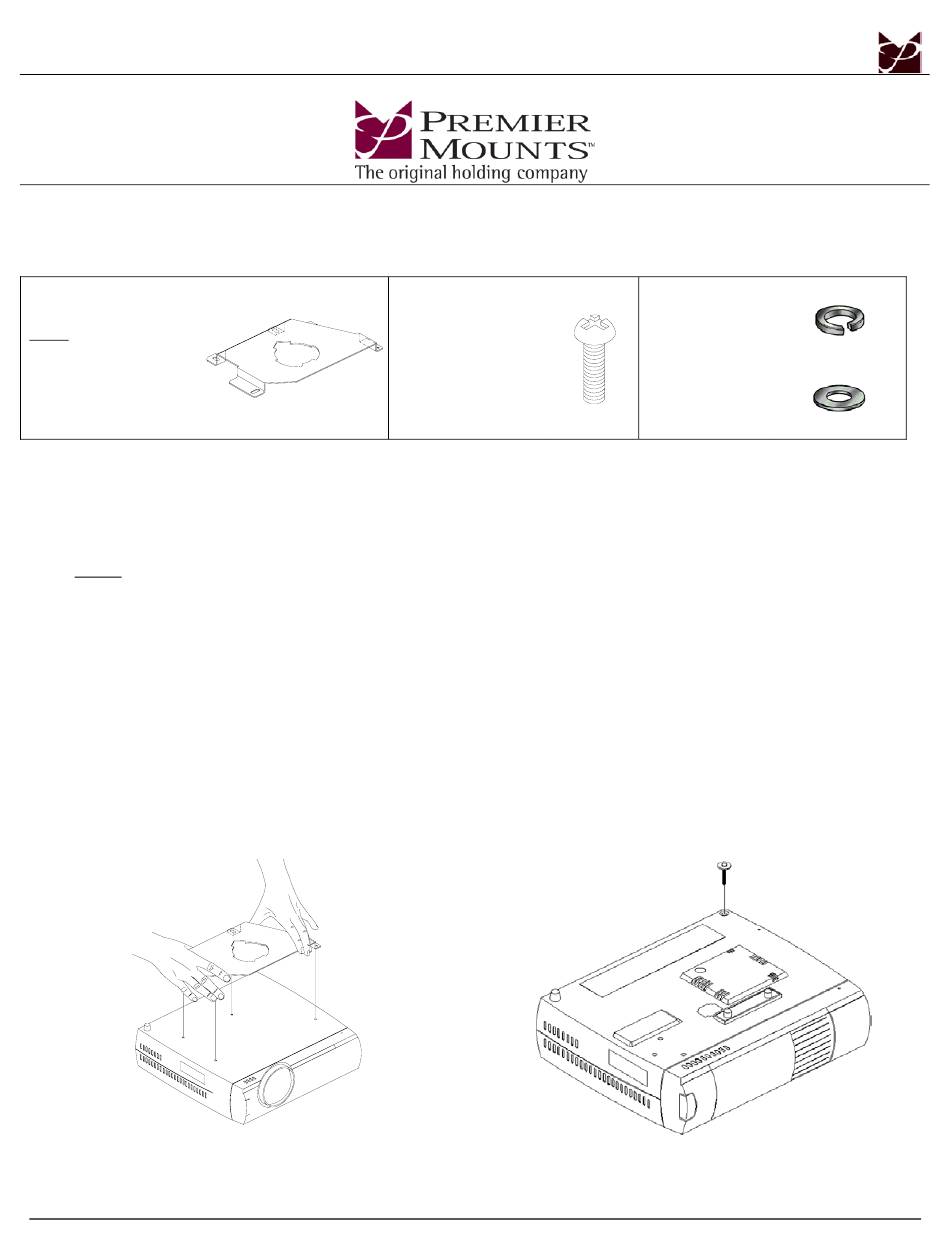

Figure 1. Projector Orientation
Installation Instructions
PBL-200 INSTALLATION INSTRUCTIONS
4mm x 8mm
Phillips Head
Screw (4ea)
Figure 2. Projector Preparation
Lock Washer
Flat Washer
Page 1
