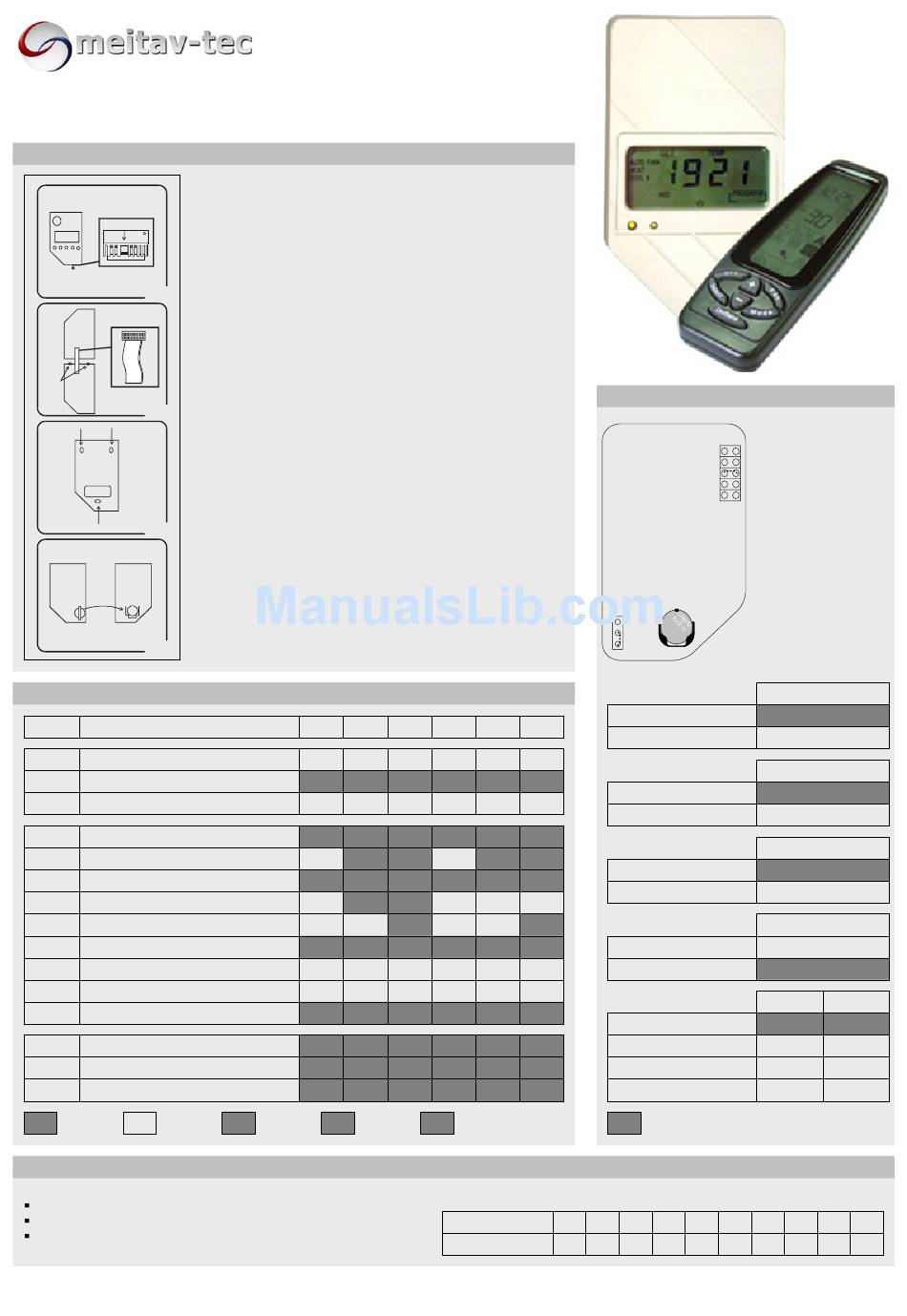

meitav-tec BDIR Technician Settings

BDIR – Technician Settings

Installation Instructions

Spring tongue
Spring tongue
Pic.1
Quick connector
Shafts
Pic.2
Pic.3
Back panel Front panel
+
Battery Holder
Pic.4

Wiring Connections

Terminal Function
T0,T0 Not in use
T1,T1 External sensor (option)
AUX Not in use
Y1 Compressor 1
Y2 Compressor 2
W1 Heat Element 1 / Heat Pump
W2 Heat Element 2
W3 Heat Element 3
G1 Fan
G2 Not in use
AL,AL Not in use
Rc 24Vac Phase (red)
Rh 24Vac (jumpered to Rc terminal)
C 24Vac Common
14,15,16 Another IR Receiver (option)
Not
+ -
Connect
in use

External Sensor Connection

Installation Procedure
Disconnect power to the thermostat.
Move JP1 to "B" position and connect the sensor to "T1" terminals.
Reconnect power.
Important: The sensor must be MEITAV-TEC type.
File: bdir-operating maual.vsd | Date: February 1, 2007 | Rev. 3
Meitav-tec Ltd (Contel group)
Tel: +972 (3) 962 6462 Fax: +972 (3) 962 6620
www.meitavtec.com - support@meitavtec.com
It is recommended to mount the thermostat between 1.5 & 1.8
meters from the floor where possible.
Separate the base from the cover by pressing the tongue (pic.1).
Gently disconnect the quick connector between cover and base
(pic.2)
Line the back panel up against the wall and drill the appropriate
fixing holes (pic.3).
Insert screws so they extend approx. 3/16" (3 mm) from the wall.
Align the back panel against these screws, pushing it forward,
allowing it to slide downwards to lock into position.
Make electrical connections to terminals on the back panel. Refer
to the "Wiring Connections" section.
Reconnect the quick connector.
Change the JUMPERS position according to the system
configuration. Refer to the "Jumper Configuration" section.
Attach the cover to the base, first the two shafts and then the
spring.
Connect 24Vac to the thermostat; verify that LCD display is ON.
Do not install battery before power is applied.
Remove battery from back panel by sliding it to the left and out from
its white retaining clip and mount it in black holder on front panel;
insert it from the top, gently pressing downwards until it snaps into
place and is held under the top clip of the holder.
The '+' engraved on battery should be visible (pic. 4).
Be careful - the top clip of the battery holder is fragile.
Reassemble front and back cover.
Connect at top first then at bottom.
HC11 HC22 HC32
- -
OPT OPT
- -
+ +
- +
H.E 1 H.E 1
- +
- -
+ +
- -
- -
+ +
+ +
+ +
OPT OPT
Heat Heat
H.E 1 H.P
element 1 Pump
HP11 HP22 HP32
- - - -
OPT OPT OPT OPT
- - - -
+ + + +
+ - + +
H.E 1 H.P H.P H.P
+ - - -
+ - - +
+ + + +
- - - -
- - - -
+ + + +
+ + + +
+ + + +
OPT OPT OPT OPT
Option
OPT
NTC Sensor: Temperature ~ Resistance Characteristics
o
Temperature ( C) 7.2 10.0 12.8 15.6 18.3 21.1 23.9 26.7 29.4 32.2
Resistance (KΩ) 115.8 100.9 88.1 77.1 67.7 59.6 52.5 46.4 41.2 36.6

Jumpers Configuration

Disconnect power,
remove battery and
JP7
wait 5 minutes* before
JP6
JP5
changing the jumpers
JP4
position.
JP3
*No need to wait if the
unit wasn't connected
to power (1
Important: When
changing the jumpers
configuration, all
information stored in
the memory will be lost
A
JP1
including the weekly
B
program.

Temperature Sensor

Internal sensor
External sensor
Compressor Delay
4 minutes delay
No delay (for test only !)
Clock Mode
24 Hours
12 Hours (AM/PM)
Temperature Scale
Fahrenheit
Celsius
HC / HP Configuration
HC Electric OPEN
HC Oil/Gas OPEN
HP energized in COOL SHORT
HP energized in HEAT SHORT
Default from
factory
All rights reserved to Meitav-tec Ltd. © 2007
st
Install).
JP1
A Position
B Position
JP3
OPEN
SHORT
JP4
OPEN
SHORT
JP5
OPEN
SHORT
JP6 JP7
OPEN
SHORT
OPEN
SHORT
