Rossmax AD761 Instruction Manual

Arm Cuff
AD761 f
Model:
EN
Air Tube and
Connector
3. Real Fuzzy Measuring Technology
This unit uses the oscillometric method to detect your blood pressure. Be-
fore the cuff starts inflating, the device will establish a baseline cuff pres-
Instruction Manual
sure equivalent to the air pressure. This unit will determine the appropriate
inflation level based on pressure oscillations, followed by cuff deflation.
During the deflation, the device will detect the amplitude and slope of
www.rossmaxhealth.com
the pressure oscillations and thereby determine for you the systolic blood
pressure, diastolic blood pressure, and pulse.
4. Preliminary Remarks
1. Introduction
This Blood Pressure Monitor complies with the European regulations and
Blood pressure measurements determined with AD761f are equivalent to bears the CE mark "CE 0366". The quality of the device has been veri-
those obtained by a trained observer using cuff/stethoscope auscultation
fied and conforms to the provisions of the EC council directive 93/42/EEC
method, within the limits prescribed by the American National Standard, Elec-
dated 14 June 1993 concerning medical devices:
tronic or Automated Sphygmomanometers. This unit is to be used by adult
EN 1060-1: 1995/A1: 2002 Non-invasive sphygmomanometers
consumers in a home environment. Do not use this device on infants or neo-
- Part 1 - General requirements
nates. AD761f is protected against manufacturing defects by an established
EN 1060-3: 1997/A2: 2009 Non-invasive sphygmomanometers
International Warranty Program. For warranty information, you can contact
- Part 3 - Supplementary requirements for electro-mechanical blood pres-
the manufacturer, Rossmax International Ltd.
sure measuring systems
Attention: Consult the accompanying documents. Please read this manual
EN 1060-4: 2004 Non-invasive sphygmomanometers
carefully before use. For specific information on your own blood
- Part 4: Test Procedures to determine the overall system accuracy of auto-
pressure, contact your physician. Please be sure to keep this
mated non-invasive sphygmomanometers.
manual.
This blood pressure monitor was designed for long service time. To ensure

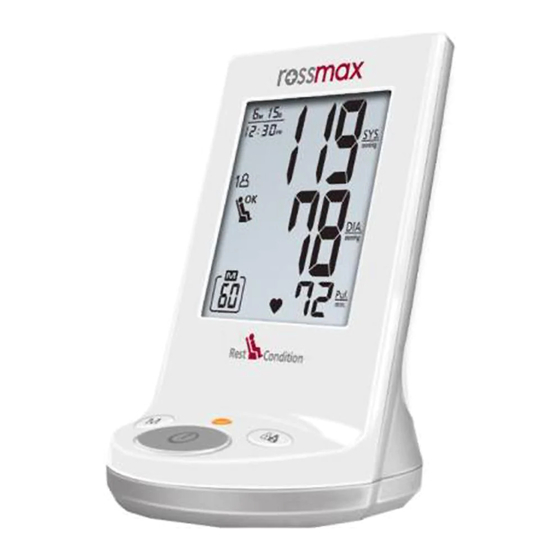

2. Name/Function of Each Part
continued accuracy, it's recommended that all digital blood pressure mon-
itors require re-calibration. This monitor (under normal usage with approx.
3 measurements a day) does not require re-calibration for 2 years. Once
Date/Time
the unit should be re-calibrated the device will display
Set Key
The unit should also be re-calibrated if the monitor sustains
Data Link
damage due to blunt force (such as dropping) or exposure
AC Adapter Jack
Socket 4"AA"(R06) size,
to fluids and / or extreme hot or cold temperature / humid-
1.5V batteries.
ity changes. When
dealer for re-calibration service.
5. Blood Pressure Standard
LCD Display
The National High Blood Pressure Education Program Coordinating
Committee has developed a blood pressure standard, classifying blood
Resting
pressure ranges into 4 stages. (Ref. The Seventh Report of the Joint Na-
Detector
LED tional Committee on Prevention, Detection,
Evaluation, and Treatment of High Blood
User-Switching Key
Pressure-Complete Report JNC-7, 2004).
This blood pressure classification are based
on historical data, and may not be directly
applicable to any particular patient. It is
START/STOP Key
important that you consult with your physi-
cian regularly. Your physician will tell you
Memory Key
your normal blood pressure range as well
Battery Cover
as the point at which you will be considered
(Located on back of unit)
at risk. For reliable monitoring and refer-
ence of blood pressure, keeping long- term
records is recommended. Please download
the blood pressure log at our website www.
rossmaxhealth.com.
6. Blood Pressure Fluctuation
Blood pressure fluctu-
ates all the time!
You should not be overly
worried if you encoun-
tered two or three meas-
urements at high levels.
Blood pressure changes
over the month and even
throughout the day. It is
also influenced by season
and temperature.
7. Resting Detector Using HSD Technology
Rossmax HSD (Hemodynamic Stability) technology communicates to a user
if a measurement is taken in the appropriate state of rest ensuring more
correct blood pressure readings. The most common error in blood pressure
measurement is taking the measurement when the users not being at rest
physically or mentally or hemodynamically unstable thus measurements
can be affected and incorrect.
.
Physical and mental factors can have a significant impact on actual blood
pressure. Simply walking up stairs has a measurable affect on blood pres-
sure. By monitoring changes of the heart rate frequency throughout a
blood pressure measurement, Rossmax HSD can determine if a diagnosis is
appears, simply return to your nearest
taken in the appropriate physiological state of rest. Rossmax HSD prompts
the user to disregard results taken when not at rest and retake another
measurement. 2. Do not move or talk during measurement as this can elevate readings.
3. Do not move or cross legs during measurements. Keep feel flat on floor
Blood pressure measurement can be affected not only by one's physiologic
4. It's suggested that you take your measurements at the same time each
conditions but also physical load, mental stress and certain disorders of
day and use the same arm for consistency.
the body:
5. Users should wait a minimum of 5 minutes before taking additional
Physical Causes Mental Causes Medical Causes measurements. More time may be needed depending on your physiol-
Actual Exercise Excitement Cardiac Arrhythmia ogy.
6. This product is not suitable for people with arryhthmias
Post Exercise Anxiety Impaired Vasal Control
7. This device may have difficulty determining the proper blood pressure
White Coat Effect Medication
for users with diabetes, poor circulation of blood, kidney problems, or
Distraction Hyperventilation
for users who have suffered a stroke.
Talking during measurement
9. Display Explanations
Pulse Period & Pulse Pattern Changes during measurement
1. Date/Time Indicator
2. Hypertension Risk Indicator
Blood Pressure Unstable during measurement
3. Memory Zones
4. Resting Detector
HSD Instability Indication
5. Memory Average
6. Memory Sequence Number
Hemodynamic Stability
7. Weak Battery Mark
indicates that the circulatory system is sufficiently at rest when taking the
measurement thus measurement results are reliable and good for refer- 8. Irregular Heartbeat Detector (IHB)
ence. 9. Systolic Pressure
10. Diastolic Pressure
Lack of Hemodynamic Stability
indicates that the circulatory system is not sufficiently at rest (hemody- 11. Pulse Rate
12. Pulse Mark
namic instability) when taking the measurement thus the measurement
results should be ignored. Wait a minimum of 5 minutes before re-taking
10. Hypertension Risk Indicator
measurements. More time may be needed depending on one's physilogic
conditions.
The National High Blood Pressure Educa-
If icon repeatedly appears, see page 11 for important notes regarding
tion Program Coordinating Committee
your blood pressure measurements. If continues to appear even after
has developed a blood pressure standard,
long period of relaxation, this indicates the circulatory system is still not
classifying blood pressure ranges into 4
sufficiently at rest and cannot be relieved within a short period of rest.
stages. This unit is equipped with innova-
Possible causes are, but not limited to, inner unrest of the nervous system,
tive blood pressure risk indicator, which
chronic mental conditions or the developing cardiac arrhythmia that can
visually indicates the assumed risk level
cause hemodynamic instability for a
(prehypertension / stage 1 hypertension /
long time and may persist continu-
stage 2 hypertension) of the result after
ously even after long period of rest.
each measurement.
HSD Negative
Rossmax HSD is simple to use and (at resting state)
requires no additional user skill
and device adjustments. Rossmax 11. Irregular Heartbeat Detector (IHB)
HSD uses only one measurement to
This unit is equipped with an Irregular Heartbeat
determine if the users were at rest
Detector (IHB) which allows those who have an ir-
(HSD NEGATIVE) or not at rest (HSD
HSD Positive regular heartbeat to obtain accurate measurements
POSITIVE) while taking the measure-
(not at resting
state) alerting the user of the presence of an irregular
ment.
heart beat during the measurement.
8. Important Notes: Regarding Your Blood Pressure Measurement Note: It is strongly recommended that you consult
your physician if the IHB icon (
1. Take your reading in a comfortable environment as measurements can
often.
be affected by hot or cold temperatures. Take your blood pressure at
normal body temperature.
12. Using the AC Adapter (Optional)
1. Connect the AC adapter with the AC adapter jack in the back
of the unit.
2. Plug the AC adapter into the socket. (AC adapters with re-
quired voltage and current indicated near the AC adapter
jack.)
Caution: 1. Please unload the batteries when operating with
the AC mode for a longer period of time . Leav-
ing the batteries in the compartment for
a long time may cause leakage, which
AC Adapter
may lead to damage of the unit.
2. No batteries are needed when
(Ø3.8/Ø1.3)
operating with the AC mode.
1
3. AC adapters are optional. Please contact
9 the distributor for the compatible AC adapters.
2
4. Use only the authorized AC Adaptor with this blood pressure
3
monitor.
4
10
13. Installing Batteries
5
1. Press down and lift the battery cover in the direction of the arrow to open
6
11
the battery compartment.
2. Install or replace 4 "AA" sized batteries in the battery compartment accord-
7 12
8
ing to the indications inside the compartment.
3. Replace the battery cover by clicking in the bottom hooks first, then push in
the top end of the battery cover.
4. Replace the batteries in pairs. Remove batteries when unit is not in use for
extended periods of time.
You need to replace the batteries when
1. low battery icon appears on display.
2. the START/STOP key is pressed and nothing appears on display.
Caution
1. Batteries are hazardous waste. Do not dispose them together with the
household garbage.
2. There are no user serviceable parts inside. Batteries or damage from old
batteries are not covered by warranty.
3. Use exclusively brand batteries. Always replace with new batteries together.
Use batteries of the same brand and same type.
14. Applying the Cuff
1. Unwrap the arm cuff, leaving the end of the cuff through the D-ring of
the cuff.
2. Put your left arm through the cuff loop. The color strip indication should be
positioned closer to you with the tube pointing in the direction of your arm
(Fig. 1). Turn your left palm upward and place the edge of the arm cuff at
approximately 1.5 to 2.5 cm above the inner side of the elbow joint (Fig. 2).
) appears
Tighten the cuff by pulling the end of the cuff.
