4K HDR HDMI Over HDBaseT TX/RX Kit
AT-HDR-EX-70C-KIT

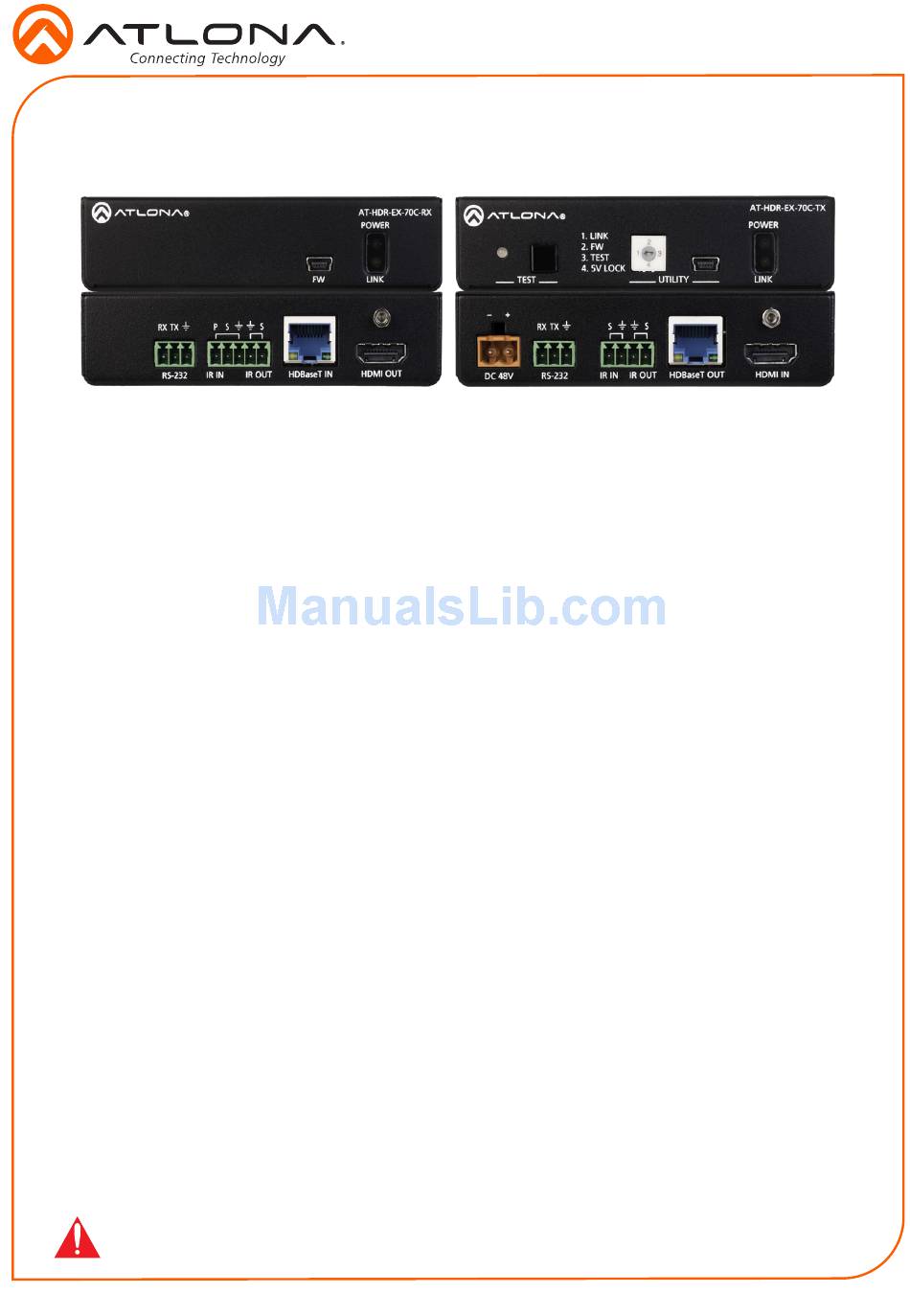

The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range
(HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4
chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides
transmission of HDMI, as well as bidirectional IR and RS-232 control signals up to 230 feet
(70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable.
This extender kit features visually lossless compression with no latency to enable HDR and
4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the
transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-
KIT delivers a cost-effective solution for HDMI and control signal extension, and includes surface
mounting hardware for discrete installation.
Package Contents
1 x AT-HDR-EX-70C-TX

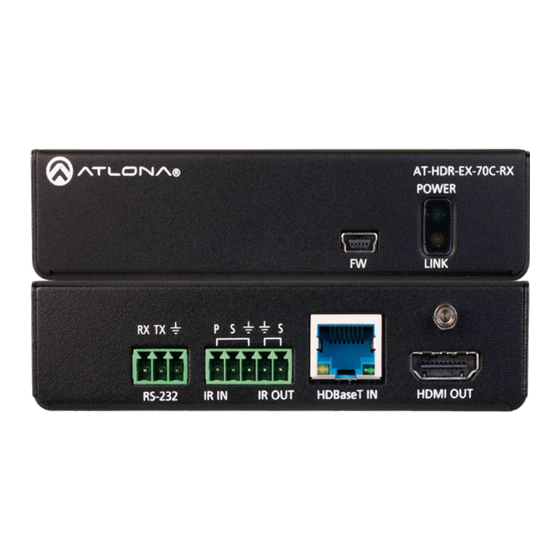

1 x AT-HDR-EX-70C-RX
4 x Mounting brackets
8 x Mounting screws
1 x 48V DC power supply
1 x IR emitter
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70C-KIT for the latest
firmware updates and Installation Guide.
1 x 2-pin captive screw connector
2 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 5-pin captive screw connector
1 x Installation Guide
1
Installation Guide
AT-HDR-EX-70C-KIT
