Atlona AT-UHD-EX-100CE-RX-PSE Installation Manual

4k/uhd power sourcing over 100 m hdbaset receiver with ethernet, control, and poe
Hide thumbs Also See for AT-UHD-EX-100CE-RX-PSE:

Advertisement

Quick Links

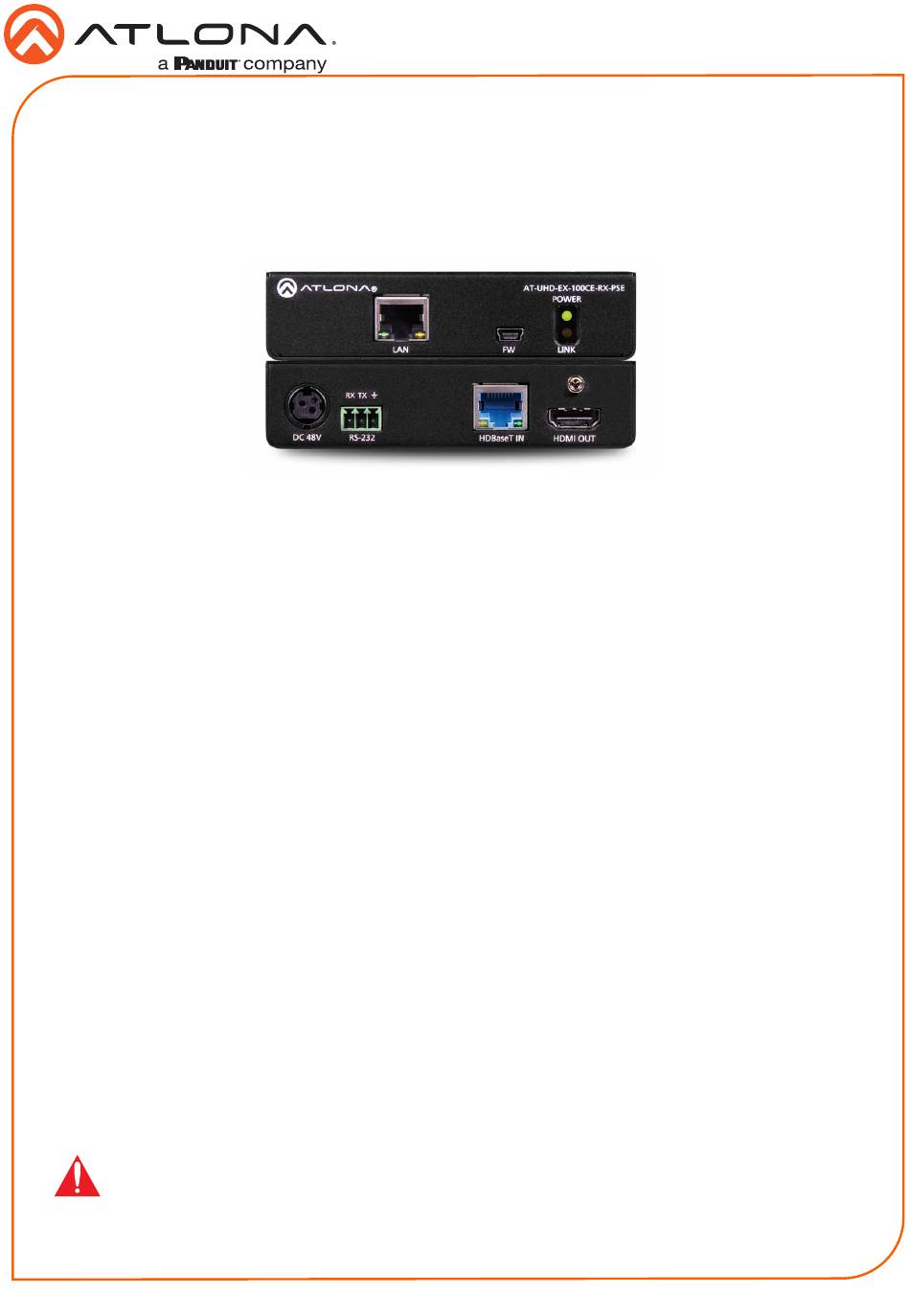

4K/UHD Power Sourcing over 100 M
HDBaseT Receiver with Ethernet, Control, and PoE
AT-UHD-EX-100CE-RX-PSE
The Atlona AT-UHD-EX-100CE-RX-PSE is a 4K/UHD HDMI over 100M HDBaseT receiver for
AV signals up to 330 feet (100 meters) over category cable with Ethernet pass-through, RS-
232, CEC, and Power over Ethernet. It receives video signals up to 4K/UHD @ 60 Hz with 4:2:0
chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-100CE-RX-PSE is
HDCP 2.2 compliant and supports EDID communication. It is ideal for use with the AT-UHD-EX-
100CE-TX-PD HDBaseT transmitter, or an HDVS-200 Series HDBaseT switcher for extending
4K signals to a display. This receiver features a quarter rack width metal enclosure, with rear
panel I/O ports for uncluttered wire management. The AT-UHD-EX-100CE-RX-PSE is externally
powered by the included power supply, and provides Power over Ethernet for the AT-UHD-EX-
100CE-TX-PD, an HDVS-200 HDBaseT switcher, or other PoE-compatible HDBaseT transmitter.
Package Contents
1 x AT-UHD-EX-100CE-RX-PSE
1 x 3-pin captive screw connector
2 x Wall/table mount ears
4 x Screws for wall/mount ears
1 x 48V DC power supply
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-UHD-EX-100CE-RX-PSE for the
latest firmware updates and Installation Guide.
1
Installation Guide
AT-UHD-EX-100CE-RX-PSE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-UHD-EX-100CE-RX-PSE and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-UHD-EX-100CE-RX-PSE

  • Page 1 HDBaseT Receiver with Ethernet, Control, and PoE AT-UHD-EX-100CE-RX-PSE The Atlona AT-UHD-EX-100CE-RX-PSE is a 4K/UHD HDMI over 100M HDBaseT receiver for AV signals up to 330 feet (100 meters) over category cable with Ethernet pass-through, RS- 232, CEC, and Power over Ethernet. It receives video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio.
  • Page 2: Panel Descriptions

    Installation Guide AT-UHD-EX-100CE-RX-PSE Panel Descriptions Front Rear DC 48V Connect an Ethernet cable from this port, Connect the included 48V DC power to a display (sink) device for IP pass- supply to this power receptacle. through control. RS-232 Connect the included 3-pin captive screw Connect a mini-USB cable from this port block to this receptacle.
  • Page 3 AT-UHD-EX-100CE-RX-PSE RS-232 The AT-UHD-EX-100CE-RX-PSE provides pass-through transport of RS-232 over HDBaseT, which allows communication between a control system and an RS-232. This step is optional. Use wire strippers to remove a portion of the cable jacket on the RS-232 cable.
  • Page 4: Mounting Instructions

    Installation Guide AT-UHD-EX-100CE-RX-PSE Mounting Instructions The AT-UHD-EX-100CE-RX-PSE includes two mounting brackets and two mounting screws, which can be used to attach the units to any flat surface. Remove the two top screws from each side of the enclosure. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket.
  • Page 5: Installation

    Cable* Max. Distance @ 4K Max. Distance @ 1080p CAT5e / CAT6 230 feet (70 meters) 330 feet (100 meters) CAT6a / CAT7 330 feet (100 meters) 330 feet (100 meters) *Atlona recommends TIA/EIA 568-B termination for optimal performance.
  • Page 6: Led Indicators

    Installation Guide AT-UHD-EX-100CE-RX-PSE LED Indicators The POWER and LINK LED indicator on the transmitter and receiver unit provides basic information on the current status of the AT-UHD-EX-100CE-RX-PSE. POWER Description Solid green Unit is powered. Unit is not powered. • Verify that the locking connector is securely fastened to the power receptacle.
  • Page 7: Updating The Firmware

    Installation Guide AT-UHD-EX-100CE-RX-PSE Updating the Firmware Requirements: • New firmware - Downloaded from atlona.com • USB to mini-USB cable • Computer running Microsoft Windows. Connect a USB to mini-USB cable from the FW port on the unit to an available USB port on the computer.
  • Page 8 • © 2019 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
