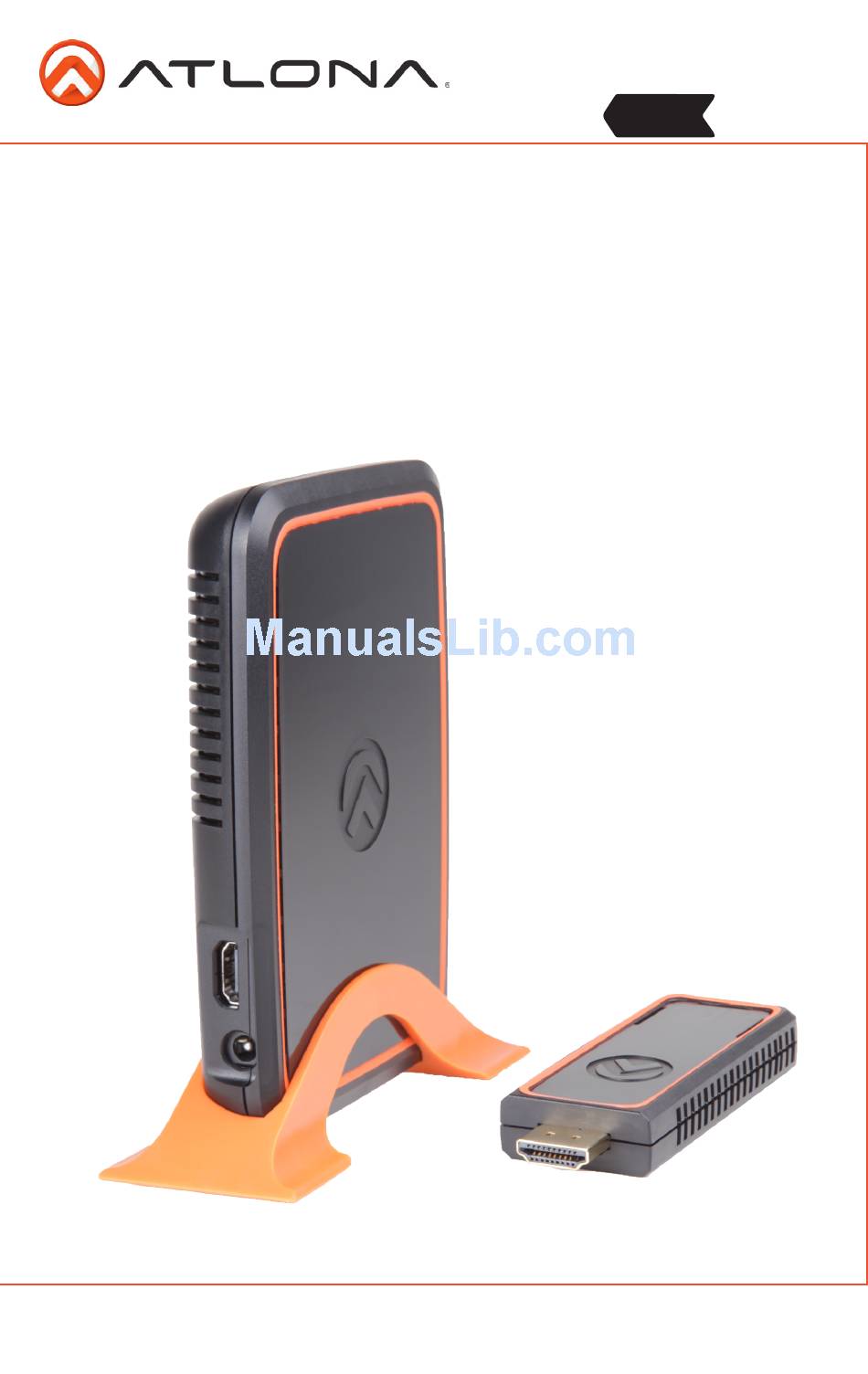

- Page 1 Atlona LinkCast Wireless HD Audio/Video System AT-LinkCastAV & AT-LinkCast-HTX Local: 1-408-962-0515 atlona.com Rev. 2.0 Toll free: 1-877-536-3976...
-
Page 2: Safety And Registration
Registration Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates. -
Page 3: Package Contents
Package Contents AT-LinkCast-HTX (Transmitter) Remote Swivel Adapter AT-LinkCastAV 6’ HDMI Cable AV Station Power Adapter 3’ Mini USB to USB Cable Laptops @ 1080p* up to 40 feet 1080p Sources @ 24Htz* up to 35 feet 1080p Sources @ 60Htz*... - Page 4 • Be sure to connect the transmitter first • Extra transmitters are available to purchase through Atlona.com The LinkCastAV is able to connect to up to 5 transmitters • The 360° Swivel Adapter is available in case any ports are blocked or the transmitter is unable to be plugged in.
-
Page 5: Transmitter Connection
Transmitter Connection Game Consoles ... - Page 6 Atlona LinkConnect Flat HDMI Cable AT-LCT-4 (NOT INCLUDED) For additional HDMI cables we recommend the Atlona LinkConnect collection of Flat and Thin High-Speed HDMI Cables with Ethernet. Available at atlona.com • An additional (not included) HDMI cable is needed when connecting to an AVR.
- Page 7 Laptop Set Up Mirroring, Extending, & Main Display • Right click the desktop and select “Screen Resolution” - Once the menu comes up there are three display options. (if you are unsure which screen is your current screen press the identify button to the right of the numbered screens) •...
-
Page 8: Laptop Set Up
• Right click the audio device for the display the audio will be playing on and select “Set as Default Device”. • Once the correct device is chosen, audio will come from the new speakers. Note: When only wanting to hear audio from the display or AVR disable the laptop speakers. atlona.com... - Page 9 Laptop Set Up HDTV Picture Cutoff When connecting a laptop/computer to an HDTV there is sometimes missing picture or cutoff. To fix this is different for each display. Toggling on or off the auto adjust or energy saving modes can usually fix these problems.
- Page 10 Remote Button Configuration Power: Turns the LinkCastAV on and off Menu: Pulls up the on screen Set Up menu Exit: Turns off on screen menu Selection Buttons: Use to go through the on screen menu options Source: Pulls up quick selection menu for inputs Input Buttons: Quick selection buttons for already synced HDMI transmitters...
- Page 11 Please Activate Registration on Transmitter Unit Note: Press the button at the bottom of the transmitter at this time. Selection: Remove Video Source Choose Source to Remove Atlona Game Selection: Modify Video Source Name Choose Source to Rename ...
-
Page 12: Limited Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt.
