Page 1: User Manual

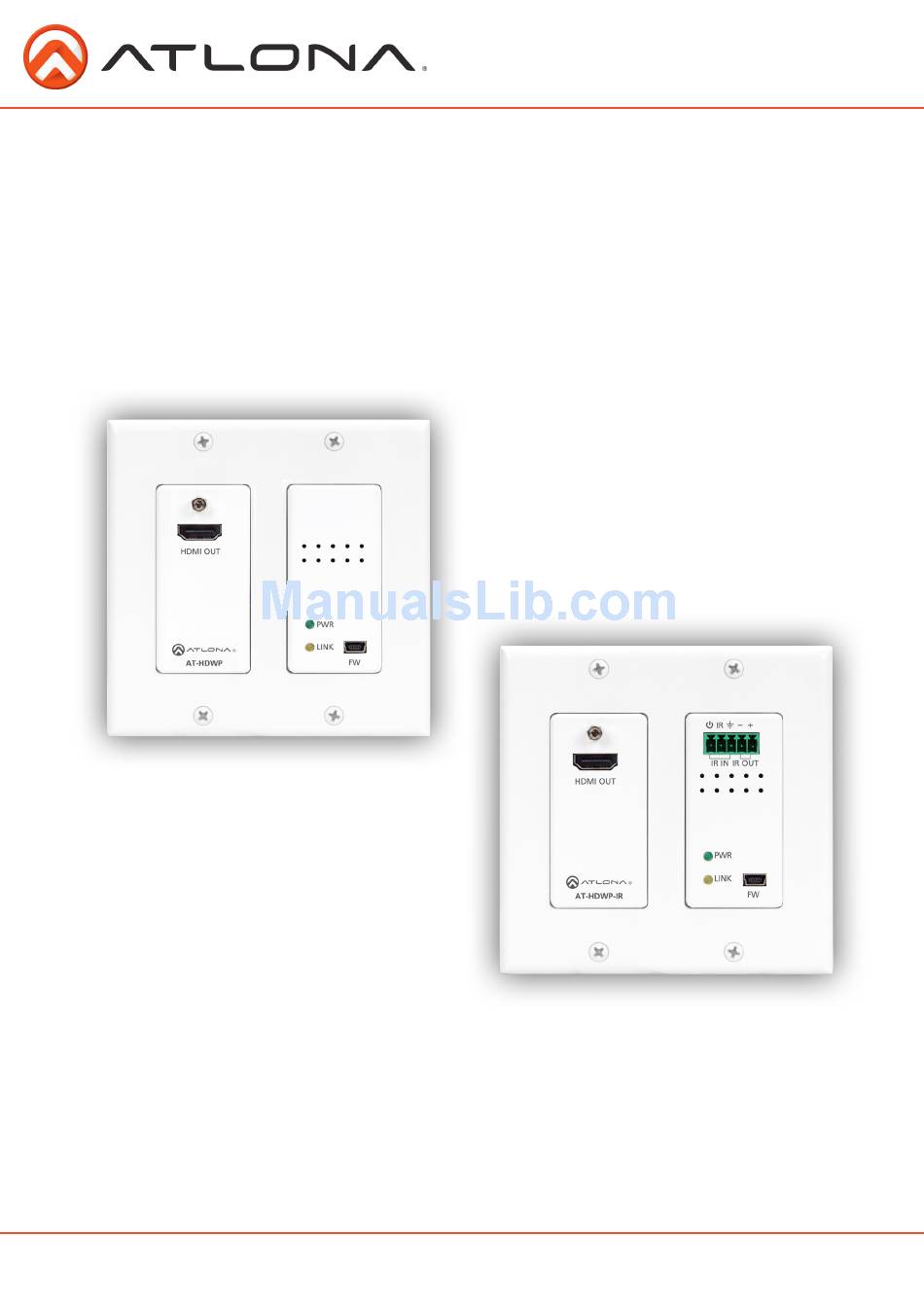

Atlona HDBaseT Wall Plate Receivers AT-HDWP, AT-HDWP-IR AT-HDWP AT-HDWP-IR User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
6. Wall plate installation ................... 5-6 7. Captive Screw ................... 7 8. Connection ................... 8-10 9. Specifications ................... 11 10. Safety Information ................... 12 11. Warranty ................... 13-14 12. Atlona Product Registration ................... 14 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Extend uninterrupted 1080p signal up to 230ft (70m) with the Atlona HDBaseT Wall Plate Receivers. With pass through support of 4Kx2K, 1920x1200, lossy & lossless audio, and bi-directional IR* signals over a single category cable, the HD extenders provide affordable, high quality, solutions for your audio/video and IR* control needs. -
Page 4: Panel Descriptions
IR IN IR OUT HDMI OUT LINK AT-HDWP-IR 1. HDMI OUT Port: Connect to HDMI display. 2. IR IN Port: Connect the IR receiver to this port.* 3. IR OUT Port: Connect the IR Emitter to this port.* 4. Yellow Link LED: Signal Indicator for the CAT5e/6/7 OUT port. LED will remain solid, unless there is an issue with the cable or signal, then it will blink. -
Page 5: Wall Plate Installation
Wall Plate Installation There are four pieces that will need to be interconnected in order for the AT-HDWP / AT-HDWP-IR to be installed in the wall. The electrical box (picture A), the Decora HDBaseT module (picture B), the Decora face plate (picture C) and the CAT cable. - Page 6 Install the Decora face plate over the Decora HDBaseT module using the four remaining screws (these screws will have painted white heads). Note: Do not overtighten the screws or the wall plate will crack and possibly break. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 7: Captive Screw
IR pin outs have been included for the included IR emitter and IR receiver (see picture 6 & 7). The wires are colored for each pin (see picture 8 and 9). *IR used with HDTX-IR and HDRX-IR only* Emitter Receiver ╧ Red: PWR White: IR Black: ╧ White: - Red:+ Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Connection
HDWP Connection HDMI HDBaseT Blu-ray Player AT-HDTX POWER Display 1 HDMI OUT FIRMWARE HDMI IN LINK LINK AT-HDWP CAT5e/6/7 OUT AT-HDTX AT-HDWP HDMI HDBaseT POWER SYNC LOCK AUTO INT LEARN Blu-ray Player INPUT AUTO EDID AT-HDCAT-4 AT-HDCAT-4 FIRMWARE HDMI 1... - Page 9 IR OUT IR OUT IR OUT ZONE 2 RS-232 MATRIX OUT HDMI IN ZONE 1 ZONE 3 ZONE 4 DC 24V AT-PRO3HD44M IR IN IR OUT HDMI OUT LINK AT-HDWP-IR AT-HDWP-IR Display 1 IR Emitter Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 10: Connection
HDBaseT Control Emitter Blu-ray Player AT-HDTX-IR POWER IR IN IR OUT FIRMWARE HDMI IN LINK PWR IR DC 24V CAT5e/6/7 OUT AT-HDTX-IR IR IN IR OUT HDMI OUT LINK AT-HDWP-IR AT-HDWP-IR Receiver Display 1 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 11: Specifications
Specifications Bandwidth 10.2Gbps Ports AT-HDWP AT-HDWP-IR A/V input 1 x RJ45 1 x RJ45 A/V output 1 x HDMI 1 x HDMI IR input 1 x Captive Screw IR output 1 x Captive Screw Firmware update 1 x Mini USB... -
Page 12: Safety Information
It may also cause damage to your AT-HDWP and AT-HDWP-IR. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 13: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 14: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
