Atlona AT-HDMI40SRS User Manual

Hdmi extender over single cat5e
Hide thumbs Also See for AT-HDMI40SRS:
Table of Contents

Advertisement

Quick Links

Download this manual
AtlonA
HDMI
E
S
CAT5e
XTENDER OVER
INGLE
TM
AT-HDMI40SRS
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HDMI40SRS and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-HDMI40SRS

Summary of Contents for Atlona AT-HDMI40SRS

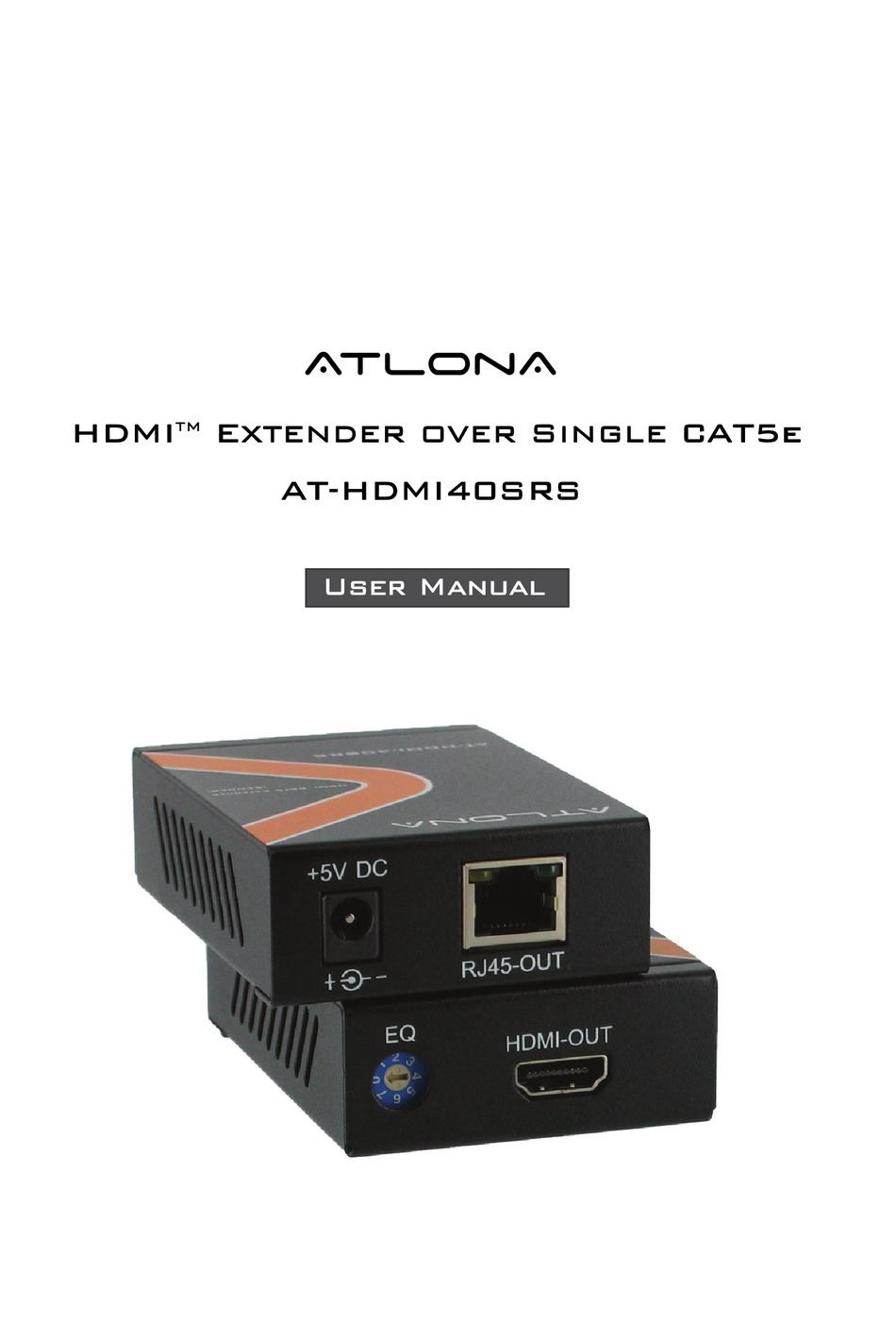

  • Page 1 AtlonA HDMI CAT5e XTENDER OVER INGLE AT-HDMI40SRS User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction …………………………………… 1 2. Features …………………………………… 2 3. Package Contents …………………………………… 2 4. Technical Specifications …………………………………… 2 5. Panel Descriptions …………………………………… 3 6. Hardware Installation …………………………………… 5 7. Notice …………………………………… 5 8. Safety Information …………………………………… 7 9.

  • Page 3: Introduction

    NTRODUCTION The AT-HDMI40SRS boosts up your video/audio transmission distance up to 60m/200ft in HDTV 1080i format. With only one cost effective CAT-5/5e cable, users can readily extend HDTV sources from DVD players, PS3, PC, or any other kind of HDCP compliant source, to any remote display including HDMI/DVI enabled TV set LCD, or monitors.

  • Page 4: Features

    EATURES ∙ HDMI 1.2a compliant ∙ Extend the signal distance of an HDMI source up to 60m/200ft at 1080i or 720p ∙ Extend the signal distance of an HDMI source up to 40m/130ft at 1080p ∙ HDCP compliant ACKAGE ONTENTS ∙...

  • Page 5: Panel Descriptions

    ANEL ESCRIPTIONS FRONT VIEW – TRANSMITTING UNIT Mode HDMI-IN HDMI-IN: Connect a HDMI source with a HDMI M-M cable here Mode: 0: HDMI mode with 8 audio channels 1: HDMI mode with S/PDIF 2 audio channels 2: DVI mode 3-5: Reserved 6: Use default EDID 7: Learn EDID from the receiver Note for EDID (Extended Display Identification Data) learning...
  • Page 6 ANEL ESCRIPTIONS FRONT VIEW – RECEIVING UNIT HDMI-OUT HDMI-OUT: Connect to a HDMI display with a HDMI M-M cable here. Adjust the 8-level equalization control knob to the received HDMI signals. 0 - 7 = strongest - weakest. It is recommended to switch from 7 to 0 to find the optimal visual experience.

  • Page 7: Hardware Installation

    Try adjusting the EQ from 7 to 0. NOTICE The AT-HDMI40SRS HDMI Extender over Single CAT5e has been tested for conformity to safety regulations and requirements in the US, and has been certified for international use. However, like all electronic equipment, the AT-HDMI40SRS should be used with care.
  • Page 8 ‧Keep objects that might damage the device and assure that the placement of this unit is on a stable surface. ‧Use only the power adapter and power cords and connection cables designed for this unit. ‧Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

  • Page 9: Safety Information

    Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features.

  • Page 10: Warranty

    WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
