4K HDR HDMI Over HDBaseT TX/RX Kit
AT-HDR-EX-70-2PS
The Atlona AT-HDR-EX-70-2PS is an HDBaseT transmitter/receiver kit for high dynamic range
(HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4
chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70-2PS provides
HDMI transmission up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters)
for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression with no
latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. The HDR-EX-70-
2PS delivers a cost-effective solution for HDMI extension, with locally powered transmitter and
receiver endpoints as well as surface mounting hardware for discreet installation.
The HDR-EX-70-2PS is ideal for residential applications with the latest as well as emerging 4K/
UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats,
and color space formats supported in the HDMI 2.0a specification, plus the ability to pass
metadata for HDR content. The HDR-EX-70-2PS includes Atlona's award-winning 10 year limited
product warranty and customer support services, so that integrators can specify, purchase, and
install with confidence.
Package Contents
1 x AT-HDR-EX-70-2PS-TX
1 x AT-HDR-EX-70-2PS-RX
4 x Mounting brackets
8 x Mounting screws
2 x 5 V DC power supplies
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70-2PS for the latest
firmware updates and Installation Guide.
1
Installation Guide
AT-HDR-EX-70-2PS
Advertisement
Table of Contents
Related Manuals for Atlona AT-HDR-EX-70-2PS
Summary of Contents for Atlona AT-HDR-EX-70-2PS
-
Page 1: Installation Guide
4K HDR HDMI Over HDBaseT TX/RX Kit AT-HDR-EX-70-2PS The Atlona AT-HDR-EX-70-2PS is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70-2PS provides HDMI transmission up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable. -
Page 2: Panel Descriptions

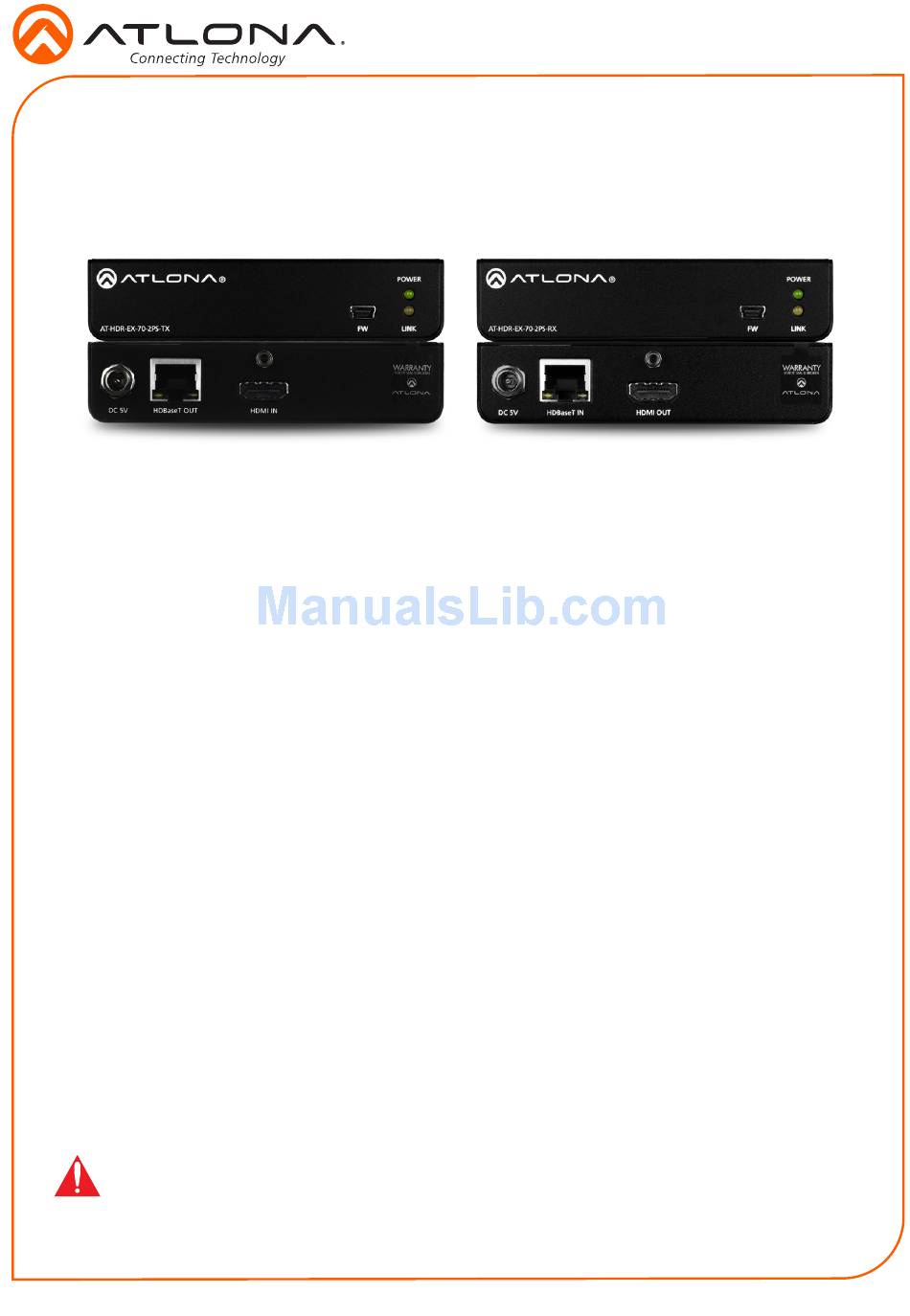

Installation Guide AT-HDR-EX-70-2PS Panel Descriptions Transmitter Receiver Front Front AT-HDR-EX-70-2PS-RX AT-HDR-EX-70-2PS-TX AT-HDR-EX-70-2PS-TX AT-HDR-EX-70-2PS-RX POWER POWER POWER POWER LINK LINK LINK LINK Rear Rear DC 5V HDBaseT IN HDMI OUT DC 5V HDBaseT OUT HDMI IN DC 5V HDBaseT OUT HDMI IN... -
Page 3: Installation
Installation Guide AT-HDR-EX-70-2PS Installation Connect a UHD/HD source to the HDMI IN port on the AT-HDR-EX-70-2PS-TX. Connect a UHD/HD display to the HDMI OUT port on the AT-HDR-EX-70-2PS-RX. Connect an Ethernet cable, from the HDBaseT OUT port on the AT-HDR-EX-70-2PS-TX, to the HDBaseT IN port on the AT-HDR-EX-70-2PS-RX. -
Page 4: Led Indicators
AT-HDR-EX-70-2PS LED Indicators The POWER and LINK LED indicator on the transmitter and receiver unit provides basic information on the current status of the AT-HDR-EX-70-2PS. The information in the table below applies to both the transmitter and receiver unit. POWER... - Page 5 Installation Guide AT-HDR-EX-70-2PS Testing HDBaseT Signal Integrity The AT-HDR-EX-70-2PS Analyzer is a free, downloadable software application that is used to test the signal integrity of HDBaseT cables. The software is available from Atlona.com, on the AT-HDR-EX-70-2PS product page. Requirements •...
- Page 6 Cable* Max. Distance @ 4K Max. Distance @ 1080p CAT5e / CAT6 115 feet (35 meters) 200 feet (60 meters) CAT6a / CAT7 130 feet (40 meters) 230 feet (70 meters) *Atlona recommends TIA/EIA 568-B termination for optimal performance.
-
Page 7: Updating The Firmware
The follow procedure outlines the firmware update procedure and applies to both the transmitter and receiver. Both the AT-HDR-EX-70-2PS firmware and analyzer software will be required for this process and are available from Atlona.com on the AT-HDR-EX-70-2PS product web page. - Page 8 HDR-2PS-RX_[version].hex 10. Click the Open button on the dialog box. 11. Click the Load button, within the AT-HDR-EX-70-2PS Analyzer software, to begin the firmware update procedure. 12. During the update process, the current progress will be displayed in the progress bar.
-
Page 9: Mounting Instructions
