Summary of Contents for Atlona AT-HDWP-UK
-

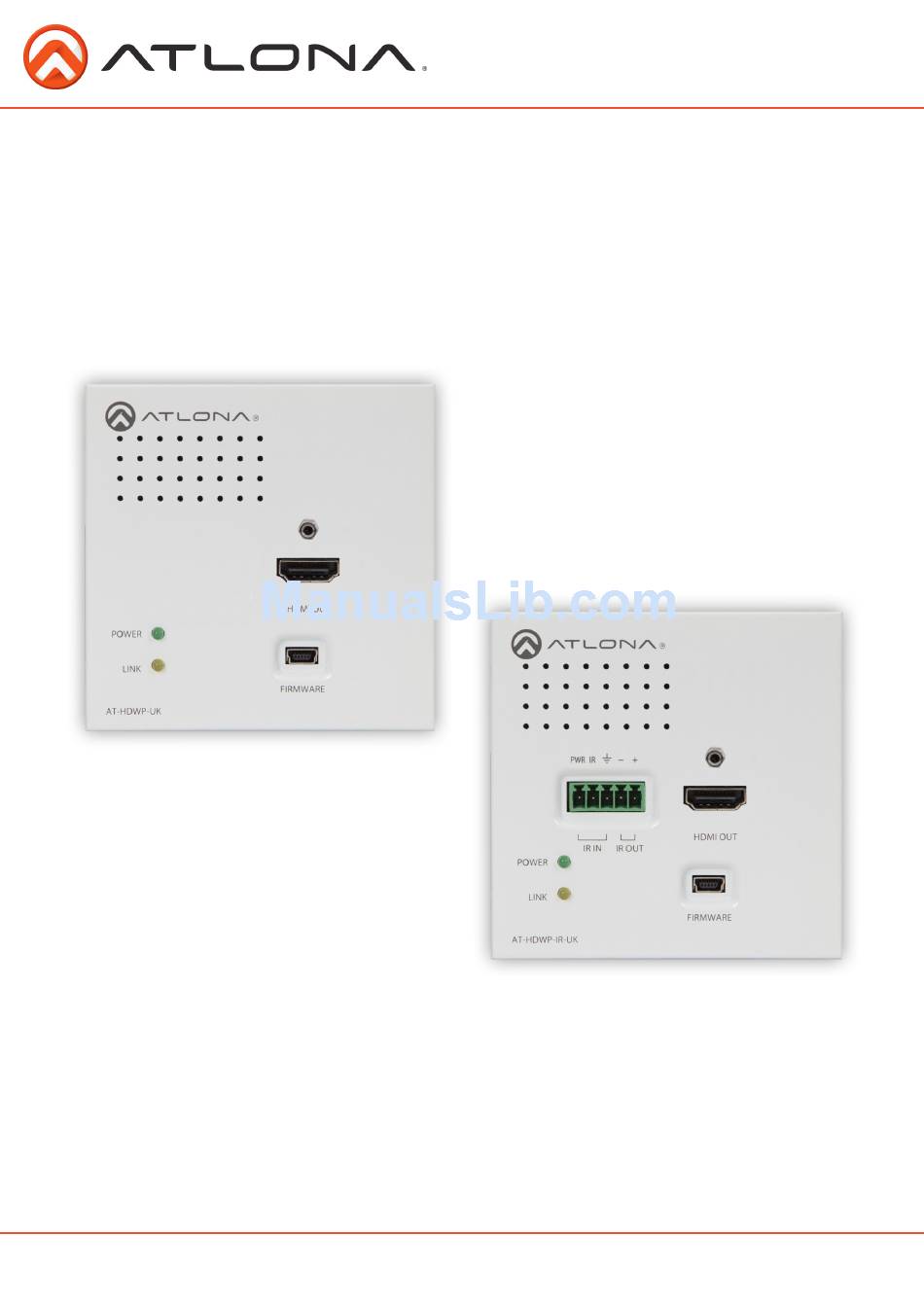

Page 1: User Manual
Atlona UK HDBaseT Wall Plate Receivers AT-HDWP-UK, AT-HDWP-IR-UK AT-HDWP-UK AT-HDWP-IR-UK User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
6. Wall plate installation ................... 5-6 7. Captive Screw ................... 7 8. Connection ................... 8-10 9. Specifications ................... 11 10. Safety Information ................... 12 11. Warranty ................... 13-14 12. Atlona Product Registration ................... 14 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Extend uninterrupted 1080p signal up to 230ft (70m) with the Atlona UK HDBaseT Wall Plate Receivers. With pass through support of 4Kx2K, 1920x1200, lossy & lossless audio, and bi-directional IR* signals over a single category cable, the HD extenders provide affordable, high quality, solutions for your audio/video and IR* control needs. -
Page 4: Panel Descriptions
Electrical Box With so many electrical back boxes it is hard to know which to purchase with any wall plate. For convenience Atlona has compiled recommended electrical boxes to use with the HDWP-UK and HDWP-IR-UK. For 9.5mm up to 12.5mm walls: Red/Grey 1 Gang box or mud ring is best For 12.5mm walls: Appleby 1 gang box or mud ring is best... -
Page 5: Wall Plate Installation
(ESD) may damage sensitive chips. Next, route the CAT cable through the electrical box (as seen above) and connect it to the back of the HDBaseT module (see picture on top of page 6). Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 6 Replace the four 4mm screws (as seen above). Note: If the four holes on the face plate do not line up with the back box, loosen the 30mm screws on the HDBaseT module. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 7: Captive Screw
IR pin outs have been included for the included IR emitter and IR receiver (see picture 6 & 7). The wires are colored for each pin (see picture 8 and 9). *IR used with HDTX-IR and HDRX-IR only* Emitter Receiver ╧ Red: PWR White: IR Black: ╧ White: - Red:+ Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Connection
HDWP Connection HDMI HDBaseT Blu-ray Player AT-HDTX POWER Display 1 FIRMWARE HDMI IN LINK HDMI OUT LINK CAT5e/6/7 OUT AT-HDTX AT-HDWP-UK AT-HDWP-UK HDMI HDBaseT POWER SYNC LOCK AUTO INT LEARN Blu-ray Player INPUT AUTO EDID AT-HDCAT-4 AT-HDCAT-4 FIRMWARE HDMI 1... - Page 9 IR OUT IR OUT IR OUT ZONE 2 RS-232 MATRIX OUT HDMI IN ZONE 1 ZONE 3 ZONE 4 DC 24V AT-PRO3HD44M IR IN IR OUT HDMI OUT LINK AT-HDWP-IR-UK AT-HDWP-IR-UK Display 1 IR Emitter Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 10: Connection
HDBaseT Control Emitter Blu-ray Player AT-HDTX-IR POWER IR IN IR OUT FIRMWARE HDMI IN LINK PWR IR DC 24V CAT5e/6/7 OUT AT-HDTX-IR IR IN IR OUT HDMI OUT LINK AT-HDWP-IR-UK AT-HDWP-IR-UK Receiver Display 1 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 11: Specifications
Specifications Bandwidth 10.2Gbps Ports AT-HDWP-UK AT-HDWP-IR-UK A/V input 1 x RJ45 1 x RJ45 A/V output 1 x HDMI 1 x HDMI IR input 1 x Captive Screw IR output 1 x Captive Screw Firmware update 1 x Mini USB... -
Page 12: Safety Information
It may also cause damage to your AT-HDWP-UK and AT-HDWP-IR-UK. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 13: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 14: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
