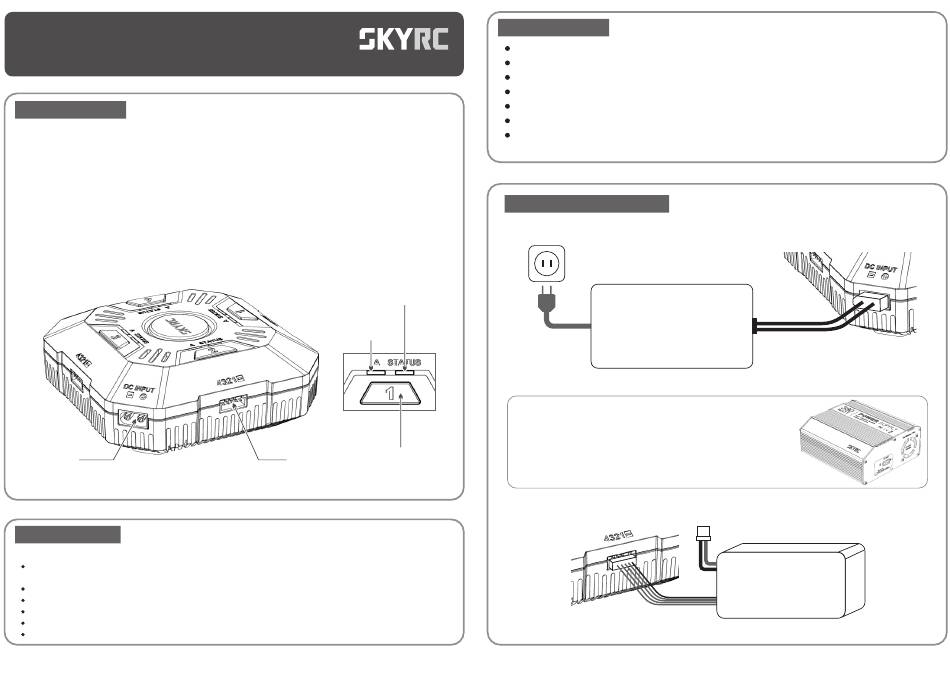

INSTRUCTIONMANUAL
e4Q MULTICHARGER

INTRODUCTION

Thank you for your choice of the SKYRC e4Q Multi Charger. This unit is simple to use but its
operation does require some knowledge on the part of the user. Please read this entire operating
manual completely and attentively before using this product, as it covers a wide range of information
on operating and safety.
SKYRC e4Q Multi Charger employs the circuit that features four totally independent but identical
power outputs which are powered 50W each. It is designed for charging 2-4 cells LiPo battery. Insert
the battery lead to the right connector in each port, the charger will charge 4 batteries at the same
time. And the charging current can be adjusted from 2A/3A/5A by push button, the charging capacity
and charging current can be displayed in the LED Indicators by color variation.
DC Input
11-26.1V

SAFETY NOTE

Improper usage may lead to fire, property damage and physical injury.
Never leave the charger unattended when it is connected to its power supply. If any malfunction is found,
TERMINATE THE PROCESS AT ONCE.
Place the charger and battery on a non-flammable surface, and keep away from inflammables.
Never charge swollen, leaky, or damaged batteries.
Batteries shall be charged within a temperature range of 5-40
DO NOT leave batteries out in the rain or near a source of moisture.
Disconnect the battery and charger once charging finished.
SK-100140
Charging Status
LED Indicator
Current LED
Indicator
Balance
Charging Current /
Port
Start / Stop Button
.
-1-

FEATURES

Four independent ports can be used at the same time
Adjustable charging current 2A/3A/5A
LED and audible sound indicate charging status
LED displays charging current and battery capacity by color variation
DC power input
Efficient ventilation and compact size
Maximum protection: short circuit protection; over current protection; battery reverse
polarity protection and DC input voltage protection;

CHARGE PROCEDURES

1. Connect the charger to DC power supply.
Power Supply > 250W

Important Notice

To take advantage of e4Q's full power capability, the power
source should be 11-26.1V DC, and output power should be
capable of 250W or higher.
Low quality DC power source may damage your e4Q charger.
We recommend you to choose SKYRC 380W Power Supply.
2. Insert the battery balance lead to the balance port.
LiPo Battery
-2-
