ENFORCER DP-236Q Manual

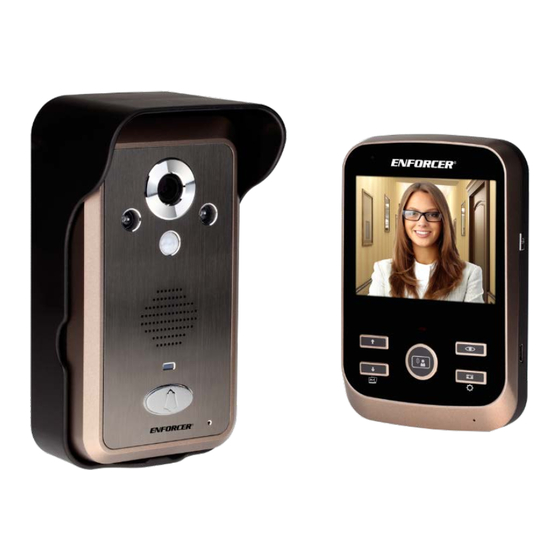

Wireless video door phone
Hide thumbs Also See for DP-236Q:
Table of Contents

Advertisement

Quick Links

Download this manual
• Wireless operation – camera and monitor can
operate from up to 492ft (150m)
• Camera has built-in IR LEDs for nighttime
operation
• Remotely and securely talk to visitors and
unlock doors or gates via the monitor
• Lightweight monitor can be carried around the
premises while talking to the visitor
• Connect up to two additional monitors
Second and third monitors sold separately.
1
Line-of-sight range. Actual range may vary depending on the installation and operating environment.
2

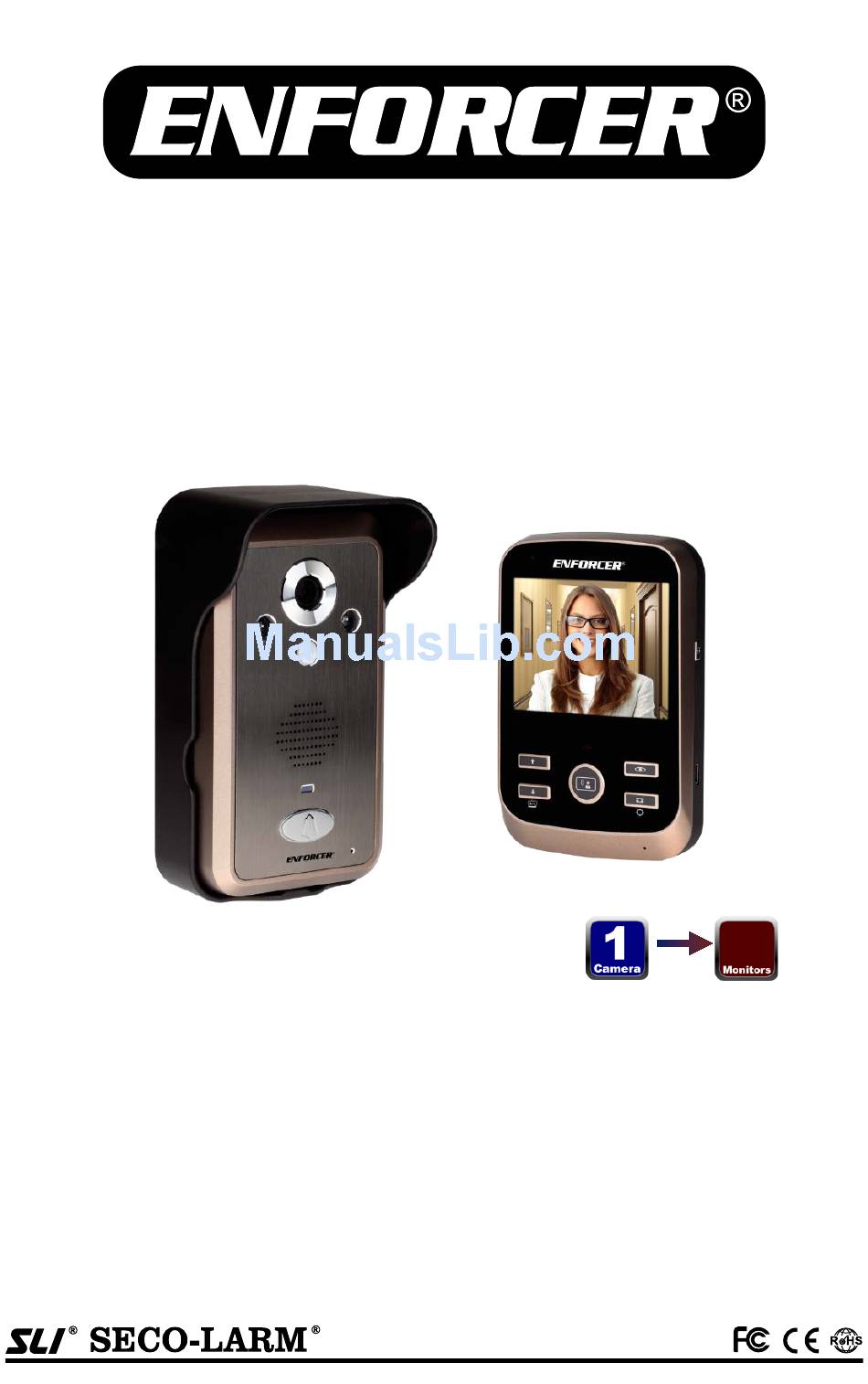

DP-236Q
Wireless Video Door Phone
Manual
away
2
1
• Camera includes a built-in PIR sensor that
activates the camera and takes photos of the
visitor when he or she approaches
• Monitor includes a kickstand and a charging
base
• Camera powered by 9~16 VAC/5~16 VDC
• Monitor front door at any time
• Egress input
• 120° wide viewing angle
3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-236Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER DP-236Q

Summary of Contents for ENFORCER DP-236Q

  • Page 1 DP-236Q Wireless Video Door Phone Manual • Wireless operation – camera and monitor can • Camera includes a built-in PIR sensor that operate from up to 492ft (150m) away activates the camera and takes photos of the visitor when he or she approaches •...

  • Page 2: Table Of Contents

    Warranty ............12 Introduction: The ENFORCER Wireless Video Door Phone is the convenient and secure way to monitor and control an entryway such as a door or gate from nearly 492 feet (150 meters) away. When a guest or visitor presses the doorbell button on the camera unit, the homeowner can use one of up to three lightweight wireless LCD monitors to see who is requesting entry, speak with the caller, take a photo, and decide whether or not to grant entry.

  • Page 3: Specifications

    ENFORCER Wireless Video Door Phone Specifications: Camera Monitor Type Color Camera Display ” (86mm) TFT Chip CMOS 5VDC (adapter) or Operating voltage 3.7VDC (battery) Resolution 480 TV Lines Active 250mA@4.2VDC Current Lens draw Standby 5mA@4.2VDC Viewing angle 120° Active 4.4 Hours...

  • Page 4: Display Overview

    ENFORCER Wireless Video Door Phone Display Overview: : Signal Strength – Displays the wireless signal strength : Time – Displays the current time : PIR – Displays when the PIR sensor is turned on : Ringer – Displays if the ringer is audible or muted : Missed Call –...

  • Page 5: Camera Wiring Diagram

    ENFORCER Wireless Video Door Phone Camera Wiring Diagram: N.C. Output N.O. Output Egress input (N.O., -) (–) 9~16 VAC/ 5~16 VDC 1) Positive (+) power input. Connect to the red wire of the included AC adapter or to the positive wire of the doorbell’s power supply.

  • Page 6: Installation - Camera

    ENFORCER Wireless Video Door Phone Installation – Camera: 1. Position the camera so the area to be monitored is easily visible, optimally 5ft (1.5m) above the ground. Do not position the camera in direct sunlight, or where it will be exposed directly to rain or snow.
  • Page 7 ENFORCER Wireless Video Door Phone Installation – Monitor (continued) Recharge the monitor battery: There are two ways to recharge the monitor battery. 1. Place the 2. Plug the charger directly into the monitor. monitor into the monitor charger stand and plug the charger into the stand.

  • Page 8: Programming

    ENFORCER Wireless Video Door Phone Programming: 1. While the monitor display is on, hold the “Photo/Settings” button for 3 seconds to enter programming mode. 2. Press the “Photo/Settings” button to cycle through the programming options, including: Time setup Ringtone choice...

  • Page 9: Operating The Wireless Video Door Phone

    ENFORCER Wireless Video Door Phone Operating the Wireless Video Door Phone: Request entry: 1. Press the doorbell button on the camera. 2. Wait for someone to press the “ON/OFF” button on the monitor to unlock the door. ON/OFF: • Turn monitor ON/OFF •...

  • Page 10: Pairing Additional Monitors

    NOTE: It is not possible to export internal photos. Pairing Additional Monitors: NOTE: By default, the monitor in the DP-236Q Complete Kit is paired with the camera. These instructions apply to pairing a second or third monitor. To pair a monitor with the camera: 1.

  • Page 11: Resetting The Camera And Pairing A First Monitor

    ENFORCER Wireless Video Door Phone Resetting the Camera and Pairing a First Monitor: To reset the camera and pair a first monitor: 1. Clear the camera’s existing pairings: Remove the camera from the bracket. The alarm will begin to sound.

  • Page 12: Troubleshooting

    ENFORCER Wireless Video Door Phone Troubleshooting: • Make sure the “ON/OFF” button was pressed. The monitor’s screen is blank. • Recharge the monitor’s battery. • Plug the charger directly into the monitor. The monitor recharges when plugged • Check that the monitor is firmly seated in the charging directly in, but not in the recharging stand.
