ENFORCER DP-236Q Manual

Wireless video door phone
Hide thumbs Also See for DP-236Q:
Table of Contents

Advertisement

Quick Links

Download this manual
• Wireless operation – camera and monitor can
operate from up to 492ft (150m) away
• Camera has built-in IR LEDs for nighttime
operation
• Remotely and securely talk to visitors and
unlock doors or gates via the monitor
• Lightweight monitor can be carried around the
premises while talking to the visitor
• Connect up to two additional monitors*
*Second and third monitors sold separately.
Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.

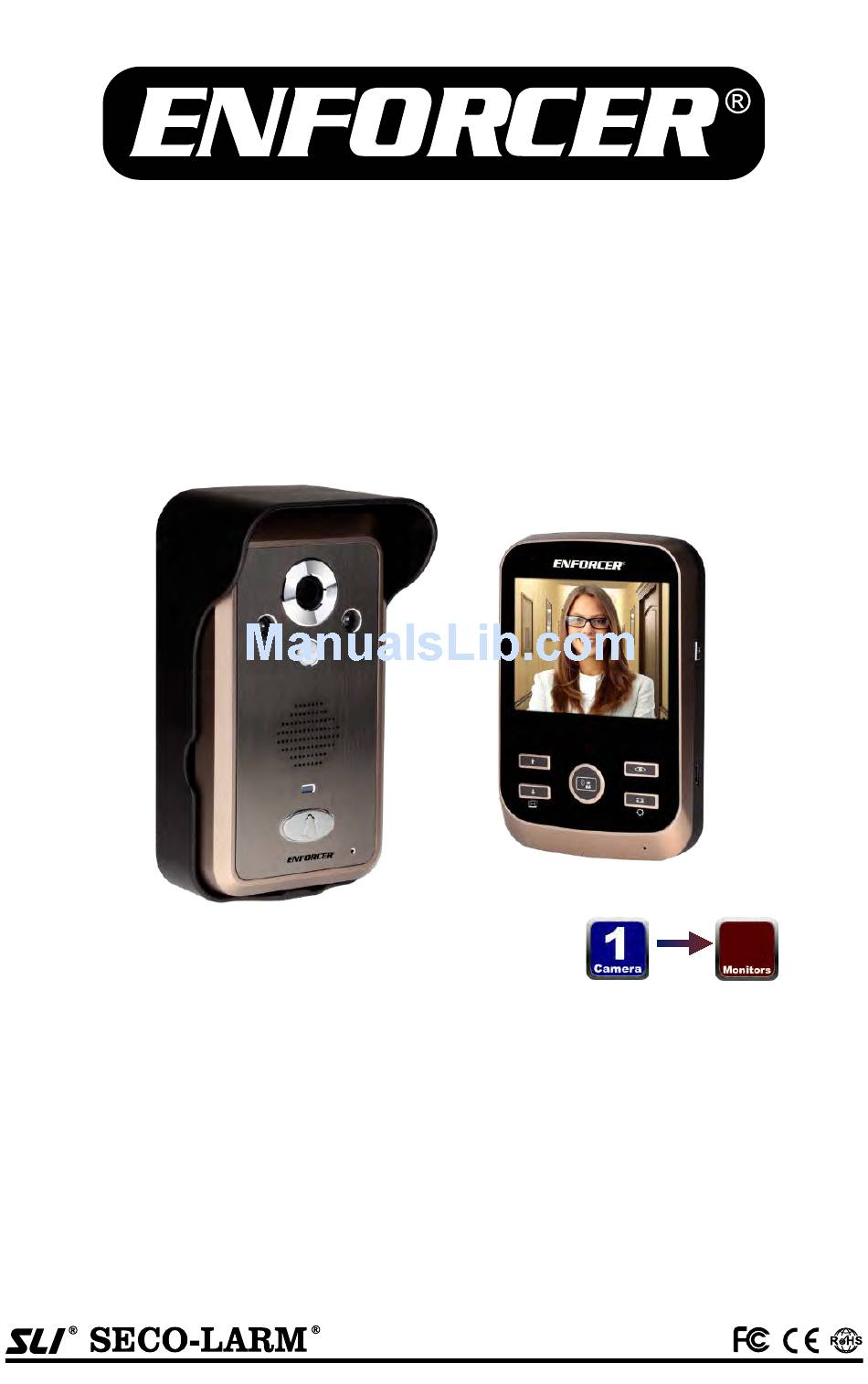

DP-236Q
Wireless Video Door Phone
Manual
• Camera includes a built-in PIR sensor that
activates the camera and takes photos of the
visitor when he or she approaches
• Monitor includes a kickstand and a charging
base
• Camera powered by 9~16VAC/VDC
• Monitor front door at any time
• Egress input
• 120° wide viewing angle
3
*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-236Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER DP-236Q

Summary of Contents for ENFORCER DP-236Q

  • Page 1 DP-236Q Wireless Video Door Phone Manual • Wireless operation – camera and monitor can • Camera includes a built-in PIR sensor that operate from up to 492ft (150m) away activates the camera and takes photos of the visitor when he or she approaches •...

  • Page 2: Table Of Contents

    Warranty ............12 Introduction: The ENFORCER Wireless Video Door Phone is the convenient and secure way to monitor and control an entryway such as a door or gate from nearly 492 feet (150 meters) away. When a guest or visitor presses the doorbell button on the camera unit, the homeowner can use one of up to three lightweight wireless LCD monitors to see who is requesting entry, speak with the caller, take a photo, and decide whether or not to grant entry.

  • Page 3: Specifications

    ENFORCER Wireless Video Door Phone Specifications: Camera Monitor Type Color Camera Display ” (86mm) TFT Chip CMOS Operating voltage 9~16 VAC/VDC Resolution 480 TV Lines Relock delay 1~6 s Lens Active 220mA@4.2VDC Current draw Viewing angle 120° Standby 3mA@4.2VDC Relay output...

  • Page 4: Installation Notes

    ENFORCER Wireless Video Door Phone Installation Notes: 1. Unpack the video door phone and note the included parts. 2. Read this manual thoroughly. A clear understanding of the manual will make installation and operation much easier. 3. Find a good location to mount the monitor and camera.

  • Page 5: Sample Application

    ENFORCER Wireless Video Door Phone Sample Application: Electric strike power supply N.C. N.O. Fail-secure electric strike Egress input (N.O., -) PUSH Request-to-exit plate EXIT Camera Negative (-) (black wire) To the included AC adapter or the doorbell’s transformer Positive (+) (red wire) •...

  • Page 6: Installation - Monitor

    Turn monitor ON: Hold the ON/OFF button for 3 seconds. The monitor will ON/OFF turn ON with the ENFORCER screen. Standby mode: If the monitor is on, press the ON/OFF button momentarily to go to standby mode (if the display is ON) or to leave standby mode (if the display is OFF).

  • Page 7: Programming

    ENFORCER Wireless Video Door Phone Installation – Monitor (continued) Battery saver: Batter If the display is ON and there is no user action for level 35 seconds, the display will turn OFF and the monitor will indicator go into the standby mode.

  • Page 8: Operating The Wireless Video Door Phone

    ENFORCER Wireless Video Door Phone Programming (continued): Programming the lock delay: This determines how long the relay output is active after the door has been unlocked. 1. Hold the “Photo/Settings” button for 3 seconds to enter programming mode, then momentarily press the “Photo/Settings”...
  • Page 9 ENFORCER Wireless Video Door Phone Operating the Wireless Video Door Phone (continued): View and/or talk to a visitor who has not pressed the doorbell button on the camera: 1. Press the ON/OFF button to turn the monitor’s display ON. 2. Press the monitor’s “View” button to turn the camera on. At this time, the monitor can hear sound and view video from the camera.

  • Page 10: Pairing Additional Monitors

    ENFORCER Wireless Video Door Phone Pairing Additional Monitors: NOTE: By default, the monitor in the DP-236Q Complete Kit is paired with the camera. These instructions apply to pairing a second or third monitor. To pair a monitor with the camera: 1.

  • Page 11: Tamper Alarm

    ENFORCER Wireless Video Door Phone Tamper Alarm: The camera’s tamper alarm will sound when the camera is removed from its bracket, warning the homeowner of possible vandalism. Only the first programmed monitor will sound an alarm. NOTE: If the camera is removed and replaced within 2 seconds, the camera will instead send a warning call to the monitor.

  • Page 12: Troubleshooting

    ENFORCER Wireless Video Door Phone Troubleshooting: • Make sure the ON/OFF button was pressed. The monitor’s screen is blank. • Recharge the monitor’s battery. • Plug the charger directly into the monitor. The monitor recharges when plugged • Check that the monitor is firmly seated in the recharging directly in, but not in the cradle.
