ENFORCER SECO-LARM SLI DP-264-1C7Q Manual

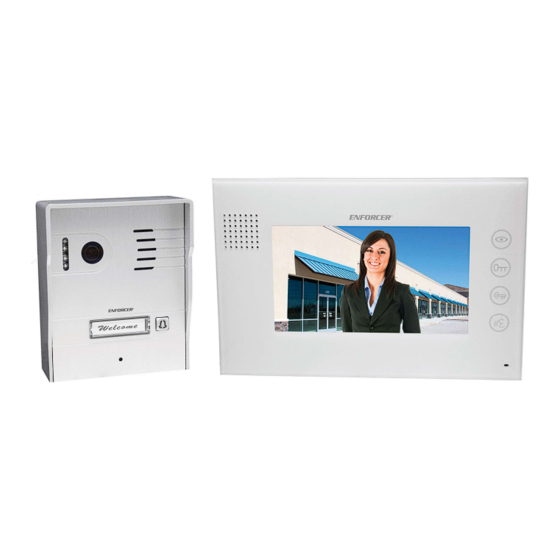

Hands-free video door phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

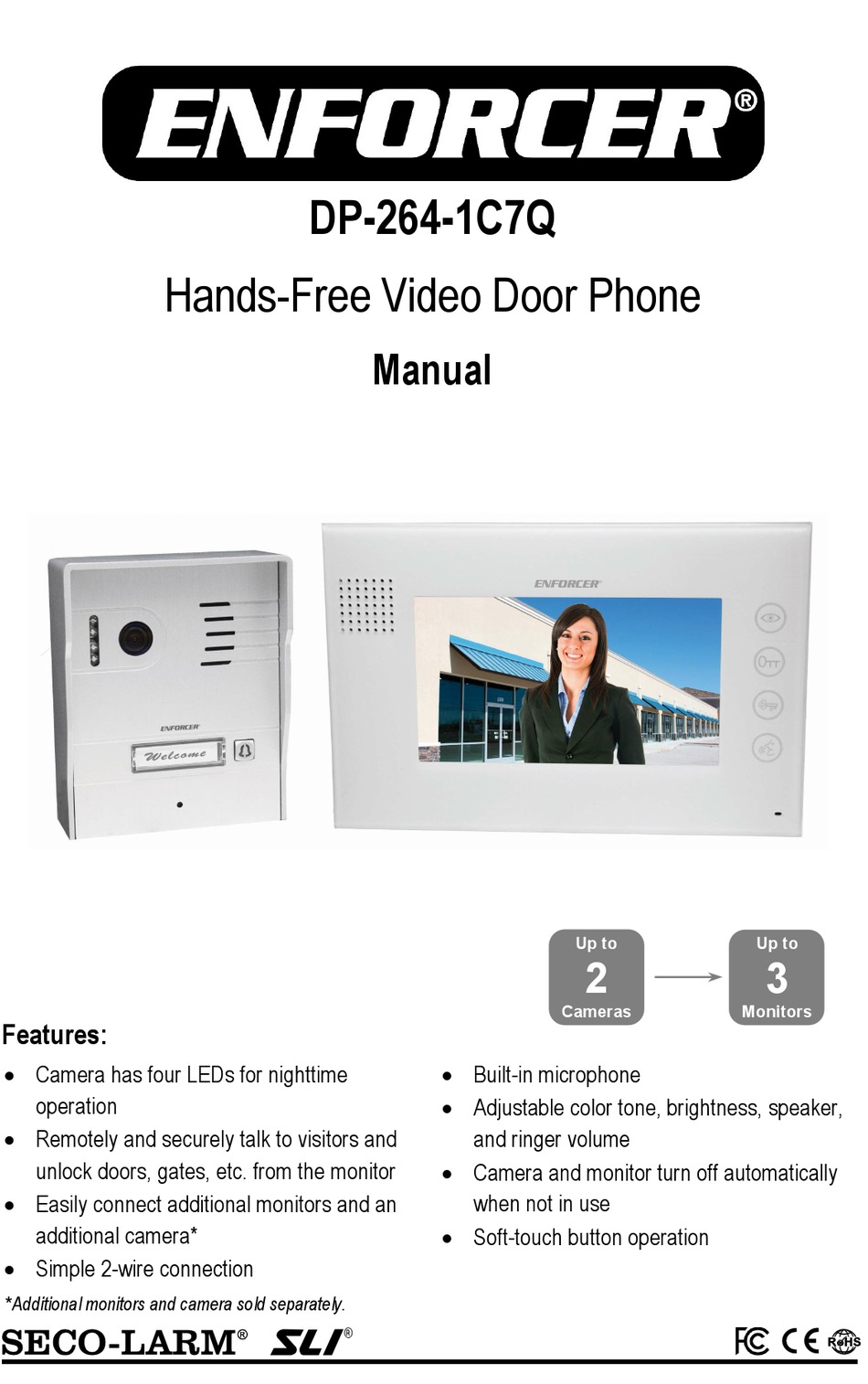

Hands-Free Video Door Phone
Features:
 Camera has four LEDs for nighttime
operation
 Remotely and securely talk to visitors and
unlock doors, gates, etc. from the monitor
 Easily connect additional monitors and an
additional camera*
 Simple 2-wire connection
*Additional monitors and camera sold separately.
DP-264-1C7Q
Manual
 Built-in microphone
 Adjustable color tone, brightness, speaker,
 Camera and monitor turn off automatically
 Soft-touch button operation
®
Up to
2
Cameras
and ringer volume
when not in use
Up to
3
Monitors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SECO-LARM SLI DP-264-1C7Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER SECO-LARM SLI DP-264-1C7Q

Summary of Contents for ENFORCER SECO-LARM SLI DP-264-1C7Q

  • Page 1 DP-264-1C7Q Hands-Free Video Door Phone Manual Up to Up to Cameras Monitors Features:  Camera has four LEDs for nighttime  Built-in microphone operation  Adjustable color tone, brightness, speaker,  Remotely and securely talk to visitors and and ringer volume ...

  • Page 2: Table Of Contents

    ENFORCER Hands-Free Video Door Phone Table of Contents Specifications ..........2 Installation – Additional Monitors ....5 Parts List ............2 Installation – Camera ........5 Overview ............3 Operating Instructions ........6 Installation Notes .......... 4 Wiring Diagrams ........... 7 Installation –...

  • Page 3: Overview

    ENFORCER Hands-Free Video Door Phone Overview: Monitor Unit: Front View Display Speaker Monitor Button E-Lock 13.8V Relay Unlock Button Talk Button Microphone Back View To power To bell To camera To additional monitor To additional camera To monitor Jumper Ringtone volume adjustment...

  • Page 4: Installation Notes

    ENFORCER Hands-Free Video Door Phone Installation Notes: 1. Unpack the video door phone and note the included parts. 2. Read this manual thoroughly before installation. A clear understanding of the manual will make installation and operation much easier. 3. Find a good location to mount the monitor and camera. Make sure there is enough 21AWG (or larger) 2-conductor wire to connect both units correctly.

  • Page 5: Installation - Additional Monitors

    ENFORCER Hands-Free Video Door Phone Connecting to DP-264-M7Q Installation – Additional Monitor: (not included) If using a secondary monitor: Install the second monitor in the same way as the primary monitor (see pg. 4). DP-264-M7Q: Run wire from the primary monitor’s "CN1A"...

  • Page 6: Operating Instructions

    ENFORCER Hands-Free Video Door Phone Operating Instructions: When the Doorbell button on the camera is pressed, the monitor will ring. After ringing, any connected monitors will switch on. Press the Talk button on the monitor to hear audio and to talk through the camera unit.

  • Page 7: Wiring Diagrams

    ENFORCER Hands-Free Video Door Phone Wiring Diagrams: Wiring a Secondary Monitor and Electric Door Strike NOTE: The distance between the camera and the farthest monitor should not exceed 230ft (70m). The EOL jumper must remain in place on the monitor which is farthest from the camera but must be removed from the other monitors.

  • Page 8: Troubleshooting

    ENFORCER Hands-Free Video Door Phone Troubleshooting:  Check that the camera is powered up.  Check that the power supply’s polarity is correct.  Check that the monitor is powered up. The screen is blank.  Check that the video cable connecting the camera to the monitor is connected properly.
