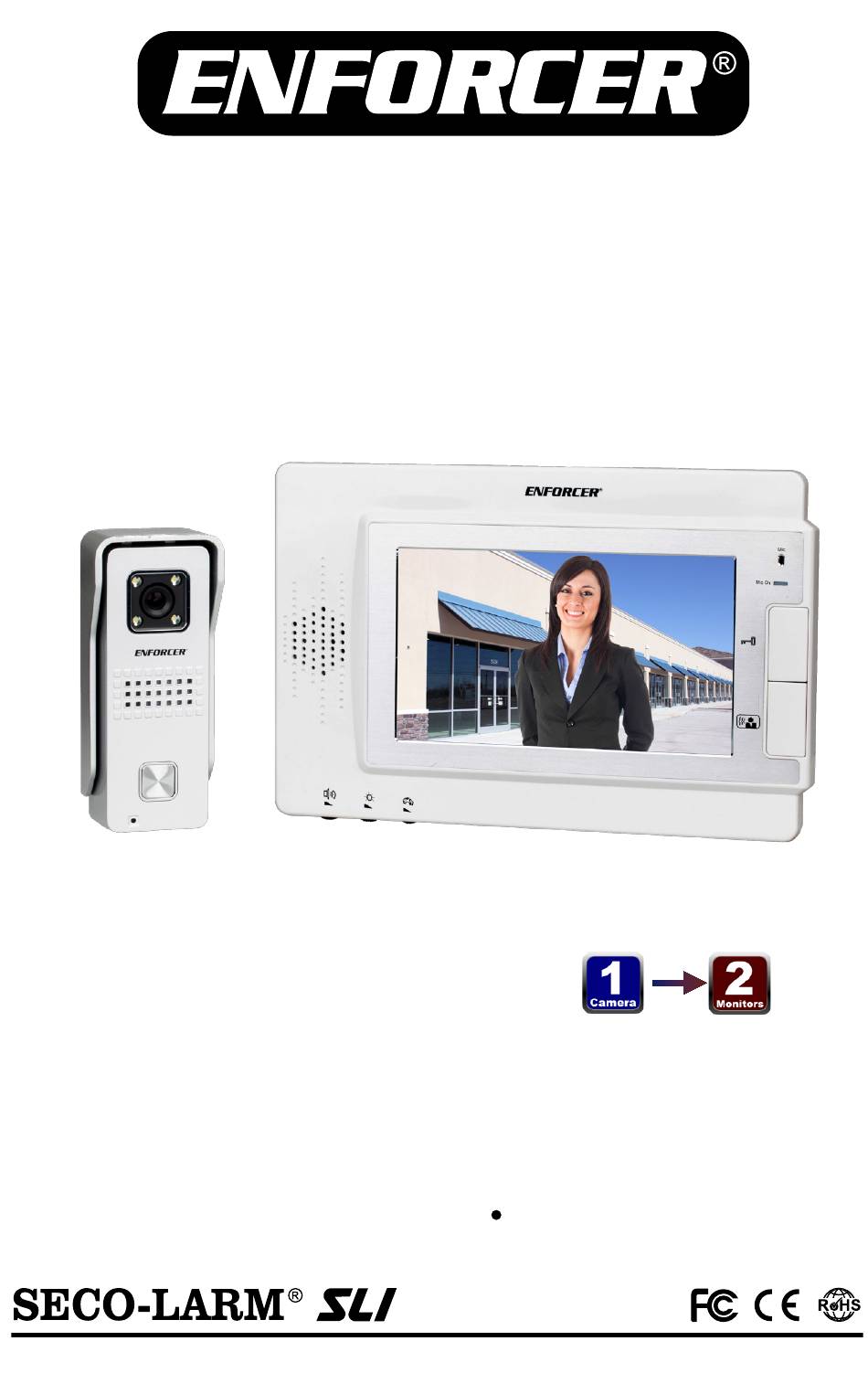

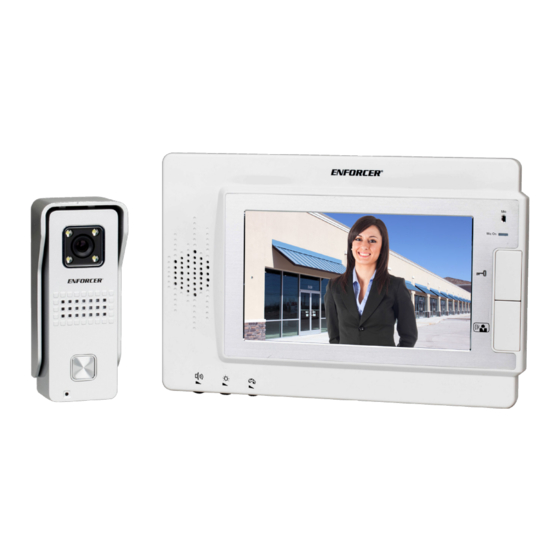

Hands-Free Video Door Phone
• Camera has four LEDs for nighttime
operation
• Remotely and securely talk to visitors
and unlock doors, gates, etc. from
the monitor
• Easily connect a secondary monitor*
*Secondary monitor sold separately.
DP-234Q
DP-734Q
Manual
(NTSC)
(PAL)
Screen image simulated.
• Simple 2-wire connection
• Built-in microphone
• Adjustable color tone,
brightness, speaker and ringer
volume
Camera and monitor turn off
when not in use
*
Advertisement
Table of Contents
Related Manuals for ENFORCER DP-734Q
Summary of Contents for ENFORCER DP-734Q
- Page 1 DP-234Q (NTSC) DP-734Q (PAL) Hands-Free Video Door Phone Manual Screen image simulated. • Camera has four LEDs for nighttime • Simple 2-wire connection operation • Built-in microphone • Remotely and securely talk to visitors • Adjustable color tone, and unlock doors, gates, etc. from...
- Page 2 8x Screws 2x Wire connectors (2-wire) 2x Wire connectors (2-wire) 8x Screw anchors 1x Camera screw 2x Wire connectors (2-Wire) Compatible with DP-234Q / DP-734Q Compatible with DP-234Q / DP-734Q and DP-222Q and DP-222Q Screen image simulated. Screen image simulated.
- Page 3 ENFORCER Hands-Free Video Door Phone Overview: Primary Monitor Display Microphone Microphone status LED Unlock button Speaker Monitor Talk button speaker volume Brightness Front View Color tone Monitor ringer volume To camera To optional secondary monitor (not included) To power Back View...
- Page 4 8. Test the monitor and camera unit by pressing the request-to-enter button on the camera. The image in front of the camera should be displayed clearly. Monitor mounting bracket Connection points To camera To secondary monitor (not included with the DP-234Q/DP-734Q) To power SECO-LARM U.S.A., Inc.
- Page 5 ENFORCER Hands-Free Video Door Phone Installation – Secondary Monitor: If using a secondary monitor: Connecting to DP-234-MQ or DP-222-MQ 1. Install the second monitor in the same way (not included) as the primary monitor (see page 4). 2. DP-234-MQ or DP-222-MQ: Run wire from the primary monitor’s “P2”...
- Page 6 ENFORCER Hands-Free Video Door Phone Operating Instructions: When the request-to-enter button on the camera is pressed, the monitor will ring twice. After ringing, any connected monitors will switch on. Press the talk button on the monitor to hear audio and to talk through the camera.
- Page 7 ENFORCER Hands-Free Video Door Phone Wiring Diagrams: Wiring a Secondary Monitor and Electric Door Strike NOTE: The distance between the camera and the farthest monitor should not exceed 264ft (75m). 264ft (75m) Primary Optional secondary Camera monitor monitor Electric door strike...
- Page 8 ENFORCER Hands-Free Video Door Phone Troubleshooting: • Check that the camera is powered up. • Check that the power supply’s polarity is correct. • Check that the monitor is powered up. The screen is blank. • Check that the video cable connecting the camera to the monitor is connected properly.
