• Camera has 6 LEDs for nighttime
operation
• Remotely and securely talk to visitors
and unlock doors, gates, etc. from
the monitor
• Easily connect a secondary monitor*
*Secondary monitor sold separately.

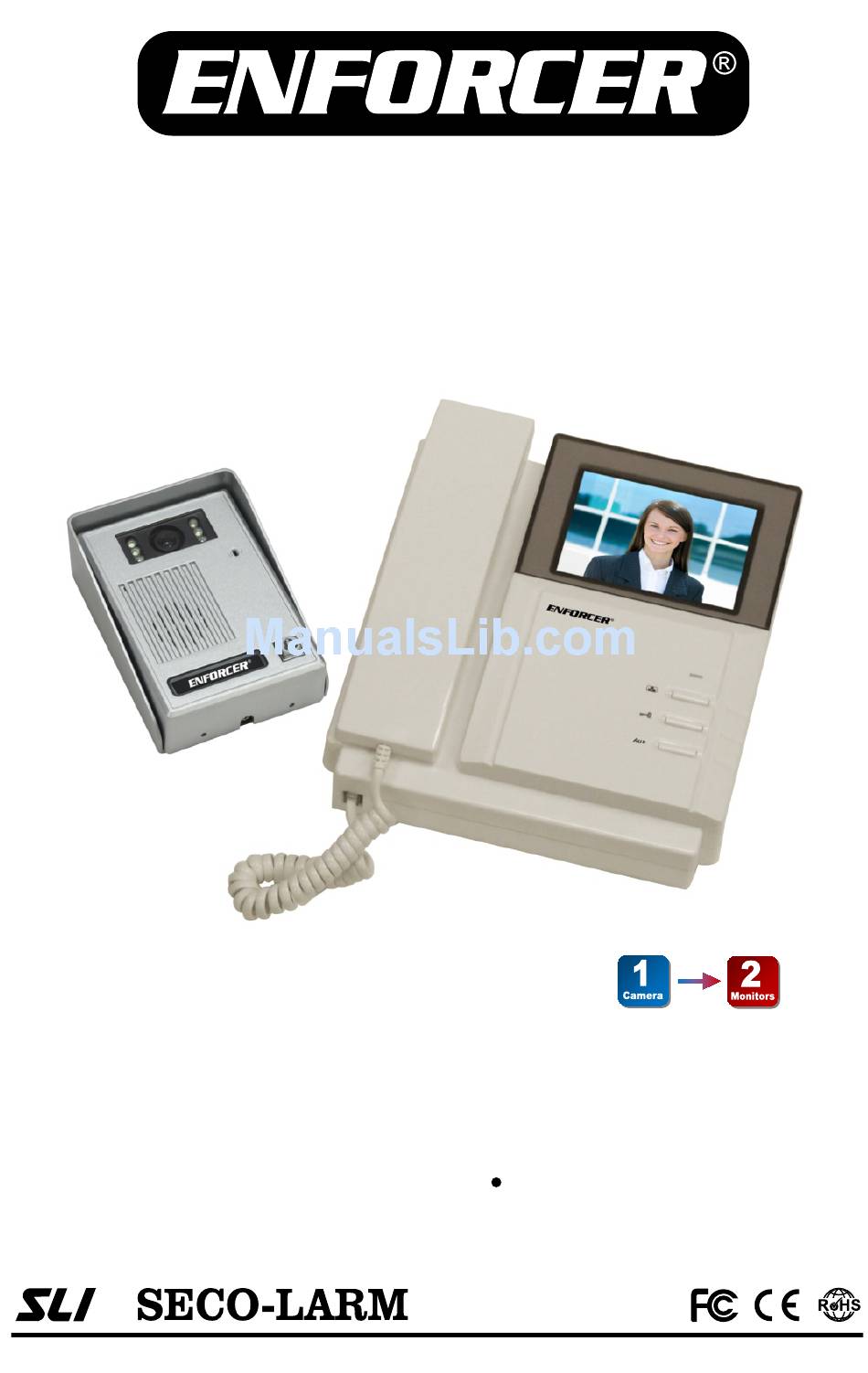

DP-222Q
Color Video Door Phone
Manual
• Simple 2-wire connection
• Built-in microphone
• Adjustable contrast, brightness,
and ringer volume
Camera and monitor turn off
when not in use
*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER DP-222Q
Summary of Contents for ENFORCER DP-222Q
- Page 1 DP-222Q Color Video Door Phone Manual • Camera has 6 LEDs for nighttime • Simple 2-wire connection operation • Built-in microphone • Remotely and securely talk to visitors • Adjustable contrast, brightness, and unlock doors, gates, etc. from and ringer volume...
-
Page 2: Table Of Contents
1x Allen wrench 2x Wire connectors (2-Wire) 2x Wire connectors (2-Wire) 1x Primary monitor 1x Monitor bracket 1x AC Power adapter Compatible with DP-222Q / DP-734Q Compatible with DP-222Q / DP-734Q 2x Wire connectors (2-Wire) and DP-234Q and DP-234Q Screen image simulated. -
Page 3: Overview
Door unlock button (This button is not used) Front Handset Handset Volume Brightness Ring volume power Contrast To optional secondary monitor (Secondary monitor not included with DP-222Q) To camera Rear Side Camera Camera speaker volume Camera High-intensity LEDs Microphone Speaker To primary... -
Page 4: Installation Notes
8. Test the monitor and camera unit by pressing the camera button. The image in front of the camera should be displayed clearly. Monitor mounting bracket Connection points Adjust ringer volume To power To secondary monitor To camera (not included with the DP-222Q) SECO-LARM U.S.A., Inc. -
Page 5: Installation - Secondary Monitor
ENFORCER Color Video Door Phone Installation – Secondary Monitor: 1. If using a secondary monitor, follow steps Connect the 1~4 on page 4. main monitor to the 2. Connect the 2-wire connector between secondary monitor the secondary monitor’s “P1” socket and the primary monitor’s “P2”... -
Page 6: Operating Instructions
ENFORCER Color Video Door Phone Operating Instructions: When the request-to-enter button on the camera is pressed, the monitor will ring twice. After ringing, any connected monitors will switch on. When the handset is picked up, audio can be heard through the handset. -
Page 7: Wiring Diagram
ENFORCER Color Video Door Phone Wiring Diagram – Wiring a Secondary Monitor and Electric Door Strike: Primary Optional secondary monitor monitor Electric Door Strike Camera Connection Points Primary monitor Optional secondary monitor Electric Door Strike Camera SECO-LARM U.S.A., Inc. -
Page 8: Troubleshooting
ENFORCER Color Video Door Phone Troubleshooting: • Check that the camera is powered up. • Check that the power supply’s polarity is correct. • Check that the monitor is powered up. The screen is blank. • Check that the video cable connecting the camera to the monitor is connected properly.
