ENFORCER DP-266-1C3Q Manual

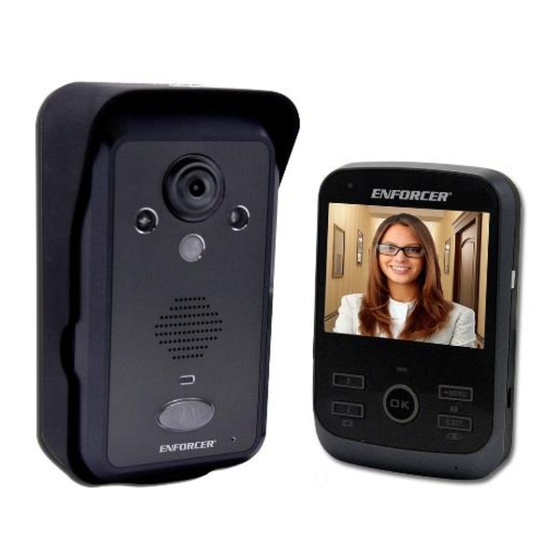

Wireless video door phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Features:
 Wireless operation – camera and monitor can
operate from up to 492ft (150m)** away
 Remotely and securely talk to visitors and
unlock doors or gates via the monitor
 Lightweight monitor can be carried around the
premises while talking to the visitor
 Connect up to two additional monitors and one
additional camera*
 Intercom calling between paired monitors*
 Camera has built-in IR LEDs for nighttime
operation
*Additional monitors and camera sold separately.
**Line-of-sight range. Actual range may vary depending on the installation and operating environment.

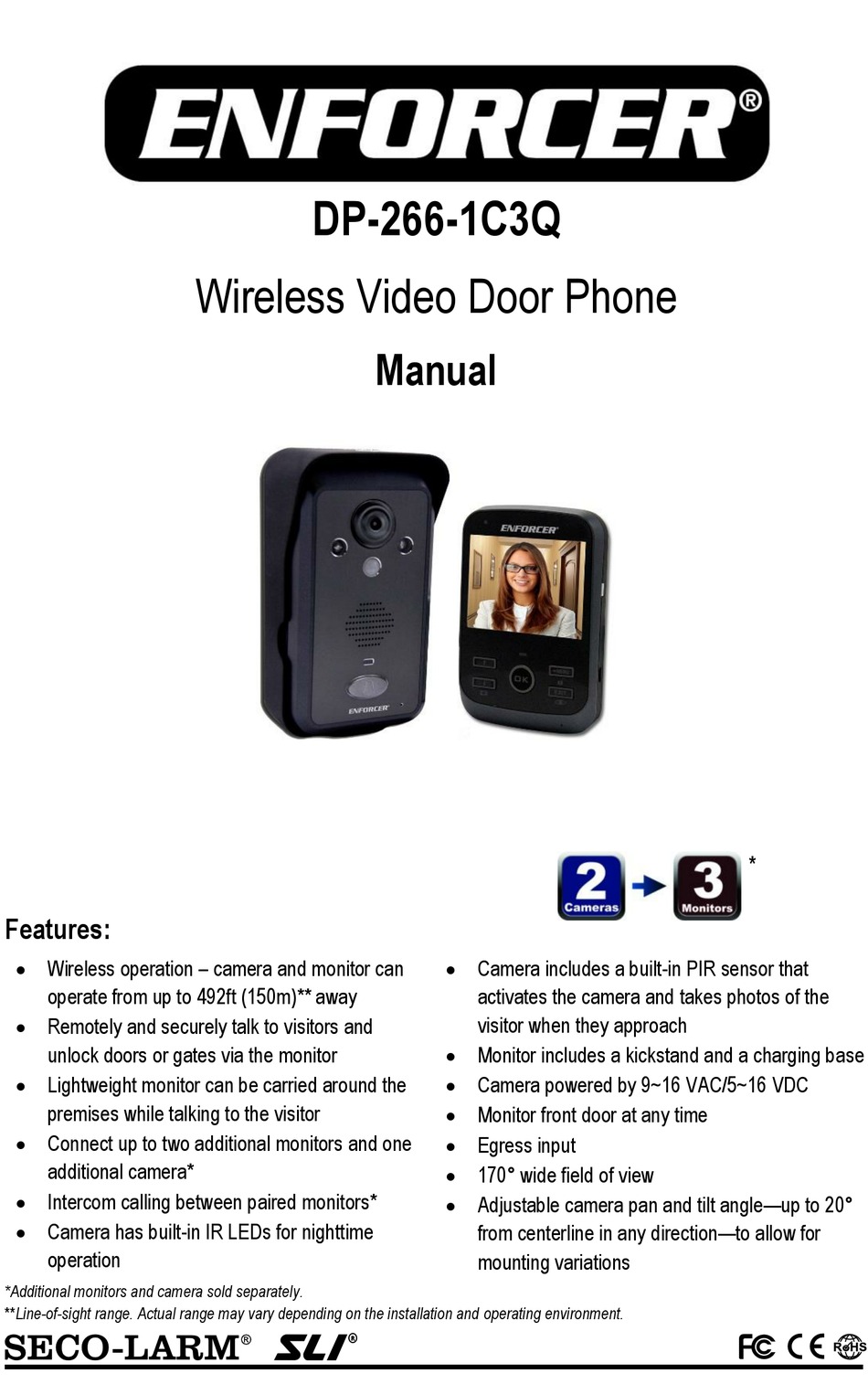

DP-266-1C3Q
Wireless Video Door Phone
®
Manual
 Camera includes a built-in PIR sensor that
activates the camera and takes photos of the
visitor when they approach
 Monitor includes a kickstand and a charging base
 Camera powered by 9~16 VAC/5~16 VDC
 Monitor front door at any time
 Egress input
 170° wide field of view
 Adjustable camera pan and tilt angle—up to 20°
from centerline in any direction—to allow for
mounting variations
*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-266-1C3Q and is the answer not in the manual?

Questions and answers

Related Manuals for ENFORCER DP-266-1C3Q

Summary of Contents for ENFORCER DP-266-1C3Q

  • Page 1 DP-266-1C3Q Wireless Video Door Phone Manual Features:  Wireless operation – camera and monitor can  Camera includes a built-in PIR sensor that operate from up to 492ft (150m)** away activates the camera and takes photos of the visitor when they approach ...

  • Page 2: Table Of Contents

    Warranty ..............16 Introduction: The ENFORCER Wireless Video Door Phone is a convenient and secure way to monitor and control an entryway, such as a door or gate, from up to 492 feet (150 meters) away. When a guest or visitor presses the doorbell button on the camera unit, the homeowner can use one of up to three lightweight, wireless LCD monitors to see whom is requesting entry, speak with the caller, take a photo, and decide whether or not to grant entry.

  • Page 3: Specifications

    ENFORCER Wireless Video Door Phone Specifications: Camera Monitor Type Color camera Display " (86mm) TFT Chip CMOS 5VDC (adapter) or Operating voltage 3.7VDC (battery) Resolution 480 TV Lines Active 370mA@3.7VDC Current Lens draw Standby 5mA@3.7VDC Field of view 170° Active ~2.5 Hours...

  • Page 4: Display Overview

    ENFORCER Wireless Video Door Phone Display Overview: : ID – Displays the monitor ID number : Signal Strength – Displays the wireless signal strength : Communication Mode – Displays current communication mode – Bell indicates an incoming call – Crossed out microphone indicates one-way communication –...

  • Page 5: Camera Wiring Diagram

    ENFORCER Wireless Video Door Phone Camera Wiring Diagram: Relay N.C. Output N.O. Egress input (N.O., –) (–) 9~16 VAC/ 5~16 VDC 1. Positive (+) power input – Connect to the red wire of the included AC adapter or to the positive wire of the doorbell's power supply.

  • Page 6: Installation - Camera

    ENFORCER Wireless Video Door Phone Installation – Camera: 1. Position the camera so the area to be monitored is easily visible, optimally 5ft (1.5m) above the ground. Do not position the camera in direct sunlight, or where it will be exposed directly to rain or snow.
  • Page 7 ENFORCER Wireless Video Door Phone Installation – Monitor (continued): Recharge the monitor battery: There are two ways to recharge the monitor battery. 1. Place the 2. Plug the charger directly into the monitor. monitor into the monitor charger stand and plug the charger into the stand.

  • Page 8: On-Screen Display Features

    ENFORCER Wireless Video Door Phone On-Screen Display Features: Photos – View and delete photos taken by the camera station. There are four different types of photos – Photos taken by the user manually (1 photo taken). – Photos taken by the camera station automatically when the doorbell button is pressed (1 photo taken).

  • Page 9: Programming And Using The On-Screen Display

    ENFORCER Wireless Video Door Phone Programming and Using the On-Screen Display: 1. While the monitor display is on, press the "Menu/Unlock" button to open the on-screen display. 2. Use the "Up" and "Down" buttons to move the cursor up or down. Use the "Menu/Unlock" button to move the cursor to the right.

  • Page 10: Programming The Advanced Settings

    ENFORCER Wireless Video Door Phone Programming and Using the On-Screen Display (continued): Programming the time and date: 1. While the monitor display is on, press the "Menu/Unlock" button to open the on-screen display. 2. Highlight the "Time" icon and press the "OK" button to enter the "Time" screen.
  • Page 11 ENFORCER Wireless Video Door Phone Programming the Advanced Settings (continued): Unlocking duration: 1. Select "Unlocking duration" and press the "OK" button. 2. Select from 3, 6, or 8 seconds and press the "OK" button. NOTE: If multiple cameras are paired to the monitor then select the desired camera.

  • Page 12: Operating The Wireless Video Door Phone

    ENFORCER Wireless Video Door Phone Operating the Wireless Video Door Phone: Communicating with the camera Request entry: 1. Press the doorbell button on the camera. The indoor monitor will ring and display an image from the camera. The monitor will also display a bell icon.

  • Page 13: Resetting The Camera And Pairing A First Monitor

    5. Press the "OK" button when finished with the call. Resetting the Camera and Pairing a First Monitor: NOTE: By default, the monitor in the DP-266-1C3Q Complete Kit is paired with the camera. These instructions apply to resetting the camera and monitor system.

  • Page 14: Pairing Additional Monitors Or Cameras

    4. Press the doorbell button on the camera to confirm the connection. Pairing Additional Monitors or Cameras: NOTE: By default, the monitor in the DP-266-1C3Q Complete Kit is paired with the camera. These instructions apply to pairing a second or third monitor, or a second camera.

  • Page 15: Tamper Alarm

    ENFORCER Wireless Video Door Phone Tamper Alarm: The tamper alarm activates anytime the camera is removed from the bracket, warning the user of possible vandalism. The tamper alarm will sound on the camera and any connected monitors. 1. To disable the tamper alarm if no monitors are paired with the camera: a.

  • Page 16: Warranty

    ENFORCER Wireless Video Door Phone Also Available from SECO-LARM ® 2-Wire Hands-Free Additional Monitor Additional Camera Video Door Phone DP-266-M3Q DP-266-CQ DP-234Q 2-Wire Color Wireless ® Video Door Phone Wireless Intercom Alert System DP-222Q DP-T100-2Q RA-4961-K1Q IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and statutes related to monitoring and recording audio and video signals.
