AKD4589-B is an evaluation board for AK4589, a single chip 24bit CODEC that has two channels of ADC
and eight channels of DAC with internal DIR, DIT. It has interfaces with evaluation boards for A/D
converter and D/A converter of AKM's and make easy to evaluate AK4589. It also has the digital audio
interface and can achieve the interface with digital audio systems via opt-connector or BNC connector.
Ordering guide
AKD4589-B --- AK4589 Evaluation Board
10 wire flat cable for connection with printer port of PC (IBM-AT compatible
machine),control software for AK4589,driver for control software on Windows
2000/XP are apacked with this.
Control software does not support to I
Windows 2000/XP needs an installation of driver.
Windows 95/98/ME does not need an installation of driver.
On-board clock generator
Compatible with 2 types of interface
- Optical output/input and BNC input
- Direct interface with AC3 decoder by 10pin header
10pin header for serial control interface
-12V +12V
LIN
RIN
LOUT1
ROUT1
LOUT2
ROUT2
LOUT3
ROUT3
LOUT4
ROUT4
* Circuit diagram and PCB layout are attached at the end of this manual.
<KM076201>
FEATURE
FUNCTION
GND
Regulator
Input
Buffer
AK4589
Output
Buffer

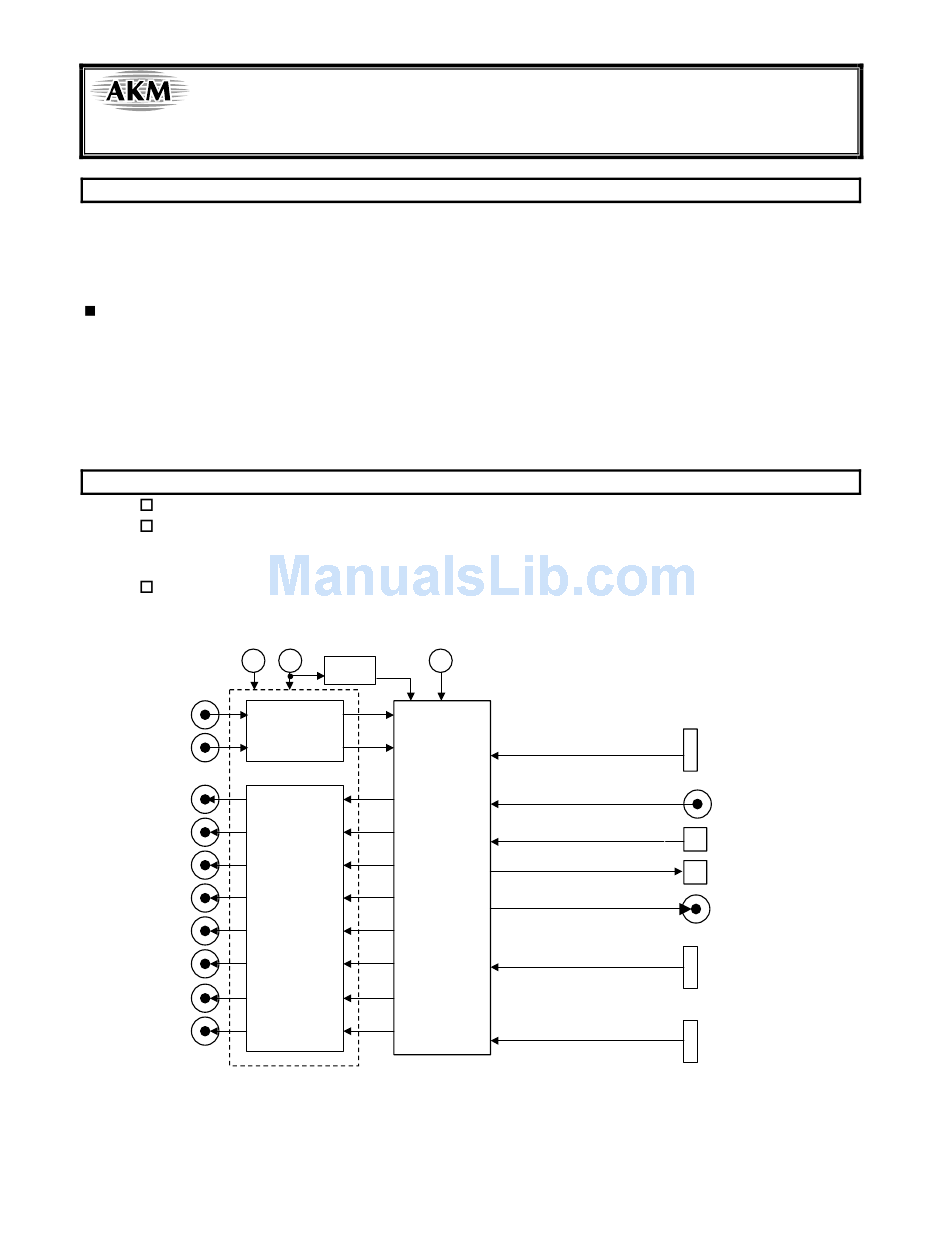

Figure 1. AKD4589-B Block Diagram
AK4589 Evaluation Board Rev.2
2
C control, and does not work on Windows NT
- 1 -
[AKD4589-B]
AKD4589-B
Control Data
10pin Header
BNC In
Opt In
Opt Out
BNC Out
Through Out
AC3
10pin Header
B, C, U, V
10pin Header
2005/07

Advertisement

loading
Need help?

Need help?

Do you have a question about the AKD4589-B and is the answer not in the manual?

Questions and answers

Related Manuals for AKM AKD4589-B

Summary of Contents for AKM AKD4589-B

  • Page 1 AK4589 Evaluation Board Rev.2 FEATURE AKD4589-B is an evaluation board for AK4589, a single chip 24bit CODEC that has two channels of ADC and eight channels of DAC with internal DIR, DIT. It has interfaces with evaluation boards for A/D converter and D/A converter of AKM’s and make easy to evaluate AK4589.

  • Page 2: Evaluation Board Manual

    2) Set-up of evaluation modes, jumper pins and DIP switches. (See the followings.) 3) Power on AK4589 should be reset once after power-on of AKD4589-B. Set SW1 (PDN) “L” once for power down of AK4589 after power-on of AKD4589-B. And then set SW1 (PDN) “H”. <KM076201>...

  • Page 3: Evaluation Mode

    (bi-phase inputs) by JP3 (RX0) Set JP3(RX0) “OPT” side when Optical connector PORT3(TORX176,RX0) is used for RX0 on AKD4589-B. Set JP3(RX0) “BNC” side when BNC connector J12(RX0) is used for RX0 on AKD4589-B. (See Figure 2) Using BNC Using Optical connector Figure 2.
  • Page 4 (bi-phase outputs) by JP2 (TX1) Set JP2 (TX1) “OPT” side when Optical connector PORT2(TOTX176,TX1) is used for TX1 on AKD4589-B. Set JP2 (TX1) “BNC” side when BNC connector J11(TX1) is used for TX1 on AKD4589-B. (See Figure3.) Using BNC Using Optical connector Figure 3.

  • Page 5: Setting Of Dip-Switch

    ASAHI KASEI [AKD4589-B] Setting of DIP-Switch [SW2]: Setting of AK4589 (SW2:No.2~6 is ON: 1(H), OFF:0(L)) Default ON(1,H) MASTER Slave Mode Master Mode ON(1,H) XTL1 Detection of Sampling frequency (Refer Table 4,5) ON(1,H) XTL0 Setting of Chip Address (ADC/DAC PART) OFF(0,L)
  • Page 6 Serial Control AK4589 can be controlled via the printer port (parallel port) of IBM-AT compatible PC. Connect printer port (parallel port) of PC and PORT1(uP-I/F) of AKD4589-B by 10 wire flat cable(packed with AKD4589-B). Take care of the direction of 10 pin connector and 10 pin header.

  • Page 7: Analog Inputs

    AK4589 device are nominally 3.1Vpp@5V.But,for the resister division,the value which analog input level of Evaluation Board is devided by two becomes to analog input level of AK4589 device on the AKD4589-B. So, input ranges of AKD4589-B becomes to 6.2Vpp@5V,twice of the value in the case of AK4589 device. Input range of AK4589 device is proportional to VREFH (3.1=0.62 x VREFH).

  • Page 8: Analog Outputs

    BNC connector J2 (LOUT1), J1 (ROUT1), J4 (LOUT2), J3 (ROUT2), J6 (LOUT3), J5 (ROUT3) J8 (LOUT4) ,J7 (ROUT4) are used for analog outputs on the AKD4589-B. Analog outputs are single-ended and output ranges of each channels are nominally ±3.82Vpp@5V. (Analog outputs of AK4589 device are differencial and output ranges of each channels are nominally ±2.7Vpp@5V.But, input ranges of AKD4589-B becomes to ±3.82Vpp@5V,about...

  • Page 9: Operation Flow

    1. Set up the AKD4589-B according to above mentioned setting. 2. Connect printer port(parallel port) of PC and PORT1(up-I/F) of AKD4589-B by 10-wire flat cable packed with AKD4589. Then take care of the direction of 10pin connector and 10 pin header.
  • Page 10 ASAHI KASEI [AKD4589-B] Explanation of each dialog 1. [Function1 Dialog]: Dialog to write data by keyboard operation Address Input Box : Input address of register which data should be written into,in 2 figures of hexadecimal. Data Input Box : Input data which should be written into the register,in 2 figures of hexadecimal.
  • Page 11 1. Set up the AKD4589-B according to above mentioned setting. 2. Connect printer port(parallel port) of PC and PORT1(up-I/F) of AKD4589-B by 10-wire flat cable packed with AKD4589. Then take care of the direction of 10pin connector and 10 pin header.
  • Page 12 ASAHI KASEI [AKD4589-B] Explanation of each dialog 1. [Function1 Dialog]: Dialog to write data by keyboard operation Address Input Box : Input address of register which data should be written into,in 2 figures of hexadecimal. Data Input Box : Input data which should be written into the register,in 2 figures of hexadecimal.
  • Page 13 ASAHI KASEI [AKD4589-B] Measure Result 1) ADC part [Measurement condition] • Measurement unit : Audio Precision System two Cascade (AP2) • MCLK : 256fs (fs=48kHz), 256fs (fs=96kHz) • BICK : 64fs • fs : 48kHz, 96kHz • BW : 20Hz∼20kHz (fs=48kHz), 20Hz∼40kHz (fs=96kHz) •...
  • Page 14 ASAHI KASEI [AKD4589-B] 2) DAC part [Measurement condition] • Measurement unit : Audio Precision System two Cascade (AP2) • MCLK : 256fs (fs=48kHz, 96kHz), 128fs (fs=192kHz) • BICK : 64fs • fs : 48kHz, 96kHz, 192kHz • BW : 20Hz∼20kHz (fs=48kHz), 20Hz∼40kHz (fs=96kHz), 20Hz∼40kHz (fs=192kHz) •...
  • Page 15 ASAHI KASEI [AKD4589-B] Plots 1) ADC [Measurement condition] • Measurement Unit : Audio Precision System two Cascade • MCLK : 256fs(fs=48kHz), 256fs(fs=96kHz) • BICK : 64fs • fs : 48kHz, 96kHz • BW : 20Hz∼20kHz (fs=48kHz), 40Hz∼40kHz (fs=96kHz) • Resolution : 24bit •...
  • Page 16 ASAHI KASEI [AKD4589-B] 2) DAC [Measurement Condition] • Measurement Unit : Audio Precision System two Cascade • MCLK : 256fs(fs=48kHz), 256fs(fs=96kHz), 128fs(fs=192kHz) • BICK : 64fs • fs : 48kHz, 96kHz, 192kHz • BW : 20Hz∼20kHz (fs=48kHz), 40Hz∼40kHz (fs=96kHz), 40Hz∼80kHz (fs=192kHz) •...
  • Page 17 ASAHI KASEI [AKD4589-B] 1.ADC (ADC fs=48kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 8. FFT(Input Frequency=1kHz,Input Level=-0.5dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 9. FFT(Input Frequency=1kHz,Input Level=-60dBFS) <KM076201> 2005/07 - 17 -...
  • Page 18 ASAHI KASEI [AKD4589-B] (ADC fs=48kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 10. FFT(noise floor) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 -140 -130 -120 -110 -100 Figure 11. THD + N vs Input Level(Input Frequency=1kHz) <KM076201>...
  • Page 19 ASAHI KASEI [AKD4589-B] (ADC fs=48kHz) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 Figure 12. THD + N vs Input Frequency (Input Level=-0.5dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -140 -130 -120 -110 -100 Figure 13. Linearity (Input Frequency=1kHz) <KM076201>...
  • Page 20 ASAHI KASEI [AKD4589-B] (ADC fs=48kHz) Red=Lch,Blue=Rch -0.05 -0.1 -0.15 -0.2 -0.25 -0.3 -0.35 -0.4 -0.45 -0.5 -0.55 -0.6 -0.65 -0.7 -0.75 -0.8 -0.85 -0.9 -0.95 Figure 14. Frequency Response(including input RC filter) (Input Level=-0.5dBFS) Red=Rch->Lch,Blue=Lch->Rch -100 -105 -110 -115 -120...
  • Page 21 ASAHI KASEI [AKD4589-B] (ADC fs=96kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 -170 -180 Figure 16. FFT(Input Frequency=1kHz,Input Level=-0.5dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 -170 -180 Figure 17. FFT(Input Frequency=1kHz,Input Level=-60dBFS) <KM076201> 2005/07 - 21 -...
  • Page 22 ASAHI KASEI [AKD4589-B] (ADC fs=96kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 -170 -180 Figure 18. FFT(Noise floor) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 -140 -130 -120 -110 -100 Figure 19. THD + N vs Input Level (Input Frequency=1kHz) <KM076201>...
  • Page 23 ASAHI KASEI [AKD4589-B] (ADC fs=96kHz) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 Figure 20. THD + N vs Input Frequency (Input Level=-0.5dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -140 -130 -120 -110 -100 Figure 21. Linearity (Input Frequency=1kHz) <KM076201>...
  • Page 24 ASAHI KASEI [AKD4589-B] (ADC fs=96kHz) Red=Lch,Blue=Rch -0.05 -0.1 -0.15 -0.2 -0.25 -0.3 -0.35 -0.4 -0.45 -0.5 -0.55 -0.6 -0.65 -0.7 -0.75 -0.8 -0.85 -0.9 -0.95 Figure 22. Frequency Response (including input RC filter) (Input Level=-0.5dBFS) Red=Rch->Lch,Blue=Lch->Rch -100 -105 -110 -115...
  • Page 25 ASAHI KASEI [AKD4589-B] 2.DAC (DAC fs=48kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 24. FFT(Input Frequency=1kHz, Input Level=0dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 25. FFT(Input Frequency=1kHz, Input Level=-60dBFS) <KM076201> 2005/07 - 25 -...
  • Page 26 ASAHI KASEI [AKD4589-B] (DAC fs=48kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 26. FFT(noise floor) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 100k Figure 27. FFT(out-of-band noise) <KM076201> 2005/07 - 26 -...
  • Page 27 ASAHI KASEI [AKD4589-B] (DAC fs=48kHz) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 -140 -130 -120 -110 -100 dBFS Figure 28. THD+N vs Input Level (Input Frequency=1kHz) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114...
  • Page 28 ASAHI KASEI [AKD4589-B] (DAC fs=48kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -140 -130 -120 -110 -100 dBFS Figure 30. Linearity (Input Frequency=1kHz) Red=Lch,Blue=Rch +0.5 +0.45 +0.4 +0.35 +0.3 +0.25 +0.2 +0.15 +0.1 +0.05 -0.05 -0.1 -0.15 -0.2 -0.25 -0.3 -0.35 -0.4...
  • Page 29 ASAHI KASEI [AKD4589-B] (DAC fs=48kHz) Red=Rch->Lch,Blue=Lch->Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 -122 -124 -126 -128 -130 Figure 32. Cross-talk (Input Level=0dBFS) <KM076201> 2005/07 - 29 -...
  • Page 30 ASAHI KASEI [AKD4589-B] (DAC fs=96kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 33. FFT(Input Frequency=1kHz, Input Level=0dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 34. FFT(Input Frequency=1kHz, Input Level=0dBFS,Notch-on) <KM076201> 2005/07 - 30 -...
  • Page 31 ASAHI KASEI [AKD4589-B] (DAC fs=96kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 35. FFT(Input Frequency=1kHz, Input Level=-60dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 36. FFT(noise floor) <KM076201> 2005/07 - 31 -...
  • Page 32 ASAHI KASEI [AKD4589-B] (DAC fs=96kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 100k Figure 37. FFT (out-of-band noise) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 -140 -130 -120 -110 -100 dBFS Figure 38. THD+N vs Input Level (Input Frequency=1kHz) <KM076201>...
  • Page 33 ASAHI KASEI [AKD4589-B] (DAC fs=96kHz) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 Figure 39. THD+N vs Input Frequency (Input Level=0dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -140 -130 -120 -110 -100 dBFS Figure 40. Linearity (Input Frequency=1kHz) <KM076201>...
  • Page 34 ASAHI KASEI [AKD4589-B] (DAC fs=96kHz) Red=Lch,Blue=Rch +0.5 +0.45 +0.4 +0.35 +0.3 +0.25 +0.2 +0.15 +0.1 +0.05 -0.05 -0.1 -0.15 -0.2 -0.25 -0.3 -0.35 -0.4 -0.45 -0.5 2.5k 7.5k 12.5k 17.5k 22.5k 27.5k 32.5k 37.5k Figure 41. Frequency Response (Input Level=0dBFS) Red=Rch->Lch,Blue=Lch->Rch...
  • Page 35 ASAHI KASEI [AKD4589-B] (DAC fs=192kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 43. FFT(Input Frequency=1kHz, Input Level=0dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 44. FFT(Input Frequency=1kHz, Input Level=0dBFS,Notch-on) <KM076201> 2005/07 - 35 -...
  • Page 36 ASAHI KASEI [AKD4589-B] (DAC fs=192kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 45. FFT(Input Frequency=1kHz, Input Level=-60dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 Figure 46. FFT(noise floor) <KM076201> 2005/07 - 36 -...
  • Page 37 ASAHI KASEI [AKD4589-B] (DAC fs=192kHz) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -150 -160 100k Figure 47. FFT(out-of-band noise) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 -140 -130 -120 -110 -100 dBFS Figure 48. THD+N vs Input Level (Input Frequency=1kHz) <KM076201>...
  • Page 38 ASAHI KASEI [AKD4589-B] (DAC fs=192kHz) Red=Lch,Blue=Rch -100 -102 -104 -106 -108 -110 -112 -114 -116 -118 -120 Figure 49. THD+N vs Input Frequency (Input Level=0dBFS) Red=Lch,Blue=Rch -100 -110 -120 -130 -140 -140 -130 -120 -110 -100 dBFS Figure 50. Linearity (Input Frequency=1kHz) <KM076201>...
  • Page 39 ASAHI KASEI [AKD4589-B] (DAC fs=192kHz) Red=Lch,Blue=Rch +0.5 +0.4 +0.3 +0.2 +0.1 -0.1 -0.2 -0.3 -0.4 -0.5 -0.6 -0.7 -0.8 -0.9 Figure 51. Frequency Response (Input Level=0dBFS) Red=Lch,Blue=Rch -100 -105 -110 -115 -120 -125 -130 Figure 52. Cross-talk (Input Level=0dBFS) <KM076201>...

  • Page 40: Important Notice

    AKM harmless from any and all claims arising from the use of said product in the absence of such notification.
  • Page 41 ROUT3+ LRCK1 ROUT3+ R21 100_C R21 100_C CDTO ROUT3- CDTO ROUT3- TST1 TST1 TST2 TST2 Title Title Title AKD4589-B AKD4589-B AKD4589-B Size Size Size Document Number Document Number Document Number AK4589 AK4589 AK4589 Date: Date: Date: Friday, July 22, 2005...
  • Page 42 3.9n 3.9n N12V C210 C210 C211 C211 (open) (open) (open) (open) 1.2k 1.2k Title Title Title AKD4589-B AKD4589-B AKD4589-B Size Size Size Document Number Document Number Document Number AOUT1 AOUT1 AOUT1 Date: Date: Date: Friday, July 22, 2005 Friday, July 22, 2005...
  • Page 43 P12V 0.1u 0.1u 3.3n 3.3n NJM4580 NJM4580 N12V ROUT2+ C214 C214 0.1u 0.1u 100u 100u 100p 100p 3.9n 3.9n N12V 0.1u 0.1u (short) (short) C215 C215 1.0n 1.0n C402 C402 (open) (open) C216 C216 (open) (open) C226 C226 NJM4580 NJM4580 (open) (open) 470p...
  • Page 44 P12V 0.1u 0.1u 3.3n 3.3n NJM4580 NJM4580 N12V ROUT3+ 0.1u 0.1u 100u 100u C228 C228 100p 100p 3.9n 3.9n N12V 0.1u 0.1u R100 R100 (short) (short) 1.0n 1.0n C404 C404 C229 C229 R101 R101 C230 C230 (open) (open) NJM4580 NJM4580 (open) (open) 470p...
  • Page 45 P12V C121 C121 C122 C122 C123 C123 0.1u 0.1u 3.3n 3.3n NJM4580 NJM4580 N12V C124 C124 R130 R130 R131 R131 U11A U11A C125 C125 C126 C126 ROUT4+ 0.1u 0.1u C242 C242 100u 100u 100p 100p R132 R132 C127 C127 R133 R133 3.9n 3.9n...
  • Page 46 C159 C160 C160 74HC14 74HC14 0.1u 0.1u 0.1u 0.1u R186 R186 0.1u 0.1u Title Title Title AKD4589-B AKD4589-B AKD4589-B Size Size Size Document Number Document Number Document Number INPUT INPUT INPUT Date: Date: Date: Friday, July 22, 2005 Friday, July 22, 2005...
  • Page 47 SDTI3 SDTI4 ADC/DAC R193 R193 R194 R194 R195 R195 R196 R196 SDTO Title Title Title AKD4589-B AKD4589-B AKD4589-B Size Size Size Document Number Document Number Document Number Power Supply Power Supply Power Supply Date: Date: Date: Friday, July 22, 2005...
