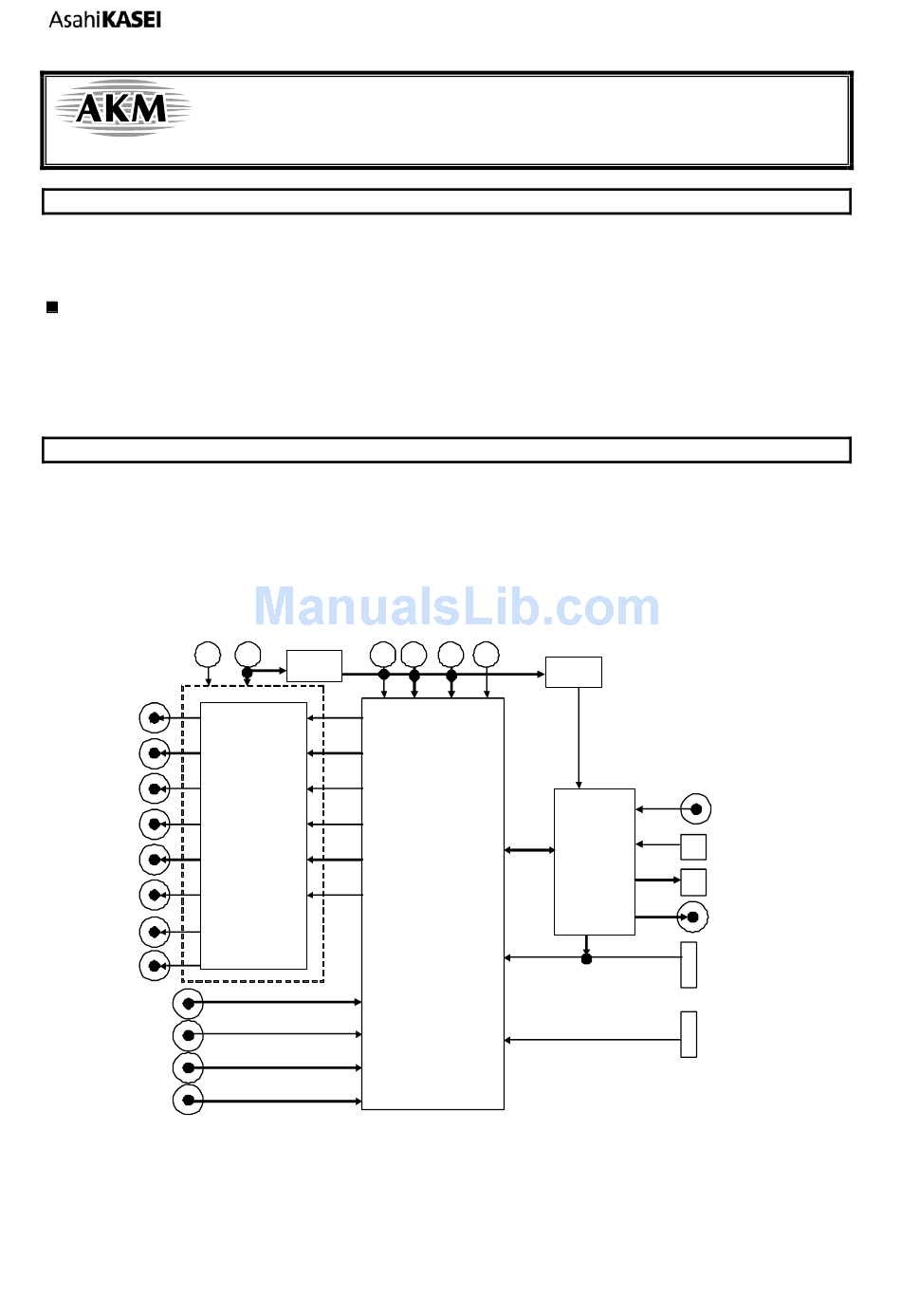

The AKD4629-A is an evaluation board for the AK4629, a single chip CODEC that includes four channels of ADC and six channels of DAC. The AKD4629-A also has the digital audio interface and can achieve the interface with digital audio systems via opt-connector or BNC connector.
[AKD4629-A] Evaluation Board Manual Operation sequence 1) Set up the power supply lines. (1-1) In case of using separate power supply lines <Default> Set up the jumper pins. JP82 JP83 JP84 AVDD DVDD TVDD REG JACK REG JACK REG JACK Set up the power supply lines.
Page 3
[AKD4629-A] Control mode (1) Parallel control mode <Default> (1-1) Set up Parallel/Serial select pin Set up SW2-6 (PS) to “H”. (See Table 3) (1-2) Set up the jumper pins JP61 JP63 JP62 SEL1 SEL2 SEL3 DIF0 SCL/CCLK DIF1 SDA/CDTI TDM0...
Page 4
[AKD4629-A] JP31 JP32 JP35 JP36 LIN2+ LIN2- RIN2+ RIN2- Canon RCA Canon GND CanonRCA CanonGND (1-1-2) Evaluation of ADC using DIT of AK4118 when differential inputs <Default> PORT2 (DIT) or J2 (BNC_TX) is used. Nothing should be connected to PORT4 (AC3).
Page 5
[AKD4629-A] (2) Evaluation of DAC using DIR of AK4118 <Default> J1 (BNC_RX) or PORT1 (DIR) is used. Nothing should be connected to PORT4 (AC3). (2-1) Set up the digital inputs Set up the jumper pins (When SDTI1, SDTI2, SDTI3, SDTI4 are selected at the same time).
Page 6
[AKD4629-A] DIP Switch set up [SW2] (MODE1): Mode settings for AK4629. About the TDM mode of AK4629, please refer to Page 18 of AK4629’s datasheet. Name “H” “L” Default TDM0 TDM Mode Normal Mode ADC Single-ended ADC Differential Input Mode...
[AKD4629-A] Serial Control The AK4629 can be controlled via the printer port (parallel port) of IBM-AT compatible PC. Connect PORT3 (CTRL) with PC by 10 wire flat cable packed with the AKD4629-A. PORT3 10 wire CTRL flat Cable Connect CCLK/SCL...
10pin header. When running this control soft on the Windows 2000/XP, the driver which is included in the CD must be installed. Refer to the “Driver Control Install Manual for AKM Device Control Software” for installing the driver. When running this control soft via an AKDUSBIF-B interface board, driver installing is not necessary.
[AKD4629-A] ■ Operation Overview Register map and testing tool can be controlled by this control soft. These controls are selected by upper tabs. Buttons which are frequently used such as register initializing button “Write Default”, are located outside of the switching tab window.
[AKD4629-A] 1. [REG]: Register Map This tab is for a register writing and reading. Each bit on the register map is a push-button switch. Button Down indicates “H” or “1” and the bit name is in red (when read only it is in deep red).
Page 14
[AKD4629-A] [Write]: Data Writing Dialog It is for when changing two or more bits on the same address at the same time. Click [Write] button located on the right of the each corresponded address for a pop-up dialog box. When checking the checkbox, the register will be “H” or “1”, when not checking the register will be “L” or ”0”.
[AKD4629-A] 2. [Tool]: Testing Tools This tab screen is for evaluation testing tool. Click buttons for each testing tool. <KM101902> 2012/04...
Page 16
[AKD4629-A] 2-1. [Repeat Test]: Repeat Test Dialog Click [Repeat Test] button in the Test tab to open the repeat test dialog shown below. Repeat writing test can be executed by this dialog. [Start] Button : Starts the repeat test. A dialog for saving a file of the test result will open when clicking this button.
Page 17
[AKD4629-A] 2-2. [Loop Setting]: Loop Dialog Click [Loop Setting] button in the Tool tab to open the loop setting dialog as shown below. Writing test can be executed. [ OK ] Button : Starts the test. [ Cancel ] Button : Closes the dialog and finishes the process.
[AKD4629-A] Dialog Boxes 1. [All Reg Write]: All Register Write dialog box Click [All Reg Write] button in the main window to open register setting files. Register setting files saved by [SAVE] button can be applied. [Open (left)]: Selecting a register setting file (*.akr).
Page 19
[AKD4629-A] 2. [Data R/W]: Data R/W Dialog Box Click the [Data R/W] button in the main window for data read/write dialog box. Data write is available to specified address. Address Box: Input data address in hexadecimal numbers for data writing.
[AKD4629-A] 3. [Sequence]: Sequence Dialog Box Click [Sequence] button to open register sequence setting dialog box. Register sequence can be set in this dialog box. Sequence Setting Set register sequence by following process bellow. (1)Select a command Use [Select] pull-down box to choose commands.
[AKD4629-A] [ Interval ]: Interval time Valid boxes for each process command are shown bellow. · No_use: None · Register: [Address], [Data], [Interval] · Reg(Mask): [Address], [Data], [Mask], [Interval] · Interval: [Interval] · Stop: None · End: None Control Buttons The function of Control Button is shown bellow.
Page 22
[AKD4629-A] 4. [Sequence(File)]: Sequence Setting File Dialog Box Click [Sequence(File)] button to open sequence setting file dialog box. Those files saved in the “Sequence setting dialog” can be applied in this dialog. [Open (left)]: Opening a sequence setting file (*.aks).
AKM harmless from any and all claims arising from the use of said product in the absence of such notification.
Page 57
48pin_1 48pin_1 TP24 TP24 TP31 TP31 TP32 TP32 TP33 TP33 TP34 TP34 48pin_2 48pin_2 Title Title Title AKD4629-A-MAIN AKD4629-A-MAIN AKD4629-A-MAIN Size Size Size Document Number Document Number Document Number AK4629 AK4629 AK4629 MCLK BICK LRCK SDTI1 SDTI2 SDTI3 SDTI4 DFS0...
Page 58
LRCK_SEL Jp12 Jp12 0.1u 0.1u 0.1u 0.1u BNC_TX BNC_TX +3.3V DA02 DA02 Title Title Title AKD4629-A-Main AKD4629-A-Main AKD4629-A-Main Size Size Size Document Number Document Number Document Number AK4114 Date: Date: Date: Monday, December 21, 2009 Monday, December 21, 2009 Monday, December 21, 2009...
Page 59
JP34 JP34 RINB1 LINB1 RIN1- RIN1- RIN1- LIN1- LIN1- LIN1- MR-552LS MR-552LS MR-552LS MR-552LS Title Title Title AKD4629-A-MAIN <Title> <Title> <Title> Size Size Size Document Number Document Number Document Number Analog Input <Doc> <Doc> <Doc> Date: Date: Date: Tuesday, December 01, 2009...
Page 60
(open) -12V 330p C54 330p 330p C56 330p 4.7K 4.7K 4.7k 4.7k 4.7K 4.7K 4.7k 4.7k Title Title Title AKD4629-A-MAIN <Title> <Title> <Title> Size Size Size Document Number Document Number Document Number Analog Output <Doc> <Doc> <Doc> Date: Date: Date:...
Page 61
TVDD SEL3 SEL3 DIF2 SEL2 SEL2 100k 100k DIF1 TDM0 JP64 JP64 SMUTE SMUTE Title Title Title AKD4629-A-MAIN <Title> <Title> <Title> Size Size Size Document Number Document Number Document Number Digital I/F <Doc> <Doc> <Doc> Date: Date: Date: Wednesday, August 04, 2010...
Page 62
C109 C110 C110 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u Title Title Title AKD4629-A-MAIN <Title> <Title> <Title> Size Size Size Document Number Document Number Document Number Power Supply <Doc> <Doc> <Doc> Date: Date: Date: Sheet...
