Esse W35 Installation Instructions

ESSE W
OODFIRED
INSTALLATION INSTRUCTIONS
MODEL: W35 W35 W35 W35
THIS APPLIANCE MUST BE COMMISSIONED BY A HETAS REGISTERED ENGINEER OR A COMPETENT PERSON. THIS APPLIANCE MUST BE COMMISSIONED BY A HETAS REGISTERED THIS APPLIANCE MUST BE COMMISSIONED BY A HETAS REGISTERED THIS APPLIANCE MUST BE COMMISSIONED BY A HETAS REGISTERED
THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VALIDITY THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VAL THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VAL THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VAL
C
OOKER
ENGINEER OR A COMPETENT PERSON. ENGINEER OR A COMPETENT PERSON. ENGINEER OR A COMPETENT PERSON.
IDITY IDITY IDITY

GENERAL INFORMATION

In the UK, the installer has a responsibility under the Health and Safety at Work Act 1974 to provide for the safety
of persons carrying out the installation. Attention is drawn to the fact that fire cement is caustic and hands must be
washed thoroughly after use. The appliance is heavy (max 380kg) and care muse be taken during handling. Although
the appliance does not contain asbestos products, it is possible that asbestos may be disturbed in existing installations
and every precaution must be taken.
These instructions give a guide for the installation of the appliance but in no way absolve the installer from
responsibilities to conform to British Standards, in particular BS8303 and BD6461, relating to the installation of
solid fuel appliances. The installation should also comply with local Building Regulations and Local Authority by
laws.
Outside of the UK, the installer must comply with all local, national & European standards that apply.
Any adjacent combustible material should be far enough away from the appliance so as not to rise 65ºC above the
room temperature when the appliance is in operation. If necessary, any adjoining walls should be protected from the
effects of heat. Clearances from combustible materials are 20mm from the sides and 40mm from the rear.
It is also recommended that a smoke alarm and appropriate fire safety equipment such as a fire extinguisher and fire
blanket are installed in the kitchen as a safety precaution.

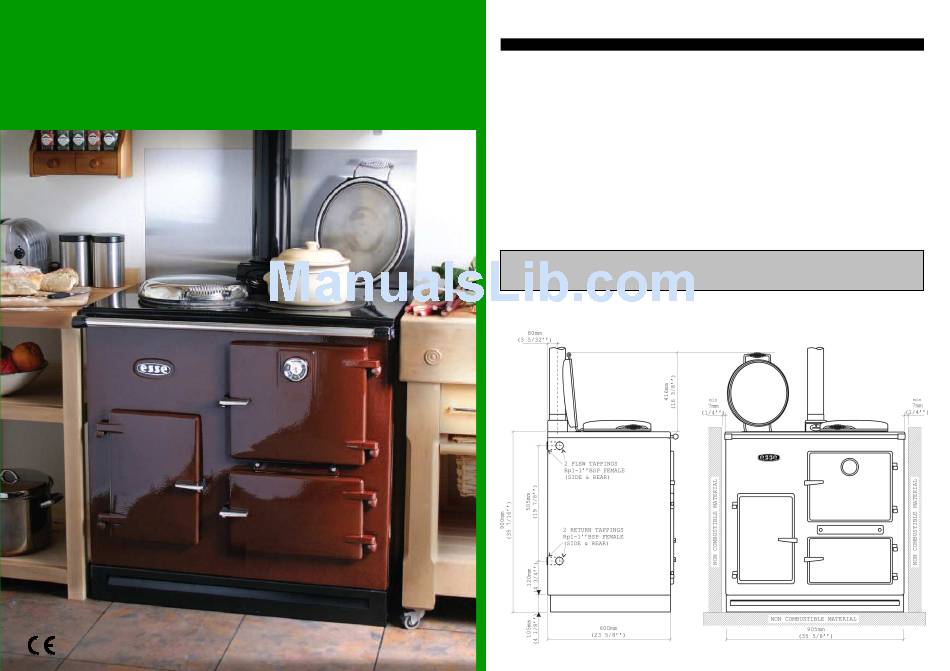

Note: The illustration below provides essential boiler tapping measurements and will help when selecting the
location of the cooker. When installing a W35 with a Plus2 module, pipe work will need chasing into the wall
behind the Plus2.
An adequate air supply for combustion and ventilation is required of at least 2585mm
refer to building regs document J. Air openings provided for this purpose must not be restricted.
2
(approx 58mm diameter) –
2
