Safety Instructions
SAFETY INSTRUCTIONS.
Please read these operating instructions carefully for full
information on the safe installation, use and care of your new Esse
appliance.
This appliance must be correctly installed in accordance with the
manufacturer's instructions by a suitably qualified person.
We cannot accept responsibility for damage to persons or items
due to poor or incorrect installation of this appliance.
Make sure that the voltage and frequency of the mains supply
correspond to the details on the cooker data plate which is located
on the inside of the plate warming cupboard door.
Maintenance and servicing work must only be carried out after the
power supply has been disconnected by switching off at the socket
and removal of both plugs.
Due to our policy of continuous innovation, we reserve the right to
adjust or modify our product without prior notification.
Pg1
Pg3
Pg4
Pg4
Pg5
Pg6
Pg7
Pg8
Page 1
Pg9
Pg10
Pg12
Pg14
Pg14
Pg15
EL-I07-070814
Advertisement
Table of Contents
Related Manuals for Esse EL13 AMP
Summary of Contents for Esse EL13 AMP
-
Page 1: Table Of Contents
Dimensions SAFETY INSTRUCTIONS. Please read these operating instructions carefully for full information on the safe installation, use and care of your new Esse appliance. This appliance must be correctly installed in accordance with the manufacturer’s instructions by a suitably qualified person. - Page 2 Do not let children near the oven during use to avoid the danger of burns or injury. Use of the appliance by the elderly or infirm should be supervised. The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
-
Page 3: Technical Data
Do not use Steam cleaners to clean any part of this appliance. Do not use external timers with this appliance. This appliance can slip if placed on a raised platform. If the any of the supply cords are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 4: Unpacking Your New Cooker
UNPACKAGING YOUR NEW COOKER. Unpack your New Esse Cooker, removing all of the outer packing and accessories from the top and bottom ovens, including protective film on the door liners. At this time please examine the cooker for any damage to the enamel finish and hob glass. -
Page 5: Connecting Your Cooker
This appliance shall be installed in accordance with the regulations in force and in a well-ventilated space. Read the instructions before installing or using this appliance. The cooker must be installed in accordance with: All relevant British Standards / Codes of Practice and the relevant Building / IEE regulations Location of the Oven This appliance is designed for domestic cooking only. -
Page 6: Before Using Your Cooker
BEFORE USING YOUR COOKER Remove plastic protective covers from inner door panels; lift up lids and hinge covers. Before you cook for the first time, it is recommended that both ovens be switched on to the highest setting for about an hour to burn off any initial odours The grill should also be turned on for 15 minutes with the top oven door left open, before it is used for the first time. -
Page 7: Your Cooker

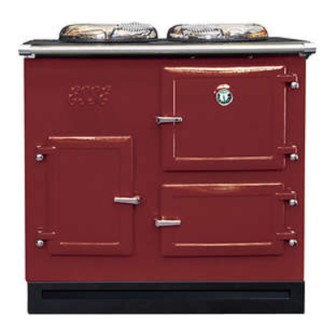

YOUR COOKER. Fig.2 EL Cooker PLATE WARMING CUPBOARD. CONTROL PANEL. INDUCTION ZONE. HEAT CONSERVING LIDS. CAST IRON HOTPLATE. TOP OVEN & GRILL. BOTTOM OVEN. Page 7 EL-I07-070814... -
Page 8: Spacing & Dimensions
SPACING AND DIMENSIONS. Fig. 3 EL Cooker Dimensions All dimensions are in mm It is recommended that a space of 10mm is left between the rear wall and the rear of the cooker for maintenance purposes. The cooker weighs 281kg and so the floor must be capable of withstanding the load. -
Page 9: Control Panel
CONTROL PANEL Fig.4 EL Cooker control panel. Page 9 EL-I07-070814... -
Page 10: Ovens, Grill, Warming Cupboard
OVENS, GRILL, WARMING CUPBOARD. The ovens work by modulating the power (Patent Pending) between the cast iron hotplate, the top oven, the lower oven and the plate warming cupboard. If both ovens and the hotplate are on, the cooker will modulate the power to reach the selected temperatures, but if only one oven or the hotplate is turned on it will heat up more quickly. - Page 11 The thermometer in the top oven door is only a guide to actual oven temperature. The reading will be incorrect when the door is or has been opened and will recover once the door closed. The lower oven. This oven has a 1.5kW wrap around element (Patent Pending) and is used as a smaller capacity, high or low temperature oven.
-
Page 12: Induction Zone
When attaching the grill pan handle make sure it is in the middle of the grill pan, Do not leave the grill pan handle attached to the grill pan whilst grilling, as it will become hot. Use only when moving the grill pan, ... - Page 13 When selected, the boost function will deliver the full 2kW power for 10 minutes and then the induction unit will shut off. This cycle needs to be completed and the control knob turned to the (0) off position before another power level is then selected. The minimum pan size for the induction zone is Ø130mm.
-
Page 14: Cast Iron Hotplate
CAST IRON HOTPLATE The cast iron hob is Ø330mm and has a 2.5kW Element. From the OFF setting it takes approximately 40 minutes to reach 400⁰Centigrade, or 31 minutes from 150⁰Centigrade to 400⁰Centigrade when in slumber mode. Heat up times were checked with the heat conserving lid down and at a room temperature of 18°C Always use solid machined flat base pans to ensure the best contact... -
Page 15: Extraction
Fig. 6 Top oven steam vent closed. Figure 7 shows the steam vent opened. This operation is achieved by rotating the steam vent cover disc either clockwise or anti- clockwise on the top of the cooker. Fig. 7 Top oven steam vent opened. Steam is very hot and can burn. - Page 16 ESSE Engineering Limited, Ouzledale Foundry, Long Ing, Barnoldswick, Lancashire BB18 6BJ Tel. 01282 813 235, Fax: 01282 816 876 Website and On-line Store http://www.esse.com Page 16 EL-I07-070814...
