Esse 990 CH Installation & Commissioning Instructions

Hide thumbs Also See for 990 CH:

Advertisement

Quick Links

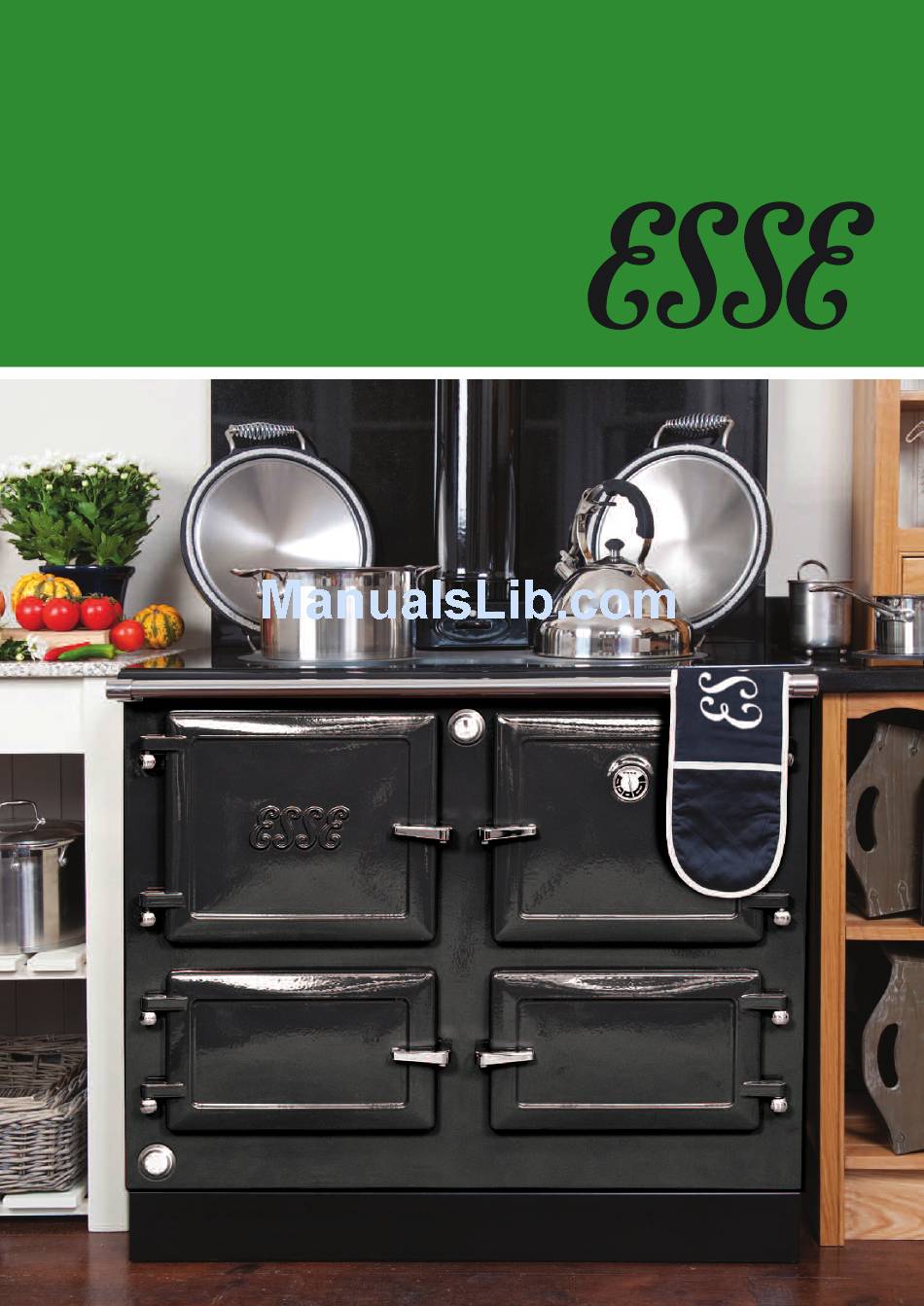

INSTALLATION & COMMISSIONING
INSTRUCTIONS
Model: 990 CH

Advertisement

loading
Need help?

Need help?

Do you have a question about the 990 CH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Esse 990 CH

Summary of Contents for Esse 990 CH

  • Page 1 INSTALLATION & COMMISSIONING INSTRUCTIONS Model: 990 CH...

  • Page 2: Table Of Contents

    T BLE OF CONTENTS General Safety Information Page 2 Chimney and Flue Page 6 Chimney and Flue Information Page 3 Hot Water System Page 7 Installing the Appliance Page 4 Replacement Parts Page 9 Flue Draught Page 5 GENER L S FETY INFORM TION In the UK, the installer has a responsibility under the Health and Safety at Work Act 1974 to provide for the safety of persons carrying out the installation.

  • Page 3: Chimney And Flue Information

    Fig.1 – Cooker Dimensions Note: All dimensions are in millimetres 770mm 300mm CHIMNEY AND FLUE INFORMATION CHIMNEY ND FLUE INFORM TION The successful operation of the cooking appliance relies on the adequate performance of the chimney to which it is connected. The following chimney guidelines must be followed: •...

  • Page 4: Installing The Appliance

    The chimney/flue to which this appliance is being connected must be swept and examined for soundness prior to installation. Remedial action should be taken if required, seeking expert advice if necessary. Where the chimney is believed to have served an open fire installation it is possible that a higher flue gas temperature from a closed appliance may loosen deposits that were firmly adhered, with the consequent risk of flue blockage.

  • Page 5: Flue Draught

    Placing the cooker The 990 can be lifted from the pallet it is delivered on utilising ESSE lifting wheels issued to ESSE retailers. These allow the cooker to be wheeled into position in the home. Once decoupled from these wheels and on a flat floor, the cooker can be gently moved backwards by removing the kick strip &...

  • Page 6: Chimney And Flue

    CHIMNEY AND FLUE INFORMATION CHIMNEY ND FLUE LOW FLUE DR UGHT SYMPTOMS: DIFFICULT TO LIGHT ND SMOKE COMING INTO THE ROOM C USE REMEDY Cold chimney Line the chimney Chimney too short Extend the chimney Down draught Relocate/extend chimney terminal. Fit an anti down draught cowl. Chimney diameter too large Line the chimney Chimney obstruction...

  • Page 7: Hot Water System

    HOT W TER SYSTEM The connections will be supplied by your installer. Water connections: There is one water flow connection and one water return connection on the left hand side of the cooker. Connections are Rp1 (1” BSP female). By using 1” BSP/28mm elbows, the pipes can be brought out of the back of the cooker if preferred.
  • Page 8 Basic Heating System Note: A warm boiler return temperature is essential to avoid tar deposits on the boiler faces. 56°C minimum is required.

  • Page 9: Replacement Parts

    REPL CEMENT P RTS Flexible Flue Rake 2040-807 S Hotplate Screw CENT-118 S Hotplate Lifting Tool 2040-400 BO Flue Brush WN/WD 3"DIA FLUE BRUSH Cast Iron Shovel WFCIS Hotplate Rope ROPE/CUT.WHT-T/25x1800 Bolster Rope ROPE/CUT.WHT/8x1800-C Ashpan SF 990-024 Solid Fuel Grate SF 990-032 Oven Rope ROPE/CUT.GRY/18x1360-G...
  • Page 10 Notes...
  • Page 11 Notes...
  • Page 12 TECHNIC L INFORM TION Nominal heat output 22kW Combustion air requirements 93.5cm Weight of appliance 450kg Minimum chimney draught 12Pa Maximum Chimney Draught 25Pa Esse Engineering Limited, Long Ing, Barnoldswick, Lancashire BB18 6BN Tel: 01282 813235 Fax: 01282 816876 e-mail: enquiries@esse.com Website: http://www.esse.com...
