Summary of Contents for Blizzard Lighting Tour QT Skywire

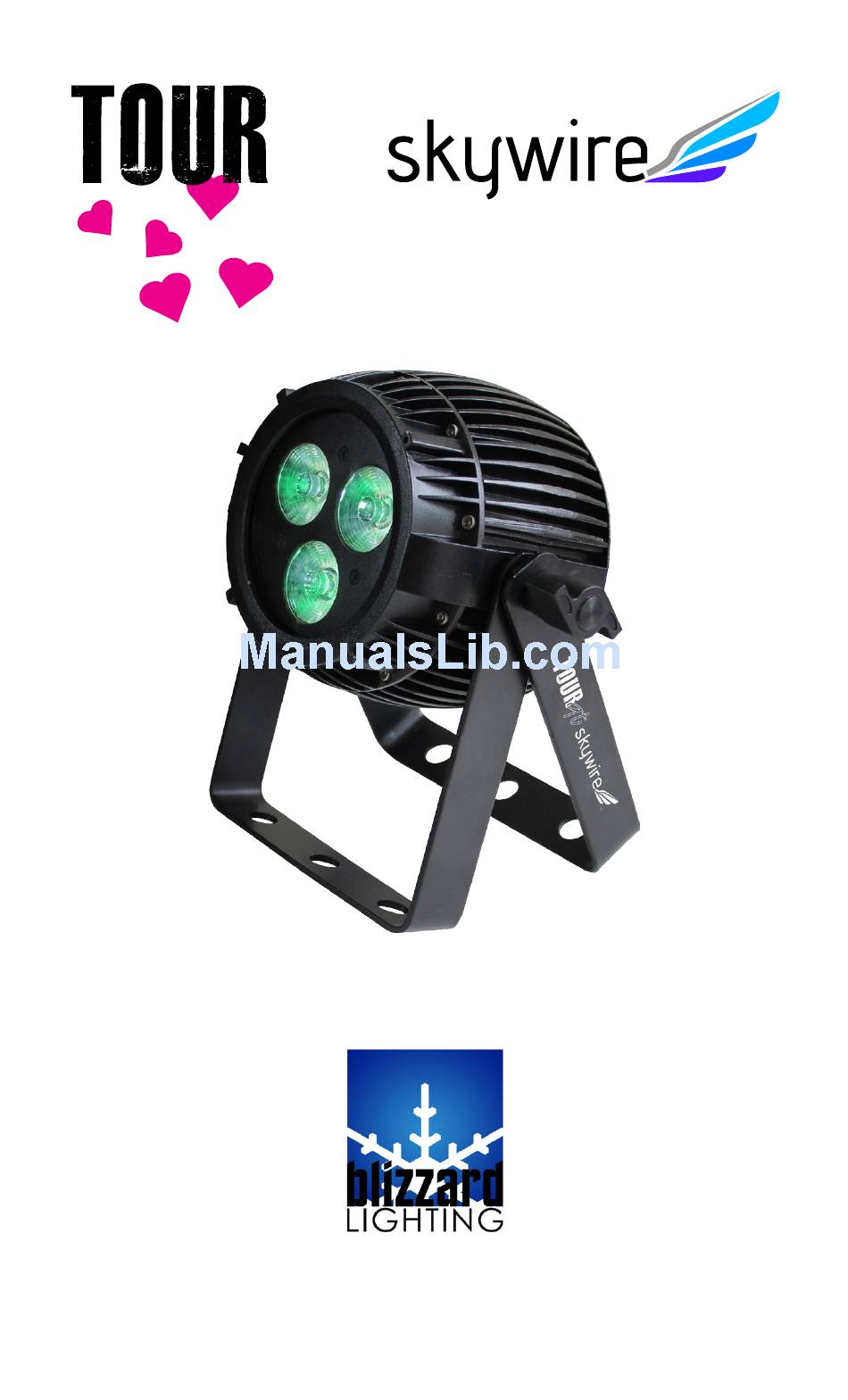

- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2016...
-
Page 2: Table Of Contents
Sound Active Mode Dimming Mode DMX Channel Values In-Depth 5. Appendix A Quick DMX Lesson Troubleshooting Keeping Your Tour QT Skywire™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Dimensional Drawings Page 2 Tour QT™ Skywire Manual Rev. B... -
Page 3: Tour Qt Skywire
Congratulations on purchasing the cute and tiny, yet powerful and feature packed Tour QT Skywire™ LED par fixture! All your friends are SO going to be like, WOW, and totally jealous! Now that you’ve got your hands on a Tour QT Skywire™ (or hopefully, Q-Tees!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. -
Page 4: Safety Instructions (Don't Run With Scissors!)
Caution! There are no user serviceable parts inside this unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting via our website and open a support ticket at www.blizzardlighting.com/support. -
Page 5: Meet The Tour Qt Skywire
2. MEET THE TOUR QT SKYWIRE™ LED PAR CONTROL FEATURES • RGBAW+UV color mixing via 3x 15W 6-in-1 LEDs • Built-in AnyFi™ wireless DMX receiver (Skywire™ or W-DMX™) • Variable electronic dimming & strobe • Built-in color & chase macros via DMX •... -
Page 6: The Tour Qt Skywire™ Pin-Up Picture

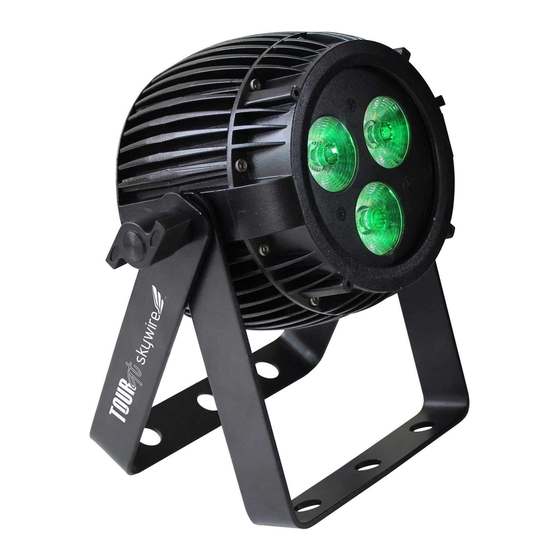

Figure 1: The Tour QT Skywire™ Pin-Up Picture Heavy-Duty Cast Aluminum Enclosure 15W 6-in-1 RGBAW+UV LEDs Secure Grip Locking Knobs Dual Adjustable Mounting Brackets Figure 2: The Rear Connections Antenna DMX In DMX Out AC Power Out AC Power In... -
Page 7: Setup
3. SETUP Fuse Replacement CAUTION! The Tour QT Skywire™ utilizes a high-output switch-mode power supply with an internal fuse. Under normal operating conditions, the fuse should not require replacement. The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC... -
Page 10: Using The Anyfi™ Wireless Dmx Receiver
So first, if you would like to use Skywire™ wireless DMX protocol, you will need a wiCICLE® transmitter, Lightcaster™ transceiver, or any Blizzard Lighting controller with this type of built-in wireless transmitter. And if you plan on using W-DMX™ 2.4GHz wireless protocol, you will need a W-DMX™... - Page 11 NOTE: The color of the status LED DURING operation does not indicate channel group, instead it indicates whether the unit is transmitting or receiving. That’s It! Page 11 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC...
-
Page 12: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 12 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC... -
Page 13: Control Panel Menu Structure
WILS REST Wireless Reset (YES/NO) KEY desired wireless mode (color coded LED) INFO SOFT Software version information Current auto overheat protection: (xxx%) LOAD YES/NO Restore factory settings Page 13 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC... -
Page 14: Dmx Mode
58 Red+Green+Blue+White+UV 17 Blue+UV 38 Blue+Amber+UV 59 Red+Green+Amber+White+UV 18 Amber+White 39 Blue+White+UV 60 Red+Blue+Amber+White+UV 19 Amber+UV 40 Amber+White+UV 61 Green+Blue+Amber+White+UV 20 White+UV 41 Red+Green+Blue+Amber 62 All Colors: R+G+B+A+W+UV Page 14 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC... -
Page 15: Strobe
Mode 2: SQR. (Square law, smooth) • Mode 3: ISQR. (Inverse square law, smooth) • Mode 4: SCUR. (S-curve, smooth) 3.) Press the <ENTER> button to confirm. Page 15 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC... -
Page 16: Dmx Channel Values In-Depth
000 <--> 255 White Intensity (0% <--> 100%) 000 <--> 255 UV Intensity (0% <--> 100%) 000 <--> 010 No Function 011 <--> 255 Strobe Speed (1-20Hz) Page 16 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC... -
Page 17: Appendix
Make sure all connectors are seated properly and securely. Responding / Use Only DMX Cables and/or check cables for defects Responding Er- Install a Terminator. ratically Reset fixture(s). Page 17 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC... -
Page 18: Keeping Your Tour Qt Skywire™ As Good As New
Keeping Your Tour QT Skywire™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 19: Tech Specs
2-year limited warranty, does not cover malfunction caused Warranty by damage to LEDs. 5” (127.1 mm) 5.3” (134.9 mm) 4” (100.1 mm) 3.4” (86.4 mm) 7.1 “ (181 mm) Page 19 Tour QT™ Skywire Manual Rev. B © 2016 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
