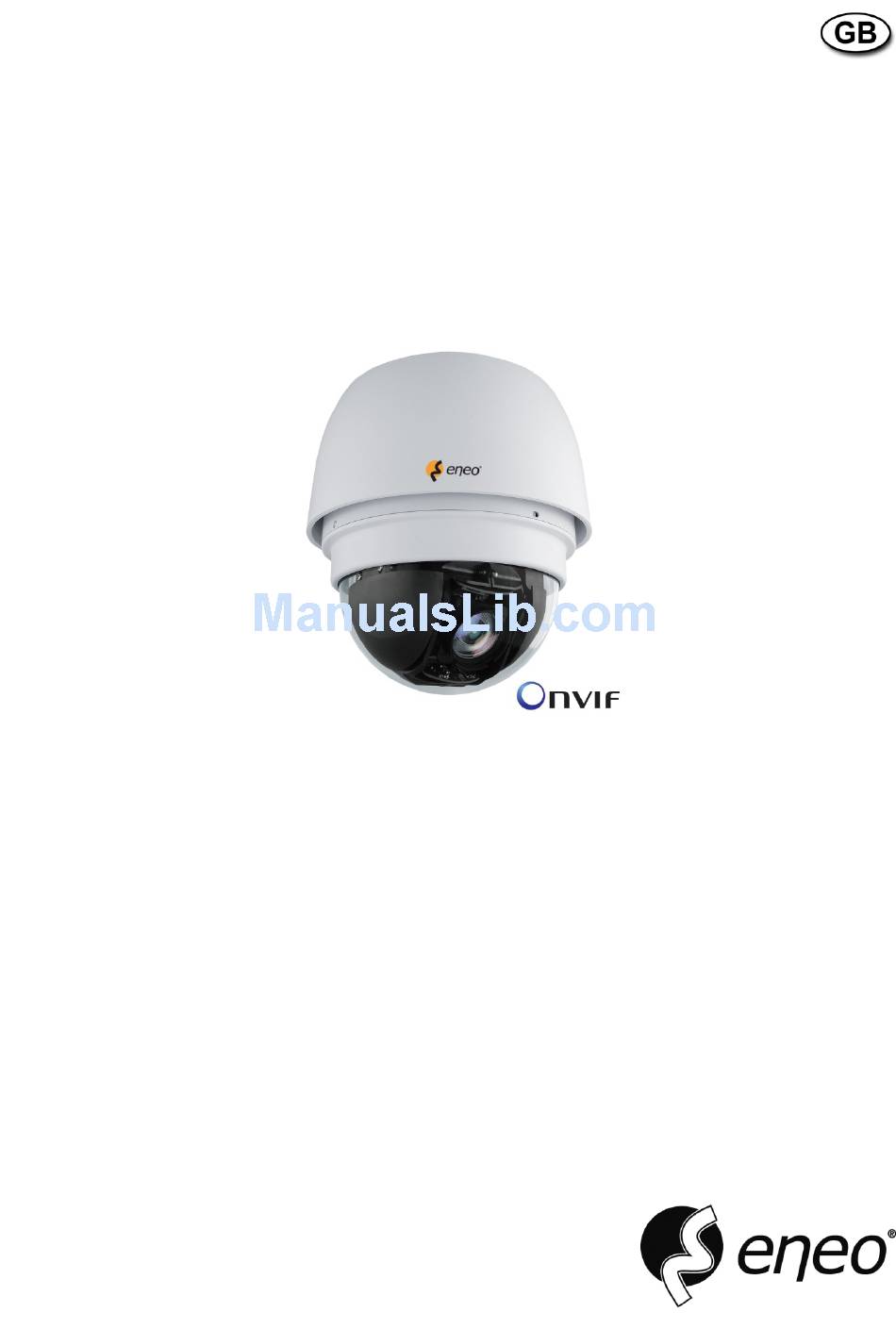

- Page 1 Quick Installation Guide 1/4" Network High Speed Dome, PTZ, 36x, Day&Night PLD-2036PTZ...
-
Page 2: Safety Instructions
Safety Instructions _______________________________________________ • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Protect your camera from contamination with water and humidity to prevent it from permanent damage. -
Page 3: Switch Definition
This Quick Guide is for quick installing and connecting the network Speed Dome Camera. For details, please refer to the camera’s User Manual and Installation Guide. Switch Definition _____ Outdoor None Communication Switch (Reserved) RJ45 Connector 22-Pin Connector None Reboot Button Factory Reset Button ISP Connector (for FW upgrade) Data Cable and Connector Definition... -
Page 4: 22-Pin Connector Definition
22-Pin Connector Definition _____ When cabling, please refer to the table below for pin definition of the Data Cable’s 22-pin connector on the Data Cable. Definition Cable Definition Cable ALM-1 20AWG/18AWG AC 24-1/DC (＋) ALM NC ALM-3 ALM-2 AC 24-2/DC (－) 20AWG/18AWG ALM NO ALM-4... -
Page 5: Camera Login
Camera Login _____ The network Speed Dome Camera’s default IP address is: 192.168.1.10. Therefore, to access the camera for the first time, set the PC’s IP address as: 192.168.1.XXX; for example: IP Address: 192.168.1.20 Subnet Mask: 255.255.255.0 Login ID & Password •... -
Page 6: Technical Specifications
Technical Specifications _____ Type PLD-2036PTZ Art. No. 200823 Resolution standard System day&night Sensor size 1/4” Imager Sensitivity (at 50% video signal) 1Lux (colour) ; 0.01Lux (B&W) Horizontal resolution 650 TVL Automatic gain control (AGC) supplied Automatic electronic shutter (ESC) 1/50 ~ 1/10,000sec. - Page 7 ONVIF core specifications 1.02 Certificates Dimensions See drawing Weight 2.6kg Parts supplied remote viewer software, screw set, manual Special features Auto calibration Optional Accessories The optional accessories currently available can be found on our Homepages: www.videor.com and www. eneo-security.com...
