Page 1: Quick Installation Guide

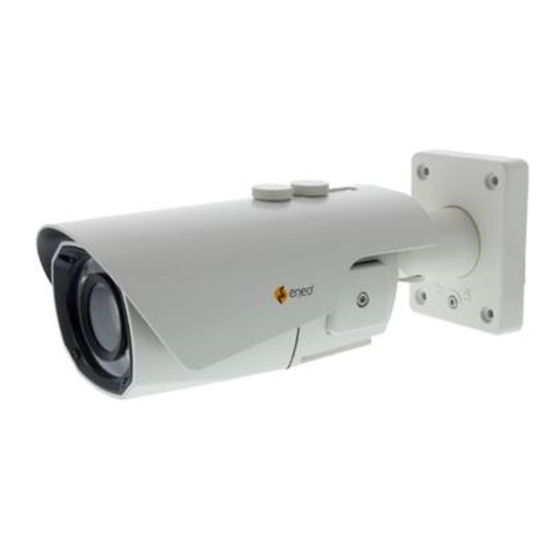

Quick Installation Guide 1/3” Network Camera, WDR, Day&Night, 3-9mm, 1920x1080, 3x AF Zoom, Infra- red, PoE PXB-2080Z03 D... -
Page 3: Safety Precaution
NETWORK AF-ZOOM CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 4 NETWORK AF ZOOM CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get Never open the device such as boards or lens.
-
Page 5: Table Of Contents
NETWORK AF ZOOM CAMERA Contents p.03~04 Safety Precaution p.05 Contents p.06~07 Features p.07 Composition p.08 Dimensions p.08 Part Names p.09~11 Installation Instructions p.12~28 Operating Instructions p.29~30 Specifications... -
Page 6: Features
NETWORK AF ZOOM CAMERA Features Key Features • Full HD, 2Mega Pixel, NETWORK CAMERA, 1920x1080(30p/25p) • ONVIF & PSIA Conformance • Built-in f=3~9mm, F1.2~F2.1 Day&Night zoom lens (Optical 3x Auto focus zoom / Digital 32x zoom) • Real time True WDR (Wide Dynamic Range) / 30fps •... -
Page 7: General Description
NETWORK AF ZOOM CAMERA Features General Description This camera realizes the natural and crisp image as you see the scene in front of you by adopting Auto Focus Full HD(1920x1080p) camera module. Highly detailed pictures can be achieved and color reproducibility deserves attention. -
Page 8: Dimensions
NETWORK AF ZOOM CAMERA Dimensions (unit : mm) 87.30 Part Names SUNSHIELD BOLT ETHERNET & SUNSHIELD POWER CABLE OSD Setup CONTROL COVER DUAL WINDOW EASY BRACKET BRACKET FRONT CASE REAR CASE LOCK/UNLOCK SCREW... -
Page 9: Installation Instructions
NETWORK AF ZOOM CAMERA Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. ( *The easy bracket can not be installed on the ceiling) 2. Place the easy bracket on pre-drilled position and fix it through using mounting screws(4x30mm). - Page 10 NETWORK AF ZOOM CAMERA Installation Instructions Pan & Tilt adjustments • Unlock the screw on the camera bracket through using the torque wrench supplied • Set the camera’s viewing angle then lock the screw on the bracket. 1) Pan limit: Pan is limited to +/- 90°.
-
Page 11: Installation And Commissioning Instructions
NETWORK AF ZOOM CAMERA Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before the installation. • After all connections are finished properly, follow the order for applying power. a) Plug the network cable into RJ-45 Ethernet Port. If PoE is the unique power, there will be no need to connect Power terminal. -
Page 12: Operating Instructions
NETWORK AF ZOOM CAMERA Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Standard SD Card Slot IP RESET... - Page 13 NETWORK AF ZOOM CAMERA Operating Instructions Quick Network Setup NOTICE After camera is connected with IP, its control is available via WEB Viewer. To access the ADMIN on IP INSTALLER ID: root PW: root The network camera‘s default IP address is: 192.168.1.10. Therefore, to access the camera for the first time, set the PC‘s address as shown.
- Page 14 NETWORK AF ZOOM CAMERA Operating Instructions 1. Assigning an IP address To assign an IP address to the camera proceeded as follows: Click Network Configuration on the Network Configuration menu. • Depending on the service type, the network configuration can be in any of Static IP, DHCP Client, or PPPoE.
-
Page 15: Administrator Password
NETWORK AF ZOOM CAMERA Operating Instructions • For DHCP, DHCP server must exist in the same network environment. Select DHCP Client from Network Configuration, click Apply. • PPPoE is used to connect IP products to PPPoE modem provided by ISP. Since PPPoE needs verification, ID and password are necessary to access network. -
Page 16: Accessing The Camera Setup Menu
NETWORK AF ZOOM CAMERA Operating Instructions 3. Accessing the camera setup menu Camera SETUP menu can be accessed in two ways via web viewer. Most frequent controls are available with the parameters directly in the below table. More complicated settings such as PRIVACY, POINTING ZOOM & SMART MOTION settings are available via ‘ADVANCED CAMERA MENU’... - Page 17 NETWORK AF ZOOM CAMERA Operating Instructions Direct Control on Web-menu SPECIAL DEFAULT DESCRIPTION AUTO ZOOM ZOOM PUSH, AUTO and MANUAL modes are available for FOCUS PUSH zoom & focus. MANUAL – Zoom in/out can only be adjusted by ▲,▼ of OSD control joystick or Focus Near/Far button on WEB.
- Page 18 NETWORK AF ZOOM CAMERA Operating Instructions AGC amplifies the video gain for brighter video but noise and white pixel accordingly. AGC level less than 10 disables AUTO in DAY/NIGHT The brighter video can be obtained by increasing the exposure SENS-UP AUTO time in the night with SENS-UP.
- Page 19 NETWORK AF ZOOM CAMERA Operating Instructions level. When EXTERNAL IR LED is used with NON IR LED model, DAY&NIGHT AUTO please set to IR LED MODE ON. Non IR B/W – Forcibly removes IR cut filter and switches to B/W type regardless of light level.
- Page 20 NETWORK AF ZOOM CAMERA Operating Instructions Reverses the video left and right and/or up and down by No Mirror, MIRROR / MIRROR/FLIP. No Flip FLIP No Mirror, No Flip : Normal display without mirroring or flipping No Mirror, Flip : Video is reversed upside down. Mirror, No Flip : Video is reversed left and right.
-
Page 21: Advanced Camera Osd Menu
NETWORK AF ZOOM CAMERA Operating Instructions Advanced Camera OSD menu Click ‘ADVANCED CAMERA MENU’ bar at CAMERA CONTROL menu to activate the camera OSD menu. Click Up/Down/Left/Right bars to navigate or change the parameters. These options have been pre-configured at the factory for optimal performance. MENU V5.xx PRIVACY... - Page 22 NETWORK AF ZOOM CAMERA Operating Instructions • SMART MOTION ZOOM– ON enables to Automatic Zoom IN/OUT when motion is detected and also enables MOTION OSD to ON. Area to be zoomed in by SMART MOTION ZOOM can be set at MOTION > SMART MOTION ZOOM.
- Page 23 NETWORK AF ZOOM CAMERA Operating Instructions CAUTION Set the direction of video by MIRROR/FLIP before POINTING ZOOM setting. Otherwise location of zoom center could be different from your intention. 6. PRESET ZOOM (default: OFF) Able to zoom in for the preset area from NVR, VMS or Web viewer. PRESET ZOOM ↵...
- Page 24 NETWORK AF ZOOM CAMERA Operating Instructions HOME POSITION O-ZOOM RATIO OZ X1.5 DURATION 5sec RETURN 8. BLC/HLC • BLC POSITION (default: SET) Improves the visibility for the dark object by the bright back light. Outside area of BLC window can over saturate. BLC has a target window for compensation and its size and position can be set by H-POS, V-POS, H-SIZE and V-SIZE.
- Page 25 NETWORK AF ZOOM CAMERA Operating Instructions Detail Function Description ▐ SMART MOTION ZOOM SMART MOTION ZOOM enlarges the certain area defined by a yellow window to the full sized image when the motion is detected in the black window. SMART MOTION ZOOM window can be re-sized by adjusting D-ZOOM RATIO and moved by H-POS and V-POS SMART MOTION ZOOM ZONE VIEW...
- Page 26 NETWORK AF ZOOM CAMERA Operating Instructions • D-ZOOM RATIO (DZ X2.0) - Sets the area size to be Digital zoomed when the motion occurs in the black window • MOTION CHK COUNT (3) - SMART MOTION ZOOM is activated after the motions in MOTION CHK COUNT are detected in a certain period.
- Page 27 NETWORK AF ZOOM CAMERA Operating Instructions * EXAMPLE OF SMART MOTION & POINTING ZOOM [ At the ATM nearby ENTERANCE ] [ At the LOBBY ]...
- Page 28 NETWORK AF ZOOM CAMERA Operating Instructions Setting for Zoom Function with NVR or VMS ● Enter the MENU : Press buttons 9+5+PSET (PRESET) ● Set the Preset Zoom : Press buttons 1(or ~4)+PSET (PRESET) ● Move the cursor in the MENU : Moves UP/DOWN/LEFT/RIGHT Joy stick ●...
-
Page 29: Specifications
NETWORK AF ZOOM CAMERA Specifications ITEM PXB-2080Z03 D Imaging Sensor Panasonic 1/3" Progressive Scan CMOS Sensor Effective Pixels 1,944(H) x 1,092(V) Min.Illumination 0.0008 Lux (@AGC MAX, DSS x2) Video Resolution 1920x1080 (30p/25p) TV System 50Hz(switchable to 60Hz) Sync. System Internal... - Page 30 NETWORK AF ZOOM CAMERA Specifications Power Source PoE(IEEE Std. 802.3af ), AC24V~15VA/DC12V=1A, 12W Circuit protection against faulty connection in power polarity. Isolated power supply against ground loop problem. NETWORK SPECIFICATION Video Encoding H.264 / MJPEG dual streaming Protocol HTTP, TCP/UDP/IP, ARP, ICMP, RTP/RTSP, multicast, Telnet, IPv6, PPPoE, SMTP(e-mail), DHCP, NTP, uPNP, ftp, IGMP, ONVIF, PSIA Transmission Control VBR, CBR ( 32K ~ 12M bps )
- Page 32 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
