Eneo PLD-2036PTZ Installation Manual

Eneo PLD-2036PTZ Installation Manual

1/4” network high speed dome, ptz, 36x, day&night
Hide thumbs Also See for PLD-2036PTZ:
Table of Contents

Advertisement

Quick Links

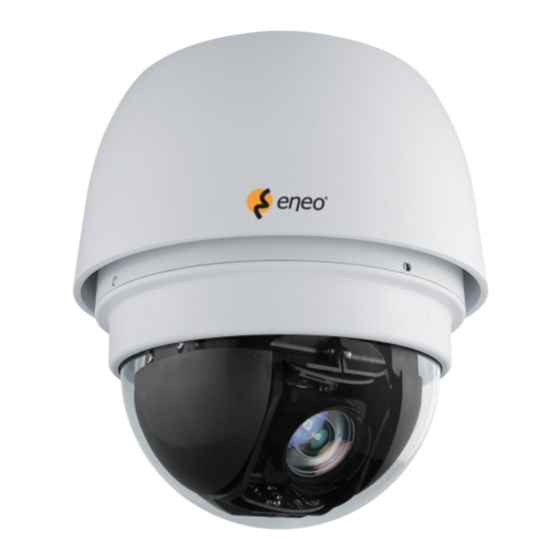

1/4" Network High Speed Dome, PTZ, 36x,
Day&Night
PLD-2036PTZ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLD-2036PTZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Eneo PLD-2036PTZ

  • Page 1: Table Of Contents - Part

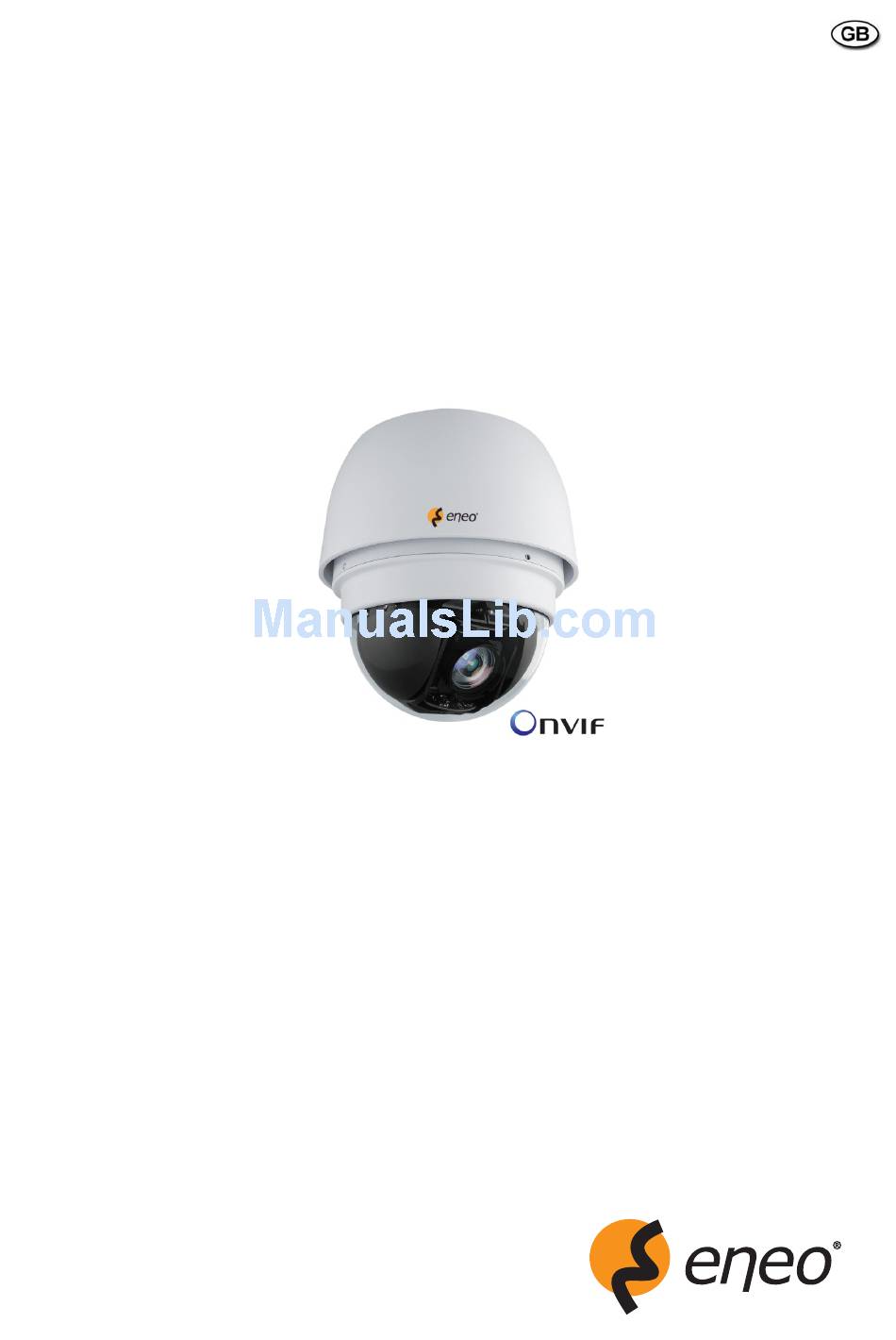

    1/4” Network High Speed Dome, PTZ, 36x, Day&Night PLD-2036PTZ...
  • Page 2 Installation Guide Contents Part 1 – Installation Guide ................3 Part 2 – User Manual ................. 43...
  • Page 3: Part 1 – Installation Guide

    Installation Guide Part 1 Installation Guide Version 3.7...
  • Page 4 Installation Guide Preface Information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice This manual provides installation information for the outdoor Integrated High Speed Dome Camera.
  • Page 5 Installation Guide Regulation This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC.
  • Page 6: Safety Instructions

    Installation Guide Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Protect your camera from contamination with water and humidity to prevent it from permanent damage.
  • Page 7: Table Of Contents

    Installation Guide Table of Contents – Part 1 Introduction .......................... 8 Standard Package Contents ....................9 Camera Setups and Cable Connections ................10 Preparations for Dome Camera Setups ..............10 Dome Camera Setups ....................13 3.2.1 Switch Definition ..................13 Cables and Connections ..................
  • Page 8: Introduction

    Installation Guide Introduction With weather resistant feature, the integrated High Speed Dome Camera is applicable to outdoor installation. The Dome Camera supports one cabling for easy installation, and can be integrated with various digital surveillance products, such as DVRs, Control Keyboards, and accessories for a total surveillance solution.
  • Page 9: Standard Package Contents

    Installation Guide Standard Package Contents Before proceeding, please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Network Model Dome Camera with Data Cable for Power Supply, Video, Audio and Alarm Outdoor Mount Kit (AC 24V)
  • Page 10: Camera Setups And Cable Connections

    Installation Guide Camera Setups and Cable Connections Before installing or connecting the Dome Camera, please refer to this section and complete preparations for dome setups and various switch settings. Preparations for Dome Camera Setups The following installation procedure is for the outdoor dome equipped with the sunshield housing.
  • Page 11 Installation Guide STEP 4 Attach the dome cover to the camera body. Before doing that, apply some lubricant on the cover’s water-proof rubber make installation process smoother. Note that the tiny protrusion on the dome cover must align with one of the four holes on the dome body.
  • Page 12 Installation Guide STEP 7 Set the switches located on the bottom of the dome body. Refer to section 3.2 Dome Camera Setups for detailed information about various switch setting.
  • Page 13: Dome Camera Setups

    Installation Guide Dome Camera Setups Before connecting the Dome Camera to other devices of CCTV system, please complete the Dome Camera’s ID and communication switch settings. These switches are located on the bottom of the Dome Camera. 3.2.1 Switch Definition Please refer to the diagram and table accompanied with for use of each switch/connector.
  • Page 14: Cables And Connections

    Installation Guide Cables and Connections 3.3.1 22-Pin Data Cable The analog and network Speed Dome Camera’s Data Cables are illustrated respectively as shown below. The network Speed Dome Camera’s Data Cable is illustrated as follows.
  • Page 15: 22-Pin Connector Definition

    Installation Guide 3.3.2 22-Pin Connector Definition With the 22-pin connector, installers can simply connect the power, video and RS-485 cables to the Dome Camera at once. Particularly, the alarm pins are serviceable for connecting alarm input and output devices, such as alarm sensors, sirens or flashing lights with the surveillance system.
  • Page 16: Cable Wiring And Connection

    Installation Guide 3.3.3 Cable Wiring and Connection Users may need to conduct cable wiring when: (1) Connecting self-provided cords to the connector housing instead of using the equipped Data Cable or (2) Connecting alarm input and output devices. The table follows will illustrate the way to wire cords into the connector housing.
  • Page 17: Ethernet Cable Connection

    Installation Guide 3.3.4 Ethernet Cable Connection Connect one end of the CAT 5 Ethernet cable to the RJ-45 connector of the network Speed Dome Camera, and the other end of the cable to the network switch or PC. NOTE: In some cases, you may need use an Ethernet crossover cable when connecting the network Speed Dome Camera directly to the PC.
  • Page 18: Dome Camera Installation

    Installation Guide Dome Camera Installation Basing on user’s installation environments, the Dome Camera can be installed on ceiling, on wall or on pole. In the following section, various Dome Camera’s installation accessories, installation methods and installation procedures will be described in detail. In addition, the next section will provide the Dome Camera’s dimensions for your reference before installation.
  • Page 19: Optional Accessories

    Installation Guide Optional Accessories Dome Camera Accessories Sunshield Height: 129.5 mm (5.05 inches); Diameter: 190 mm (7.48 inches); 0.15 kg (0.33 lbs) Transparent/Vandal Proof Cover Diameter: 147 mm (5.8 inches) Security Screw Set (equipped with Vandal Proof Cover) Mounting Accessories Standard Pendent Mount (Art.
  • Page 20 Installation Guide Compact Pendent Mount (Art. No. 200826) 184×104×127 mm (7.24×4.09×5 inches); 0.6 kg (1.2 lbs) Supplied with rubber washer-8 x1, pendent tube washer x1, spring washer-8 x1 and M8x12 screw x1. 76.2 4x 8.5 Dimensions: mm Straight Tube (Art. No. 200827) Iron, Height: 250 mm (9.8 inches) ,Diameter: 50 mm (2 inches) 1 kg (2.2 lbs), Supplied with M8x12 screw x1, spring washer-8 x1, pendent tube washer x1, rubber washer-8 x1 and waterproof rubber x1.
  • Page 21 Installation Guide Corner Plate Mini (Art. No. 200831) For mounting with Compact Pendent Mount. 200(L)×90(H)×117(D) mm (7.87×3.54×4.6 inches); Supplied with washer-8 x4, spring washer-8 x4, M8x16 screw x4 and M8 nut x4. 8x 8.5 90° Dimensions: mm Corner Standard Mounting Plate (Art. No. 200830) 204(L)×222(H)×117(D) mm (8×8.74×4.6 inches);...
  • Page 22 Installation Guide Pole Thin Direct Mounting (Art. No. 200834) 232(H)×136(W)×50(D) mm (9.1×5.4×2 inches); Diameter: 112~130 mm (4.4~5 inches); 0.7 kg (1.6 lbs). Supplied with stainless steel straps x4, M8x16 screw x4, washer x4 and spring washer-8 x4. 8x 8.5 Dimensions: mm Corner Wide Box Mounting (Art.
  • Page 23 Installation Guide Pole Wide Box Mounting (Art. No. 200835) 270(H)×170(W)×155(D) mm (10.6×6.7×6.1 inches); 3.2 kg (7.1 lbs); Supplied with M8x16 screw x4, washer-8 x4, spring washer-8 x4 and stainless steel straps x4. Power Box can be set inside the wide box. 8x 8.5 Dimensions: mm Wall Box Mounting (Art.
  • Page 24 Installation Guide Stainless Steel Straps For fixing Pole Direct Mounting / Pole Box on the pole. Length: 650 mm (25.6 inches); Width: 12.7mm; Weight: 50g (0.1 lb) Other Application Accessories Power Box White, 186.5×147 mm (7.3×5.8 inches); 2.6 kg (5.8 lbs) P1030 (Input: 110~115VAC/Output: 24VAC 72VA) P2030 (Input: 220~230VAC/Output: 24VAC 72VA) All photos of the accessories are subject to change without notice.
  • Page 25: Ceiling Mounting With Straight Tube

    Installation Guide Ceiling Mounting with Straight Tube The Straight Tube is available in different length: 25 cm and 50 cm. Package Contents: • M8x12 Screw x1 • Spring Washer-8 x1 • Pendent Tube Washer x1 • Rubber Washer-8 x1 • Waterproof Rubber x1 Items Needed: •...
  • Page 26 Installation Guide 6) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Straight Tube with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 7) Connect the cable(s) to the Dome Camera. 8) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers.
  • Page 27: Wall Mount

    Installation Guide Wall Mount The Dome Camera can be mounted on the wall with Compact Pendent Mount, Standard Pendent Mount and Wall Box. Please follow the installation instructions below for mounting the Dome Camera via different ways. 4.4.1 Compact Pendent Mount Package Contents: •...
  • Page 28 Installation Guide 1) Make a cable entry hole on the wall to recess the cables. Otherwise, users could push up the Cable Entry Board on the Compact Pendent Mount’s Mounting Plate to place the cables, as shown in the photo below. Mounting Plate Cable Entry Board 2) Fix the Compact Pendent Mount on the wall with proper screws and screw...
  • Page 29 Installation Guide Wall Mounting: Compact Pendent Mount + Outdoor Mount Kit...
  • Page 30: Standard Pendent Mount

    Installation Guide 4.4.2 Standard Pendent Mount Package Contents: • M8x12 Screw x1 • Spring Washer-8 x1 • Pendent Tube Washer x1 • Rubber Washer-8 x1 • Sponge x2 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) •...
  • Page 31 Installation Guide 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers.
  • Page 32: Wall Box Mounting

    Installation Guide 4.4.3 Wall Box Mounting Package Contents: • M8x16 Screw x4 • Washer-8 x4 • Spring Washer-8 x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (network Dome Camera) • Standard/Compact Pendent Mount and equipped items (optional accessory) •...
  • Page 33 Installation Guide 4) Attach the Waterproof Rubber to the Standard/Compact Pendent Mount. 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera.
  • Page 34: Corner Mount

    Installation Guide Corner Mount 4.5.1 Corner Standard Mounting Plate/Corner Plate Mini Package Contents: • Washer-8 x4 • Spring Washer-8 ×4 • M8x16 Screw x4 • M8 Nut x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) •...
  • Page 35 Installation Guide NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount. See the illustrations in section 4.4.1 Compact Pendent Mount > Step 4. 4) Attach the Waterproof Rubber to the Standard/Compact Pendent Mount. 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/Compact Pendent Mount with the supplied screws and washers.
  • Page 36: Corner Thin/Wide Box Mounting

    Installation Guide 4.5.2 Corner Thin/Wide Box Mounting Package Contents: • M8x16 Screw x4 • Washer-8 x4 • Spring Washer-8 x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (network Dome Camera) •...
  • Page 37 Installation Guide 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers.
  • Page 38: Pole Mount

    Installation Guide Pole Mount 4.6.1 Pole Thin/Wide Direct Mounting Package Contents: • M8x16 Screw x4 • Washer x4 • Stainless Steel Straps x4 • Spring Washer-8 x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) •...
  • Page 39 Installation Guide NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount. See the illustrations in section 4.4.1 Compact Pendent Mount > Step 4. 4) Attach the Waterproof Rubber to the Standard/Compact Pendent Mount. 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/Compact Pendent Mount with the supplied screws and washers.
  • Page 40: Pole Thin/Wide Box Mounting

    Installation Guide 4.6.2 Pole Thin/Wide Box Mounting Package Contents: • M8x16 Screw x4 • Washer-8 x4 • Spring Washer x4, • Stainless Steel Straps x4 Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (network Dome Camera) •...
  • Page 41 Installation Guide 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Standard/Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers.
  • Page 42: System Expansion

    Installation Guide System Expansion Connecting with Power Box A power box contains a 24VAC adapter, two terminal blocks (for communication and power) and one alarm board. With an IP66 case, the Power Box is ideal for outdoor installation environment. Two models are available: 100~115VAC power input (P1030) and 220~230VAC (P2030).
  • Page 43: Part 2 – User Manual

    User Manual Part 2 User Manual Version 1.4...
  • Page 44 User Manual Table of Contents – Part 2 Overview ..........................46 Package Contents ....................47 Switch/Connector Definition ..................48 Preparations for Dome Camera Setup ................49 System Requirements ....................49 Cable Connection ..................... 50 Accessing IP Camera ......................52 Configuration & Operation ....................53 Browser-based Viewer Introduction ................
  • Page 45 User Manual Video and Audio Streaming Settings ............... 114 4.4.1 Video Resolution and Video Deinterlacing Function ......... 114 4.4.2 Video Compression .................. 116 4.4.3 Video OCX Protocol ................. 118 4.4.4 Video Frame Skip ..................119 4.4.5 Audio Mode and Bit Rate Settings ............120 PTZ Settings ......................
  • Page 46: Overview

    User Manual Overview The network Speed Dome Camera transmits digital video and audio data using wire connection. Live video can be monitored and recorded from window-based computer via network. The video encoder supports real-time Main Profile H.264 D1 resolution which compresses the image size up to 40% off.
  • Page 47: Package Contents

    User Manual Package Contents Please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Outdoor Dome Camera Package Dome Camera with Data Cable for Power Supply, Video, Outdoor Mount Kit Audio and Alarm (AC 24V)
  • Page 48: Switch/Connector Definition

    User Manual Switch/Connector Definition There are various switches and connectors located on the Dome Camera’s back plate as shown in the figures below. Please refer to the diagram and table accompanied with for use of each switch/connector. Outdoor Model None Communication Switch (Reserved) RJ-45 Connector 22-Pin Connector...
  • Page 49: Preparations For Dome Camera Setup

    User Manual Preparations for Dome Camera Setup Before logging in, please complete power, alarm (if available) and network connections and check system requirements. For further details and instructions on cable connection, please refer to the following sections. System Requirements To perform the network Speed Dome Camera via web browser, please ensure your PC is in good network connection, and meet system requirement as described below.
  • Page 50: Cable Connection

    User Manual Cable Connection Data Cable Connection The outdoor model is supplied with an AC 24V Data Cable. Outdoor Dome Camera AC 24V Data Cable The network Speed Dome Camera’s 22-pin connector definition is listed as shown below. Definition Cable Definition Cable ALM-1...
  • Page 51 User Manual Ethernet Cable Connection Use of Category 5 Ethernet cable is recommended for network connection; to have best transmission quality, cable length shall not exceed 100 meters. Connect one end of the Ethernet cable to the RJ-45 connector on the Dome Camera’s back plate, and the other end of the cable to the network switch or PC.
  • Page 52: Accessing Ip Camera

    You can use the free Zelaris Video Management Software to display and record data from your eneo IP camera. The software allows you to realise an IP-based video surveillance system with up to 16 eneo IP cameras. You will find the software with the relevant user instructions on the data medium which is provided with your camera.
  • Page 53: Configuration & Operation

    User Manual Configuration & Operation The network Speed Dome Camera is provided with a user-friendly browser-based configuration interface, and a free bundled iCMS for video playback and recording. In this chapter, information about main page introduction, system related settings and camera settings will be described in detail.
  • Page 54 User Manual There are five tabs: Home, System, Streaming, PTZ and Logout on the top panel. Home Users can monitor live video of the targeted area. System Setting The Administrator can set host name, system time, root password, network related settings, etc. Further details will be interpreted in section 5.3 System Related Settings.
  • Page 55: Home Page

    User Manual Home Page In the Home page, there are several function buttons below the displayed image. Multiple Languages Support Multiple languages are supported, including English, French, German, Italian, Russian and Simplified Chinese for the viewer window interface. Digital Zoom Control In the full screen mode, users can implement digital PTZ by rotating the mouse wheel (for zoom in/out), and drag the mouse into any direction.
  • Page 56 User Manual Talk button (on/off) Talk function allows the local site talks to the remote site. Click on the button to switch it to on/off. Please refer to section 5.3.2 Security: Add user >> Talk/Listen for further details. This function is only open to “User” who has been granted this privilege by the Administrator.
  • Page 57 User Manual Focus Adjustment Auto Focus (Continuous AF) Click on the <Auto> button to enable AF mode. In this mode, the camera will keep in focus automatically and continuously regardless of zoom changes or any view changes. The Focus status will also be displayed above the live video pane as shown below.
  • Page 58: System Related Settings

    User Manual System Related Settings The figure below shows all categories under the <System> tab. Each submenu in the left column will be explained in the following sections. NOTE: The System configuration page is only accessible by Administrator.
  • Page 59: Host Name And System Time Setting

    User Manual 4.3.1 Host Name and System Time Setting Press the first submenu: <System> in the left column; the page is shown as below. Host Name The name is for camera identification. If alarm function (refer to 5.3.7 Application) is enabled and is set to send alarm message by Mail/FTP, the host name entered here will display in the alarm message.
  • Page 60 User Manual Manual The Administrator can set video date, time and day manually. Entry format should be identical with that shown next to the enter field. Sync with NTP Server Network Time Protocol (NTP) is an alternate way to synchronize your camera’s clock with a NTP server.
  • Page 61: Security

    User Manual 4.3.2 Security Click on the category <Security>, there will be a drop-down menu with tabs including <User>, <HTTPS>, <IP Filter>, and <IEEE 802.1X>.
  • Page 62: User

    User Manual 4.3.2.1 User Click on the <User> tab under the category <Security> and the page is shown as the figure below. Root password Change the administrator’s password by inputting the new password in both text boxes. The input characters/numbers will be displayed as dots for security purposes.
  • Page 63 User Manual I/O access This item supports fundamental functions that enable users to view video when accessing to the camera. Camera control This item allows the appointed User to change camera parameters on the Camera Setting page. Talk/Listen Talk and Listen functions allow the appointed user in the local site (PC site) communicating with, for instance, the administrator in the remote site.
  • Page 64: Https

    User Manual 4.3.2.2 HTTPS <HTTPS> allows secure connections between the IP Camera and web browser using <Secure Socket Layer (SSL)> or <Transport Layer Security (TLS)>, which ensure camera settings or Username/ Password info from snooping. It is required to install a self-signed certificate or a CA-signed certificate for implementing <HTTPS>.
  • Page 65 User Manual To use HTTPS on the IP Camera, a HTTPS certificate must be installed. The HTTPS certificate can be obtained by either creating and sending a certificate request to a Certificate Authority (CA) or creating a self-signed HTTPS certificate, as described below.
  • Page 66 User Manual Create Certificate Request Click on the <Create Certificate Request> button to create and submit a certificate request in order to obtain a signed certificate from CA. Provide the request information in the create dialog. Please refer to the following Provide the Certificate Information for more details.
  • Page 67 User Manual Provide the Certificate Information To create a Self-signed HTTPS Certificate or a Certificate Request to CA, please enter the information as requested:...
  • Page 68 User Manual Country Enter a 2-letter combination code to indicate the country the certificate will be used in. For instance, type in “US” to indicate United States. State or province Enter the local administrative region. Locality Enter other geographical information. Organization Enter the name of the organization to which the entity identified in “Common Name”...
  • Page 69: Ip Filter

    User Manual Valid days (Self-signed Certificate Only) Enter the period in days (1~9999) to indicate the valid period of certificate. Click on <OK> to save the Certificate Information after complete. 4.3.2.3 IP Filter Using the IP filter, access to the IP Camera can be restricted by denying/allowing specific IP addresses.
  • Page 70: Ieee 802.1X

    User Manual • Add/ Delete IP Address Input the IP address and click on the <Add> button to add a new filtered address. The Filtered IP Addresses list box shows the currently configured IP addresses. Up to 256 IP address entries may be specified. To remove an IP address from the list, please select the IP and then click on the <Delete>...
  • Page 71 User Manual Client Certificate/ Private Key Upload the Client Certificate and Private Key for authenticating the IP Camera itself. Settings Identity Enter the user identity associated with the certificate. Up to 16 characters can be used. Private Key Password Enter the password (maximum 16 characters) for your user identity. Enable IEEE 802.1X Check the box to enable IEEE 802.1X.
  • Page 72: Network

    User Manual 4.3.3 Network Click on the category <Network>, there will be a drop-down menu with tabs including <Basic>, <QoS>, <SNMP>, and <UPnP>. Users can choose to use fixed IP address or dynamic (DHCP) IP address. The following is descriptions for the two ways of setting IP address.
  • Page 73: Basic

    User Manual 4.3.3.1 Basic Users can choose to connect to the IP Camera with fixed or dynamic (DHCP) IP address. The IP Camera also provides PPPoE (Point-to-Point Protocol over Ethernet) support for users who connect to the network via PPPoE. Get IP address automatically (DHCP) The camera’s default setting is <Use fixed IP address>.
  • Page 74 User Manual Use fixed IP address To setup static IP address, select <Use fixed IP address> and move the cursor to the IP address blank (as indicated below) and insert the new IP address, ex. 192.168.7.123; then go to the Default gateway (explained latter) blank and change the setting, ex.
  • Page 75 User Manual Subnet mask It is used to determine if the destination is in the same subnet. The default value is “255.255.255.0”. Default gateway This is the gateway used to forward frames to destinations in different subnet. Invalid gateway setting will fail the transmission to destinations in different subnet.
  • Page 76: Qos (Quality Of Service)

    User Manual HTTPS port The default setting of HTTPS Port is 443; the setting range is from 1024 to 65535. NOTE: Be aware to assign a different port number for each separate service mentioned above. IPv6 Address Configuration With IPv6 support, users can use the corresponding IPv6 address for browsing. Enable IPv6 by checking the box and click on <Save>...
  • Page 77 User Manual DSCP Settings The DSCP value range is from 0 to 63. The default DSCP value is 0, which means DSCP disabled. The IP Camera uses the following QoS Classes: Video, Audio and Management. Video The class consists of applications such as MJPEG over HTTP, RTP/RTSP and RTSP/HTTP.
  • Page 78: Snmp (Simple Network Management Protocol)

    User Manual 4.3.3.3 SNMP (Simple Network Management Protocol) With Simple Network Management Protocol (SNMP) support, the IP Camera can be monitored and managed remotely by the network management system. SNMP v1/ v2 Enable SNMP Select the version of SNMP to use by checking the box. Read Community Specify the community name that has read-only access to all supported SNMP objects.
  • Page 79 User Manual Traps for SNMP v1/ v2 Traps are used by the IP Camera to send massages to a management system for important events or status changes. Enable Traps Check the box to activate trap reporting. Trap address Enter the IP address of the management server. Trap community Enter the community to use when sending a trap message to the management system.
  • Page 80: Upnp

    User Manual 4.3.3.4 UPnP UPnP Setting Enable UPnP When the UPnP is enabled, whenever the IP Camera is presented to the LAN, the icon of the connected IP Cameras will appear in My Network Places to allow for direct access as shown below.
  • Page 81 User Manual NOTE: To enable this function, please make sure the UPnP component is installed on your computer. Please refer to Appendix D: Install UPnP components for UPnP component installation procedure. Enable UPnP port forwarding When the UPnP port forwarding is enabled, the IP Camera is allowed to open the web server port on the router automatically.
  • Page 82: Ddns

    User Manual 4.3.4 DDNS Dynamic Domain Name System (DDNS) allows a host name to be constantly synchronized with a dynamic IP address. In other words, it allows those using a dynamic IP address to be associated to a static domain name so others can connect to it by name.
  • Page 83 User Manual Password/Key Enter the password or key required by the DDNS provider for authentication.
  • Page 84: Mail

    User Manual 4.3.5 Mail The Administrator can send an e-mail via Simple Mail Transfer Protocol (SMTP) when an alarm is triggered. SMTP is a protocol for sending e-mail messages between servers. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and the message text is transferred.
  • Page 85: Ftp

    User Manual 4.3.6 The Administrator can set as sending alarm message to a specific File Transfer Protocol (FTP) site when an alarm is triggered. Users can assign alarm message to up to two FTP sites. The FTP setting page is shown below. Enter the FTP details, which include server, server port, user name, password and remote folder, in the fields.
  • Page 86: Application (Alarm Settings)

    User Manual 4.3.7 Application (Alarm Settings) The network Speed Dome Camera supports 4 alarm inputs and 1 alarm output. Please make sure the alarm connections are properly wired before starting to configure alarm related settings on this <Application> page. Please refer to the pin definition table below for alarm system wiring.
  • Page 87 User Manual Alarm Pin Selection Select an alarm pin which is to be configured from the <Alarm Pin Selection> field. Then click on the button <Edit> below the field to carry on alarm programming. Alarm Status Settings The specific alarm pin’s property can be programmed in this section as shown below.
  • Page 88 User Manual • Enable Alarm Output Select the item to enable alarm relay output. • Send Alarm Message by FTP/E-Mail The Administrator can select whether to send an alarm message by FTP and/or E-Mail when an alarm is triggered. • Upload Image by FTP Select this item and the Administrator can assign a FTP site and configure various parameters as shown in the figure below.
  • Page 89 User Manual • Record Stream to SD Card Select the item and the alarm-triggered recording will be saved into your Micro SD card. Pre-trigger buffer recording function allows users to check what happened to cause the trigger. The pre-trigger buffer time range is from 1 to 3 seconds.
  • Page 90 User Manual Set the Image frequency as the upload frame rate. The setting range is from 1 frame to 15 frames. NOTE: Make sure SMTP configuration has been completed. Please refer to 5.3.5 Mail for further details. • PTZ Function Assign a camera function: Preset, Sequence, Autopan or Cruise, and specify a Preset Point/Sequence Line/ Autopan Path/Cruise Line for the camera to perform at an alarm occurrence.
  • Page 91 User Manual • Send HTTP notification Check this item, select the destination HTTP address, and specify the parameters for event notifications by <Alarm> triggered. When an alarm is triggered, the notification can be sent to the specified HTTP server. For instance, if the custom parameter is set as” action=1&group=2”, and the HTTP server name is”...
  • Page 92 User Manual • Overwrite The original image in the FTP site will be overwritten by the new uploaded file with a static filename. Save After complete all the settings mentions above, please click on the <Save> button to save all the settings on this page.
  • Page 93: Motion Detection

    User Manual 4.3.8 Motion Detection Motion Detection function allows detecting suspicious motion and triggering alarms when motion volume in the detected area reaches/exceeds the determined sensitivity threshold value. In the Motion Detection setting page, there is a frame (Motion Detection Window) displayed on the Live View Pane.
  • Page 94 User Manual If Motion Detection function is activated, the pop-off window (Motion) with indication of motion will be shown. When motion is detected, the signals will be displayed on the Motion window as shown below. Detailed settings of Motion Detection are described as follows: Motion Detection You will be able to turn on/off Motion Detection in System section.
  • Page 95 User Manual Detection level [1-100] The default level is 10. The item is to set detection level for each sampling pixel; the smaller the value, the more sensitive it is. Sensitivity level [1-100] The default level is 80, which means if 20% or more sampling pixels are detected differently, system will detect motion.
  • Page 96 User Manual NOTE: Please make sure the local recording (with Micro SD/SDHC card) is activated so that this function can be implemented. Refer to 5.3.10 Recording for further details.
  • Page 97 User Manual • Send Alarm Message by FTP/E-Mail The Administrator can select whether to send an alarm message by FTP and/or E-Mail when motion is detected. • Upload image by FTP Select this item and the Administrator can assign a FTP site and configure various parameters as shown in the figure below.
  • Page 98 User Manual • Upload Image by E-Mail Select this item and the Administrator can assign an e-mail address and configure various parameters as shown in the figure below. When motion is detected, event images will be sent to the appointed e-mail address.
  • Page 99 User Manual • Send HTTP notification Check this item, select the destination HTTP address, and specify the parameters for event notifications by <Motion Detection> triggered. When an alarm is triggered, the notification can be sent to the specified HTTP server. For instance, if the custom parameter is set as”...
  • Page 100: Storage Management

    User Manual 4.3.9 Storage Management Users can implement local recording to the Micro SD/SDHC card up to 32GB. This page shows the capacity information of the Micro SD card and a recording list with all the recording files saved on the memory card. Users can also format the SD card and implement automatic recording cleanup through the setting page.
  • Page 101 User Manual For the memory card being successfully installed, its status shall be shown at <Device information> section in the Storage Management page. Device setting Click on the <Format> button to format the memory card. Disk cleanup setting Users can enable automatic recordings cleanup by specifying the time and storage limits.
  • Page 102 User Manual • Download To open/download a video clip, select the file first, and then click on the <download> button below the Recording list field. The selected file window will pop up as shown below. Click on the AVI file to directly play the video in the player or download it to a specified location.
  • Page 103: Recording

    User Manual 4.3.10 Recording In the Recording setting page, users can specify the recording schedule that fits the present surveillance requirement. Activating Micro SD/SDHC Card Recording Two types of schedule mode are offered: Always and Time Frame setting. Users can setup the time frame to fit the recording schedule or choose <Always> to activate Micro SD/SDHC Card Recording all the time.
  • Page 104: File Location

    User Manual 4.3.11 File Location The network Speed Dome Camera supports JPEG snapshot function. Users can specify a storage location for the snapshots. The default setting is: C:\. Once confirm the setting, click on <Save>, and all the snapshots will be saved in the designate location.
  • Page 105: View Log File

    User Manual 4.3.12 View Log File Click on the link to view the system log file. The content of the file provides useful information about configuration and connections after system boot-up.
  • Page 106: View User Information

    User Manual 4.3.13 View User Information The Administrator can view each added user’s login information and privileges (refer to 5.3.2 Security). View User Login Information All the users in the network will be listed in the <User information> zone, as shown below.
  • Page 107 User Manual View User Privilege Click on <get user privacy> down the page and the Administrator can view each user’s privileges. As the figure above shows: User: 1:1:0:1 1:1:0:1= I/O access : Camera control : Talk : Listen (refer to 5.3.2 Security) Therefore, it denotes the user is granted privileges of I/O access, Camera...
  • Page 108: View Parameters

    User Manual 4.3.14 View Parameters Click on this item to view the entire system’s parameter setting.
  • Page 109: Factory Default

    User Manual 4.3.15 Factory Default The factory default setting page is shown as below. Follow the instructions to reset the network Speed Dome Camera to factory default settings if needed. Set Default Click on the <Set Default> button to recall the factory default settings. Then the system will restart in 30 seconds.
  • Page 110: Software Version

    User Manual 4.3.16 Software Version The current software version is displayed in the software version page, which is shown as the figure below.
  • Page 111: Software Upgrade

    User Manual 4.3.17 Software Upgrade Software upgrade can be carried out in the <Software Upgrade> page, as shown below. NOTE: Make sure the upgrade software file is available before carrying out software upgrade.
  • Page 112 User Manual The procedure of software upgrade is like the following: Step 1: Click on <Browse> and select the binary file to be uploaded, ex. userland.jffs2. NOTE: Do not change the upgrade file name, or the system will fail to find the file.
  • Page 113 User Manual Step 3: Click on <Upgrade>. The system will first check whether the upgrade file exists or not, and then begin to upload the upgrade file. Subsequently, the upgrade status bar will display on the page. When it runs to 100%, the upgrade process is finished. After the upgrade process is finished, the viewer will return to Home page.
  • Page 114: Video And Audio Streaming Settings

    User Manual Video and Audio Streaming Settings Click on the tab <Streaming> in the top of the viewer window, and the configurable video and audio items will display in the left column. In <Streaming>, the Administrator can configure specific video resolution, video compression mode, video protocol, audio transmission mode, etc.
  • Page 115 User Manual Click on <Save> to confirm the Video Format setting. Text Overlay Settings Users can select the items to display data including date/time/text on the live video pane. The maximum length of the string is 18 alphanumeric characters. Click on <Save> to confirm the Text Overlay setting. Video Deinterlace The network Speed Dome Camera supports de-interlacing function.
  • Page 116: Video Compression

    User Manual 4.4.2 Video Compression Users can select a proper MJPEG/H.264 compression mode on the video compression page (see the figure below), depending on the application. MJPEG Q (Quality) factor Higher value implies higher bit rates and higher visual quality. The default setting of MJPEG Q factor is 35;...
  • Page 117 User Manual Display Compression Information Users can also decide whether to display compression information on the Home page. Click on <Save> to confirm the setting. CBR Mode Setting The CBR (Constant Bit Rate) mode could be the preferred bit rage mode if the bandwidth available is limited.
  • Page 118: Video Ocx Protocol

    User Manual 4.4.3 Video OCX Protocol In the Video OCX protocol setting page, users can select RTP over UDP, RTP over TCP, RTSP over HTTP or MJPEG over HTTP, for streaming media over the network. In the case of multicast networking, users can select the Multicast mode.
  • Page 119: Video Frame Skip

    User Manual 4.4.4 Video Frame Skip Video frame skipping is for saving bandwidth, if necessary. The setting page is as shown below. MJPEG/ H.264 Frame Skip options include: • No skipping, default • Frame skipping at 2 frame internal • Frame skipping at 3 frame internal •...
  • Page 120: Audio Mode And Bit Rate Settings

    User Manual 4.4.5 Audio Mode and Bit Rate Settings The audio setting page is show as below. In the Audio page, the Administrator can select one transmission mode and audio bit rate. Transmission Mode • Full-duplex (Talk and Listen simultaneously) •...
  • Page 121 User Manual • Simplex (Listen only) • In the Listen only Simplex mode, the local/remote site can only listen to the other site. • Disable • Select the item to turn off the audio transmission function. Server Gain Setting Set the audio input/output gain levels for sound amplification. The audio gain values are adjustable from 1 to 6.
  • Page 122: Ptz Settings

    User Manual PTZ Settings Under the tab <PTZ>, there are categories including: <Preset>, <Cruise>, <Auto Pan>, <Sequence>, <Home>, <Tilt Range>, <Privacy Mask>, <Camera- Exposure>, <Camera- WB>, <Camera- Misc1>, <Camera- Misc2>, and <Camera- Default>. 4.5.1 Preset Programming Totally 256 Preset Points can be programmed for the network Speed Dome Camera.
  • Page 123 User Manual Preset Go To have the camera move to a specified Preset position, please select the Preset Point from the drop-down Preset list (click on <PrePage> or <NextPage> button to reach preset number 1 to 256). Then the camera shall readily move to the target position.
  • Page 124: Cruise Programming

    User Manual 4.5.2 Cruise Programming The network Speed Dome Camera supports up to eight Cruise Paths. Please follow the instructions below for Cruise Path setup. Cruise Setting To setup a Cruise Path, please first select a path number from the drop-down list. Then move the cursor to the live view pane, and move the camera to a desired view (PTZ controls) as the start point of a Cruise Path.
  • Page 125 User Manual To stop running a Cruise Path, simply move the cursor to the live view pane and move the camera in any direction.
  • Page 126: Auto Pan Programming

    User Manual 4.5.3 Auto Pan Programming The network Speed Dome Camera supports four Auto Pan Paths. Please refer to the instructions below to set an Auto Pan Path. Auto Pan Setting To setup an Auto Pan Path, please first select a path number from the drop-down list.
  • Page 127 User Manual Move the camera to another desired position as the end point of the Auto Pan Path. Click on the <Set> button of the <End Point> for saving the setting. Auto Pan Run Select the specified Auto Pan Path from the drop-down list, press the <Run> button, and then the camera will start moving horizontally as recorded.
  • Page 128: Sequence Line Programming

    User Manual 4.5.4 Sequence Line Programming The Network Speed Dome Camera supports totally 8 Sequence Lines; each Sequence Line consists of up to 64 Preset Points. Please refer to the instructions below to program a Sequence Line. NOTE: Before setting this function, users must pre-define at least two Preset Points.
  • Page 129 User Manual • Sequence Line Please select the number of Sequence Line to be set from the drop-down list in the top of the Sequence setting menu. • Sequential Preset Points Setting Please setup each Preset Point of the programmed Sequence Line in order, assigning a Preset Point from the <Name>...
  • Page 130 User Manual To view the camera executing a Sequence Line in full screen mode, please move the cursor onto the live view pane, right-click and left-click to select “fullscreen”. Then users can view the camera navigation in full screen. To stop running the Sequence Line, simply move the cursor to the live view pane and move the camera in any direction.
  • Page 131: Home Function

    User Manual 4.5.5 Home Function Users are able to set an operation mode to ensure constant monitoring. If the network Speed Dome Camera idles for a period of time, the selected function will be activated automatically; this is the HOME function. The HOME function allows constant and accurate monitoring to avoid the Dome Camera idling or missing events.
  • Page 132 User Manual • Action Type Please select a Home action type (Preset Point/Cruise Line/Auto Pan Path/Sequence Line) and specify the number of Preset Point/Cruise Line/Auto Pan Path/Sequence Line from the drop-down “Type” and “Line” lists. Click on <Set> to save the Home settings.
  • Page 133: Tilt Angle Settings

    User Manual 4.5.6 Tilt Angle Settings The network Speed Dome Camera’s tilt angle is adjustable from minimum -10° to maximum 190°. Please enter the desired minimum and maximum tilt angle into the corresponding fields respectively. Press the “Set” button to save the tilt angle settings.
  • Page 134: Privacy Mask Settings

    User Manual 4.5.7 Privacy Mask Settings The Privacy Mask function aims to avoid any intrusive monitoring. When setting a mask, it is suggested to set it at least twice bigger (height and width) than the masked object. The Dome Camera will assume the center of the selected view as a starting point.
  • Page 135 User Manual Mask Setting Activate/Disable Privacy Mask Function The Privacy Mask function can be activated or disabled. Click on <Set> to save the setting. Activate/Disable Transparency Mask The Privacy Mask can be set as transparency if necessary. Color Setting Select a desired color from the <Color> drop-down list for the specified Privacy Mask.
  • Page 136: Camera- Exposure

    User Manual 4.5.8 Camera— Exposure In the Exposure Mode setting page, users can select either the <Full Auto> mode or adjust the parameter of the Shutter/Iris/Bright Priority mode for optimized video output in accordance with the operating environment. Full Auto Mode In this mode, the camera’s Shutter Speed, IRIS and AGC (Auto Gain Control) control circuits work together automatically to get consistent video output level.
  • Page 137 User Manual Iris Priority Mode In this mode, it is iris that has premier priority in control of exposure. The value of iris is adjustable from F1.6 to F22. Manual Mode In this mode, users can change the Shutter speed (1/10000 to 1), Gain (1 to 15), and Iris (F1.6 to F22) manually.
  • Page 138: Camera-Wb Mode

    User Manual 4.5.9 Camera—WB Mode A camera needs to find reference color temperature, which is a way of measuring the quality of a light source, for calculating all the other colors. The unit for measuring this ratio is in degree Kelvin (K). Users can select one of the White Balance Control modes according to the operating environment.
  • Page 139 User Manual Auto Mode The Auto Balance White mode is suitable for environment with light source having color temperature in the range roughly from 2700 ~ 7500K. ATW Mode (Auto Tracing White Balance) The Dome Camera takes out the signals in a screen in the range from 2500 K to 10000 K.
  • Page 140: Camera-Misc 1 (Miscellaneous Setups Menu 1)

    User Manual 4.5.10 Camera—Misc 1 (Miscellaneous Setups Menu 1) In the Camera—Misc (Miscellaneous) Setups Menu 1, users can set various camera parameters including Backlight Compensation (BLC), Sharpness, Exposures Compensation (ExpComp), Image Freeze, Image Flip, Digital Zoom, Speed by Zoom and ICR function. Each setting is specified as follows: Users can choose to activate or disable the BLC function.
  • Page 141 User Manual Freeze Freeze function allows to hold the image while the camera is moving between preset positions such as in Preset mode and Sequence mode. Users can choose to activate or disable the function. Click on <Set> to save the setting. Flip Users can track an object continuously when it passes through under the Dome Camera with setting Flip to Mechanical (M.E.) mode or Digital Flip (Image)
  • Page 142 User Manual Auto In the Auto mode, the internal circuit will automatically decide the occasion to remove the IR cut filter according to the image brightness level. Select the item to remove the IR cut filter. Select the item to disable IR function.
  • Page 143: Camera-Misc

    User Manual 4.5.11 Camera—Misc 2 (Miscellaneous Setups Menu 2 In the Camera—Misc (Miscellaneous) Setups Menu 2, users can setup various functions such as Wide Dynamic Range (WDR), Image Inverse, Auto Calibration, 2D/3D Noise Reduction (2DNR/3DNR) and Image Stabilizer. The WDR function is especially effective in environment with extreme contrast. Click on <Set>...
  • Page 144 User Manual 2D/ 3DNR With the 2D/3D Noise Reduction function, the processor analyzes pixel by pixel and frame by frame to eliminate environmental noise signal so that the highest quality image can be produced even in low light conditions. In comparison with 2DNR, 3DNR generates better de-noising effects.
  • Page 145: Default Settings

    User Manual 4.5.12 Default Settings In the Camera Default page, users can set the camera back to factory default settings simply by clicking on the <Set Default> button.
  • Page 146: Logout

    User Manual Logout Click on the tab <Logout> in the top of the page, and the login window will pop up. This enables login with another user name.
  • Page 147: Appendix A: Technical Specifications

    User Manual Appendix A: Technical Specifications Type PLD-2036PTZ Art. No. 200823 Resolution standard System day&night Sensor size 1/4" Imager Sensitivity (at 50% video 0.1Lux (colour); 0.01Lux (B&W) signal) Horizontal resolution 650 TVL supplied Automatic gain control (AGC) Automatic electronic shutter 1/50 ~ 1/10,000sec.
  • Page 148 User Manual Alarm processing SD-card recording, alarm out, FTP, E-Mail, PTZ action Internal storage Micro SD card Compression standard H.264, MJPEG G.711, G.726, ADPCM/AAC Audio standards Bandwidth controllable bandwidth and frame rate Stream types H.264, MJPEG multiple Network connection RJ-45 Network interface 10/100Base-TX, RJ45 Web browser...
  • Page 149 Management Software Support Zelaris available ONVIF Certificates CE, IK10 Dimensions see drawing 2.4kg Weight Parts supplied remote viewer software, screw set, manual Special feature Auto calibration Optional Accessories The optional accessories currently available can be found on our Homepages: www.videor.com and www. eneo-security.com...
  • Page 150: Appendix B: Internet Security Settings

    User Manual Appendix B: Internet Security Settings If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Select <Tools> from the main menu of the browser. Then Click on <Internet Options>.
  • Page 151 User Manual Step 4: Down the page, click on<Default Level> (refer to the figure above) and click on <OK> to confirm the setting. Close the browser window, and open a new one later when accessing the IP Camera. ActiveX Controls and Plug-ins Settings Step 1~3: Refer to the previous section above.
  • Page 152 User Manual The Security Settings screen is displayed as below: Step 5: Under <ActiveX controls and plug-ins>, set ALL items (as listed below) to <Enable> or <Prompt>. ActiveX controls and plug-ins settings: 1. Allow previously unused ActiveX controls to run without prompt. 2.
  • Page 153: Appendix C: Deleting The Existing Dc Viewer

    User Manual Appendix C: Deleting the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please first delete the existing DC Viewer from the PC before accessing to this IP Camera. Deleting the DC Viewer Enter “Control Panel”, and then double click on <Add or Remove Programs>.
  • Page 154 User Manual Step 1: Click on the <Tools> tab and select the option <Internet Options>. Step 2: Click on <Delete>, then tap the <Delete Files> in the <Temporary Internet files> section.
  • Page 155 User Manual The popup window for confirmation will come out as shown below. Click on <Yes> to start deleting the files.
  • Page 156: Appendix D: Dc Viewer Download Procedure

    User Manual Appendix D: DC Viewer Download Procedure The procedure of DC Viewer software download is specified as follows. Step 1: In the DC Viewer installation page, click on <Next> for starting installing. Step 2: Setup starts. Please wait for a while until the loading bar runs out.
  • Page 157 User Manual Step 3: Click on <Finish> to close the DC Viewer installation page. Then, the network Speed Dome Camera’s Home page will display as follows:...
  • Page 158: Appendix E: Install Upnp Components

    User Manual Appendix E: Install UPnP Components Please follow the instructions below to install UPnP components. Step 1: Go to “Start”, click on “Control Panel”, and then double click on <Add or Remove Programs>. Step 2: Click on <Add/Remove Windows Components> in the Add or Remove Programs page.
  • Page 159 User Manual Step 3: Select <Networking Services> from the Components list in the Windows Components Wizard window, and then click on <Details>. Step 4: Select <UPnP User Interface> in the Networking Services’ subcomponents list and then click on <OK>.
  • Page 160 User Manual Step 5: Click on <Next> in the Windows Components Wizard page. Step 6: Click on <Finish> to complete installation.
  • Page 161: Appendix F: Sd Card Installation Guide

    Product Information This instruction is suitable for network High Speed Dome Cameras PLD-2012PTZ (art. no. 200822) and PLD-2036PTZ (art. no. 200823) with IP card inside. Tools Disassemble Procedure Cover: Loosen the screw anticlockwise on the cover and remove it.
  • Page 162 User Manual Sunshield: Loosen three screws anticlockwise to remove the sunshield. Dome Housing Plate: Lift the rubber cover and loosen three screws anticlockwise to remove dome housing plate. Dome Housing: After removing the dome housing plate, take the dome housing off the dome by lifting it up.
  • Page 163 User Manual SD card slot: After the dome housing is off the dome, the SD card slot becomes accessible. Insert the SD card into the slot on IP board.
  • Page 164 ® eneo is a registered trademark of Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 www.videor.com...

Table of Contents
