Installation and Operating Manual

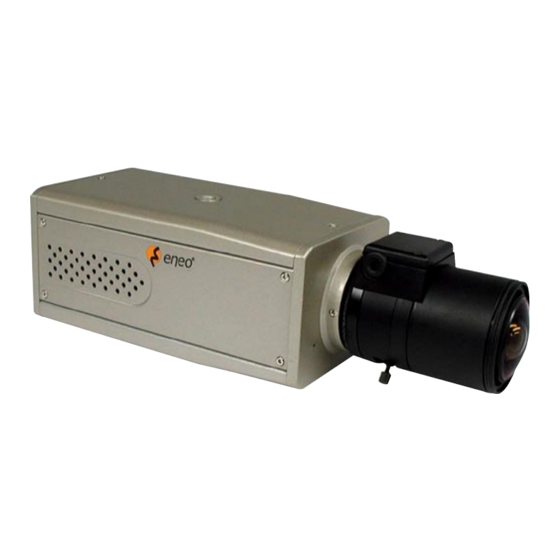

LAN Camera ENC-1003L
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENC-1003L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo ENC-1003L

Summary of Contents for Eneo ENC-1003L

  • Page 1 Installation and Operating Manual LAN Camera ENC-1003L...

  • Page 2: Table Of Contents

    Table Of Contents SAFETY PRECAUTIONS..............................3 1. PRODUCT FEATURES ............................4 1.1 PRODUCT INTRODUCTION..........................4 1.2 PRODUCT FEATURES............................5 2. DESCRIPTION OF THE FRONT/REAR VIEW ......................6 FRONT PANEL AND REAR PANEL ........................6 2.2 TERMINAL BLOCK............................7 2.3 FLANK PANEL ..............................7 3. INSTALLATION ..............................8 3.1 CONNECTING WITH A MULTIPLEXER ........................8 3.2 CONNECTING WITH A DVR..........................8 3.3 CONNECTING WITH A NVR..........................9 3.4 UPDATING SYSTEM SOFTWARE........................9...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS • The instructions below must be followed for your own safety. • Please read the safety instructions and operating instructions before connecting the device and putting it into operation. • Keep the operating instructions safe for use at a later date. •...

  • Page 4: Product Features

    1. PRODUCT FEATURES 1.1 Product Introduction The LAN CAMERA is a state-of-the-art equipment of technological sophistication in its field. It combines multiple digital technical capabilities with the internal network functions of the network video camera. The user can imme- diately connect with a standard network, and the device can transmit the digital images to a remote browser. The LAN CAMERA is unlike the Web CAMERA, which connects the USB port or communication port with a personal computer.

  • Page 5: Product Features

    1.2 Product Features • An inbuilt Web Server and Network Interface. The LAN CAMERA is effective in assuring the safety of an independent digital camera. • Dual purpose: the LAN CAMERA can simultaneously export both the traditional analogs and the digital images. •...

  • Page 6: Description Of The Front/Rear View

    2. DESCRIPTION OF THE FRONT/REAR VIEW 2.1 Front Panel and Rear Panel Front Panel Rear Panel 1. MICROPHONE: The LAN CAMERA has an additional audio function. The device has a microphone built into its front panel which records sound. 2. RS-232 Port: The RS-232 communication port functions as a connector to an external control device.

  • Page 7: Terminal Block

    2.2 Terminal Block 1. ALM. OUT 2. GND 3. ALM. IN 4. ALM. RECOVER 1. ALARM OUT (OUTPUT): This is an alarm output trigger. Connect this to external devices such as buzzers or lights. 5V, 20mA 0V(Active) 2. GND: Ground contact 3.

  • Page 8: Installation

    6. POWER Indicator: Indicates the power status of the unit. The green light indicates the unit is activating. The red light indicates the power cannot move. If the CF Card is withdrawn in this mode, the card will break. 7. LAN Indicator: Indicates the LAN status of the unit. The green light indicates the 100Mbps Ethernet network is activating.

  • Page 9: Connecting With A Nvr

    3.3 CONNECTING WITH AN NVR Use a crossover LAN cable to connect directly to a NVR. CONNECT TO ETHERNET RJ-45 CONNECTOR CONNECT TO NVR ETHERNET PORT 3.4 UPDATING SYSTEM SOFTWARE If the system software of the LAN CAMERA needs to be upgraded, please take the following steps to safely update it. Important: Before carrying out the following procedures, please ensure the CF card is working and the file of system firmware is intact 1.

  • Page 10: Lan Camera Cf Card Troubleshooting

    Warning: 1. Don’t use FAT32 or NTFS or other file formats in Step 1. 2. Step1 to Step3 have to be done on a PC. 3. Make sure the file of UPDATE.BIN is a correct one in Step 3, or LANCAM will not work normally after updated.

  • Page 11: Adjustment Of Lenses

    Warning: 1. Performing this troubleshooting process may need a monitor, a PC, a card reader and some cables. 2. If CF Card is removed while storing or accessing data, data would be lost. 3. If there is a cross sign beside the „CF” icon, it means the CF Card has inserted into LAN CAMERA but cannot perform writing function.
  • Page 12 Adjustment of flange To obtain a sharp definition, point the camera at an object which is at least 5 times the focus for variable minimum lens distance (MOD) of the lens. (If this is 1m, the object must be at least 5m focus lenses distant from the camera).

  • Page 13: Network Configuration

    4. Network Configuration 4.1 Cable Connections Please follow the instructions below to connect your LAN CAMERA to a computer or a network and to choose a proper RJ-45 cable configuration for connections. Physical specification of RJ-45 cable for Ethernet Wire Type Cat.
  • Page 14 4.1.2 Connect to a LAN Hub (INTRANET) The RJ-45 PIN configuration for connecting with a LAN Hub is shown below. TO PC NETWORK CARD TO NETWORK HUB/Switch / Router 4.1.3 Connect to WAN (INTERNET) The RJ-45 PIN configuration for connecting to a WAN is the same as connecting to a LAN. STATIC IP CABLE/XDSL MODEM TO ISP RJ-45...

  • Page 15: Configure Your Lan Camera Network Settings

    4.2 Configure Your LAN CAMERA Network Settings Upon network hardware connection, you need to activate the network function and configure the proper network settings of the LAN CAMERA. 4.2.1 Enable DHCP Function This function can only work if the LAN which the unit is connected to has a DHCP server. If the DHCP server is working, the LAN CAMERA will obtain an IP address automatically from the DHCP server.

  • Page 16: Tcp/Ip Communication Software

    4.3 TCP/IP Communication Software Follow the instructions below to install the TCP/IP communication program into your computer. Click the Start menu from your computer, and point to the Settings/Control panel. Click the Network icon twice to enter the same setting windows.

  • Page 17: Tcp/Ip Installation

    Click on the Configuration tag; check if the TCP/IP is included among the network components list. If the TCP/IP is included, please process step 5. If it is not included, please follow step 4 to install the TCP/IP. 4.4 TCP/IP Installation During the installation, you will be requested to insert the Windows CD-ROM.

  • Page 18: Tcp/Ip Configuration Setting

    4.5 TCP/IP Configuration setting Click Start –> Settings –> Control Panel –> Network Select TCP/IP, and then click Properties. Before processing the LAN CAMERA installation in a WAN, please make sure the Internet connection works properly. If not, please contact your ISP provider. If you are using a DHCP server, please select Obtain an IP address automatically.

  • Page 19: Connection Testing

    4.6 Connection Testing With the previous settings, follow the instructions below to ensure whether you have established the connection successfully. Click Start –> Programs –> MS-DOS Prompt Type in ping 192.168.1.168 then Enter. (See the sample screen below) ** This IP is the LAN CAMERA IP address that is assigned for the connected LAN CAMERA in step2.
  • Page 20 If you receive a response as in the sample screen below, the connection hasn’t been successfully established. Please re-check all the hardware and software installation by repeating steps 1 to 5. If you still can’t establish the connection after rechecking, please contact your dealer. If you receive a response as in the sample screen below, you have successfully made the connection.

  • Page 21: Operating Instructions For Image Software And Network

    5. Operating Instructions for Image Software and Network Two choices of software are available for linking up with the LAN CAMERA: (1) the Microsoft Internet Explorer; and (2) the LAN CAMERA VIEWER, a network browser in a PC which provides the functions of monitoring remote zones or watching recorded data through the TCP/IP protocol.

  • Page 22: Microsoft Internet Explorer

    5.1 Microsoft Internet Explorer 5.1.1 Connecting the LAN CAMERA 1. Start up the Microsoft Internet Explorer, and then follow the steps below to connect the LAN CAMERA. 2. Click the URL block at the top of the window. 3. Enter the URL address of the LAN CAMERA into the URL block and press the „Enter” button to enter the home page. 4.
  • Page 23 Browsing images from the LAN CAMERA The images from the LAN CAMERA will be displayed on the home page while going online with the LAN CAMERA. There are some buttons provided at the bottom of the home page for further setting: •...

  • Page 24: Change Image Setting

    5.1.2 Change Image Setting Please follow the steps below to change the image setting through the network if and as necessary. 1. Click the image button on the home page to enter the image-setting page. 2. Adjust the image setting including „Camera Title”, „Resolution”, „Quality”, „Fluorescent”, „BLC”, „Brightness”, „Hue”, „Saturation”, „Sharpness”, and „Viewer Type”...

  • Page 25: Change The Network Setting

    5.1.3 Change the Network Setting Please follow the steps below to change the network setting through the network if and as necessary. • Set the network options and IP address 1. Click the network button in the home page to enter the network-setting page. 2.
  • Page 26 • Change the Network Setting - FTP Please follow the steps below to change the FTP setting via the network if and as necessary to upload recording data live. 1. Click the FTP button at top left to enter the „FTP SERVER SETTING” page. 2.
  • Page 27 • Change the Network Setting - SMTP Please follow the steps below to change the SMTP setting through the network if and as necessary. 1. Click the SMTP button at upper left above to enter the „SMTP SERVER SETTING” page (OPEN RELAIS SERVER). 2.
  • Page 28 • Change the Network Setting - SNTP Please follow the steps below to change the SNTP setting through the network if and as necessary. 1. Click the SNTP button at upper left above to enter the „SNTP SERVER SETTING” page. 2.
  • Page 29 • Change the Network Setting - DDNS The „Network” page has, on its upper left, the „DDNS” icon. Please follow the steps below to change the DDNS setting through the network if and as necessary. 1. Click the DDNS button at upper left above to enter the „DDNS SETTING” page. 2.
  • Page 30 • Change the Network Setting - PPPoE The „Network” page has, on its upper left, the „PPPoE” icon. Please follow the steps below to change the PPPoE setting through the network if necessary. 1. Click the PPPoE button at upper left above to enter the „PPPoE SETTING” page. 2.

  • Page 31: Change The System Setting

    5.1.4 Change the System Setting Please follow the steps below to change the date and time of the system setting through the network if and as necessary. • Set the Date and Time of the system 1. Click the system button in the home page to enter the „System - Date and Time” page (default). 2.
  • Page 32 • Change the System Setting - Users Please follow the steps below to change/add the users’ authority through the network if necessary. 1. Click the Users button on the left side of the „System - Date and Time” page to enter the „SYSTEM - USERS” page. 2.
  • Page 33 • Change the System Setting - Digital I/O Please follow the steps below to change the Digital I/O through the network if necessary. 1. Click the Digital I/O button on the left side of the „System - Date and Time” page to enter the „SYSTEM - DIGITAL I/O SETTING”...
  • Page 34 • Change the System Setting - Audio mechanism Please follow the steps below to change the Audio Mechanism through the network if necessary. 1. Click the Audio mechanism button on the left side of the „System - Date and Time” page to enter the „SYSTEM -AUDIO MECHANISM SETTING”...
  • Page 35 • View the Event Logs. Please follow the steps below to view events through the network if and as necessary. 1. Click the button on the upper left above to enter the „EVENT LOG” page. 2. Choose one of the three buttons shown on the page to view an event when necessary. The three buttons are titled „First Page”, „Previous 20”, and „Next 20”.

  • Page 36: Change The Application Setting

    5.1.5 Change the Application Setting Please follow the steps below to change the application setting through the network if and as necessary. • Change the Application Setting - FTP APPLICATION SETTING. Please follow the steps below to change the FTP setting via the network if and as necessary to upload recording data live.
  • Page 37 • Change the Application Setting - CF CARD APPLICATION SETTING. Please follow the steps below to change the CF CARD setting via the network if and as necessary to upload recording data live. 1. Click the CF Card button on the top left to enter the „CF CARD APPLICATION SETTING” page. 2.
  • Page 38 • Change the Application Setting -SMTP APPLICATION SETTING. Please follow the steps below to change the SMTP setting via the network if and as necessary. 1. Click the SMTP button on the left side to enter the „SMTP APPLICATION SETTING” page. 2.
  • Page 39 2. Click „Enable RECORD - UPLOAD via FTP” to checkmark the attached box and activate the function. 3. Click „Enable RECORD - SAVE into CF Card” to checkmark the attached box and activate the function. 4. Click the Submit button to submit the new setting of the recording. 5.
  • Page 40 • Change the Application Setting - ALARM APPLICATION ENABLE SETTING Please follow the steps below to change the setting via the network if and as necessary. 1. Click the Enable button on the left side of the record to enter the „ALARM APPLICATION ENABLE SETTING” page. 2.
  • Page 41 • Change the Application Setting - ALARM - MOTION DETECTION Please follow the steps below to enable changes in the motion detection function of the alarm through the network if and as necessary. Set the motion detection: 1. Click the Motion detection button on the left side of the Alarm to enter the „ALARM - MOTION DETECTION” page. 2.
  • Page 42 5.1.6 Change the CF Card Setting Please follow the steps below to change the CF Card setting through the network if and as necessary. • Change the CF Card Setting - FILELIST of MEMORY CARD Please follow the steps below to change the setting via the network if and as necessary. 1.
  • Page 43 5.1.7 PPPoE & DDNS Using the PPPoE 1. Install the XDSL software (obtained from your ISP dealer) in your PC. 2. Search your LAN CAMERA’s IP address: you can use your Network Viewer’s Scan IP program, or just connect the LAN CAM and the Video monitor. The monitor screen will show the IP address on its right side. 3.

  • Page 44: The Lan Camera Viewer

    7. Click „Account” –> Type in your „Account password” again –> Click „Dynamic DNS (Add host)” –> Enter the „New dynamic DNS host page” –> Type in the „host name”, for example „abc123” –> Choose a host name from the drop - down list to the right of the „host name” entry (for example, „Homeip.net”) –> Click „Add host” –> The procedure is successfully completed –>...

  • Page 45: Introduction To Ip Surveillance

    5.2.1 Introduction to IP Surveillance The IP surveillance allows you to access many units of the LAN CAMERA from a remote desktop or a laptop in a TCP/IP networking environment. It can perform the following functions. • View live images from the LAN CAMERA. •...

  • Page 46: Lan Camera Software

    Install the IP surveillance for the ZIP file. 1. Save the ZIP file to your PC and extract the file to a designated directory. 2. Open the extracted folder. The folder contains 1 file. 3. Click on the icon to execute the installation and then follow the on-screen instructions to proceed with the rest of the installation procedure.
  • Page 47 View the LAN CAMERA video from a remote PC Follow the instructions below to use the IP surveillance to browse a LAN CAMERA video from a remote location. Upon entering the IP surveillance, a connection box will appear as follows. button to enter the Settings page.
  • Page 48 5. Type in the Password in the „Connect Lan Camera Wizard” page. Click „Next” button to open another „Add Device Wizard” page. 6. This page provides the IP Address, the device type, and the MAC Address. After typing the Device Title and selecting the Connect Mode, please click the „Next”...
  • Page 49 8. Click the device title to begin viewing images with this camera from the Device List. NOTE: To add more connections or units to the LAN CAMERA, please repeat the above instructions. Live Monitor Once the connection has been established, click the button to enter the Live Monitor window.
  • Page 50 Motion on/ Alarm on: The warning icons. Motion-on icon: When there is a detection of motion in any channel, it will display this icon in the right upper corner of that channel to warn the user. Alarm on-icon: When there is a detection of external devices such as a sensor, it will display this icon on the upper right corner of that channel to warn the user.
  • Page 51 Playback Viewer Press the button to enter the Playback Viewer setting page. The Playback Viewer icon The display area Click to choose the Recording List Live Event Message This alarm events which were recorded will be marked in pink colour. Click to refresh the recording list Click...
  • Page 52 NOTE: To view the starting point of an alarm which was recorded, please (1) select the recorded event and (2) click the icon, then (3) the starting point will show on the display area. Move to left/right area. Recorded video list box. This box allows you to access all recorded video, which are stored in the HDD of the connected devices.
  • Page 53 • Capture / Print - Provides the image capturing and printing functions. • Play Rate - During play mode, please use the scroll bar to control the show speed. Shows the device title This allows you to search a recorded video kept in the HDD of the device. Enter the MONTH /DAY /YEAR /HOUR / MINUTE you wish to search and click to proceed.
  • Page 54 Setting Press the button to enter the Setting page. The Setting page Function buttons: Add a new device group. Click this button and type in the new group, then press „OK” to save it. Remove a device group. Click this button and select the group name, then press „OK” to delete the group. Add a new camera.
  • Page 55 1. Device Setting page 2. Image Setting page NOTE: The IP Surveillance software connects the Internet to a LANCAM. There may be a problem if the bandwidth is not enough, in which case the speed rate of the image transmissions may become too low.
  • Page 56 Global Settings (1) Monitor setup: Sets the date/time mode, display mode and control the CPU use percentage on five levels. (2) Default Directory: Sets the default files’ saving path. Click to select the directory. (3) Live Event Popup Message: Sets the maximum number of the popup messages, and the displaying time.
  • Page 57 Recording Scheduler (1) Choose one of the devices to set its recording schedule. (2) Select the period: Click to set to record only once or record every day. (3) Select the recording time: Sets the periods of time in recording. Select the Begin time and the End time then the time markers will display above.
  • Page 58 Authority Setup Authority setup: Change or add the user’s authority. List of cameras and its groups: The users can use the icons above the list to change the groups’ names, the devices’ titles and the channels’ display modes. Display area: Click the title of the camera, and you will see the live image in this area. Device Recording: Click the „Start Record”...
  • Page 59 The web page (please refer to section 5.1 for more details): Device information: The user can read a camera’s information, such as „Device Title”, „Group Name”, „IP Address”, „HTTP Port”, „Device type”, „Monitor Alarm Process” and the „ Connect Mode”. Recording Scheduler: Shows the recording information of the selected channel.
  • Page 60 Logout Press the button to logout the IP Surveillance software and the IP Surveillance monitor will be minimized into the systray of the Windows taskbar. If you want to return to the IP Surveillance monitor, please click the button once, then select the page which you want to get in. After typing in the correct user name and password, you can re-login to the software.

  • Page 61: The Image Viewer

    5.2.4 The Image Viewer The LAN CAMERA is equipped with a digital watermark. It’s a checking software which protects archived images and informs you whether the images have been modified or not. Follow the instructions below to open an archived image from an SD card or an HDD.

  • Page 62: Specifications

    6. SPECIFICATIONS Type LAN CAMERA ENC-1003L EDP No. 91461 Imager 1/3” interlaced CCD System CCIR/PAL Resolution 480 TV lines (camera) 720x576, 352x288 Sensitivity 1.1Lux at F1.2 (VT measurement result) at 50% video signal Automatic Shutter 1/50-1/100,000/sec. Control (AES) Activity detection...
  • Page 63 CF Memory Card 128MB for ENC-1001/1002/1003L 71853 CF Memory Card 256MB for ENC-1001/1002/1003L 91439 CF Wireless LAN Card for ENC-1001 76011 Surveillance Software for Network cameras from Eneo, Axis 76012 Client Software for Zelaris_AC S 76023 Site Map Option for Zelaris_AC S 47162 F1.2/2.2mm Fixed focal length lens with No Focus Shift, 1/3”...

  • Page 64: Function Of Client Pc

    7. FUNCTION OF CLIENT PC System requirement Windows Browser IE 5.x 6.x Camera setup Username / IP / PROXY / Password / Time / Date / Motion / Alarm Multi-camera link > 4 Cameras Viewer 1 / 4 SPLIT PT control Support via API and via Browser (Pelco D) Save file format BMP / JPEG / AVI on CF card...

  • Page 65: Appendix 1. - Scan Ip

    APPENDIX 1. - SCAN IP Follow the instructions below to use the SCANIP software to search the LAN CAMERA devices from a local location. button to discover the connection of the all-type device in the LAN. The Device List will display the 1.
  • Page 66 Manual insertion of „Free IP Address” If you have clicked „No”, please manually type in insertions as required in the „Free IP Address”, „Gateway Address”, and „NET Mask”. Follow each insertion you make by typing in the „Login Name” and „Password”, and click „UPDATE”...
  • Page 67 2. Select and double click any of the addresses in the „Free IP Address” box on the right to enter it into an IP Address on the left. 3. To change any IP address, type in the new address in the „Free IP Address” box on the right as well as the device „Login Name”...

  • Page 68: Appendix 2. - Faq

    APPENDIX 2. - FAQ 1. How to disable the DHCP function and use a static IP instead? A: Turn the „DIP SWITCH” from „3” to „4” and vary the relative network settings, the IP Address, NetMask and Gateway on the image web page. 2.

  • Page 69: Appendix 3. - Lancam ® Ftp Update Procedure

    APPENDIX 3. ® Lancam FTP Update Procedure 1. Click on the „Start” menu (at the lower left of your screen) and select Run...”. Then type command or cmd into the box and click „OK”. 2. You should see an MS-DOS Prompt window appear.
  • Page 70 ® 5. Please dont power-off Lancam during step 8 above or physical damages will be caused. eneo ® is a registered trademark of Videor Technical E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR TECHNICAL E. Hartig GmbH Carl-Zeiss-Straße 8 ·...
