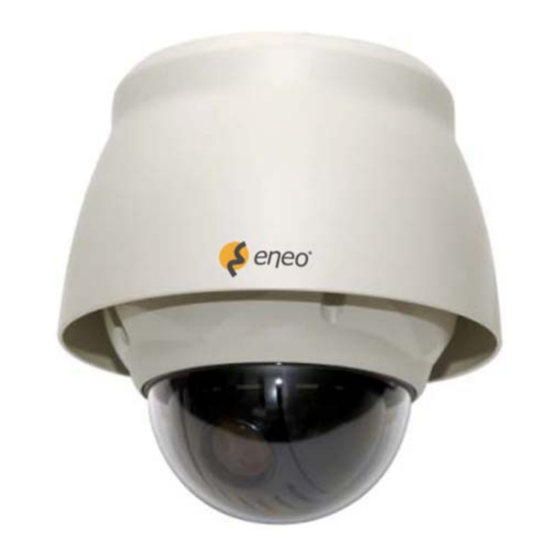

Summary of Contents for Eneo EDMC-3221/E

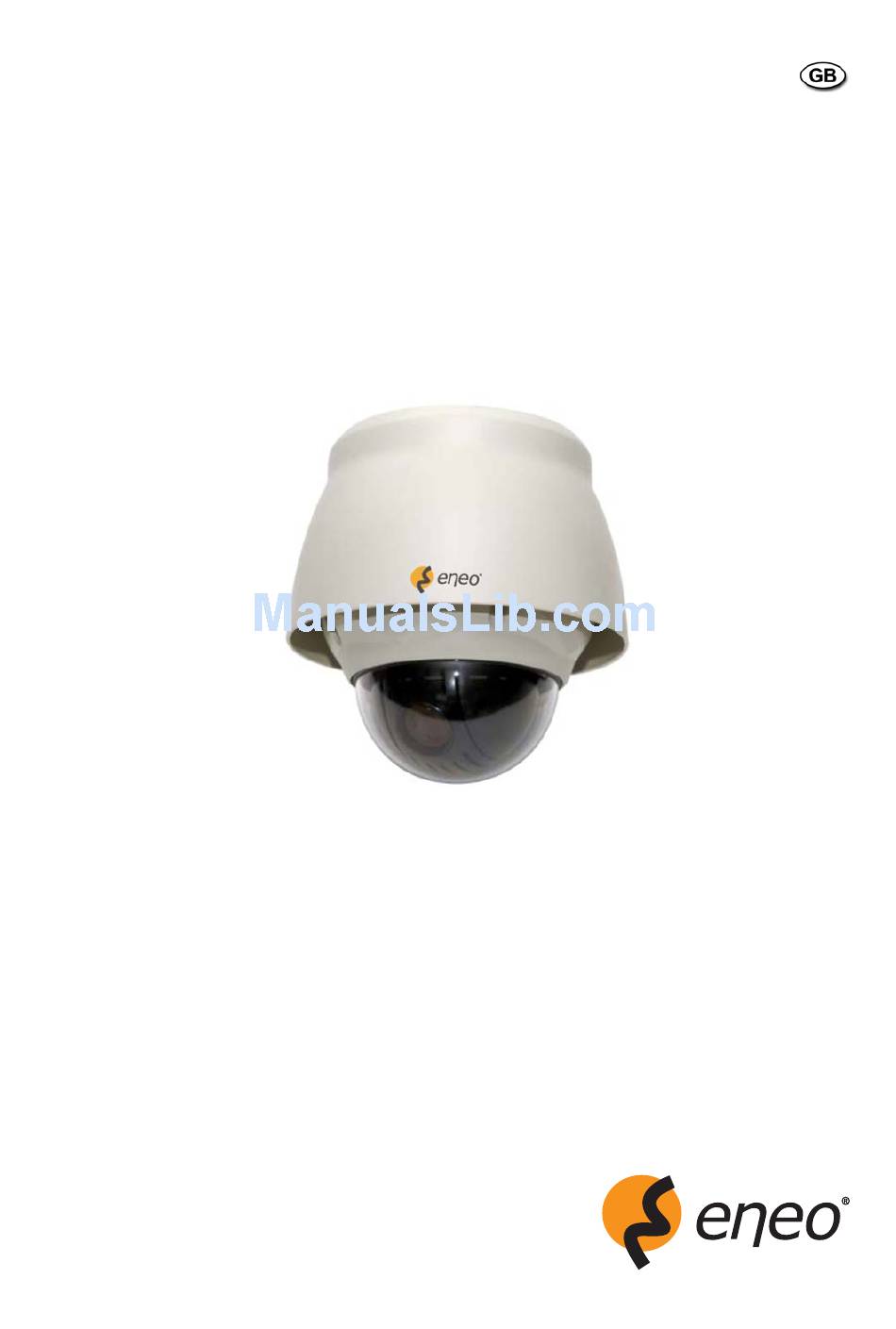

  • Page 1 Operating Instructions 1/4” Dome, PTZ, Day&Night, 22x EDMC-3221/E...
  • Page 2 Betriebsanleitung Installation and Operating Instructions www.videor.com www.eneo-security.com Mode d’emploi Instrukcja instalacji i obsługi...

  • Page 3: Safety Instructions

    Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Protect your camera from contamination with water and humidity to prevent it from permanent damage.

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 — Introduction......................5 1.1 Features ..........................5 Chapter 2 — Installation and Configuration................6 2.1 Package Contents ......................6 2.2 Installation .......................... 7 2.3 Basic Configuration of Dome Camera System..............8 2.4 Setting Dome Camera Termination................... 9 2.5 Setting Dome Camera Address (ID)..................

  • Page 5: Chapter 1 - Introduction

    Chapter 1 — Introduction 1.1 Features The dome camera and the keyboard controller make up the building blocks for any surveillance/security system. Using multiple keyboard controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs.

  • Page 6: Chapter 2 - Installation And Configuration

    Chapter 2 — Installation and Configuration 2.1 Package Contents The dome camera is design to a compact, small size, hard dome camera housing. The housing is constructed of aluminum, steel and plastic. The housing is designed to be mounted both wall and ceiling type. The housing meets the Protection Classification IP66 standards for dust and moisture resistance.

  • Page 7: Installation

    2.2 Installation You need one optional mount kit of the wall mount and the ceiling mount to install. The wall or ceiling mount must be attached to a structural object such as hard wood, concrete that will support the weight of the mount and dome camera. The use of a solid backboard is recommended when attaching to gypsum walls.

  • Page 8: Basic Configuration Of Dome Camera System

    2.3 Basic Configuration of Dome Camera System Figure 1 – Basic Installation Diagram The dome camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes.

  • Page 9: Setting Dome Camera Termination

    Figure 2 – Layout of DIP Switches NOTE: Open the switch cover (position “a”) and change the setting of DIP switches. The cover should be closed after setting DIP switches. 2.4 Setting Dome Camera Termination The device which is connected at end of line, whether it is a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch.
  • Page 10 Example: Port 1 = Dome 1, Port 2 = Dome 2 … Port 16 = Dome 16. If more than 16 dome cameras are installed using two or more multiplexers, ID of the dome camera should be ID of MUX x No. of camera IN. (e.g. multiplexer ID= n, Camera IN= m then ID of Dome =16x(n-1)+m ) DOME ID (16) (32)
  • Page 11 DOME ID (16) (32) (64) (128) Figure 4.2 – Setting Dome Camera Address (ID)
  • Page 12 DOME ID (16) (32) (64) (128) Figure 4.3 – Setting Dome Camera Address (ID)
  • Page 13 DOME ID (16) (32) (64) (128) Figure 4.4 – Setting Dome Camera Address (ID)
  • Page 14 DOME ID (16) (32) (64) (128) Figure 4.5 – Setting Dome Camera Address (ID)
  • Page 15 DOME ID (16) (32) (64) (128) Figure 4.6 – Setting Dome Camera Address (ID)

  • Page 16: Setting Dome Camera Protocol And Video

    2.6 Setting Dome Camera Protocol and Video If a dome camera is to be installed with the keyboard controller, select the default protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. You can set video type with dip switch. S2-D1 IDEO TYPE NTSC...

  • Page 17: Connections

    2.7 Connections • Connecting to the RS485 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 half-duplex serial communications signals. • Connecting Video out connector Connect the video out (BNC) connector to the monitor or video input. •...

  • Page 18: Getting Started

    2.8 Getting Started Once installed apply power to the dome camera. The dome camera will start a configuration sequence. PRESET TITLE AREA TITLE STATUS of AF AE FUNCTION FOCUS and AE UNDER RUNNING CAMERA TITLE EMPTY DATA INFORMATION DISPLAY CAMERA ID DOMEID:0001 PAN &...

  • Page 19: Chapter 3 - Program And Operation

    Chapter 3 — Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing No. + CAM keys. Example: Pressing 1 , 0 + CAM keys sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller.

  • Page 20: Auto Scan (Shortcut: Scan)

    3.4 Auto Scan (Shortcut: SCAN) The Auto Scan supports up to 5 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP NUMBER : 01 TITLE : A01 MODE : NORMAL SPEED 5 STEP START ANGLE : ----- ----- END ANGLE : ----- ----- SCAN DIR...
  • Page 21 6. Select “START ANGLE”. Hold down the CTRL key while selecting the start position using the Joystick. Current panning position will be displayed. Release the CTRL key to complete the selection of the start position. Or press the IRIS Open key then the “CTRL” displays. Move the desired position and the zoom position.

  • Page 22: Preset (Shortcut: Prst)

    3.5 Preset (Shortcut: PRST) If you need to view specific places routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom, focus, and AE settings. Once programmed, placing the number position and pressing the PRST key on your controller calls up that Preset automatically.
  • Page 23 Select “MOTION SETUP” and pushing the Joystick to the left or right. Then the MOTION setup displays. MOTION SETUP SENSITIVITY : 07 POSITION : ALL DELAY : 00 SEC OUTPUT : OFF HOLD TIME : 03 SEC EXIT(ESC TO EXIT) Set SENSITIVITY : 01~10 Set POSITION : ALL, CENTER...

  • Page 24: Shortcut Of Preset Program

    3.6 Shortcut of Preset Program After selecting the desired scene, press No. (1 to 120), and press the CTRL and PRST keys subsequently. The current view will be stored to the selected Preset number if the Preset number is empty. If selected Preset number is not empty, “OVER WRITE” message will be displayed on the monitor and select the “OK”...
  • Page 25 8. To edit the title, follow the procedure of the Auto Scan above to edit titles. 9. Select “SAVE & EXIT” and push the Joystick to the right or press the IRIS Open key. Press the ESC or IRIS Close key to exit the program without saving. You can expand the Tour sequence by calling other programmed Tours.

  • Page 26: Pattern (Shortcut: Ptrn)

    3.8 Pattern (Shortcut: PTRN) The Pattern feature records user control of the selected dome camera. Up to 4 Patterns can be stored and played back by pressing No. + PTRN keys subsequently. PATTERN SETUP (CTRL KEY) TITLE PERCENT 01 : 00.0% 02 : 00.0%...

  • Page 27: Alarm

    3.9 Alarm ALARM SETUP NO PRI FUN IN OUT HLD LATCH 001 NC ALARM OUT SETUP SAVE AND EXIT(ESC TO CANCEL) : alarm input number : The lower number has higher priority. (1 fixed) PRI(Priority) : Stored function number to be called by alarm. FUN(Function) : NO/NC - normally open/closed, OFF - ignore : ON –...

  • Page 28: Privacy Zone

    1. Select “NUMBER” and set the desired number by pushing the Joystick to the left or right. 2. To edit the title, follow the procedure of the Auto Scan above to edit titles. 3. Select “START ANGLE”. Hold down the CTRL key while selecting the start position using the Joystick.

  • Page 29: Camera Menu

    4. To turn the stored zone On or Off, twist the Joystick or press the Tele or Wide key. 5. Set the method, “BLOCK” or “V.OFF(video off)”. 6. Select “SAVE & EXIT” and push the Joystick to the right or press the IRIS Open key. Press the ESC or IRIS Close key to exit the program without saving.
  • Page 30 • WB (White Balance) CONTROL WB SETUP MODE R GAIN B GAIN SAVE AND EXIT(ESC TO CANCEL) AWB / WAWB / INDOOR / OUTDOOR / MANUAL MODE Computes the white balance value output using color information from the entire screen automatically. (2500 to 9500 °K) WAWB Wide range auto white balance mode.
  • Page 31 The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared. Camera goes in to B&W mode at low light. AUTO Controlled by the keyboard. GLOBAL The operator can enable NIGHT SHOT for all dome cameras at the same time. If the NIGHT SHOT mode is set to GLOBAL, “999”...

  • Page 32: Dome Setup

    3.13 Dome Setup CONFIGURATION MENU LANGUAGE : ENGLISH HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM MENU SYSTEM INFORMATION SAVE AND EXIT(ESC TO CANCEL) • LANGUAGE SETUP LANGUAGE : Select the language you want: English, German, French, Italian, Spanish, Portuguese, Polish •...
  • Page 33 • OSD DISPLAY OSD DISPLAY SETUP CAMERA TITLE : DOMEID VIEW DIRECTION : OFF DOME OSD : ON AREA TITLE : OFF PRESET TITLE : CONSTANT FOCUS EXPOSURE : ON OSD POSITION SETUP SAVE AND EXIT(ESC TO CANCEL) : up to 6 characters. CAMERA TITLE : ON / OFF VIEW DIRECTION...
  • Page 34 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : 90° TILT LIMIT : OFF SAVE AND EXIT(ESC TO CANCEL) FLIP: OFF, AUTO, 90°, 100°, 110°, 120°, OFF: the dome camera moves until 90° vertically. AUTO: When the camera reaches the floor directly above the moving object, it will stop. At that time, release the Joystick instantly and pull it down again to run the auto-flip function.
  • Page 35 • INITIALIZE DATA INITIALIZE DATA FACTORY DEFAULT ERASE PROGRAMMED DATA PRESET FOCUS DEFAULT EXIT(ESC TO EXIT) FACTORY DEFAULT Select “FACTORY DEFAULT” to initialize the Data. FACTORY DEFAULT ARE YOU SURE ? CANCEL ERASE PROGRAMMED DATA Erase all stored data from the Flash-ROM of the selected dome camera. You will be asked to enter ON or OFF.
  • Page 36 • ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET : 000.0 TILT OFFSET : 000.0 ENABLE : OFF SAVE AND EXIT(ESC TO CANCEL) This feature is useful to align a new dome camera exactly the same as the previously installed dome camera.
  • Page 37 Press and hold the CTRL key and moving the Joystick will operate with the TURBO speed mode. MOTOR SETUP PROPOTIONAL P/T : ON P/T MODE : NORMAL SAVE AND EXIT(ESC TO CANCEL) : ON / OFF PROPOTIONAL P/T : SLOW / NORMAL / TURBO P/T MODE SLOW MAXIMUM SPEED : 40˚...

  • Page 38: Function Run

    • SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxxx-xxxxxx H/W VERSION : Vx.xx ROM VERSION : Vx.xx PROTOCOL : xxxx BAUDRATE : 9600 EXIT(ESC TO EXIT) The system information provides essential information about the dome camera if service is required. When you view this screen, you can determine the camera type, ROM version. The information on this screen cannot be modified.

  • Page 39: Factory Setup

    ALARM OUT SETUP 1 MIN EXIT(ESC TO EXIT) You press the CTRL or IRIS Open key then that alarm out operates during the setting time only. 3.15 Factory Setup FACTORY SETUP TOUR DWELL TIME : 03 SEC ANSWER DELAY : 03 SEC SAVE AND EXIT(ESC TO CANCEL) Pressing 250 + PRST keys pops up this menu.

  • Page 40: Chapter 4 - Specifications

    Chapter 4 — Specifications Type EDMC-3221/E Art. No. 74230 eneo Minitrax Series day&night System CCIR/PAL Video standard 1/4" Sensor size CCD, Sony ExView HAD Interline Transfer Imager 580 TVL Horizontal resolution internal, AC line lock Synchronization 0.45 Gamma correction 0.33 Lux, (colour); 0.17Lux (B&W) at F1.2 (measured)
  • Page 41 in preset mode only Motion detector 180° rotation Mirror function Digital zoom Analysis functions zoom Lens type Zoom factor 3.9mm – 85.8mm Focal length 49.5° - 2.4° Horizontal angle of view 1.0m MOD (Minimum object distance) F1.6 (3.7) ~ F140 Aperture range (F) Iris control ID, Baud rate, termination, protocol type...
  • Page 42 -30°C - +50°C, based on Special features installed heater and blower kit, 24VAC operation only Specifications are subject to change without notice * Optional Accessories The optional accessories currently available can be found on our Homepages: www.videor.com and www.eneo-security.com...

  • Page 43: Chapter 5 - Dimensional Drawings

    Chapter 5 — Dimensional Drawings ∅ 110 ∅ 186 Dip switch cover Dimensions: mm...

  • Page 44: Appendix A - Troubleshooting

    Appendix A — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of...

  • Page 45: Appendix B - Glossary

    Appendix B — Glossary Alarm Action The assigned responses for the dome camera when input change from normal to abnormal states. The dome may run a Preset, Pattern, or have no assigned action for 1 dome input. The dome may also send alarm state to the host controller for processing. See also Input Alarm and Normal Input State.

  • Page 46: Line Lock

    IR Mode A feature of the camera that permits manual or automatic switching between color and IR (black-and-white) operation. When IR mode is active, clearer images may be obtained under low-light conditions. Line Lock Allows you to phase lock the video with the AC power line. When line lock is enabled, it prevents vertical video rolling when switching multiple cameras to a single monitor.

  • Page 47: White Balance

    Vector Scan Move from start point to end point including tilt and zoom simultaneously and linearly. White balance Adjustments in the color hue(red and blue) gains for a camera so that true white appears white in the image. It is normally compensated for by the automatic gain control. In some lighting conditions, you may need to manually adjust the red and blue settings for optimal viewing.

  • Page 48: Appendix C - Short Cut Key

    Appendix C — Short Cut Key Short Cut Key Function Pop up Preset setup menu. PRST Pop up Tour setup menu. TOUR Pop up Pattern setup menu. PTRN Pop up Auto Scan setup menu. SCAN Store the current view at the selected number. No.+ CTRL+ PRST Short Cut Key Function...

  • Page 49: Appendix D - Wall Mount

    Appendix D — Wall Mount The wall mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and Dome Camera. 1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of the Wall Mount.

  • Page 50: Appendix E - Ceiling Mount

    Appendix E — Ceiling Mount The ceiling mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and Dome Camera. 1. Select a suitable mounting location and verify there is sufficient cable to connect with cables from the housing.
  • Page 52 Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 www.videor.com...
