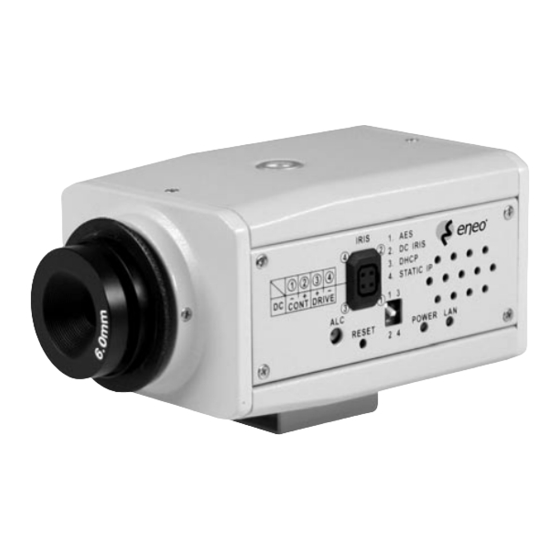

Eneo ENC-501L Installation And Operating Manual

Lan camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

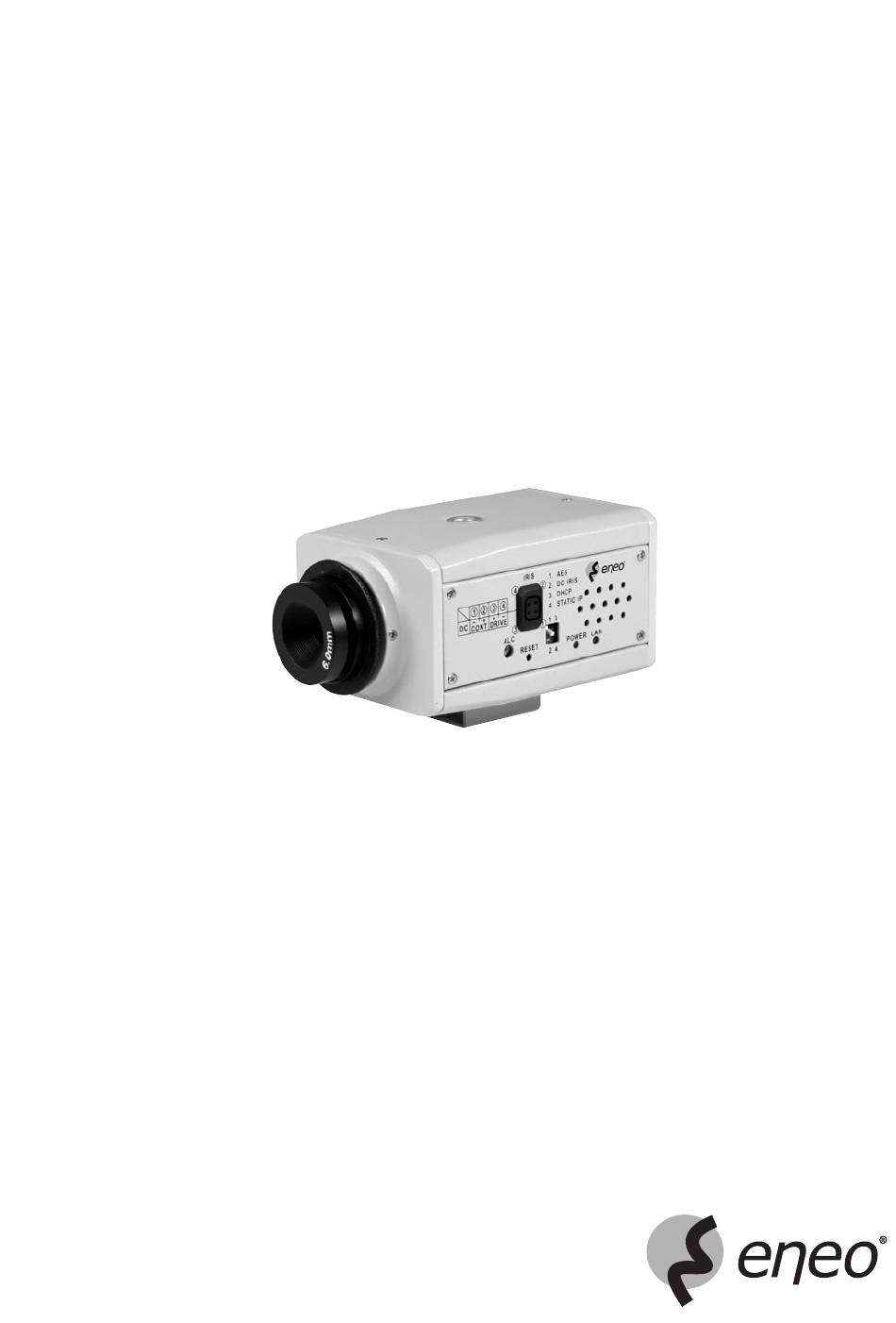

Installation and Operating Manual
LAN Camera ENC-501L
with Quick Start Installation Guide for
ENC-501W
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENC-501L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo ENC-501L

Summary of Contents for Eneo ENC-501L

  • Page 1 Installation and Operating Manual LAN Camera ENC-501L with Quick Start Installation Guide for ENC-501W...

  • Page 2: Table Of Contents

    Table Of Contents SAFETY PRECAUTIONS..............................3 1. PRODUCT FEATURES ............................4 1.1 PRODUCT INTRODUCTION..........................4 1.2 PRODUCT FEATURES............................5 2. DESCRIPTION OF THE FRONT/REAR VIEW ......................6 2.1 FRONT PANEL AND REAR PANEL ........................6 2.2 TERMINAL BLOCK............................7 2.3 FLANK PANEL ..............................8 3. INSTALLATION ..............................9 3.1 CONNECTING WITH A MULTIPLEXER ........................9 3.2 CONNECTING WITH A DVR..........................9 3.3 CONNECTING WITH A NVR..........................10 3.4 UPDATING SYSTEM SOFTWARE........................10...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS • The instructions below must be followed for your own safety. • Please read the safety instructions and operating instructions before connecting the device and putting it into operation. • Keep the operating instructions safe for use at a later date. •...

  • Page 4: Product Features

    1. PRODUCT FEATURES 1.1 Product Introduction The LAN CAMERA is state-of-the-art equipment in its field. It combines many digital video capabilities with the internal functions of the network video camera. The user can immediately connect to a standard network, and the device can transmit the digital images to a remote browser.

  • Page 5: Product Features

    1.2 Product Features • An inbuilt Web Server and Network Interface. • Dual purpose: the LAN CAMERA can simultaneously export both the traditional analogs and the digital images. • Motion detection: You can select the range and sensitivity of the detection. •...

  • Page 6: Description Of The Front/Rear View

    2. DESCRIPTION OF THE FRONT/REAR VIEW 2.1 Front Panel and Rear Panel Front Panel Rear Panel 1. MICROPHONE: The LAN CAMERA has an additional audio function. The device has a microphone built into its front panel which records sound. 2. Alarm I/O and RS-232 Port: This is a connector including ALARM OUT, GROUND, ALARM IN, and ALARM RECOVER for connecting with eternal ,devices.

  • Page 7: Terminal Block

    2.2 RS-232 Port & ALARM I/O 1. GND: Ground contact 2. RX: This pin is one of the RS-232 pins. It connects with the TX pin of another device. 3. TX: This pin is one of the RS-232 pins. It connects with the RX pin of another device. Please refer to the note below on the standard RS-232 9 pin cable with pin 2 and pin 3 exchanged;...

  • Page 8: Flank Panel

    2.3 Flank Panel Right Flank Panel Left Flank Panel 1. Lens Mount: This LAN CAMERA is used with either C or CS mount lens. 2. IRIS: Auto iris connector This camera works with DC drive auto iris lens. Please refer to the pin assignment marked on the camera when connecting the auto iris lens.

  • Page 9: Installation

    3. INSTALLATION Please follow the instructions and the diagram below to set up the system. 3.1 CONNECTING WITH A MULTIPLEXER LAN CAMERA 1 TO LAN Camera VIDEO OUT BNC CONNECTOR LAN CAMERA 2 LAN CAMERA 16 3.2 CONNECTING WITH A DVR CONNECT TO VIDEO OUT BNC CONNECTOR CONNECT TO DVR VIDEO IN...

  • Page 10: Connecting With A Nvr

    3.3 CONNECTING WITH AN NVR Use a crossover LAN cable to connect directly to a NVR. CONNECT TO ETHERNET RJ-45 CONNECTOR CONNECT TO NVR ETHERNET PORT 3.4 UPDATING SYSTEM SOFTWARE If the system software of the LAN CAMERA needs to be upgraded, please take the following steps to safely update it. Important: Before carrying out the following procedures, please ensure the SD card is working and the file of system firmware is intact 1.

  • Page 11: Lan Camera Sd Card Troubleshooting

    Warning: 1. Don’t use FAT32 or NTFS or other file formats in Step 1. 2. Step 1 to Step 3 have to be done on a PC. 3. Make sure the file of UPDATE.BIN is a correct one in Step 3, or LANCAM will not work normally after updated.

  • Page 12: Adjustment Of Lenses

    Warning: 1. Performing this troubleshooting process may need a monitor, a PC, a card reader and some cables. 2. If SD Card is removed while storing or accessing data, data would be lost. 3. If there is a cross sign beside the „SD” icon, it means the SD Card has inserted into LAN CAMERA but cannot perform writing function.
  • Page 13 Adjustment of flange To obtain a sharp definition, point the camera at an object which is at least 5 times the focus for variable minimum lens distance (MOD) of the lens. (If this is 1m, the object must be at least 5m focus lenses distant from the camera).

  • Page 14: Network Configuration

    4. NETWORK CONFIGURATION 4.1 Cable Connections Please follow the instructions below to connect your LAN CAMERA to a computer or a network and to choose a proper RJ-45 cable configuration for connections. Physical specification of RJ-45 cable for Ethernet Wire Type Cat.
  • Page 15 4.1.2 Connect to a LAN Hub (INTRANET) The RJ-45 PIN configuration for connecting with a LAN Hub is shown below. TO PC NETWORK CARD TO NETWORK HUB/Switch Router 4.1.3 Connect to WAN (INTERNET) The RJ-45 PIN configuration for connecting to a WAN is the same as connecting to a LAN. STATIC IP CABLE/XDSL MODEM TO ISP RJ-45...

  • Page 16: Configure Your Lan Camera Network Settings

    4.2 Configure Your LAN CAMERA Network Settings Upon network hardware connection, you need to activate the network function and configure the proper network settings of the LAN CAMERA. 4.2.1 Enable DHCP Function This function can only work if the LAN which the unit is connected to has a DHCP server. If the DHCP server is wor- king, please remove the dip switch points upwards to 3 on the flank panel.

  • Page 17: Tcp/Ip Communication Software

    4.3 TCP/IP Communication Software Follow the instructions below to install the TCP/IP communication program into your computer. Click the Start menu from your computer, and point to the Settings/Control panel. Click the Network icon twice to enter the same setting windows.

  • Page 18: Tcp/Ip Installation

    Click on the Configuration tag; check if the TCP/IP is included among the network components list. If the TCP/IP is included, please process section 4.5. If it is not included, please follow section 4.4 to install the TCP/IP. 4.4 TCP/IP Installation During the installation, you will be requested to insert the Windows CD-ROM.

  • Page 19: Tcp/Ip Configuration Setting

    4.5 TCP/IP Configuration setting Click Start –> Settings –> Control Panel –> Network Select TCP/IP, and then click Properties. Before processing the LAN CAMERA installation in a WAN, please make sure the Internet connection works properly. If not, please contact your ISP provider. If you are using a DHCP server, please select Obtain an IP address automatically.

  • Page 20: Connection Testing

    4.6 Connection Testing With the previous settings, follow the instructions below to ensure whether you have established the connection successfully. Click Start –> Programs –> MS-DOS Prompt Type in ping 192.168.1.168 then Enter. (See the sample screen below) ** This IP is the LAN CAMERA IP address that is assigned for the connected LAN CAMERA in step2.

  • Page 21: Operating Instructions For Image Software And Network

    If you receive a response as in the sample screen below, the connection hasn’t been successfully established. Please re-check all the hardware and software installation by repeating steps 1 to 5. If you still can’t establish the connection after rechecking, please contact your dealer. If you receive a response as in the sample screen below, you have successfully made the connection.

  • Page 22: Microsoft Internet Explorer

    RJ-45 PIN configuration for Ethernet PIN NO. PIN Assignment RJ-45 socket TX + TX - RX + Not Connected Not Connected RX - Not Connected Not Connected Physical specification for Ethernet Wire Type Cat. 5 Connector Type RJ-45 Max. Cable Length Switch/Hub Wiring Configuration Straight Through PC Wiring Configuration...
  • Page 23 NOTE: The page headlined „Enter Network Password” is shown below. Please enter the user name and password of the LAN CAMERA when you see it. If either the user name or the password is incorrect, please check the input data and rectify it if and as necessary. NOTE: Once authorized successfully, it will not appear again until you close the window and reconnect it.
  • Page 24 5.1.2 Change Image Setting Please follow the steps below to change the image setting through the network if and as necessary. 1. Click the image button on the home page to enter the image-setting page. 2. Adjust the image setting including „Camera Title”, „Resolution”, „Quality”, „Fluorescent”, „BLC”, „Brightness”, „Hue”, „Saturation”, „Sharpness”, and „Viewer Type”...
  • Page 25 5.1.3 Change the Network Setting Please follow the steps below to change the network setting through the network if necessary. • Set the network options and IP address 1. Click the network button in the home page to enter the network-setting page. 2.
  • Page 26 • Change the Network Setting - FTP Please follow the steps below to change the FTP setting via the network if and as necessary to upload recording data live. 1. Click the FTP button at top left to enter the „FTP SERVER SETTING” page. 2.
  • Page 27 2. Fill in the IP address of the SMTP server, and set the recipient’s e-mail address when and as necessary. 3. Click the Submit button to submit the new SMTP setting. 4. Click the Home button to return to the home page. Description of function keys: SMTP Server: Enter the SMTP server DOMAIN NAME or IP address in the given blank space.
  • Page 28 • Change the Network Setting - DDNS The „Network” page has, on its upper left, the „DDNS” icon. Please follow the steps below to change the DDNS setting through the network if and as necessary. 1. Click the DDNS button at upper left above to enter the „DDNS SETTING” page. 2.
  • Page 29 • Change the Network Setting - PPPoE The „Network” page has, on its upper left, the „PPPoE” icon. Please follow the steps below to change the PPPoE setting through the network if necessary. 1. Click the PPPoE button at upper left above to enter the „PPPoE SETTING” page. 2.
  • Page 30 5.1.4 Change the System Setting Please follow the steps below to change the date and time of the system setting through the network if and as necessary. • Set the Date and Time of the system 1. Click the system button in the home page to enter the „System - Date and Time” page (default). 2.
  • Page 31 • Change the System Setting - Users Please follow the steps below to change/add the users’ authority through the network if necessary. 1. Click the Users button on the left side of the „System - Date and Time” page to enter the „SYSTEM - USERS” page. 2.
  • Page 32 2. Mark „Digital Input” „ON” or „OFF” and the „Digital Output” „ON” or „OFF”. Click your choices to enable. 3. Click the Submit button to submit the new user’s setting. 4. Click the Home button to return to the home page. Description of function keys: Digital Input: Select „ON”...
  • Page 33 • View the Event Logs. Please follow the steps below to view events through the network if and as necessary. 1. Click the button on the upper left above to enter the „EVENT LOG” page. 2. Choose one of the three buttons shown on the page to view an event when necessary. The three buttons are titled „First Page”, „Previous 20”, and „Next 20”.
  • Page 34 2. For storage setting, type in the respective required numbers of images you wish to set in the „Pre - Alarm Memory Buffer” and the „Alarm Memory Buffer” in their corresponding blank spaces. 3. Enter the „Upload Rate” you have chosen. 4.
  • Page 35 • Change the Application Setting -SMTP APPLICATION SETTING. Please follow the steps below to change the SMTP setting via the network if and as necessary. 1. Click the SMTP button on the left side to enter the „SMTP APPLICATION SETTING” page. 2.
  • Page 36 Description of function keys: Enable Record - Upload via FTP: Activates or deactivates the recording to the FTP server. Enable Record - Save into SD Card: Activates or deactivates the recording to the SD Card. • Change the Application Setting -RECORD - SCHEDULE 1.
  • Page 37 2. Click „Enable ALARM - UPLOAD via FTP” to checkmark the attached box and activate the function. 3. Click „Enable ALARM - SAVE into SD Card” to checkmark the attached box and activate the function. 4. Click „Enable ALARM - UPLOAD via SMTP” to checkmark the attached box and activate the function. 5.
  • Page 38 Description of function keys: The targeted zone: Click and drag the mouse across the targeted zone to draw a red rectangle on the image. Detection Range: The red rectangle’s coordinates Save: Click to save the motion detection range. Motion Detection: This option enables / disables the motion detection function Sensitivity Level: Selects any one of the given options for the setup signal level.
  • Page 39 5.1.7 Change the Pan/Tilt setting Click the Pan/Tilt button on the home page to open the Speed Dome Controller. Select a Speed Dome device Model from the drop-down list on the Speed Dome Controller. The Controller will display the corresponding Model. Select a Speed Dome device ID from the drop-down list on the Speed Dome Controller.
  • Page 40 5.1.8 PPPoE & DDNS Using the PPPoE 1. Install the XDSL software (obtained from your ISP dealer) in your PC. 2. Search your LAN CAMERA’s IP address: you can use your Network Viewer’s Scan IP program, or just connect the LAN CAM and the Video monitor. The monitor screen will show the IP address on its right side. 3.

  • Page 41: The Lan Camera Viewer

    7. Click „Account” –> Type in your „Account password” again –> Click „Dynamic DNS (Add host)” –> Enter the „New dynamic DNS host page” –> Type in the „host name”, for example „abc123” –> Choose a host name from the drop - down list to the right of the „host name” entry (for example, „Homeip.net”) –> Click „Add host” –> The procedure is successfully completed –>...
  • Page 42 5.2.1 Introduction to IP Surveillance The IP surveillance allows you to access many units of the LAN CAMERA from a remote desktop or a laptop in a TCP/IP networking environment. It can perform the following functions. • View live images from the LAN CAMERA. •...
  • Page 43 Install the IP surveillance for the ZIP file. 1. Save the ZIP file to your PC and extract the file to a designated directory. 2. Open the extracted folder. The folder contains 1 file. 3. Click on the icon to execute the installation and then follow the on-screen instructions to proceed with the rest of the installation procedure.
  • Page 44 View the LAN CAMERA video from a remote PC Follow the instructions below to use the IP surveillance to browse a LAN CAMERA video from a remote location. Upon entering the IP surveillance, a connection box will appear as follows. button to enter the Settings page.
  • Page 45 5. Type in the Password in the „Connect Lan Camera Wizard” page. Click „Next” button to open another „Add Device Wizard” page. 6. This page provides the IP Address, the device type, and the MAC Address. After typing the Device Title and selecting the Connect Mode, please click the „Next”...
  • Page 46 8. Click the device title to begin viewing images with this camera from the Device List. NOTE: To add more connections or units to the LAN CAMERA, please repeat the above instructions. Live Monitor Once the connection has been established, click the button to enter the Live Monitor window.
  • Page 47 Motion on/ Alarm on: The warning icons. Motion-on icon: When there is a detection of motion in any channel, it will display this icon in the right upper corner of that channel to warn the user. Alarm on-icon: When there is a detection of external devices such as a sensor, it will display this icon on the upper right corner of that channel to warn the user.
  • Page 48 Playback Viewer Press the button to enter the Playback Viewer setting page. The Playback Viewer icon The display area Click to choose the Recording List Live Event Message This alarm events which were recorded will be marked in pink colour. Click to refresh the recording list Click...
  • Page 49 NOTE: To view the starting point of an alarm which was recorded, please (1) select the recorded event and (2) click the icon, then (3) the starting point will show on the display area. Move to left/right area. Recorded video list box. This box allows you to access all recorded video, which are stored in the HDD of the connected devices.
  • Page 50 • Capture / Print - Provides the image capturing and printing functions. • Play Rate - During play mode, please use the scroll bar to control the show speed. Shows the device title This allows you to search a recorded video kept in the HDD of the device. Enter the MONTH /DAY /YEAR /HOUR / MINUTE you wish to search and click to proceed.
  • Page 51 Setting Press the button to enter the Setting page. The Setting page Function buttons: Add a new device group. Click this button and type in the new group, then press „OK” to save it. Remove a device group. Click this button and select the group name, then press „OK” to delete the group. Add a new camera.
  • Page 52 1. Device Setting page 2. Image Setting page NOTE: The IP Surveillance software connects the Internet to a LANCAM. There may be a problem if the bandwidth is not enough, in which case the speed rate of the image transmissions may become too low.
  • Page 53 Global Settings (1) Monitor setup: Sets the date/time mode, display mode and control the CPU use percentage on five levels. (2) Default Directory: Sets the default files’ saving path. Click to select the directory. (3) Live Event Popup Message: Sets the maximum number of the popup messages, and the displaying time.
  • Page 54 Recording Scheduler (1) Choose one of the devices to set its recording schedule. (2) Select the period: Click to set to record only once or record every day. (3) Select the recording time: Sets the periods of time in recording. Select the Begin time and the End time then the time markers will display above.
  • Page 55 Authority Setup Authority setup: Change or add the user’s authority. List of cameras and its groups: The users can use the icons above the list to change the groups’ names, the devices’ titles and the channels’ display modes. Display area: Click the title of the camera, and you will see the live image in this area. Device Recording: Click the „Start Record”...
  • Page 56 The web page (please refer to section 5.1 for more details): Device information: The user can read a camera’s information, such as „Device Title”, „Group Name”, „IP Address”, „HTTP Port”, „Device type”, „Monitor Alarm Process” and the „ Connect Mode”. Recording Scheduler: Shows the recording information of the selected channel.
  • Page 57 Logout Press the button to logout the IP Surveillance software and the IP Surveillance monitor will be minimized into the systray of the Windows taskbar. If you want to return to the IP Surveillance monitor, please click the button once, then select the page which you want to get in. After typing in the correct user name and password, you can re-login to the software.
  • Page 58 5.2.4 The Image Viewer The LAN CAMERA is equipped with a digital watermark. It’s a checking software which protects archived images and informs you whether the images have been modified or not. Follow the instructions below to open an archived image from an SD card or an HDD.

  • Page 59: Specifications

    6. SPECIFICATIONS Type ENC-501L EDP No. 91423 Imager 1/3” interlaced CCD System CCIR/PAL Resolution 340 TV lines (camera), 352x288 pixels Sensitivity at 50% video signal 0.26Lux at F1.2 (VT measurement result) Automatic shutter control (AES) 1/50-1/100,000/sec. Activity detection Integrated motion detector...
  • Page 60 Wall mount bracket with ball joint, 1/4” camera fixing screw, beige grey 71848 SD Memory card 256MB for DSR-01/-01N/-04N video recorder, ENC-501 camera series 76011 Surveillance Software for Network cameras from Eneo, Axis 76012 Client Software for Zelaris_AC S 47162 F1.2/2.2mm Fixed focal length lens with No Focus Shift, 1/3”...

  • Page 61: Function Of Client Pc

    7. FUNCTION OF CLIENT PC System requirement Windows Browser IE 5.x 6.x Camera setup Username / IP / PROXY / Password / Time / Date / Motion / Alarm Multi-camera link > 4 Cameras Viewer 1 / 4 SPLIT Save file format BMP / JPEG / AVI 8.

  • Page 62: Appendix 1. - Scan Ip

    APPENDIX 1. SCAN IP Follow the instructions below to use the SCANIP software to search the LAN CAMERA devices from a local location. button to discover the connection of the all-type device in the LAN. The Device List will display the 1.
  • Page 63 6. Auto search „Free IP Address” If you clicked „Yes” the „Free IP Address” box will appear on the right. 7. Select and double click any of the addresses in the „Free IP Address” box on the right to enter it into an IP Address on the left.

  • Page 64: Appendix 2. - Faq

    APPENDIX 2. 1. How to disable the DHCP function and use a static IP instead? A: Turn the „DIP SWITCH” from „3” to „4” and vary the relative network settings, the IP Address, NetMask and Gateway on the image web page. 2.

  • Page 65: Appendix 3. - Lancam ® Ftp Update Procedure

    APPENDIX 3. ® Lancam FTP Update Procedure 1. Click on the „Start” menu (at the lower left of your screen) and select Run...”. Then type command or cmd into the box and click „OK”. 2. You should see an MS-DOS Prompt window appear.
  • Page 66 3. Now we are ready to FTP! After you connect your computer to the network, type in ftp 192.168.1.168 like procedure above. Warning: The IP Address of 192.168.1.168 is an example, and it should be modified upon your own Lancam ®...

  • Page 67: Quick Start Installation Guide For Enc-501W

    Quick Start Installation Guide for ENC-501W Installation Accessories: Lan Camera Software (The Network Viewer). Before you can set up the wireless camera kit for your viewing pleasure over internet, you will need to install the wireless camera via either the Ad-hoc mode or the Infra-structure mode using the LAN set up guidelines. There are two WI-FI setup modes for LAN environment that are described in this guide: Ad-hoc and Infra-struc- ture.
  • Page 68 3. Click on the „START” menu from your computer, and point to „Programs / LanCam Network Viewer” to start the „Wireless Setup” program. Open the „wireless setup” and you will see the window shown below. 4. Click the „Synchronized” button to load the LANCAM’s settings. 5.
  • Page 69 7. If you wish to change any of the above setting, type the new information directly into the window. The „Mode setting” has two options: „Infra-structure” and „Ad-hoc”. You should enter „Ad-hoc”, and click „Apply”. 8. Click the „Apply” button to transfer the new settings to the LANCAM. 9.
  • Page 70 5. Power on every LANCAM: plug every LANCAM power cord into the outlet. Make sure the NVR is set at „power on” first before this step. 6. Register LANCAM to the NVR: a. Connect the NVR and one of the LANCAMs using the RS-232 cable. b.
  • Page 72 ® is a registered trademark of Videor Technical E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR TECHNICAL E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark/Germany Technical changes reserved. Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 www.videortechnical.com...
