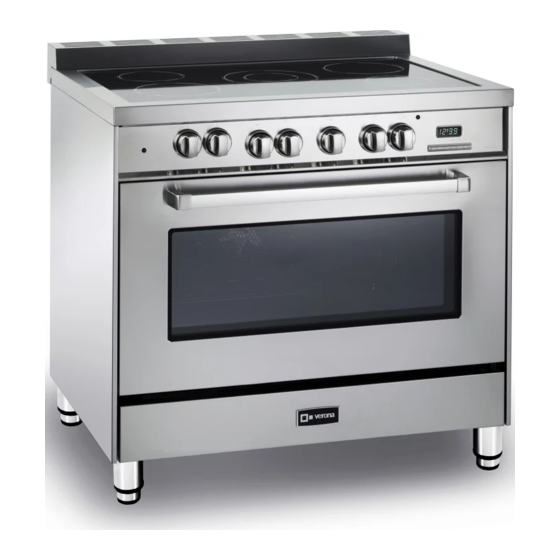

Verona VEFSGE 365 N Series Installation Instructions Manual
Single oven dual fuel range
Hide thumbs
Also See for VEFSGE 365 N Series:
- User operating instructions manual (29 pages) ,
- Installation instructions manual (29 pages) ,
- User operating instructions manual (29 pages)
Table of Contents
Advertisement
Quick Links
SINGLE OVEN DUAL FUEL RANGE
for residential use only
VEFSGE 365 N..
Models:
• INSTALLATION INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
IMPORTANT - PLEASE READ AND FOLLOW
✓ Before beginning, please read these instructions completely and carefully.
✓ Do not remove permanently affixed labels, warnings, or plates from the product. This
may void the warranty.
✓ Please observe all local and national codes and ordinances.
✓ Please ensure that this product is properly grounded.
✓ The installer should leave these instructions with the consumer who should retain
for local inspector's use and for future reference.
Installation must conform with local codes or in the absence of codes, the National Fuel
Gas Code ANSIZ223.1 - Iatest edition. Electrical installation must be in accordance
with the National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes. IN
CANADA: Installation must be in accordance with the current CAN/CGA-B149.1 National
Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform
with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280
[formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD
(Part 280)] or, when such standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PARK TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual
shut-off valve must be installed in an accessible location in the gas line external to the appli-
ance for the purpose of turning on or shutting off gas to the appliance (In Massachusetts
such shutoff devices should be approved by the Board of State Examiners of Plumbers &
Gas Fitters).
If an external electrical source is utilized, the appliance, when installed, must be electri-
cally grounded in accordance with local codes or, in the absence of local codes, with the
national Electrical Code, ANSI/NFPA 70.
This range is supplied with a protective film on
This film must be removed before installing/using the appliance.
FOR INSTALLER ONLY
THIS RANGE IS FOR RESIDENTIAL USE ONLY
steel and aluminium parts.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Verona VEFSGE 365 N Series
Summary of Contents for Verona VEFSGE 365 N Series
- Page 1 SINGLE OVEN DUAL FUEL RANGE for residential use only VEFSGE 365 N.. Models: • INSTALLATION INSTRUCTIONS IMPORTANT - PLEASE READ AND FOLLOW IMPORTANT - PLEASE READ AND FOLLOW ✓ Before beginning, please read these instructions completely and carefully. ✓ Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
-
Page 2: What To Do If You Smell Gas
WARNING • ALL RANGES CAN TIP • INJURY TO PERSON COULD RESULT • INSTALL ANTI-TIP DEVICE PACKED WITH RANGE • SEE INSTALLATION INSTRUCTIONS WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH. - Page 3 DATA PLATE CONVERSION LABEL This appliance is designed and manufactured solely for the cooking of domestic (household) food and in not suitable for any none domestic application and therefore should not be used in a commercial environmement. The appliance guarantee will be void if the appliance is used within a none domestic environnement i.e.
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS WARNING! THIS APPLIANCE HAS TO BE INSTALLED BY A QUALIFIED INSTALLER. Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a qualified installer, service agent, or the gas supplier. IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling, installing of this appliance. TOOLS NEEDED FOR INSTALLATION (NOT SUPPLIED WITH THE APPLIANCE) T-handle... -
Page 5: General Information
GENERAL INFORMATION 1. Installation must conform with local codes or, in the WARNING!! absence of local codes, with the National Fuel Gas Code, ANSI Z223.1-Latest Edition. ELECTRICAL GROUNDING INSTRUCTIONS The range must be electrically grounded in accordance 2. Installation in manufactured (mobile) home: installation with local codes or, in the absence of local codes, with the must conform with the Manufactured Home Construction National Electrical Code, ANSI/NFPA No. - Page 6 installation PROXIMITY TO SIDE CABINETS 2. The range CANNOT be installed directly adjacent to side- 1. This range may be installed directly adjacent to existing 36” walls, tall cabinets, tall appliances, or other side vertical (914 mm) high base cabinets. surfaces above 36”...
- Page 7 GAS AND ELECTRIC CONNECTION Rif. inch 7” 15/32 17” 455.5 15/16 6” 8” 170 ÷ 220 11/16 ÷ 21/32 17” 455.5 15/16 * : Depending on feet regulation Dotted line showing the position of the range when installed Area for GAS connection Area for ELECTRICAL connection Fig.
- Page 8 ( 3 3 0 m m ) 1 3 " m a x . PROXIMITY TO SIDE CABINETS RANGE WITH BACKGUARD Fig. 1.3a 1 3 " m a x . ( 3 3 0 m m ) Fig. 1.3b...
- Page 9 1 3 " m a x . ( 3 3 0 m m ) PROXIMITY TO SIDE CABINETS RANGE WITH ISLAND TRIM Fig. 1.3c ( 3 3 0 m m ) 1 3 " m a x . Fig. 1.3d...
-
Page 10: Fitting The Adjustable Feet
Fig. 1.5 Fig. 1.4 FITTING THE ADJUSTABLE FEET The adjustable feet must be fitted to the base of the cooker before use. Rest the rear of the cooker on a piece of the polystyrene packaging exposing the base for the fitting of the feet. ATTENTION: Most important! Pay special attention not to damage the range dur- ing this operation. - Page 11 ASSEMBLING THE BACKGUARD OR THE ISLAND TRIM It is mandatory to install the backguard or the island trim • Assemble the backguard or the island trim as shown in figure 1.8 or 1.9 and fix it by screw- ing the 5 screws “A” (which are already fixed on the back of the cooktop).
-
Page 12: Anti-Tip Stability Device Installation Instructions
ANTI-TIP STABILITY DEVICE INSTALLATION INSTRUCTIONS YOU MUST USE STABILITY ANTI TIP BRACKET TO 1. The anti-tip bracket has to be attached as shown on figure below, it has to be fixed on the rear wall by no. 2 (two) suitable screws (supplied with the anti-tip kit). PREVENT UNIT FROM TIPPING. -
Page 13: Gas Connection
gas connection All gas connections must be made according to national and local codes. This gas supply (service) line must be the same size or greater than the inlet line of the appliance. Sealant on all pipe joints must be resistant to te action of LP/Propane gas. The range is equipped for the use with NATURAL gas. - Page 14 PRESSURE REGULATOR INSTALLATION STEP 1 Mount the 1/2” NPT (conical) male connector to the pressure regulator and tighten by using a wrench. Do not over tighten the connector. Over tightening may crack regulator. LOCK Arrow Fig. 2.2a STEP 2 Assemble the 1/2”...
- Page 15 STEP 3 Insert the extension pipe + pressure regulator group in the “A” bracket. Fig. 2.2c STEP 4 Assemble the extension pipe + pressure regulator group to the range manifold interposing the gasket supplied. The regulator cover must be ordiented toward the front side of the range.
- Page 16 STEP 5 Fix the “B” bracket on the back of the range by the 2 (two) screws supplied with the kit for gas connection. The regulator cover must be ordiented toward the front side of the range. Fig. 2.2e...
- Page 17 GAS CONNECTION SPECIFICATION To range Range manifold Manifold male pipe fitting 1/2” G cylindrical (ISO 228-1) male Gasket 1/2” G cylindrical (ISO 228-1) female Extension Extension pipe female pipe female pipe fitting pipe fitting To mains connection Extension pipe Pressure Extension Gasket...
-
Page 18: Leak Testing
c) Any conversion required must be performed by your dealer or a qualified licensed plumber or gas service company. Please provide the service person with this manual before work is started on the range. (Gas conversions are the responsibility TEST POINT ADAPTER of the dealer or end user.) The Test Point adapter is available from... -
Page 19: Conversion To Lp/Propane Gas
CONVERSION TO LP/PROPANE GAS Every range is provided with a set of injectors for the various types of gas. Select the injectors to be replaced according to the “INJECTORS TABLE”. The nozzle diameters, expressed in hundredths of a millimetre, are marked on the body of each injector. -
Page 20: Injectors Table
INJECTORS TABLE LP/PROPANE NATURAL GAS 11” W.C.P. 4” W.C.P. NOMINAL POWER REDUCED POWER BURNERS BTU/hr BTU/hr Ø injector Ø injector [1/100 mm] [1/100 mm] Semi-rapid (R) 6000 1500 Triple ring (TC) 12000 5000 2800 for NATURAL GAS (*) Inner crown 1000 (*) 3500 (no. - Page 21 SETTING THE BURNER MINIMUM When switching from one type of gas to another, the minimum flow rate must also be correct: the flame should not go out even when passing suddenly from maximum to minimum flame. To regulate the flame follow the instructions below: Semirapid and triple ring burners regulation –...
-
Page 22: Electrical Requirements
electrical connection ELECTRICAL REQUIREMENTS WARNING • This appliance must be properly installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No.70 (latest edition) and TO AVOID ELECTRICAL SHOCK local electrical code requirements. IN CANADA: Electrical installation must be in HAZARD, BEFORE INSTALLING THE accordance with the current CSA C22.1 Canadian Electrical Codes Part1 and/or local APPLIANCE, SWITCH POWER OFF AT... - Page 23 3-Wire Power Cord Installation Fig. 3.1 (See Figures 3.1, 3.2 and 3.3) 1. Remove the Terminal Block Access Plate on the back of the range by unscrewing the 6 fixing Screws (fig. 3.1). 2. Insert the Power Cord through the hole in the Power Cord Bracket;...
- Page 24 3-Wire Conduit Installation Fig. 3.5 (See Figures 3.1, 3.5 and 3.6) 1. Remove the Terminal Block Access Plate on the back of the range by unscrewing the 6 fixing Screws (fig. 3.1). 2. Feed 1/2” (1.3 cm) trade size Conduit through the hole in the Conduit Bracket and secure to the Conduit Bracket with a Conduit Clamp.
-
Page 25: Wiring Diagram
WIRING DIAGRAM P-E61 P-PR P-PR ST-CF EARTH L1 - L2 = 240V L1 - N = 120V L2 - N = 120V P-E61 Cod.0422409 ELECTRIC DIAGRAM KEY Electronic programmer Relay P-E61 Relay contact P-PR Programmer contact Cooling fan P1...8 Oven switch contact Air flow switch Oven fan... - Page 28 The manufacturer cannot be held re spon sible for possible inaccuracies due to printing or transcription errors in the present booklet. The manufacturer re serves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the es sential functional and safety characteristics of the appliances.
