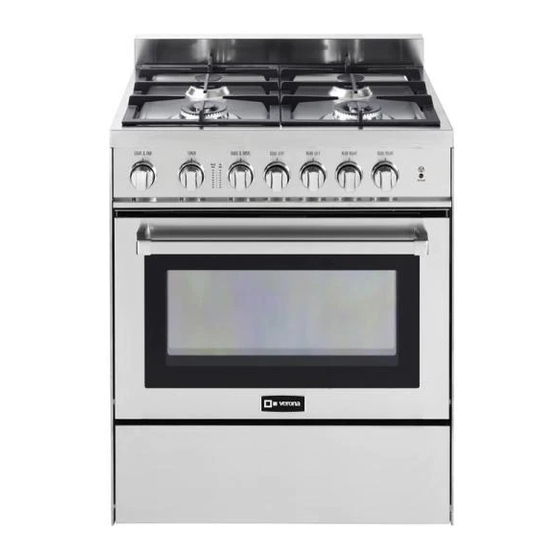

GAS RANGE
for residential use only
VEFSGG 304 ..
Models:
INSTALLATION INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
• Before beginning, please read these instructions completely and carefully.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may
void the warranty.
• Please observe all local and national codes and ordinances.
• Please ensure that this product is properly grounded.
• The electrical plug should always be accessible.
• The installer should leave these instructions with the consumer who should retain
for local inspector's use and for future reference.
Installation must conform with local codes or in the absence of codes, the National Fuel Gas
Code ANSI Z223.1/NFPA 54 - Iatest edition. Electrical installation must be in accordance with
the National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes.
IN CANADA: Installation must be in accordance with the current CAN/CGA-B149.1 National
Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform with
the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 [formerly
the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD (Part 280)]
or, when such standard is not applicable, the Standard for Manufactured Home Installations,
ANSI/NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PARK TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational Park
Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a licensed plumber. A manual shut-
off valve must be installed in an accessible location in the gas line external to the appliance
for the purpose of turning on or shutting off gas to the appliance (In Massachusetts such shu-
toff devices should be approved by the Board of State Examiners of Plumbers & Gas Fitters).
If an external electrical source is utilized, the appliance, when installed, must be electrically
grounded in accordance with local codes or, in the absence of local codes, with the national
Electrical Code, ANSI/NFPA 70.
Some models are supplied with a protective film on steel and aluminium
parts. This film must be removed before installing/using the appliance.
THIS RANGE IS FOR RESIDENTIAL USE ONLY
FOR INSTALLER ONLY
R
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Verona VEFSGG 304 Series
Summary of Contents for Verona VEFSGG 304 Series
- Page 1 GAS RANGE for residential use only VEFSGG 304 .. Models: INSTALLATION INSTRUCTIONS IMPORTANT - PLEASE READ AND FOLLOW • Before beginning, please read these instructions completely and carefully. • Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty. • Please observe all local and national codes and ordinances. • Please ensure that this product is properly grounded. • The electrical plug should always be accessible. • The installer should leave these instructions with the consumer who should retain for local inspector’s use and for future reference.
-
Page 2: What To Do If You Smell Gas
WARNING ! To reduce the risk of tipping the appliance, the appliance must be secured by properly installed anti-tip device packed with the appliance. • ALL RANGES CAN TIP • INJURY TO PERSONS COULD RESULT • INSTALL ANTI-TIP DEVICE PACKED WITH RANGE • SEE INSTALLATION INSTRUCTIONS WARNING ! If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. -
Page 3: Data Plate
DATA PLATE The product data plate is attached inside the bottom pivoting panel. CONVERSION LABEL The Governor of California is required to publish a list of substances known to the state of Califor- nia to cause cancer or reproductive harm and requires businesses to warn customers of potential exposures to such substances. WARNING!: Gas appliances contain or produce substances which can cause death or serious illness and which are known to the State of California to cause cancer, birth defects or other repro- ductive harm. To reduce the risk from substances in fuel or from fuel combustion, make sure this appliance is installed, operated, and maintained according to the manufacturer’s instructions. This appliance is designed and manufactured solely for the cooking of domestic (household) food and in not suitable for any none domestic application and therefore should not be used in a com- mercial environmement. The appliance warranty will be void if the appliance is used within a none domestic environmement i.e. a semi commercial, commercial or communal environment. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS WARNING! THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED INSTALLER. Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a quali- fied installer, service agent, or the gas supplier. IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling, installing of this appliance. TOOLS NEEDED FOR INSTALLATION (NOT SUPPLIED WITH THE APPLIANCE) T-handle Tape Screwdriver 2 - Wrench wrench Pencil measure Suitable protective Adjustable Hammer Adjustable Drill gloves wrench pliers... -
Page 5: General Information
16. When installing or removing the range for service, a rolling lift GENERAL INFORMATION jack should be used. Do not push against any of the edges of 1. Installation must conform with local codes or, in the absen- the range in an attempt to slide it into or out of the installation. ce of local codes, with the National Fuel Gas Code, ANSI Pushing or pulling a range (rather than using a lift jack) also increases the possibility of bending the leg spindles or the Z223.1/NFPA 54 - Latest Edition, CAN/CGA-B149.1 or CAN/ internal coupling connectors. - Page 6 installation PROXIMITY TO SIDE CABINETS 1. This range may be installed directly adjacent to existing 36” (914 mm) high base cabinets. Range dimensions: • width: 29” 7/8 (759 mm) • depth: 24” 13/64 (614.9 mm) • height (without backguard): MIN 35” 21/32 (905.5 mm) - MAX 36” 11/32 (923 mm) • backguard (height): 3” (76 mm) Gas line opening: Wall - 37/64” (14.5 mm) from the right side to centre of range; from 5” 7/16 (138 mm) to 6” 1/8 (155.5 mm) [depending on feet regulation] from the floor. Grounded outlet: The electric cord with 3-prong ground plug (NEMA 5-15P) has a length of 72” (1830 mm). Grounded outlet should be loca- ted 37/64” (14.5 mm) from the left side to centre of range; from 5” 7/16 (138 mm) to 6” 1/8 (155.5 mm) [depending on feet regulation] from the...
-
Page 7: Assembling The Backguard
GAS AND ELECTRIC CONNECTION Dotted line showing the position of the range when installed Ref. inch 5” 7/16 - 6” 1/8 (*) 138 - 155.5 (*) 14” 3/8 37/64” 14.5 (*) : Depending on feet regulation Area for ELECTRICAL connection Area for GAS connection Fig. 1.2 ASSEMBLING THE BACKGUARD It is mandatory to install the backguard. Assemble the backguard as shown in figure 1.3: • Screw the 2 screws “A” interposing the spacers. • Screw the central screw “B”. Fig. 1.3... -
Page 8: Oven Vent
PROXIMITY TO SIDE CABINETS STANDARD INSTALLATION Ref. inch Fig. 1.4a 0” 36” 11” 13/16 30” minimum 762 minimum 18” minimum 457 minimum 13” maximum 330 maximum 20” minimum 500 minimum Fig. 1.4b OVEN VENT OVEN VENT... - Page 9 PROXIMITY TO SIDE CABINETS ISLAND INSTALLATION Ref. inch Fig. 1.5a 0” 36” 11” 13/16 30” minimum 762 minimum 18” minimum 457 minimum 13” maximum 330 maximum 20” minimum 500 minimum 12” minimum 305 minimum Fig. 1.5b OVEN VENT OVEN VENT...
-
Page 10: Anti-Tip Stability Device Installation Instructions
LEVELLING THE RANGE The range is equipped with 4 LEVELLING FEET and may be levelled by screwing or unscrewing the feet (figs. 1.6 - 1.7). It is important to observe the directions of figures 1.6, 1.8a, 1.8b. Fig. 1.6 Supplied with the range Supplied with the range in a separate kit in a separate kit 0” + 5/16” 0 mm + 8 mm + 5/16” + 11/16” + 8 mm Fig. 1.8a Fig. 1.8b + 17.5 mm Fig. 1.7 ANTI-TIP STABILITY DEVICE INSTALLATION INSTRUCTIONS YOU MUST USE STABILITY ANTI TIP BRACKET TO 1. The anti-tip bracket has to be attached as shown on figure below (only rear left side), PREVENT UNIT FROM... - Page 11 INSTALLING THE COOKTOP FRONT GUARD To increase the clearance between the front edge of the cooktop and the burners it is possible to install the cooktop front guard supplied with the appliance. IMPORTANT: To install/remove the guard it is necessary to remove the cooktop. Attempting to install/remove the guard without disassembling the cooktop will result in permanent damage to the appliance. Install the front guard as shown in figure 1.10: 1. Remove the backguard. 2. Remove the pan supports, the burner caps and the flame spreaders. 3. Unscrew cooktop fixing screws (“A” in figure below). 4. Remove the dual burner inner flame spreader (“B” in figure below). 5. Remove the cooktop (keep attention not to damage the gaskets fitted above the burner cups - below the cooktop). 6. Install the front guard “C” by inserting the wire terminals into the proper holes above the control panel (“D” in figure below). 7. Reassemble the cooktop and the other components (steps from 5 to 1). Pay special attention to the gaskets fitted above the burner cups (below the cooktop); if they are damaged they shall be replaced. Fig. 1.10...
- Page 12 gas connection All gas connections must be made according to national and local codes. This gas supply (service) line must be the same size or greater than the inlet line of the appliance. Sea- lant on all pipe joints must be resistant to the action of LP/Propane gas. The range is equipped for the use with NATURAL gas. It is design-certified by CSA Inter- national for NATURAL and L.P. gases with appropriate conversion. The model/serial rating plate, located inside the bottom pivoting panel, has information on the type of gas that can be used. If this information does not agree with the type of gas available, check with the local gas supplier. See page from 16 to 21 for L.P. gas conversion instructions. Explosion Hazard Use a new CSA or UL approved 1. Manual Shut-off Valve (fig: 2.1) gas supply line. A manual shut-off valve must be installed in an accessible location in the gas line external Install a shut-off valve.
- Page 13 PRESSURE REGULATOR INSTALLATION STEP 1 Mount the 1/2” NPT (conical) male connector to the pressure regulator and tighten by using a wrench. LOCK Do not over tighten the connector. Over tightening may crack regulator. Arrow Fig. 2.2 STEP 2 Assemble the 1/2” NPT connector + pressure regulator group to the extension pipe interposing the gasket supplied. The regulator cover must be oriented toward the front side of the range. IMPORTANT: use two wrenches to tighten the connection. Gasket Regulator cover Fig. 2.3...
- Page 14 GAS CONNECTION SPEFICICATION Range manifold Manifold male pipe fitting 1/2” G cylindrical (ISO 228-1) male Gasket 1/2” G cylindrical To range (ISO 228-1) female Extension pipe female pipe fitting Extension pipe Extension 1/2” G cylindrical pipe male (ISO 228-1) male pipe fitting 1/2” G cylindrical Gasket (ISO 228-1) female 1/2” NPT (conical) Connector male 1/2” NPT To mains female connection Pressure regulator 1/2” NPT female Arrow Fig.
- Page 15 b. Any conversion required must be performed by your dealer or a qualified licen- sed technician or gas service company. Please provide the service person with TEST POINT ADAPTER this manual before work is started on the range. (Gas conversions are the re- The Test Point adapter is available from the sponsibility of the dealer or end user.) After-Sales Service. c. This range can be used with NATURAL or LP/PROPANE gas. It is shipped from the factory adjusted for use with NATURAL gas. d. Manifold pressure should be checked with a manometer and by operating as below detailed: • Remove the injector from the rear left (or rear right) burner and mount the proper test point adapter which is available from the After-Sales Service (see side figure and the “OPERATIONS TO BE PERFORMED WHEN SUB- STITUTING THE INJECTORS OF THE COOKTOP BURNERS” chapter).
- Page 16 CONVERSION TO LP/PROPANE GAS (OR CONVERSION BACK TO THE ORIGINAL GAS - NATURAL GAS) Every range is provided with a set of injectors for the various types of gas. Select the injectors to be replaced according to the “INJECTORS TABLE”. The nozzle diameters, expressed in hundredths of a millimetre, are marked on the body of each injector. CAUTION: Save the orifices removed from the appliance for future use. SETTING THE PRESSURE REGULATOR The pressure regulator is accessible by opening the pivoting panel (fig. 2.6); the pressure regulator is positioned on the rear right side of the range (fig. 2.7). To set the pressure regulator (fig. 2.7): 1. Unscrew the regulator cover.
-
Page 17: Injectors Table
INJECTORS TABLE LP/PROPANE NOMINAL REDUCED NATURAL GAS 11” W.C.P. 4” W.C.P. POWER POWER Ø injector Ø injector BTU/hr BTU/hr BURNERS [1/100 mm] [1/100 mm] Semirapid (SR) 8000 1500 42 (*) 70 (*) Inner crown 2100 1000 Dual (D) Inner & outer crown 17000 6500 115 (**) 200 (**) Oven burner 14000 2400 Broil burner 11000 (*) inner crown (“J ” in figure 2.9) (**) outer crown (“J ” in figure 2.9) OPERATIONS TO BE PERFORMED WHEN SUBSTITUTING THE... - Page 18 SETTING THE BURNER MINIMUM OF THE COOKTOP BURNERS When switching from one type of gas to another, the minimum flow rate must also be cor- rect: the flame should not go out even when passing suddenly from maximum to minimum flame. To regulate the flame (fig. 2.10) follow the instructions below: Semirapid burner • Light the burner. • Set the gas valve to “ ” position (minimum rate). • Remove the knob. • With a thin screwdriver, turn the regulation screw “R ” until adjustment is correct. Inside crown of DUAL burner • Light the DUAL burner. • Set the gas valve to “ ” position (minimum rate of inner crown). • Remove the knob • With a thin screwdriver, turn the regulation screw “R ” until adjustment is correct. Outside crown of DUAL burner • Light the DUAL burner. • Set the gas valve to “ ” position (minimum rate of inner and outer crowns). •...
- Page 19 OPERATIONS TO BE EXECUTED FOR THE REPLACEMENT OF THE INJECTOR OF THE OVEN BURNER • Lift and remove the lower panel inside the oven. • Gently unlock, from the burner, the safety valve probe “V” and the ignition electrode “E” (as indicated in fig. 2.11). Take care not to damage the probe and the ignition electrode. • Unscrew and remove the burner securing screws “A” (fig. 2.11). • Withdraw the burner as shown in figure 2.12. • Using a 7 mm box spanner, unscrew the injector (indicated by the arrow in fig. 2.12) and replace it with a new one selected in accordance with the “Injectors table”.
- Page 20 OPERATIONS TO BE EXECUTED FOR THE REPLACEMENT OF THE INJECTOR OF THE BROIL BURNER • Gently unlock, from the burner, the safety valve probe “V” and the ignition electrode “E” (as indicated in fig. 2.13). Take care not to damage the probe and the ignition electrode. • Unscrew and remove the burner securing screw “A” (fig. 2.13). • Withdraw the burner as shown in figure 2.14. • Using a 7 mm box spanner, unscrew the injector (indicated by the arrow in fig. 2.14) and replace it with a new one selected in accordance with the “Injectors table”. • Then replace the burner and the other components repeating the above steps in reverse order.
-
Page 21: Adjustment Of The Oven Burner Minimum
ADJUSTMENT OF THE OVEN BURNER MINIMUM This needs to be done only for the oven burner (the broil is a fixed capacity) by acting on the thermostat in the following way: • Turn on the burner by setting the thermostat knob on position “8” (maximum). • Remove the knob and unscrew the by-pass screw “G” (fig. 2.15) about three times by passing a small flat screwdriver (Ø 3 mm blade, 100 mm length) through the panel opening. • Re-mount the knob and let the oven heat up for about 10 minutes, then bring the knob to position “1” (minimum) to operate the thermostat by-pass. • After having removed the knob again and being very careful not to turn the tap rod, slowly screw the by-pass screws “G” (fig. 2.15) until you obtain a flame of 3-4 mm in height. The flame should not go out even when passing suddenly from maximum to minimum flame. N.B. For LP/PROPANE gas the by-pass screw must be fixed thoroughly. Fig. 2.15 After regulation repeat the operations indicated in paragraph “2. PRESSURE REGULA- TOR” at page 12 and 15. If the range has been disconnected and then connected again to the gas supply line repe- at the operations indicated in paragraph “5. LEAK TESTING” at page 15. IMPORTANT: • After conversion to LP/PROPANE gas has been carried out affix near the data plate the conversion label supplied and also affix a conversion label at page 3 of this in- struction manual. • After conversion back to the original gas (NATURAL GAS) has been carried out re- move, near the data plate and at page 3 of this instruction manual, the LP/PROPANE conversion labels. Save the labels removed for future use. -
Page 22: Electrical Connection
electrical connection If codes permit and a separate ground wire is used, it is recommended that a qua- lified electrician determine that the ground path is adequate. Check with a qualified electrician if you are not sure whether the range is properly grounded. Do Not ground to a gas pipe. A 120-volt, 60-Hz, AC-only, 15-ampere, fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit serving only this appliance be provided. The outlet must be checked by a qualified electrician to see if it is wired with correct polarity. This appliance, when installed, must be electrically grounded in accordance with local codes. Electrical Shock Hazard Plug into a grounded 3-prong outlet. Recommended ground method Do not remove ground prong. -
Page 23: Wiring Diagram
WIRING DIAGRAM... - Page 24 The manufacturer cannot be held responsible for possible inaccuracies due to prin- ting or transcription errors in the present booklet. The manufacturer reserves the right to make all modifications to its products dee- med necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances. Cod. 1104009 - ß3...
