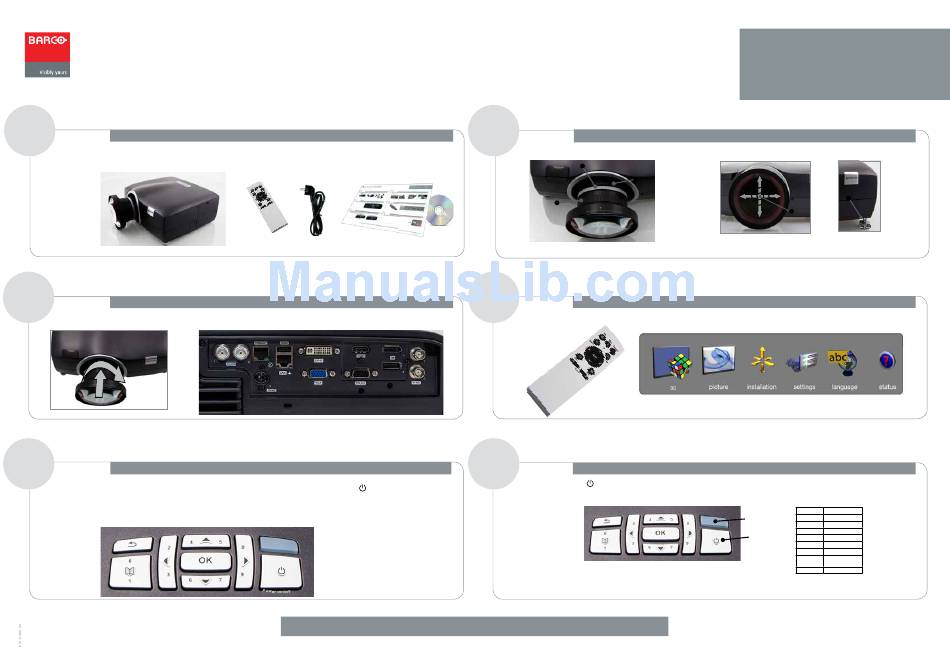

Barco CT Series Quick Start Manual

1
ge tt i n g s t a r te d
This Quick Start Guide has been designed to help you quickly getting started using your new projector. If you require further help, or have questions on the details of
how to operate this unit, please refer to our web site in order to download the complete product documentation. You can also access FAQ's and download detailed
white papers in order to get to know the more specific product features and benefits.
Packaging contents:
projector unit
2
m o u n t p r o j e c t i o n l e ns , g e t t o k n ow t h e c on n ec t or p an el
Carefully mount the projection lens. Remove protection end caps on lens and bayonet mount, then insert, and turn clockwise until it stops and a click sounds. The
connector panel at the back features a wide range of connectors for all sorts of source connections. Decide which one(s) that meet(s) your requirement(s).
3
c o n n e c t so urce s , co nn ect p owe r, p ow er on
Make sure the projector is switched off, and not connected to power when connecting to sources. Connect video and computer sources, then insert the power
cable. Power up sources, including computers and other playback devices. Power up the projector by pressing the power key (
indicate it is in operation.
CAUTION! Connecting sources to a powered projector may result in product failure. It is recommended that the power cable connector (projector-end) or the mains
power socket are accessible whilst the product is in use to enable mains power to be disconnected or switched off when connecting source devices. This should be
considered during product installation. In order to prevent damage to the projector caused by over-voltages (e.g. lightning), connect to a line (mains) circuit which has
overvoltage protection when installing.
remote control product documentation
power cable
). A steady, blue indicator light will
P le as e v is it ou r w e b si t e t o d ow n l oad f u l l u s er m a nua l o r f i nd re l a te d i nf or m at i o n
4
a dj ust pr oj ec to r se t ti ngs
Manually adjust zoom (C) to set the correct image size, shift (D) to position correctly (motorized), focus (A) for clarity and iris (B) for adjusting contrast and focus depth.
Adjust image level with the 2 feet in the front (E) and the 1 at the rear.
B
C
A
A: Focus B: Iris C: Zoom Manually adjust until optimal picture quality
5
a dj us t i ma ge a nd sys te m se t ti ngs
Change and adjust settings such as brightness and contrast, ceiling mount and rear projection display, as well as color calibration, and other system settings by using
the remote control or through the menu system that is accessible from the on-board keypad.
6
powe r of f a nd al l ow to c oo l down
To power off, press the power ( ) key once, and confirm by pressing again. Allow to cool down until all fans have stopped (a minimum of 30 seconds), and a
steady yellow indicator light shows that the projector has been safely turned off (status/color table below). Disconnect any cables, sources and power cables before
uninstalling the projector.
Features in the quick start pictures/drawings may be different from your projector depending on model/version.
When referring to the term CT series in this document, it means that the content is applicable for the following Barco
products:
• CTHD-61B (1920x1080)
• CTWU-61B (1920x1200)
• CTWQ-61B (2560x1600)
• CTPN-61B (2560x1080)
Quick Start Guide Quick Start Guide
CT series
1080/WUXGA/WQXGA
E E E E
D
D: Lens shift (operated from keypad or remote) E: Adjustable front feet/rear foot
STATUS COLOR
On (active) Blue
Indicator light
Wait on Blue flashing
Standby (off) Yellow
Power key
Wait Yellow flashing
Lamp failure Red
Overheating Red flashing
Configure/ Yellow fast flashing
upgrade
Error Red fast flashing
www.barco.com
