CLM W6
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLM W6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Barco CLM W6

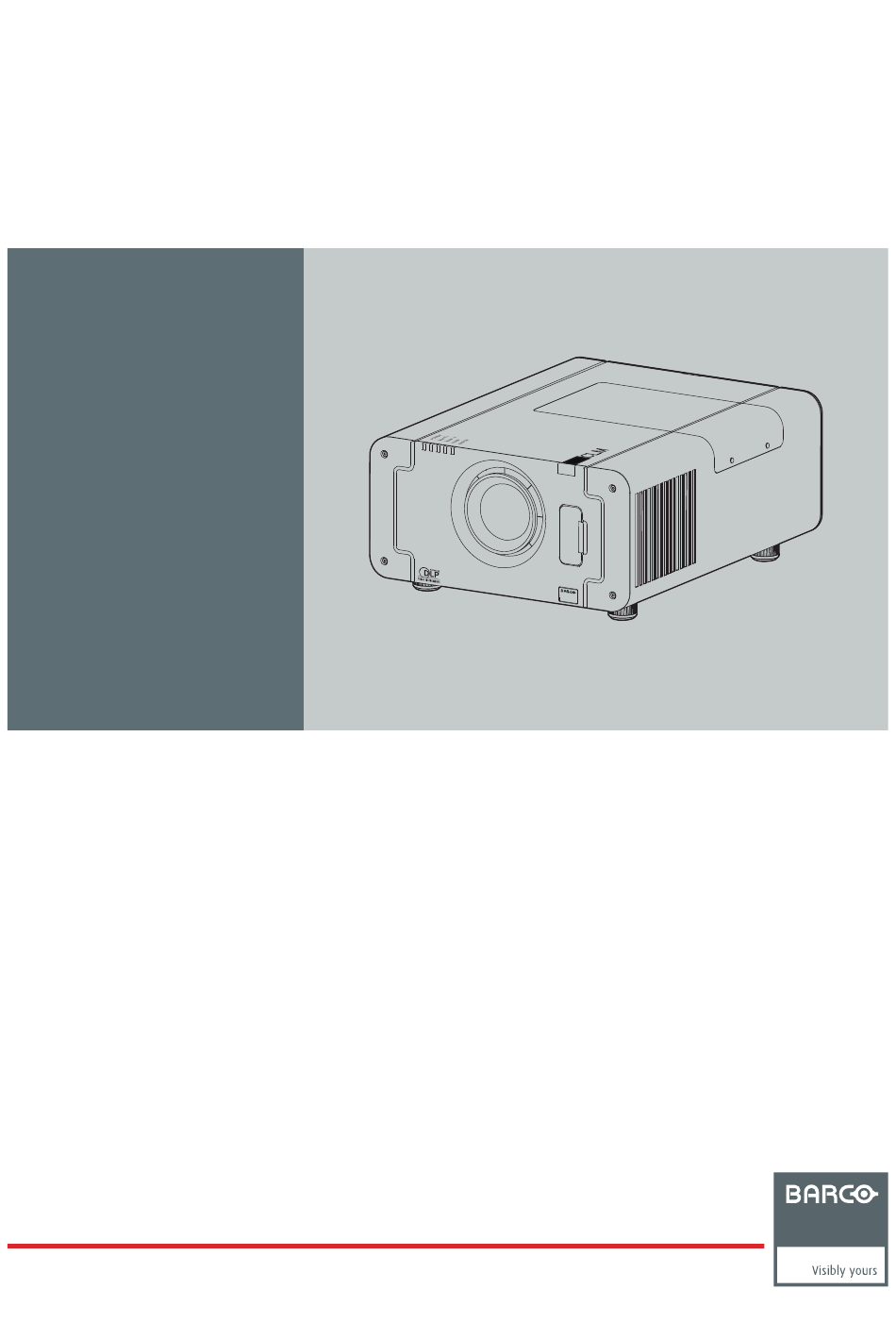

  • Page 1 CLM W6 User Guide...
  • Page 2 Barco nv Events Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.88.24 E-mail: sales.events@barco.com Visit us at the web: www.barco.com...
  • Page 3: Table Of Contents

    5.1.1 Image Problems ......................46 5.2 LED Indication Chart ......................49 5.3 Warning Message ......................50 5.4 Replacing the Lamp ......................51 5.5 Replacing the Lens ......................52 5.6 Compatibility Modes ......................53 5.7 Ceiling Mount Installation ....................54 5.8 Declaration of Conformity for EU Countries ............... 56 CLM W6...
  • Page 4: Safety

    Before operating this equipment please read this manual thoroughly, and retain  it for future reference. Installation and preliminary adjustments should be performed by qualified Barco  personnel or by authorized Barco service dealers. All warnings on the projector and in the documentation manuals should be ...
  • Page 5: Important Safety Instructions

    Lightning - For added protection for this video product during a lightning storm,  or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the projector due to lightning and AC power-line surges. CLM W6...
  • Page 6 The customer should never attempt to disas- semble the lamp casing or to dispose of the lamp casing other than by returning it to Barco. To prevent injury and physical damage, always read this manual and all labels ...
  • Page 7 Promptly ventilate the room after a lamp rupture, explosion has oc- curred, evacuate the room (particularly in case of a pregnant woman). Seek medical attention if unusual health conditions occur after a lamp rupture, explosion, such as headache, fatigue, shortness of breath, chest-tightening coughing or nausea. CLM W6...
  • Page 8 Devices™ in which case there is a loss of warranty. Save the original shipping carton and packing material; they will come in handy  if you ever have to ship your equipment. For maximum protection, repack your set as it was originally packed at the factory. CLM W6...
  • Page 9 +/- 20°. This limit ensures that the lamp in the projec- tor operates properly and safely. A: Tilting allowed without problems B: No tilting allowed in this area 20° 20° 20° 20° 20° 20° 20° 20° Front View Side View CLM W6...
  • Page 10 The exclusion zone must be not less than 40 cm (16”) for all Barco DLP projectors. The exclusion zone on the lens side must be at least 2 meter (80”).
  • Page 11  technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthor- ized substitutions may result in degraded performance and reliability, fire, elec- tric shock or other hazards. Unauthorized substitutions may void warranty.
  • Page 12: Recycling Guidelines

    HID (High Intensity Discharge ) lamps in your area. Disposal options for mercury-containing lamps Recycle through a municipal or solid waste district household hazardous waste  collection program in accordance with local regulations. Direct shipment to lamp recycler  Shipment through a hazardous waste transporter  CLM W6...
  • Page 13: Introduction

    VGA 1 & VGA 2 Standard digital input: HDMI 1 & HDMI 2  Input source compat- Max. input resolution up to WUXGA (1900 x 1200) ibility Advanced picture-in-picture  Features Digital keystone correction  Brilliant Color processing  CLM W6...
  • Page 14 FCC-A, UL, c-UL, CE, CB, TUV GS, CCC, WEEE, EU Safety Regulations RoHS and China RoHS Electromagnetic Complies with FCC rules & regulations, part 15 Class A and interference CE EN55022 Class A Dimensions W x L x H: 436 x 550 x 236 mm CLM W6...
  • Page 15: Projector Package Overview

    This projector comes with all the items shown below. Check to make sure your package is complete. Contact your dealer immediately if anything is missing. Projector Remote Control User Guide Power Cord x 3 HDMI to DVI Cable RS232 Cable CLM W6...
  • Page 16: Product Overview

    HDMI 2 MONITOR VGA 1 VGA 2 Diagnostic Indicator LED Tilt-Adjustment Feet Projection Lens Control Panel Lens Lock Door Input/Output (I/O) Panel Lamp Cover Note: The Projection Lens is optional item not a standard accessary in the package. CLM W6...
  • Page 17: Control Panel

    Select VGA 1 source HDMI 2 Select HDMI 2 source VGA 2 Select VGA 2 source Select RGBHV or YUV source on the BNC connector VIDEO Select VIDEO source YPbPr Select YPbPr source S-VIDEO Select S-VIDEO source ZOOM FOCUS Adjust zoom/focus CLM W6...
  • Page 18 Choose the desired aspect ratio IMAGE Select Image menu from OSD TEXT Text on/off Select PIP menu from OSD PAUSE Picture mute AUTO Force auto image adjustment ◄►▲▼ Navigation Keys Confirm selection or enter lens menu when ENTER no menu is on CLM W6...
  • Page 19: Input/Output (I/O) Panel

    Monitor Connector (Loop from VGA) VGA 1 Connector (PC Analog Signal/Component Video Input) VGA 2 Connector (PC Analog Signal/Component Video Input) HDMI 1 Connector HDMI 2 Connector +12V Relay Connector RS232 Connector Power Switch Power Socket (AC Input: AC100-240V~, 50-60Hz, 9.0A) CLM W6...
  • Page 20: Remote Control

    2.3.4 Remote Control Use the remote control to control these functions. Ind. Key Name Description Power on Remote control transmitter Power off HDMI 2 Select HDMI 2 source Select RGBHV or YUV source on the BNC con- nector CLM W6...
  • Page 21 FREEZ Freeze the image BRIGHT Adjust the brightness of the image PAUSE Picture mute CONT Adjust the contrast of the image PHASE Adjust the phase of pixel sampling clock ON/OFF picture-in-picture SWAP Swap main screen and PIP screen CLM W6...
  • Page 22: Installation

    VGA 1 VGA 2 +12V Relay Output ................Power Cord ................RS232 Cable ..............HDMI to DVI Cable ................VGA in Cable ................Network Cable ................VGA out Cable Note: Due to the difference in applications for each country, some regions may have different accessories. CLM W6...
  • Page 23: Connecting To Video Sources

    VGA 1 VGA 2 +12V Relay Output .................BNC Cable ................Power Cord ................S-Video Cable .............Composite Video Cable ............3 RCA Component Cable ................HDMI Cable Note: Due to the difference in applications for each country, some regions may have different accessories. CLM W6...
  • Page 24: Powering On/Off The Projector

    VGA 1 VGA 2 VIDEO S-VIDEO SHIFT IMAGE AUTO ASPECT RATIO TEXT PAUSE ENTER S-VIDEO VIDEO Power LED R/Pr B/Pb AC MAINS POWER 10/100 RS232 BASE-T HDMI 1 HDMI 2 DC12V MONITOR VGA 1 VGA 2  Power Switch CLM W6...
  • Page 25: Powering Off The Projector

    A warning message will appear on the interactive whiteboard. Switch off the projector by constantly pressing when message appears or release to abort the switch off action. CAUTION: Don’t turn on the projector immediately after entering Standby mode. CLM W6...
  • Page 26: Adjusting The Projected Image

    At 120% offset, 120% of the half image height resides above the lens center in tabletop configuration. At 20% offset, 20% of the half image width shift (left or right) from the lens center in tabletop configuration. CLM W6...
  • Page 27 3. Installation Vertical Image Offset: 0% ~ +120% +120% 100% Lens Center 110% 100% Horizontal Image Offset: +/-20% Lens Center -20% 100% 100% +20% CLM W6...
  • Page 28: User Controls

    When each item is adjusted, the projector saves the new setting. Press MENU to return to the previous menu. To exit the OSD menu, press MENU again. Submenu Setting Another Submenu Main Menu CLM W6...
  • Page 29: Input Menu

    The projector turns on automatically when switch on projector after con- necting power. Off: Default value. The projector stays off when AC power is applied.  The user must power on the projector. On: The projector turns on automatically when switch on projector after  connecting power. CLM W6...
  • Page 30 Always: Default value. Always execute the function of image\Auto image  even if the timing is the same as previous source. Off: Never execute the function of image\Auto image.  Auto: Execute the function of image\Auto image when you get a different  timing then previous source. CLM W6...
  • Page 31: Image Menu

    Adjust the tint (color balance between red and green) of the image. Press the ◄ to increase the amount of green in the image.  Press the ► to increase the amount of red in the image.  CLM W6...
  • Page 32 1.88: The input image is resized to a 1.88:1 aspect ratio.  2.35: The input image is resized to a 2.35:1 aspect ratio.  Unscaled: 1:1 mapping center (If the resolution is bigger than the chip  resolution, the image will be cropped.) CLM W6...
  • Page 33 After executing this command, the projector will enter the search status. After the signal is reacquired, the image settings (H start, H total, H phase, V start) will be optimized for the input signal. CLM W6...
  • Page 34 (DVD, TV, etc.) White Peaking Change the level of added white in the picture. Note: White peaking function is only available for CLM W6. Press the ◄ to decrease the white peaking.  Press the ► to increase the white peaking.
  • Page 35: Layout Menu

    VGA 2     S-Video Video     PIP Position Set the position of the PIP window. Top right: Default value for this function.  Top left  Bottom left  Bottom right  CLM W6...
  • Page 36 Large: PIP window is about 1/4 the width of the entire display.  Activate the PIP window. Off: Default value. The PIP function is disabled and only main window is  visible. On: The PIP image is on top of the main image.  CLM W6...
  • Page 37: Lamps Menu

    Set lamp power level of the projector. Note: Power function will not be available if you have set the lamp to Eco or Normal modes. Press the ◄ to decrease the power level.  Press the ► to increase the power level.  CLM W6...
  • Page 38 Off: Change only at start up (also switch if a lamp fails).  Lamp 1 Status Display the lamp 1 status On/Off. Lamp 2 Status Display the lamp 2 status On/ Off. Lamp 1 Runtime Display the current lamp runtime. Lamp 2 Runtime Display the current lamp runtime. CLM W6...
  • Page 39: Alignment Menu

    Left/Right: Lens shift left/right.  UP/Down: Lens shift up/down.  Enter to zoom/focus: Each time enter is pressed it will go from zoom/fo-  cus to shift to zoom/focus. Warp Keystone: Adjust horizontal/vertical keystone.  Pincushion: Adjust horizontal/vertical pincushion.  CLM W6...
  • Page 40 Blue x Blue y     Press the ◄ to decrease the custom color space.  Press the ► to increase the custom color space.  Lens to Midposition Set the lens in the center/on axis position. CLM W6...
  • Page 41: Control Menu

    The remote control LED indicator will blink twice to confirm the new remote control address. Custom 4:  Press ADDRESS and LEFT buttons together for IR address 4. The remote control LED indicator will blink twice to confirm the new remote control address. CLM W6...
  • Page 42 Top right  Bottom Left  Bottom right  Start Up Logo Display the logo in the start up screen. On: Logo will be displayed at start up of the projector.  Off: Display a blank image.  CLM W6...
  • Page 43 It takes about 2 minutes for screen capture  Recommend input resolution for CLM W6 is 1280 x 800, and CLM HD6  is 1920 x 1080 Do not use signal with de-interlace.
  • Page 44: Service Menu

    Display the current resolution of the current source. Pixel Clock Display the pixel clock of the current input signal. Vert. Refresh Display the current vertical refresh rate of the current source. Hor. Refresh Display the current horizontal refresh rate of the current source. CLM W6...
  • Page 45 On: Projector always displays blue color.  Off: Default value.  Factory Reset Set all persistent settings back to default values. This function will not apply to items including No Signal, Network, Start Up Logo, Screen Capture, Language, Lamp Hours and Projector Hours. CLM W6...
  • Page 46: Appendices

    Click on “Show all devices”. Next, select “Standard monitor types” under the SP box; choose the resolution mode you need under the “Models” box.  Verify that the resolution setting of the monitor display is lower than or equal to WUXGA (1920 × 1200). CLM W6...
  • Page 47 Change the monitor color setting on your computer. Image has vertical flickering bar  Use “AUTO IMAGE” to make an adjustment. Check and reconfigure the display mode of your graphic card to make it compatible with the projector. CLM W6...
  • Page 48 Lamp burns out or makes a popping sound  When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. CLM W6...
  • Page 49: Led Indication Chart

    Lamp Striking Fail (Both) Flashing Lamp Striking Fail (Lamp 1) Flashing Lamp Striking Fail (Lamp 2) Flashing Lamp 1 Error (Lamp, Ballast) Flashing Flashing Lamp 2 Error (Lamp, Ballast) Flashing Flashing System Error Flashing Flashing Flashing Download Mode CLM W6...
  • Page 50: Warning Message

    When you see the warning message, it means the lamp is failed to light on. Overheating: When you see the warning message, it means the temperature is over operational temperature. Note: Please contact service people when you see those warning messages! CLM W6...
  • Page 51: Replacing The Lamp

    Unscrew the four screws on the lamp cover. Lift up the lamp handle and remove the lamp module slowly and carefully. To replace the lamp module, reverse the previous steps. Turn on the projector and use “Lamp Hour Reset” after the lamp module is replaced. CLM W6...
  • Page 52: Replacing The Lens

    To replace the lens module, reverse the previous steps. Lens cap should be removed before installing. If not it will damage the projector. Note: Please verify that all the plastic caps removed from the lens prior inserting in the projector. CLM W6...
  • Page 53: Compatibility Modes

    1080i (Aus) 1080i 59.94 1080i 720p 720p 59.94 HDTV 720p 1080p 23.98 1080p 1080p 1080p 29.97 1080p 1080p 1080p 59.94 1080p Note: 1440 x 480i & 1440 x 576i only support HDMI data format (data stream with AVI) CLM W6...
  • Page 54: Ceiling Mount Installation

    5. Appendices 5.7 Ceiling Mount Installation To prevent damage to your projector, please use the BARCO ceiling mount.  Part no. of the ceiling mount kit:  Required R9849999 (ceiling mount) + R9801030 CLM HD6/ W6 ceiling mount adaptor ...
  • Page 55 Screw size will vary depending on the thickness of the mounting plate. Be sure to keep at least 10 cm gap between the ceiling and the bottom  of the projector. Avoid installing the projector near a heat source.  CLM W6...
  • Page 56: Declaration Of Conformity For Eu Countries

    R & TTE Directive 1999/5/EC (if product has RF function)  Disposal instructions Don't throw this electronic device into the trash when you discard it. To minimize pollution and ensure utmost protection of the global environment, please recycle it. CLM W6...
